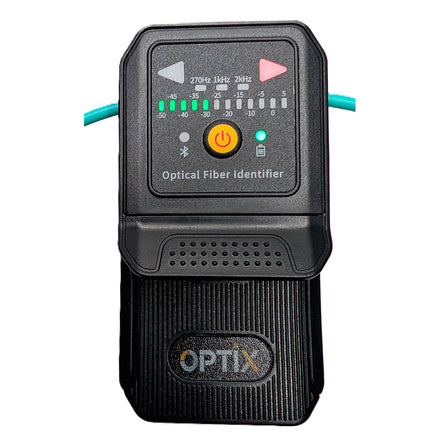

Optix America Mini Optical Fiber Identifier for 250µm, 900µm, 2mm, and 3mm
SKU#: OFI-28M
UPC#:
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Detects attenuation, signal direction, and approximate optical power using macrobending measurement
- Compatible with 250µm, 900µm, 2mm, and 3mm diameter fiber cables
- Tone identification at fixed frequencies of 270Hz, 1kHz, and 2kHz
- Detects optical signal direction and intensity with insertion loss less than 1dB at 1310nm and 1550nm
- Bell-shaped groove fiber clamp ensures low insertion loss and prevents fiber damage
- Universal adapter supports multiple fiber diameters without changing blocks
- Built-in 500 mAh lithium battery provides up to 24 hours of operation
- Type-C charging interface for convenient recharging
- Includes a protective soft carrying case
- Specs+
- Package Contents+
- OFI-28M Mini Optical Fiber Identifier
- User manual
- Calibration certificate
- soft case
- Reviews+
- Detects attenuation, signal direction, and approximate optical power using macrobending measurement
- Compatible with 250µm, 900µm, 2mm, and 3mm diameter fiber cables
- Tone identification at fixed frequencies of 270Hz, 1kHz, and 2kHz
- Detects optical signal direction and intensity with insertion loss less than 1dB at 1310nm and 1550nm
- Bell-shaped groove fiber clamp ensures low insertion loss and prevents fiber damage
- Universal adapter supports multiple fiber diameters without changing blocks
- Built-in 500 mAh lithium battery provides up to 24 hours of operation
- Type-C charging interface for convenient recharging
- Includes a protective soft carrying case
- OFI-28M Mini Optical Fiber Identifier
- User manual
- Calibration certificate
- soft case

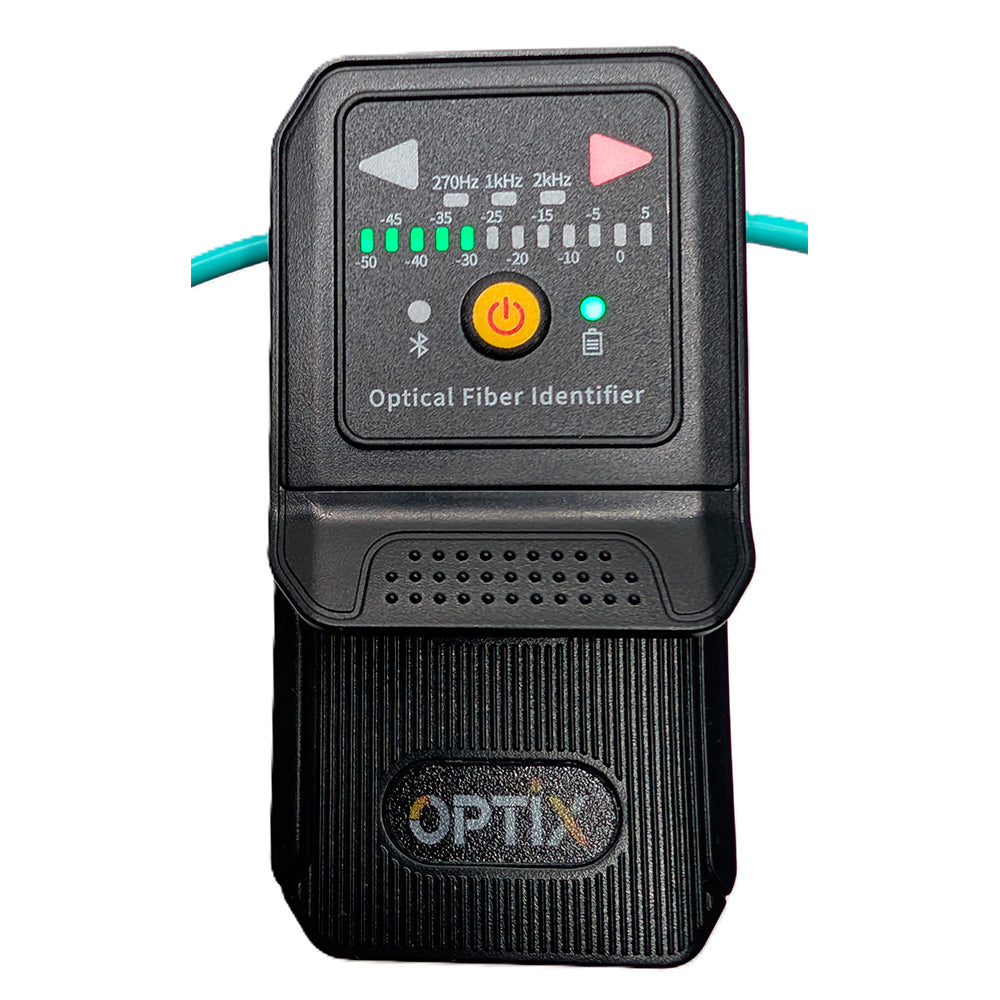

Mini Optical Fiber Identifier for 250µm, 900µm, 2mm, and 3mm
The OPTIX America mini optical fiber identifier features a compact, convenient design ideal for field use. It accurately detects attenuation, signal direction, and approximate optical power through macrobending measurement on 250µm, 900µm, 2mm, and 3mm diameter fiber cables. The unit supports tone identification at fixed frequencies of 270Hz, 1kHz, and 2 kHz, and detects both the direction and intensity of optical signals with insertion loss of less than 1dB at 1310nm and 1550nm. A bell-shaped groove fiber clamp ensures low insertion loss while preventing damage to the fiber. The identifier is powered by a built-in 500mAh lithium battery that provides up to 24 hours of operation and recharges conveniently via a Type-C interface. A universal adapter accommodates multiple fiber diameters without the need to change blocks, and the unit is supplied with a protective soft carrying case.
Mini Optical Fiber Identifier for 250µm, 900µm, 2mm, and 3mm
The OPTIX America mini optical fiber identifier features a compact, convenient design ideal for field use. It accurately detects attenuation, signal direction, and approximate optical power through macrobending measurement on 250µm, 900µm, 2mm, and 3mm diameter fiber cables. The unit supports tone identification at fixed frequencies of 270Hz, 1kHz, and 2 kHz, and detects both the direction and intensity of optical signals with insertion loss of less than 1dB at 1310nm and 1550nm. A bell-shaped groove fiber clamp ensures low insertion loss while preventing damage to the fiber. The identifier is powered by a built-in 500mAh lithium battery that provides up to 24 hours of operation and recharges conveniently via a Type-C interface. A universal adapter accommodates multiple fiber diameters without the need to change blocks, and the unit is supplied with a protective soft carrying case.
