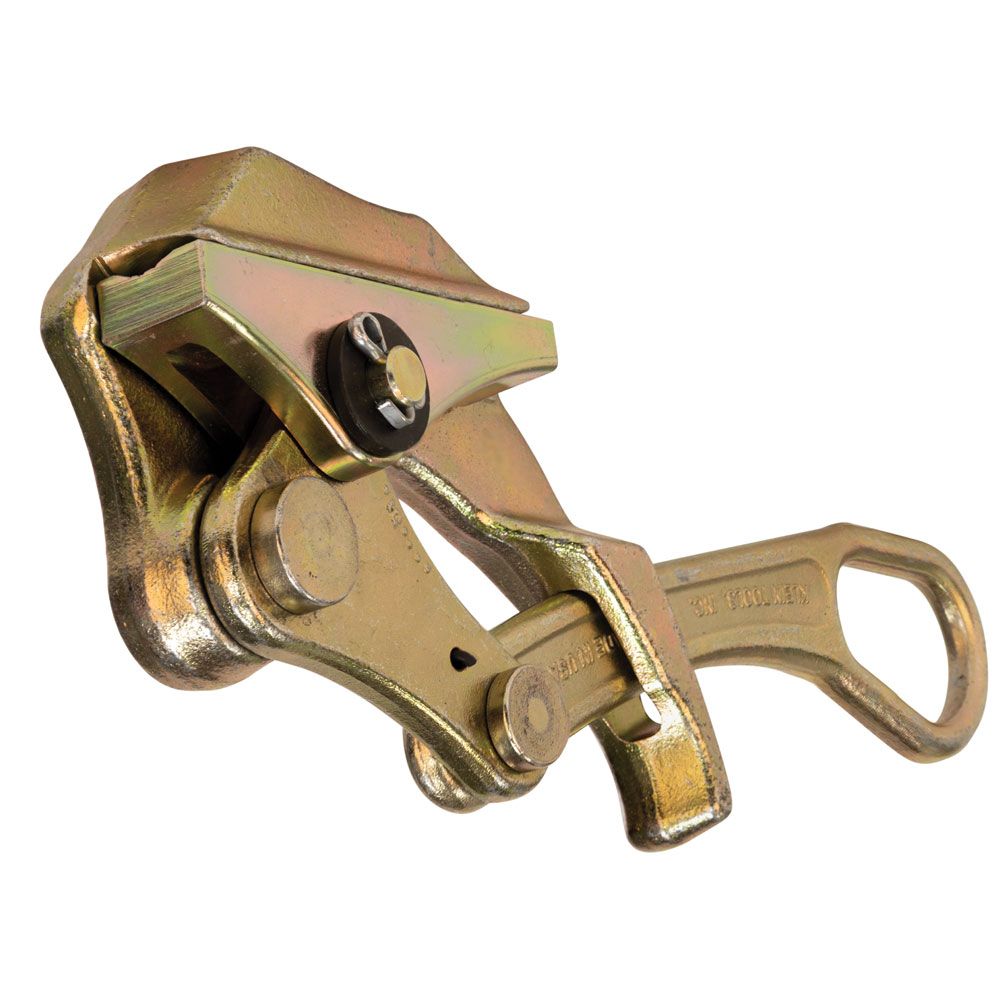

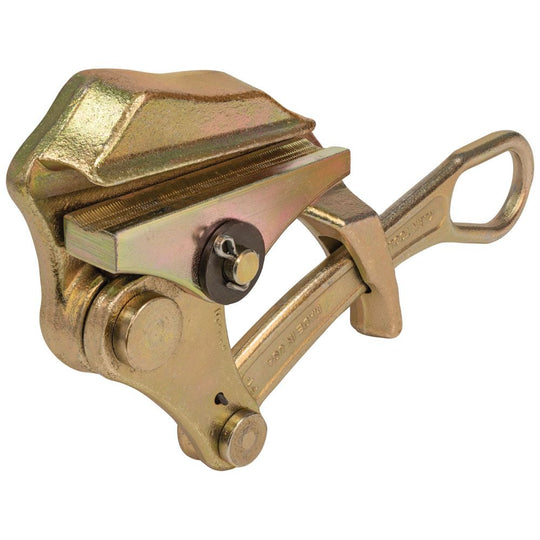

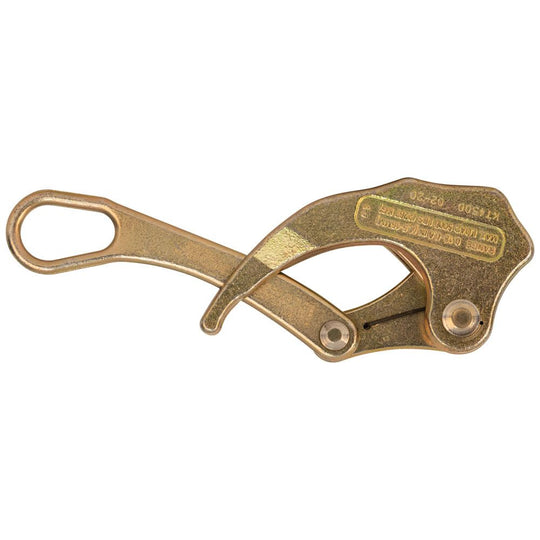

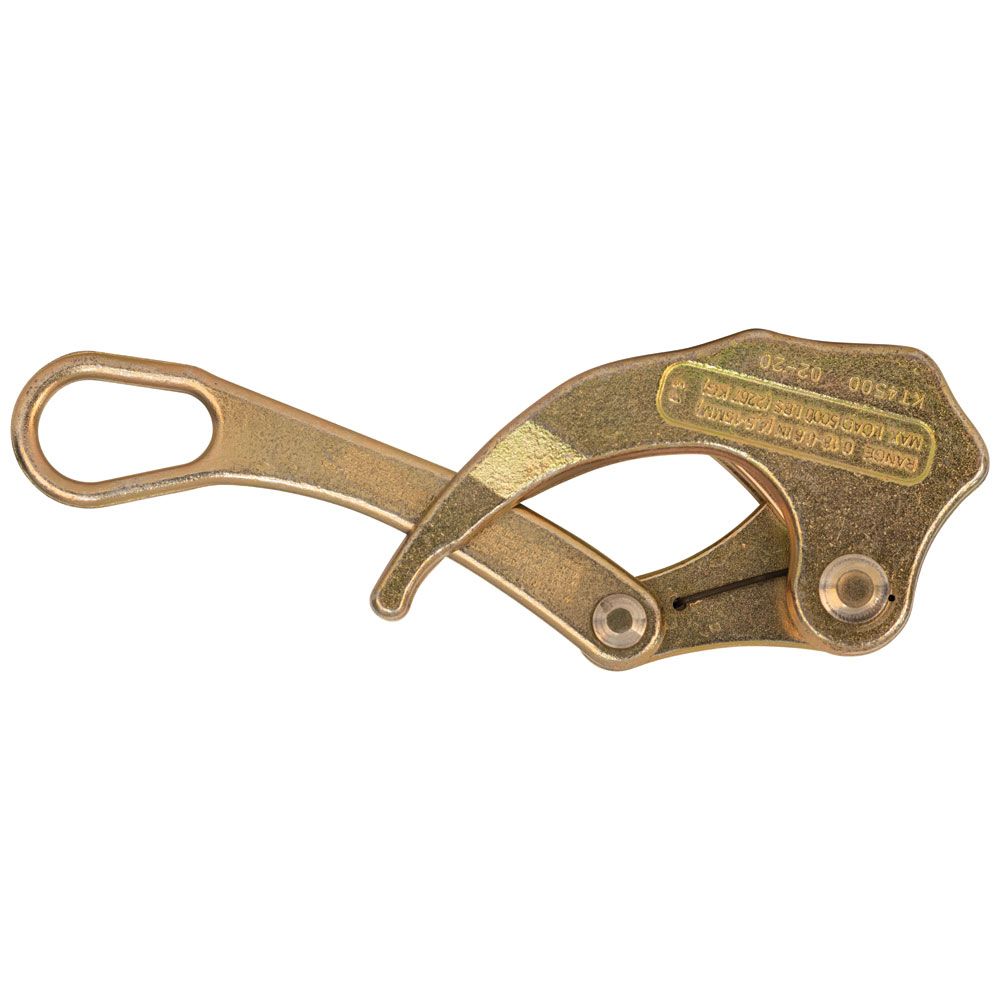

Klein Tools Parallel Jaw Grip 4500 Series for Guy Strand, EHS, Coated Cable, KT45005C
SKU#: KT45005C
UPC#:092644470714
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
- Description+
- Features+
- Versatile grip holds a wider range of Guy Strand, EHS and coated cable sizes reducing the number of grips needed
- Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.24 mm) diameter cable range

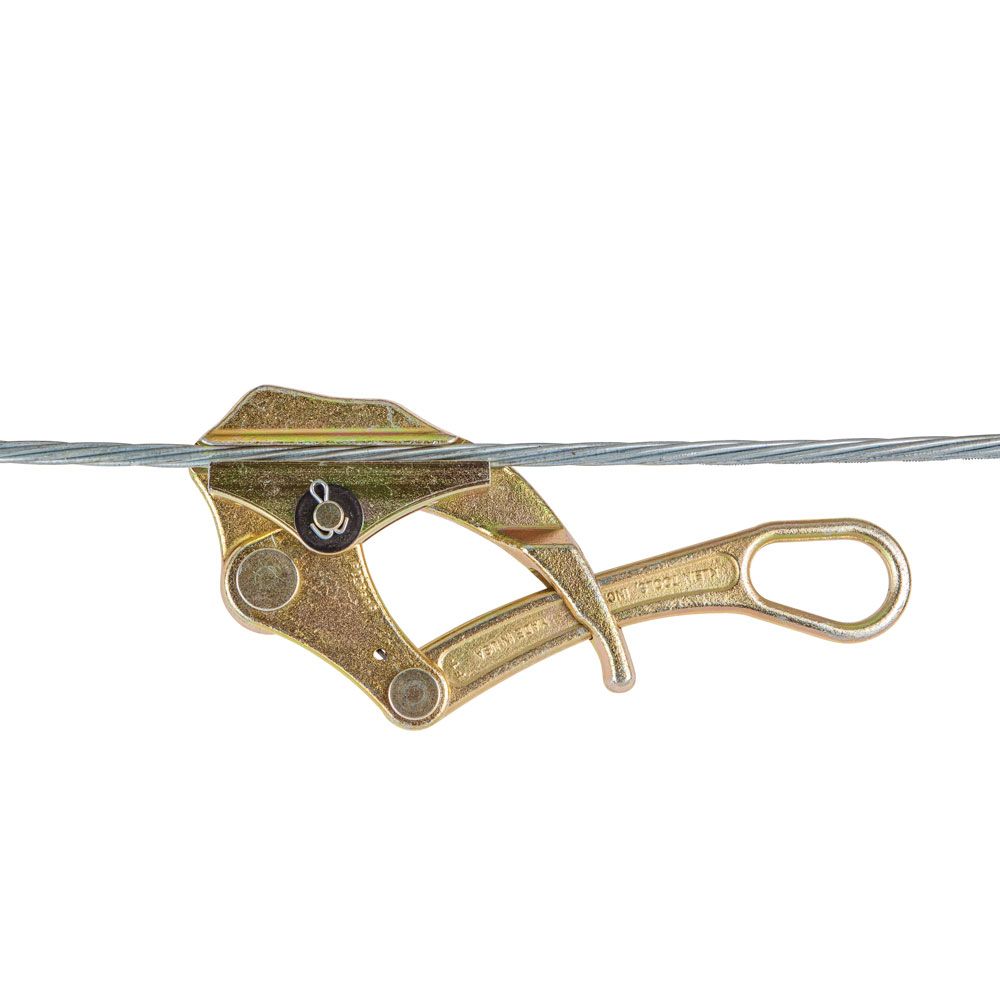

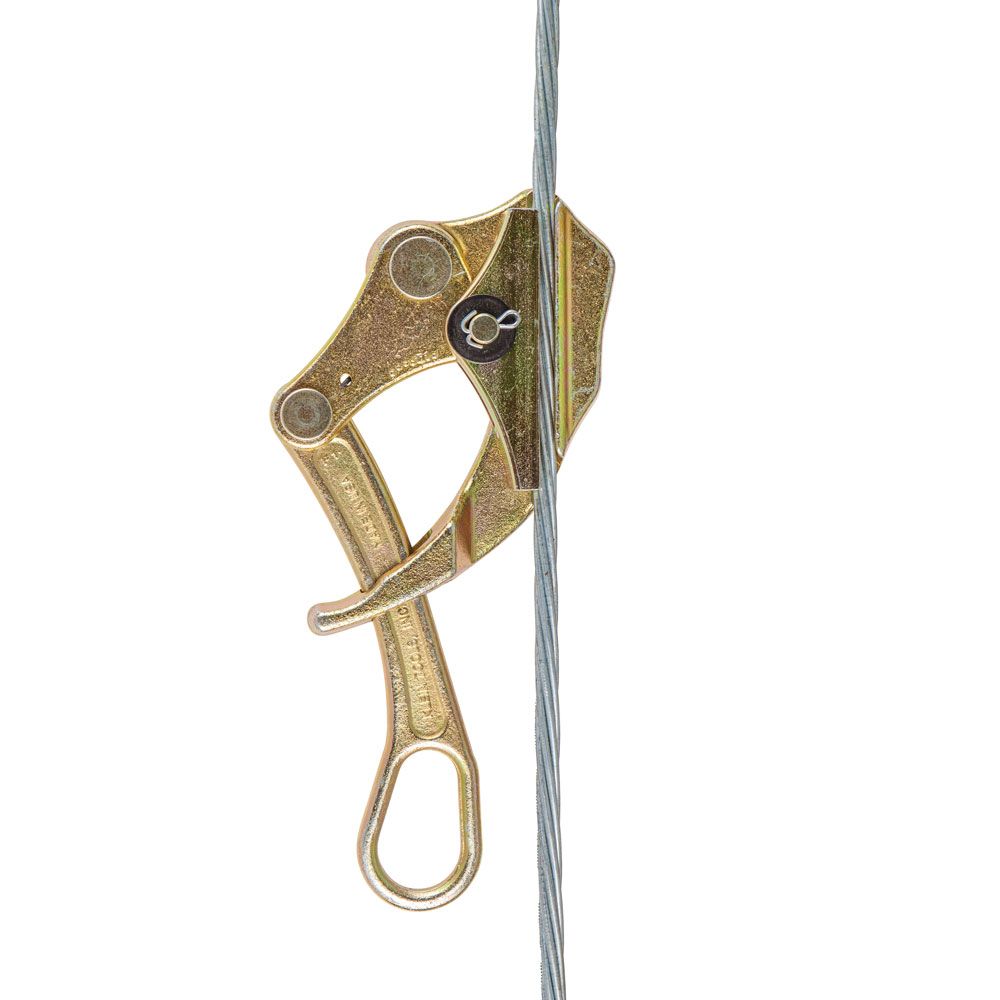

- Spring closes grip on cable to hold the initial position

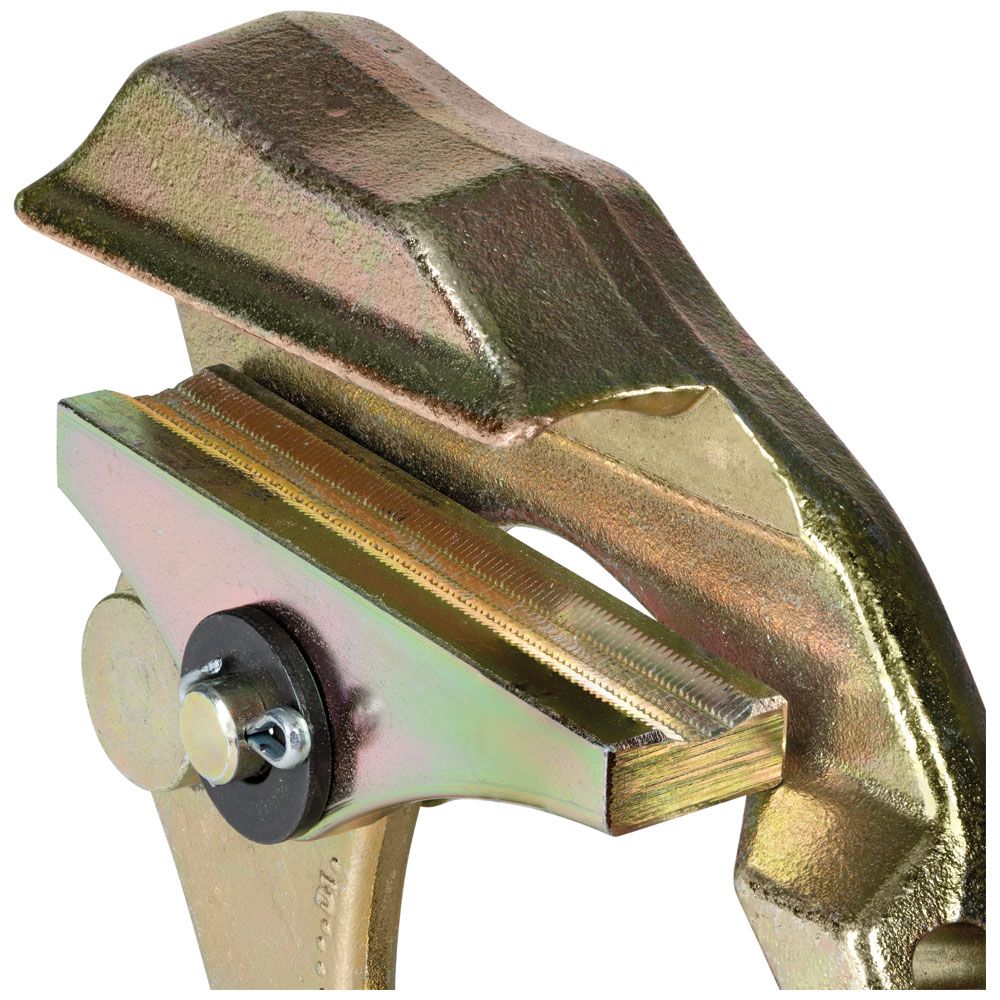

- Sawtooth jaw profile ensures optimal grip strength on guy strand and EHS cables

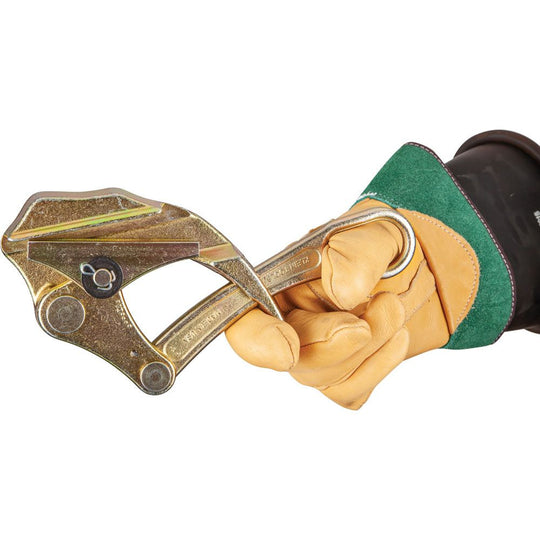

- Spring?loaded for easy one?handed operation

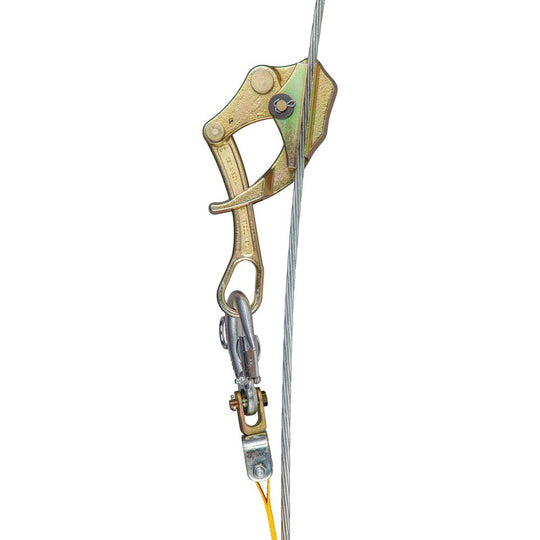

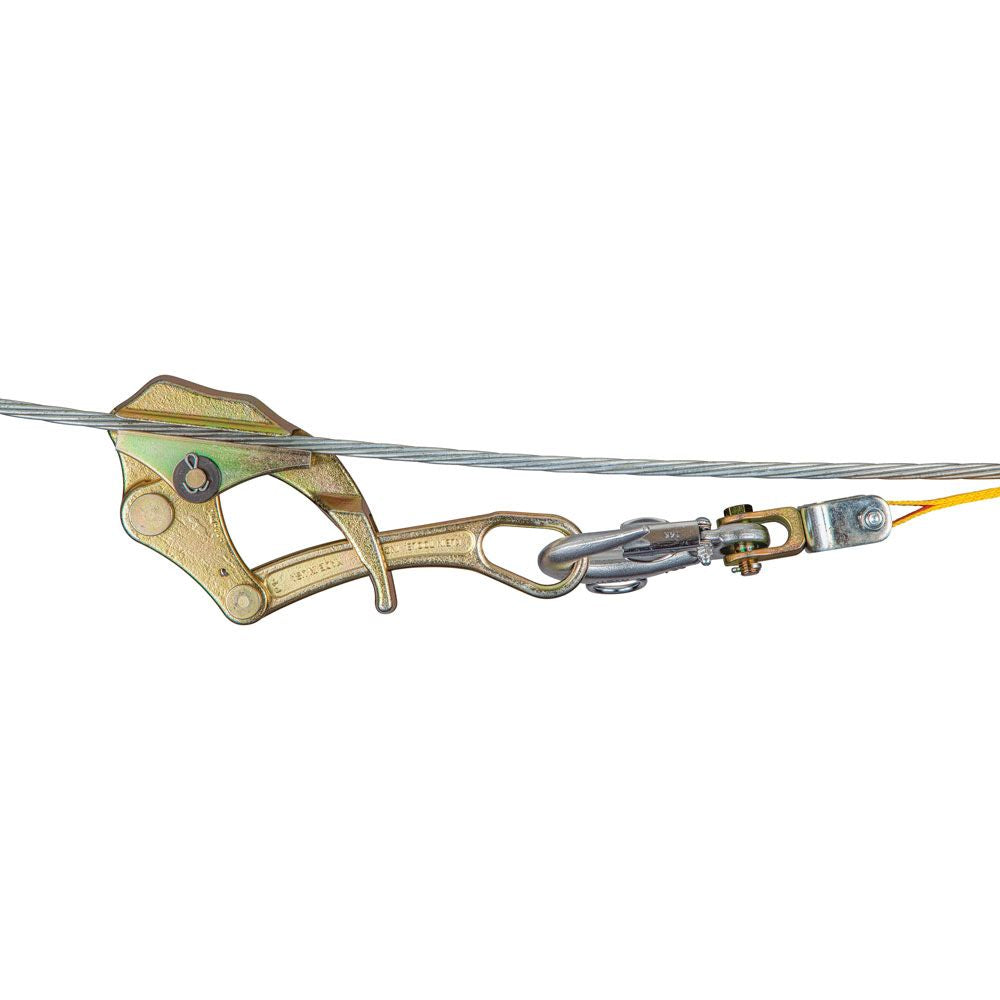

- Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 5000-Pound (2268 kg)
- Alternating sawtooth jaw geometry provides greater grip strength
- Longer jaw increases surface area contact with cable eliminating cable damage
- Designed to work with galvanized guy wire
- Spring helps maintain cable position in grip jaw
- Specs+
- Type: Parallel Jaw Grip
- Application: Cable Pulling
- Special Features: Sawtooth Jaw Profile Ensures Optimal Grip Strength on the Cable/Wire
- Overall Length: 10.9'' (27.7 cm)
- Overall Height: 4.6'' (11.7 cm)
- Overall Width: 1.9'' (4.8 cm)
- Material: Steel
- Cable Type: Guy Strand, EHS, Coated
- Cable Diameter: 0.18'' to 0.6'' (4.57 to 15.2 mm)
- Hot Latch: N
- Swing Latch: No
- Spring: Y
- Locking Handle: No
- Jaw Type: Round - Serrated
- Jaw Length: 4'' (10.2 cm)
- Maximum Safe Load: 5000 lb (2268 kg)
- Weight: 3.8 lb (1.7 kg)
- UPC: 092644470714
- Reviews+
- Versatile grip holds a wider range of Guy Strand, EHS and coated cable sizes reducing the number of grips needed
- Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.24 mm) diameter cable range
- Spring closes grip on cable to hold the initial position
- Sawtooth jaw profile ensures optimal grip strength on guy strand and EHS cables
- Spring?loaded for easy one?handed operation
- Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 5000-Pound (2268 kg)
- Alternating sawtooth jaw geometry provides greater grip strength
- Longer jaw increases surface area contact with cable eliminating cable damage
- Designed to work with galvanized guy wire
- Spring helps maintain cable position in grip jaw
- Type: Parallel Jaw Grip
- Application: Cable Pulling
- Special Features: Sawtooth Jaw Profile Ensures Optimal Grip Strength on the Cable/Wire
- Overall Length: 10.9'' (27.7 cm)
- Overall Height: 4.6'' (11.7 cm)
- Overall Width: 1.9'' (4.8 cm)
- Material: Steel
- Cable Type: Guy Strand, EHS, Coated
- Cable Diameter: 0.18'' to 0.6'' (4.57 to 15.2 mm)
- Hot Latch: N
- Swing Latch: No
- Spring: Y
- Locking Handle: No
- Jaw Type: Round - Serrated
- Jaw Length: 4'' (10.2 cm)
- Maximum Safe Load: 5000 lb (2268 kg)
- Weight: 3.8 lb (1.7 kg)
- UPC: 092644470714
This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 to 0.60-Inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.
This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 to 0.60-Inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.
