Kendall Howard Phantom Class Open Frame Swing-Out Rack

SKU#: 1915-3-800-12

UPC#:879447004182

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

SKU#: 1915-3-800-12

UPC#:879447004182
$199.99

SKU#: 1915-3-800-12

UPC#:879447004182
Rack Units:

SKU#: 1915-3-800-12

UPC#:879447004182

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

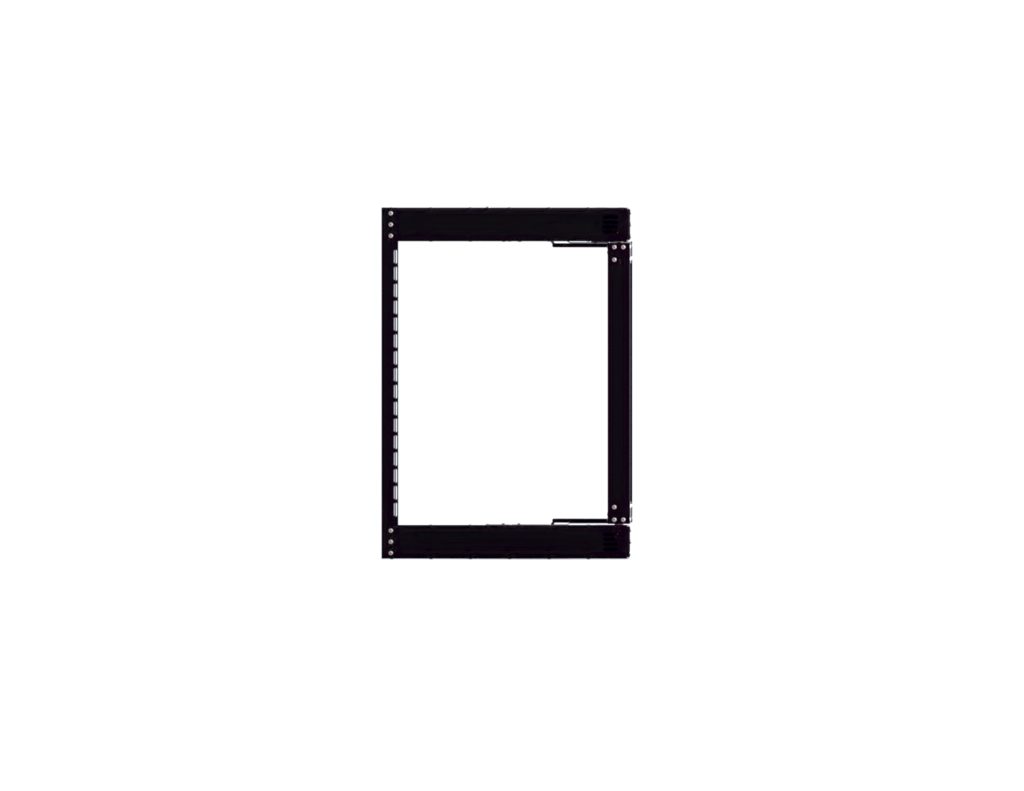

Kendall Howard Phantom Class Open Frame Swing-Out Rack

The Phantom Class® Open Frame Swing-Out Rack is truly in a class of its own. The unrivaled quality allows you to install rackmount equipment up off the floor, and it can easily support up to 150 lbs, with its 20" usable depth. The 90 degree swing-out provides installers the access they need to install and manage patch panels, routers, hubs, switches, cabling, and other networking devices.

  • One set of 10-32 tapped rails
  • 150 lb. weight capacity
  • 20" usable mounting depth
  • 19" EIA compliant
  • Ships knocked down
  • Made in the USA
  • Limited Lifetime Warranty

Features+

90 Degree Swing-Out
Pivoting rackmount frame swings out 90 degrees to easily access the rear of installed network equipment. Integrated positive stop prevents the gate from being opened more than 90 degrees to avoid causing damage or stress to cabling and connection points. A simple latching mechanism securely holds the swing gate in the closed position when finished.

Easy to Assemble
Knockdown design reduces shipping charges and assembles in a snap. With just a few steps the rack is easy to assemble, and with the 16″ on center mounting holes you can mount directly to your wall studs.

Numerous Cable Lacing Points
Both the front and rear of the wall rack feature oblong cut outs for securing cable bundles. Simply use your preferred cable ties or hook and loop straps.

Open Back Design
Backless design allows the rack to be installed over existing equipment such as network or electrical conduit, wall mounted equipment, and more. Perfect for upgrading a network that already is in use because you don’t have to disconnect cables and spend time re-terminating. Just feed the device through the top, back or sides and mount into place.

Specs+

  • Material(s): CRS (Cold Rolled Steel)
  • Color/Finish: Black Powder Coated Finish
  • One set of 10-32 tapped rails
  • 150 lb. weight capacity
  • 20" usable mounting depth
  • 19" EIA compliant
  • Width: (12U) 21.09", (18U) 21.09
  • Depth: (12U) 22.12", (18U) 22.12
  • Height: (12U) 31.24", (18U) 41.74
  • Weight: (12U)38.50lbs, (18U) 42.65lbs

Package Contents+

  • Main Frame (1)
  • Front Angled Brace (2)
  • Rear Angled Brace (2)
  • Swing-Out Brace (2)
  • Upper Stop Bracket w/ Latch (1)
  • Lower Stop Bracket (1)
  • Assembly Parts Pack (1)

Reviews+

Kendall Howard Phantom Class Open Frame Swing-Out Rack

The Phantom Class® Open Frame Swing-Out Rack is truly in a class of its own. The unrivaled quality allows you to install rackmount equipment up off the floor, and it can easily support up to 150 lbs, with its 20" usable depth. The 90 degree swing-out provides installers the access they need to install and manage patch panels, routers, hubs, switches, cabling, and other networking devices.

  • One set of 10-32 tapped rails
  • 150 lb. weight capacity
  • 20" usable mounting depth
  • 19" EIA compliant
  • Ships knocked down
  • Made in the USA
  • Limited Lifetime Warranty

90 Degree Swing-Out
Pivoting rackmount frame swings out 90 degrees to easily access the rear of installed network equipment. Integrated positive stop prevents the gate from being opened more than 90 degrees to avoid causing damage or stress to cabling and connection points. A simple latching mechanism securely holds the swing gate in the closed position when finished.

Easy to Assemble
Knockdown design reduces shipping charges and assembles in a snap. With just a few steps the rack is easy to assemble, and with the 16″ on center mounting holes you can mount directly to your wall studs.

Numerous Cable Lacing Points
Both the front and rear of the wall rack feature oblong cut outs for securing cable bundles. Simply use your preferred cable ties or hook and loop straps.

Open Back Design
Backless design allows the rack to be installed over existing equipment such as network or electrical conduit, wall mounted equipment, and more. Perfect for upgrading a network that already is in use because you don’t have to disconnect cables and spend time re-terminating. Just feed the device through the top, back or sides and mount into place.

  • Material(s): CRS (Cold Rolled Steel)
  • Color/Finish: Black Powder Coated Finish
  • One set of 10-32 tapped rails
  • 150 lb. weight capacity
  • 20" usable mounting depth
  • 19" EIA compliant
  • Width: (12U) 21.09", (18U) 21.09
  • Depth: (12U) 22.12", (18U) 22.12
  • Height: (12U) 31.24", (18U) 41.74
  • Weight: (12U)38.50lbs, (18U) 42.65lbs
  • Main Frame (1)
  • Front Angled Brace (2)
  • Rear Angled Brace (2)
  • Swing-Out Brace (2)
  • Upper Stop Bracket w/ Latch (1)
  • Lower Stop Bracket (1)
  • Assembly Parts Pack (1)
