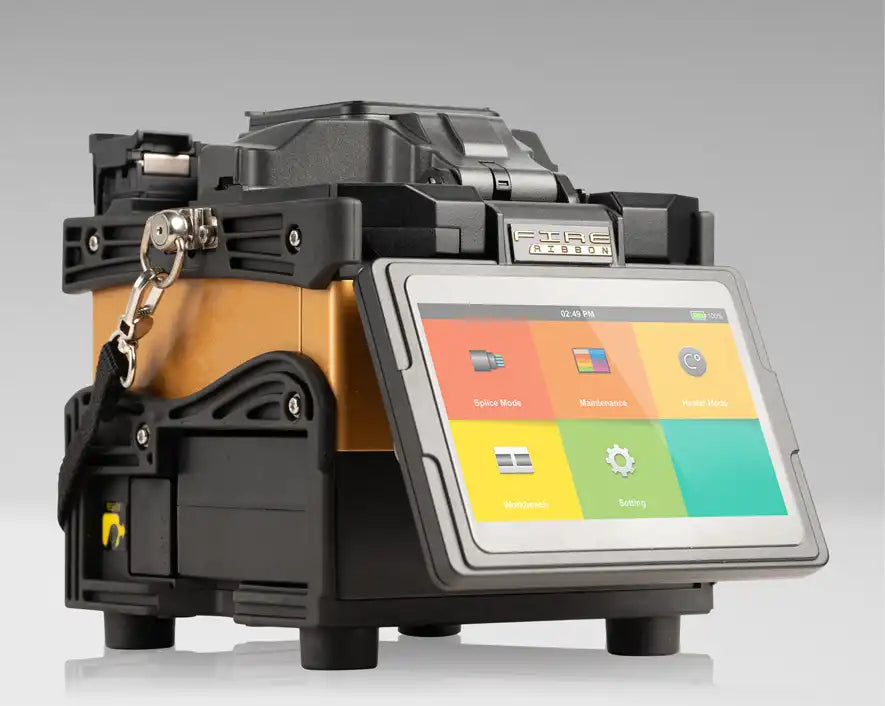

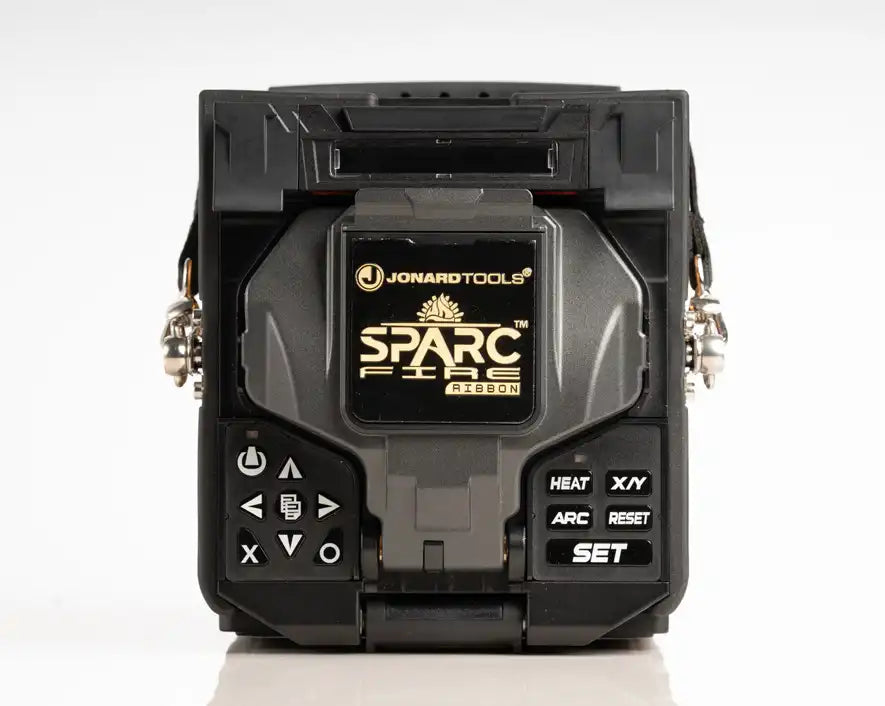

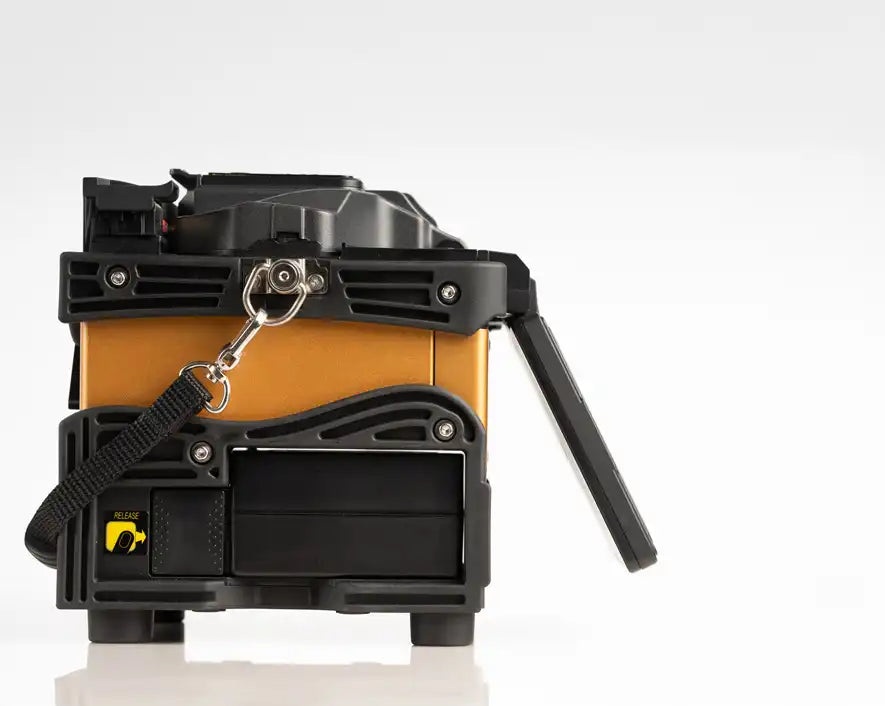

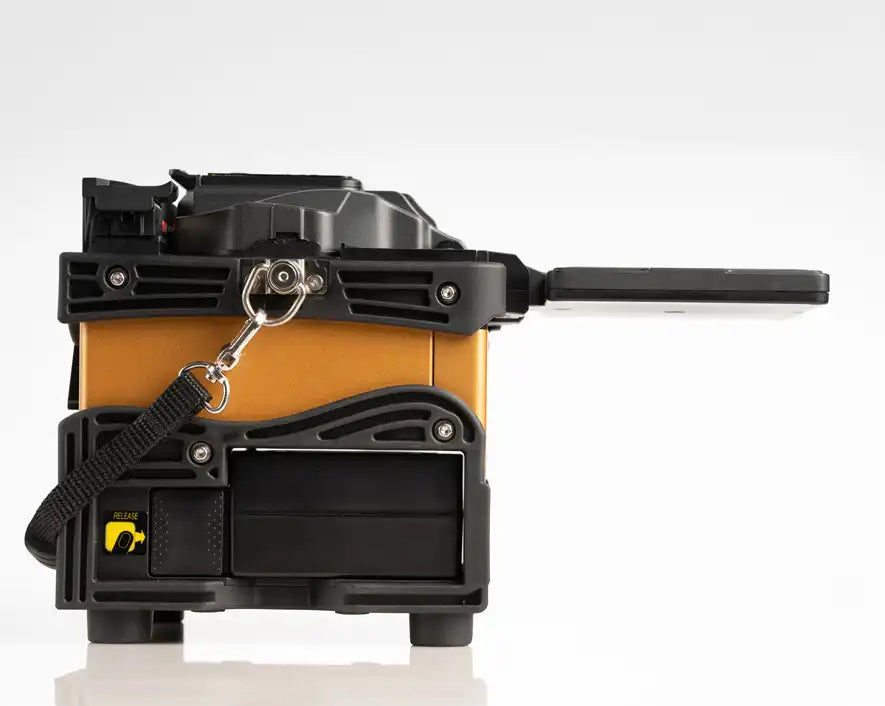

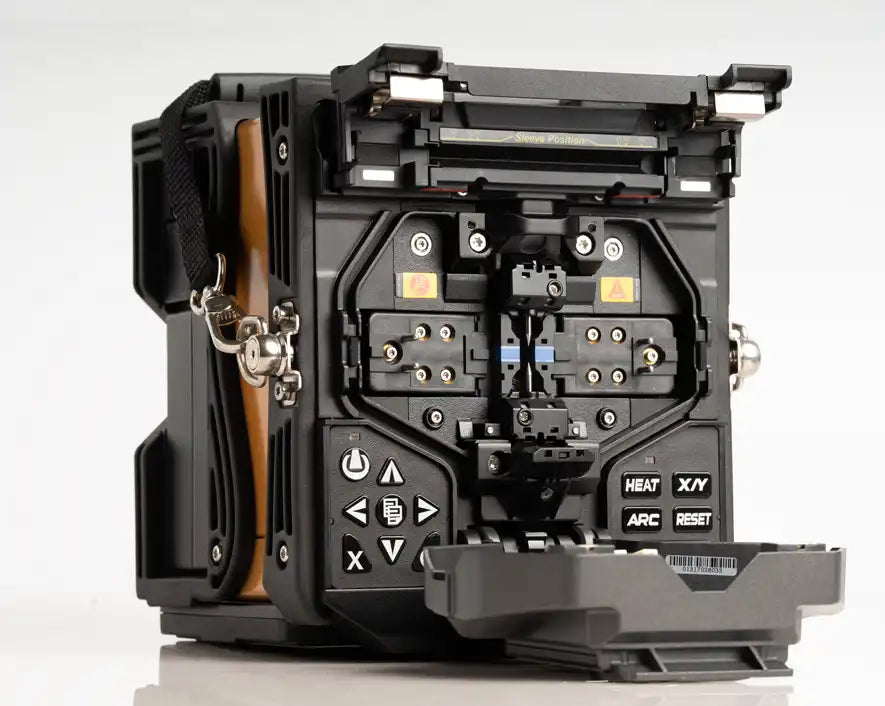

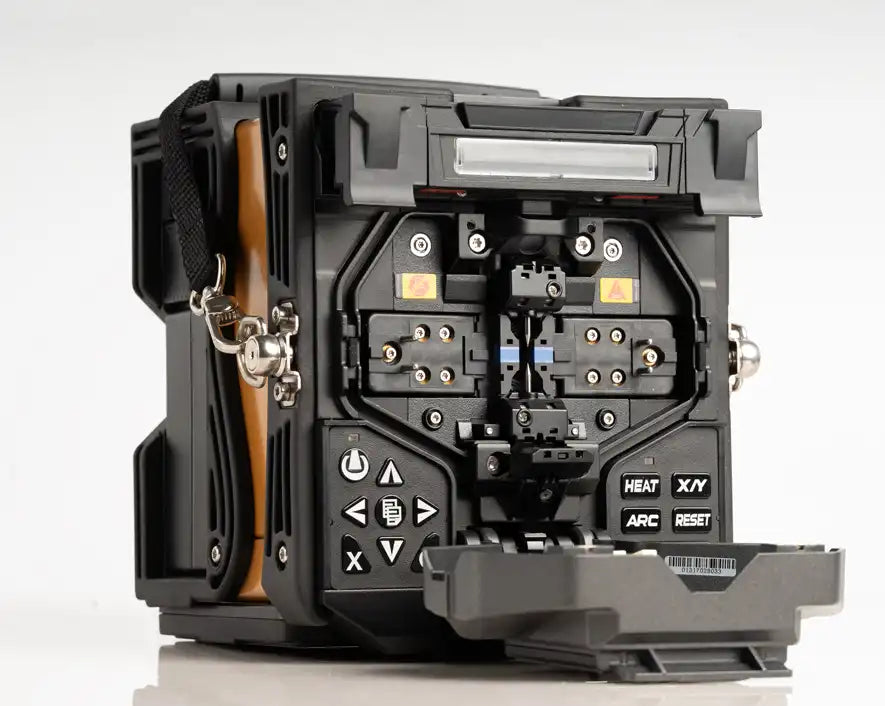

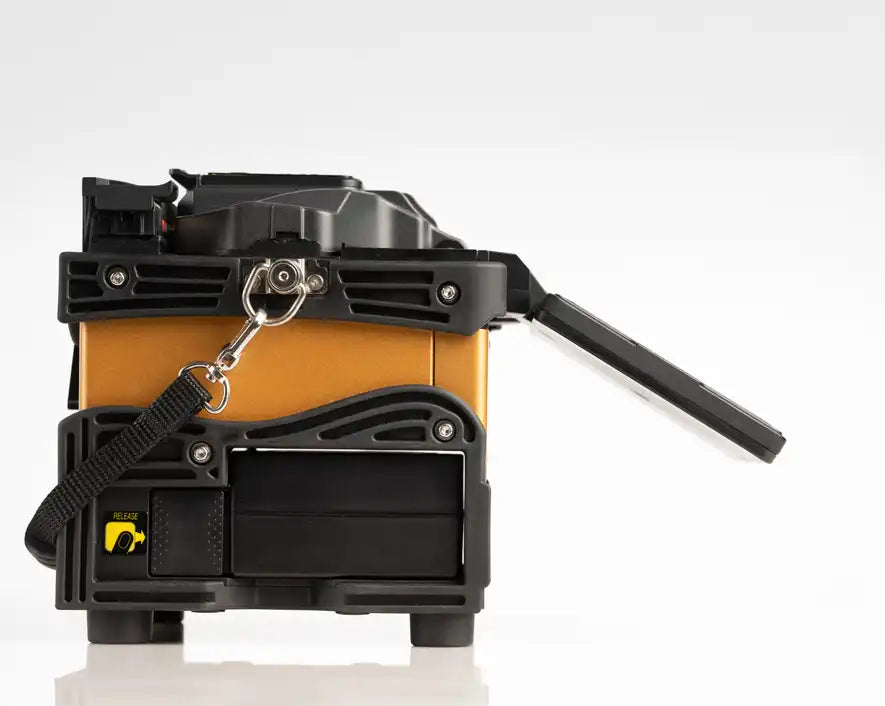

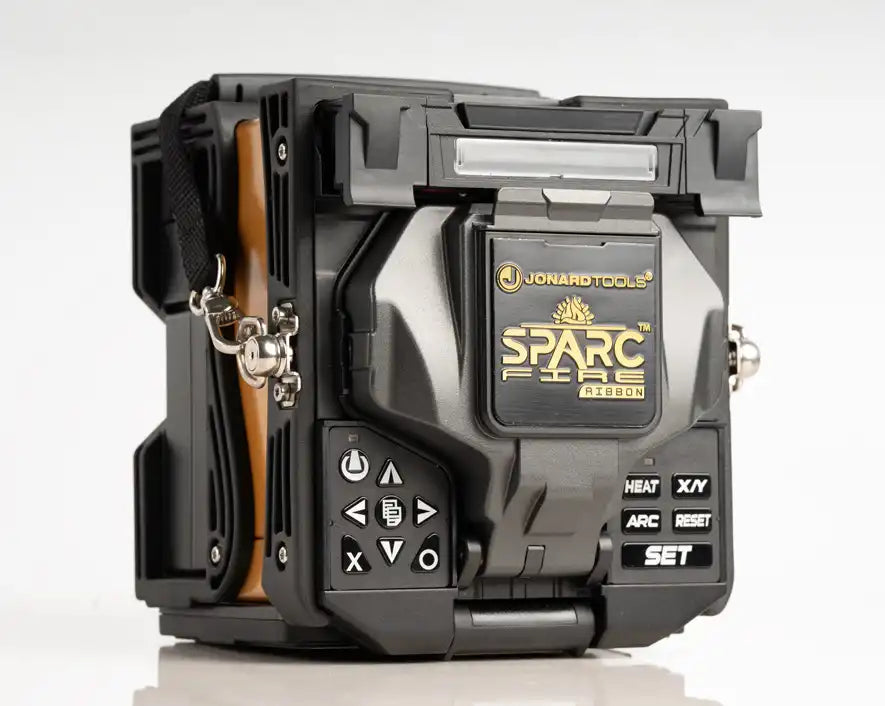

Jonard Tools SPARC Fusion Splicer, Ribbon Fiber
SKU#: SPRI-1
UPC#:810132438004
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Splices fiber optic cables in as little as 15 seconds for ribbon fiber or 9 seconds for single fibers
- Pressure Heater Technology reduces heating time to only 20 seconds
- Versatile fiber holders to easily switch between different sizes of ribbon fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 9000 mAh battery provides up to 220 cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 5,000 test results
- Specs+
- Package Contents+
- Reviews+
- Splices fiber optic cables in as little as 15 seconds for ribbon fiber or 9 seconds for single fibers
- Pressure Heater Technology reduces heating time to only 20 seconds
- Versatile fiber holders to easily switch between different sizes of ribbon fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 9000 mAh battery provides up to 220 cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 5,000 test results

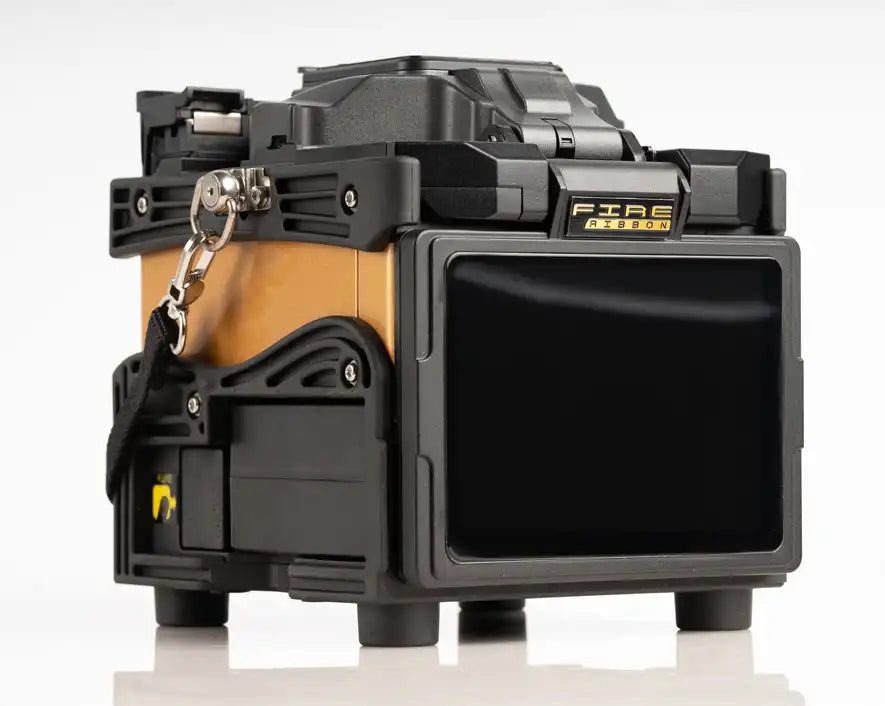

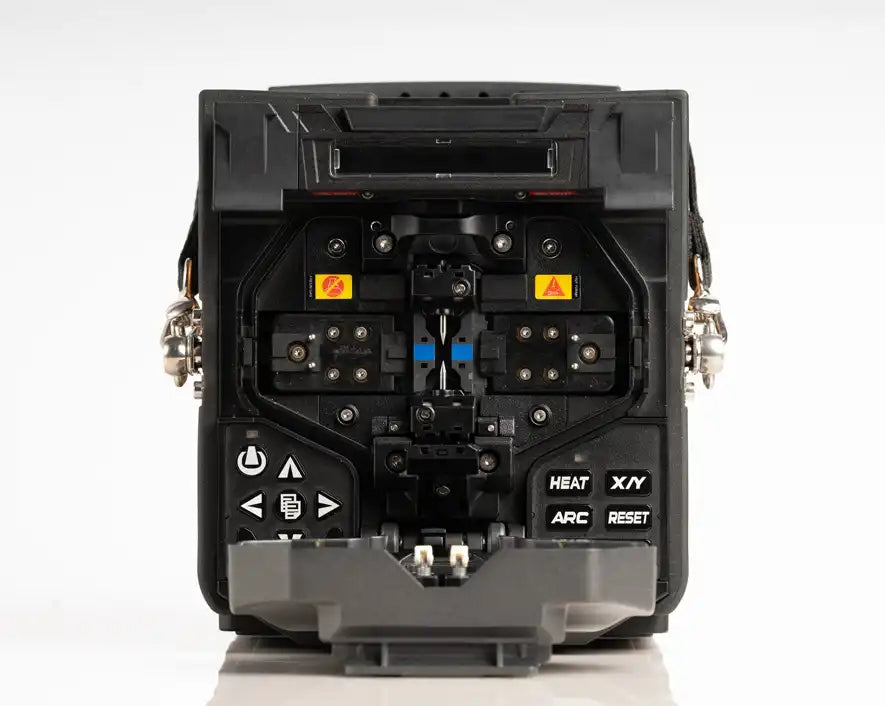

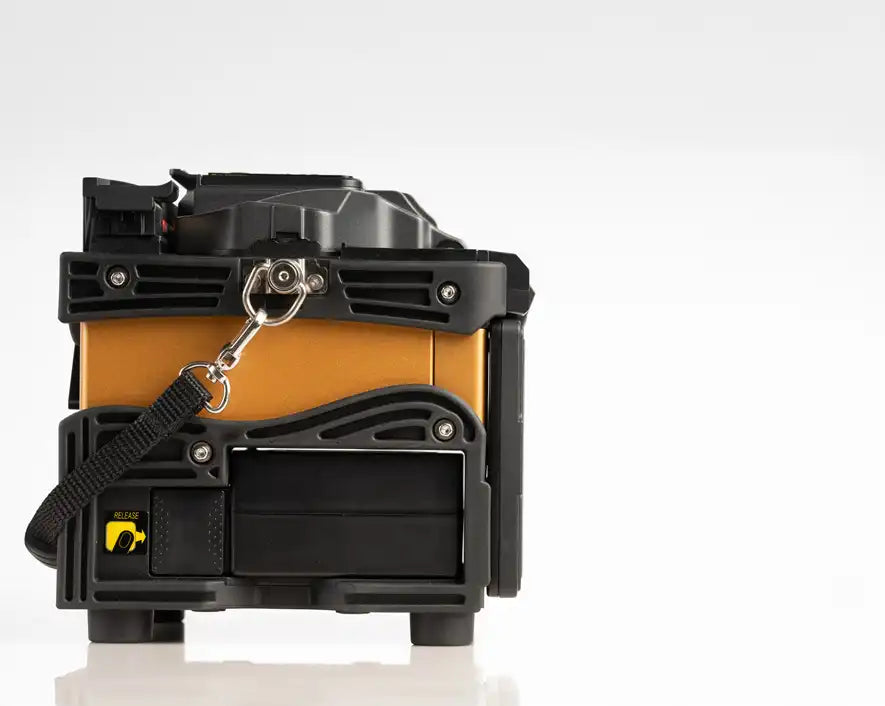

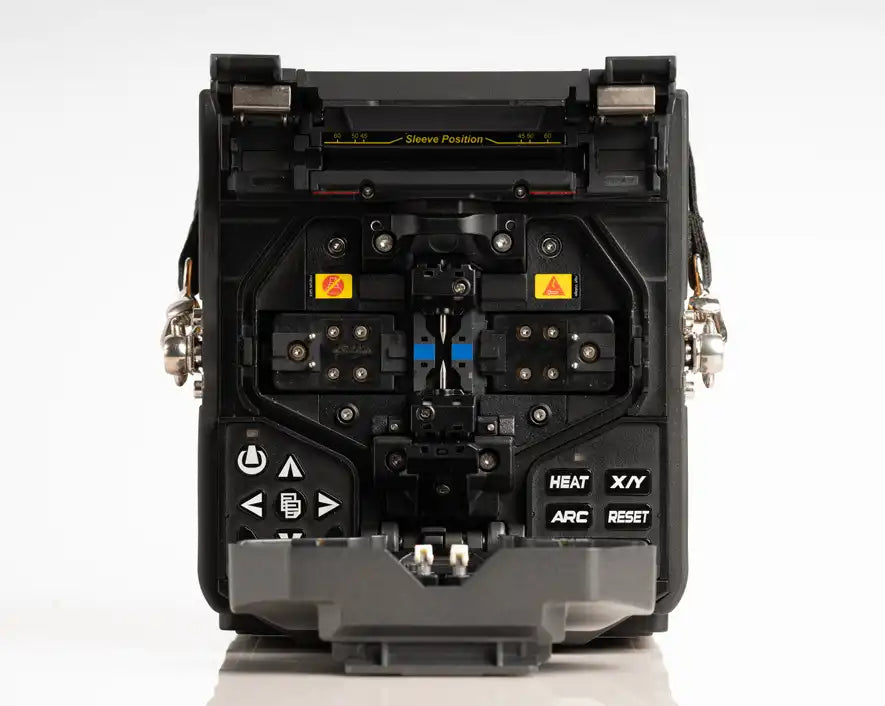

SPARC Fusion Splicer, Ribbon Fiber
The SPARC core Alignment Fusion Splicer is an advanced Ribbon Fiber Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
| Alignment Method |
Clamp Alignment System |
|---|---|
| Number of Fibers |
1, 2, 4, 6, 8, 10, 12 |
| Applicable Fibers |
SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655) |
| Compatible Fiber |
Ribbon : 0.25~0.4 mm / Single: 250 μm & 900 μm |
| Cladding Diameter |
125 µm |
| Cleave Length |
10 - 13 mm |
| Typical Splice Loss |
SM: 0.05 dB / MM: 0.02dB / DS: 0.08dB / NZDS: 0.08dB (ITU-T standard) |
| Return Loss |
>>60 dB |
| Splice Time |
Ribbon fiber: 15 sec / Single fiber: 9 sec |
| Splice Programs |
Max 100 modes |
| Automatic Calibration |
Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span |
1500 Arc Discharges |
| Heating Programs |
Max 32 modes |
| Heating Time |
Typical 20 sec |
| Protection Sleeve Length |
60mm, 50mm, 40mm, Micro |
| Data Output |
USB-C |
| Splice Memory |
5,000 results |
| Battery Capacity |
9000mAh Battery Capacity / Typical 220 times (Splice + Heat) |
| Power Supply |
AC Input 100 - 240V, DC Input 9 - 19V |
| Monitor |

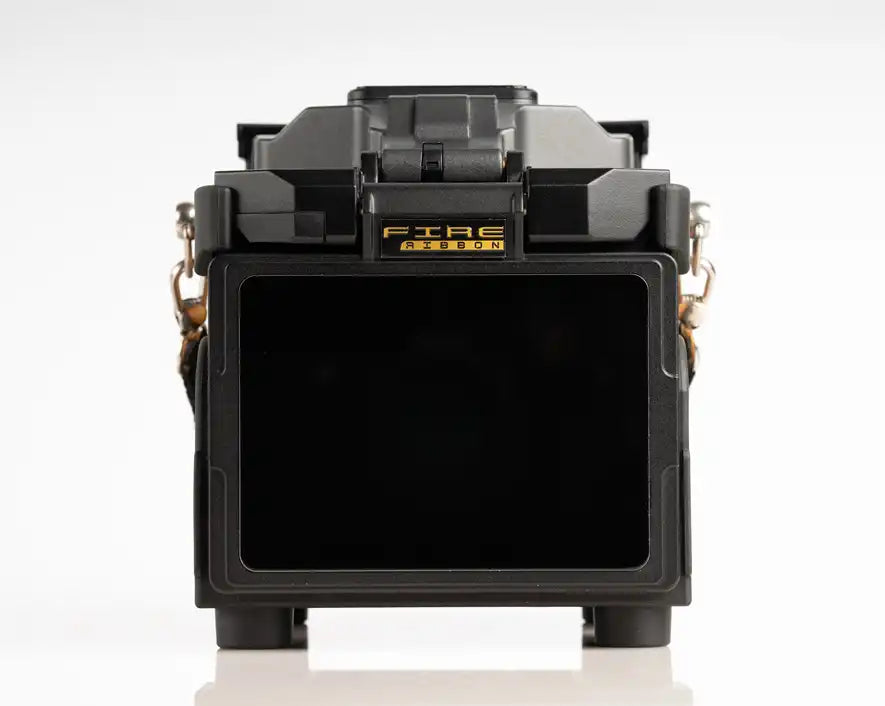

5.0" Color LCD display, Full Touch Screen |
| Fiber View & Magnification |
X, Y, XY, X/Y : 250X Magnification |
| Pull Test |
1.96 - 2.25 N |
| Product Main Color | Black/Gold |
| Dimensions | 6.8" x 6.5" x 6.5" (17.27 cm x 16.51 cm x 16.51 cm) |
| Weight | 6 lb (2721.55 g) |
| UPC # | 810132438004 |
| FC-800 | SPARC Blade Fiber Cleaver |
| JIC-375 | Fiber Optic Stripper, Three Hole |
| JIC-186 | Wire & Kevlar® Cutting Shears |
| FW-5 | Fiber Wipes, Wet (Pack of 5) |
| FDC-66 | Fiber Scraps Disposal Can |
| CWP-125 | Pointed Cotton Swabs, Pack of 125 |
| FSP-RI | SPARC Fusion Splicer, Ribbon Fiber |
| FH-SOC | SPARC SOC Holder |
| HH-SOCR | SPARC SOC Heater Holder for Ribbon Fiber |
| ADP-65JH | SPARC AC Adapter |
| FSP-E50 | SPARC Electrodes (1 Spare) |
| ADP-PC | SPARC Power Cable |
| H-2000 | SPARC Carrying Case |
| FSP-STP | SPARC Shoulder Strap |
| FSP-CTR | SPARC Cooling Tray |
| FSP-B30 | SPARC Battery Pack |
