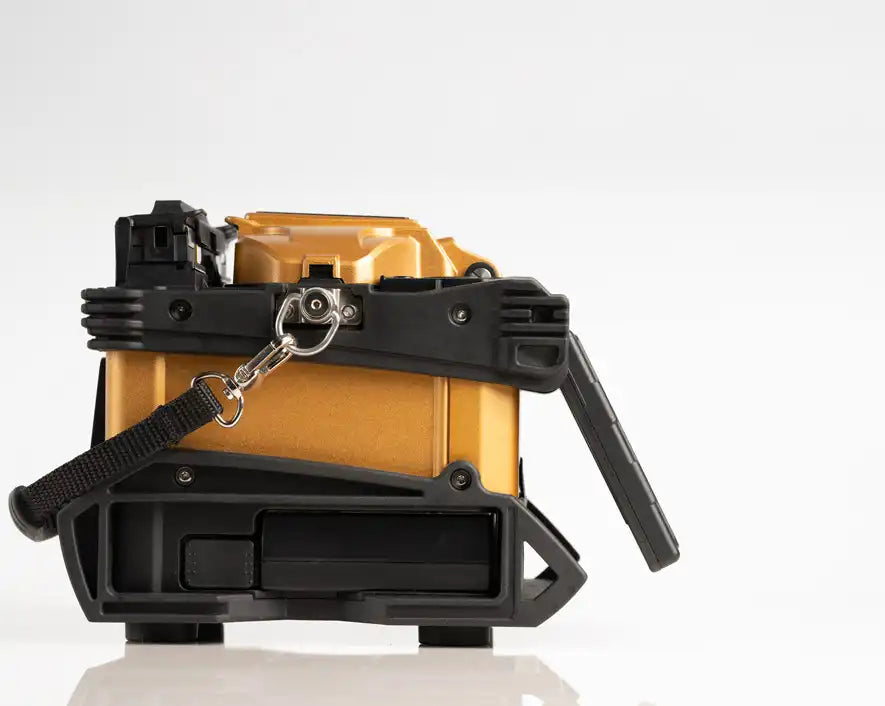

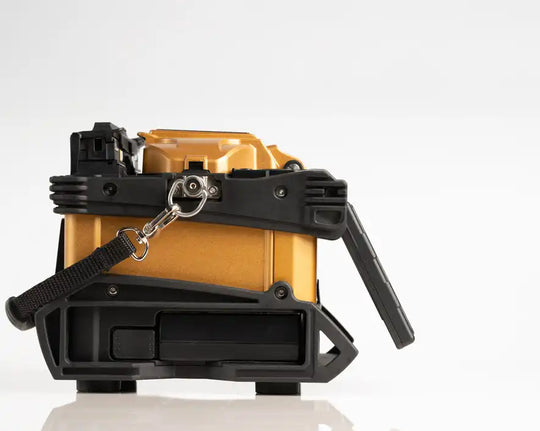

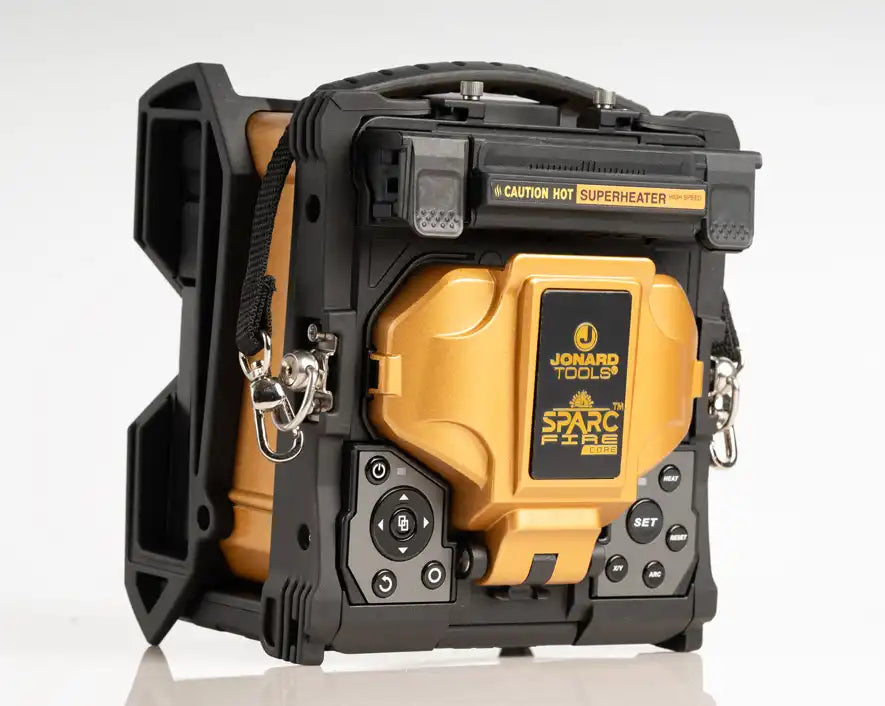

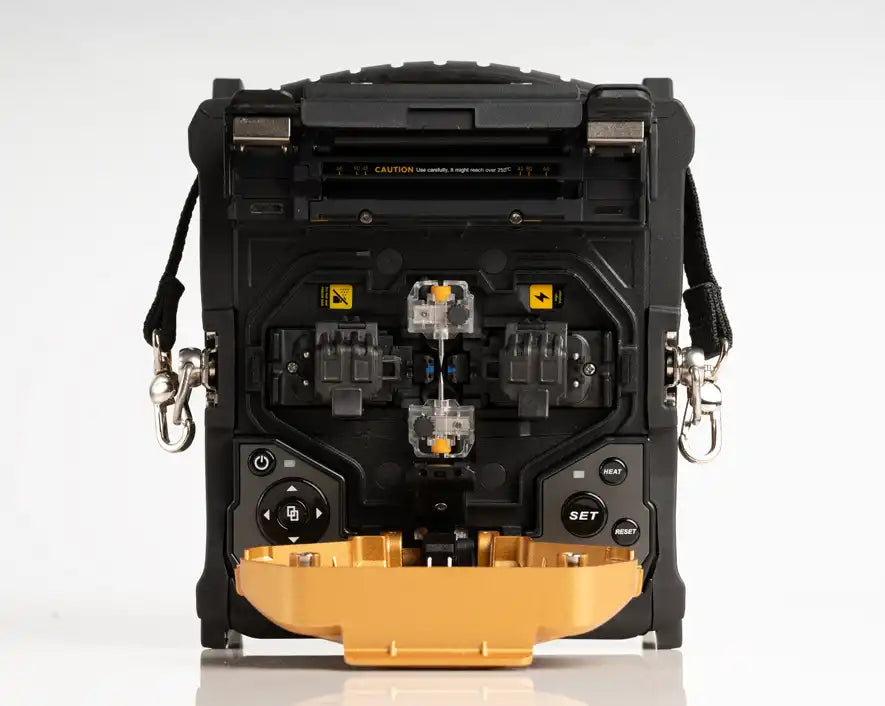

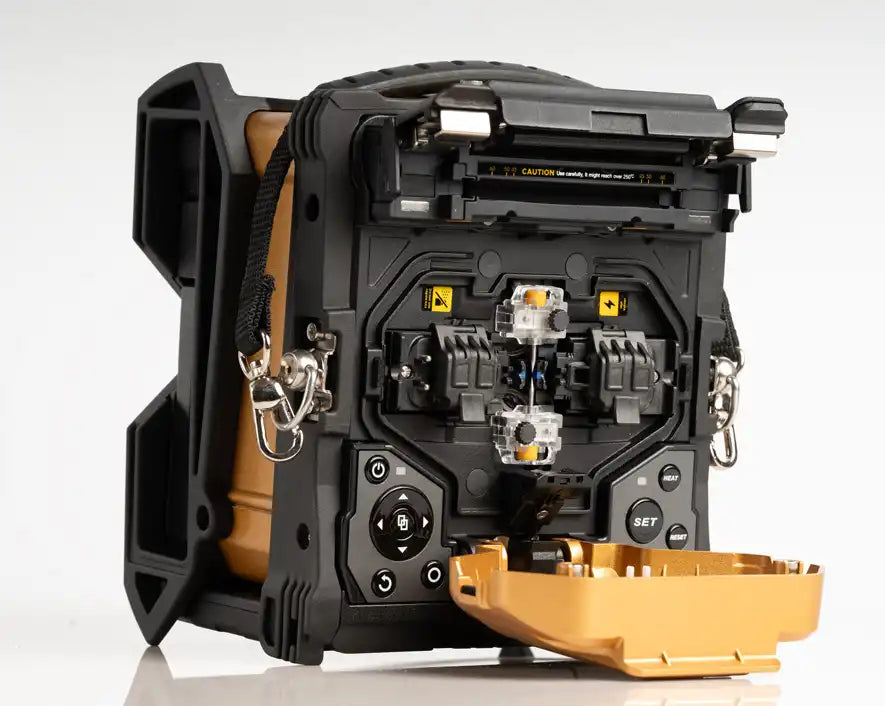

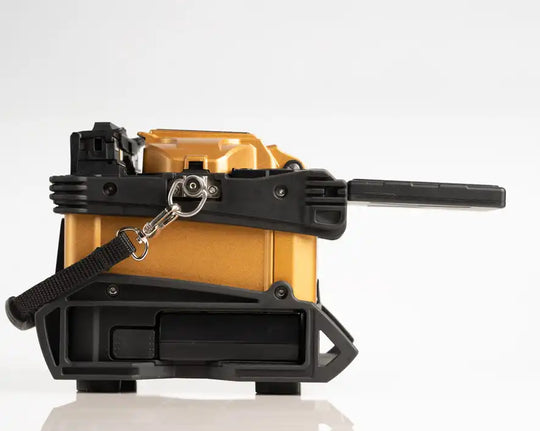

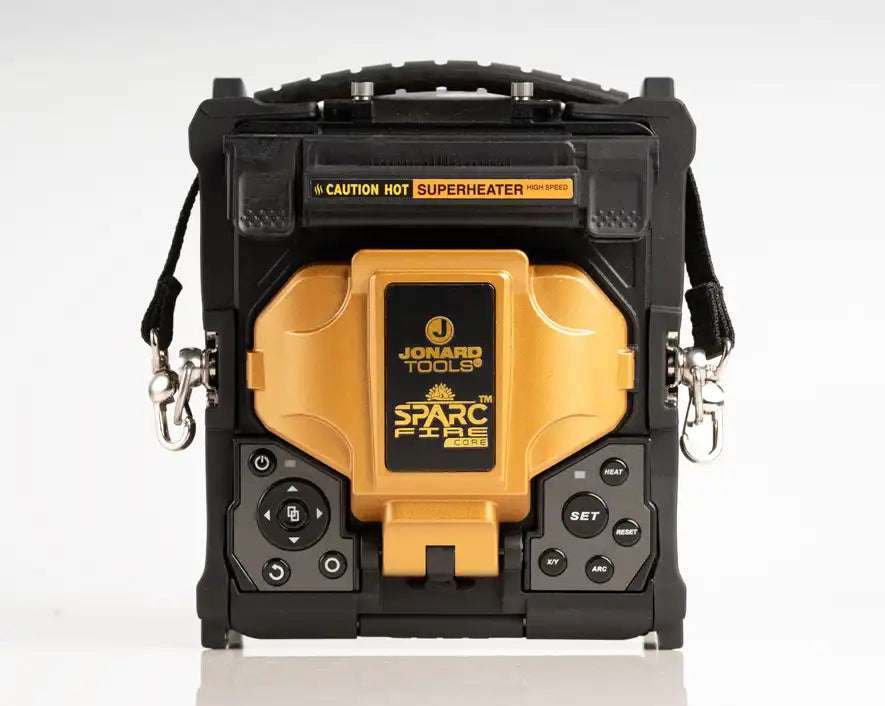

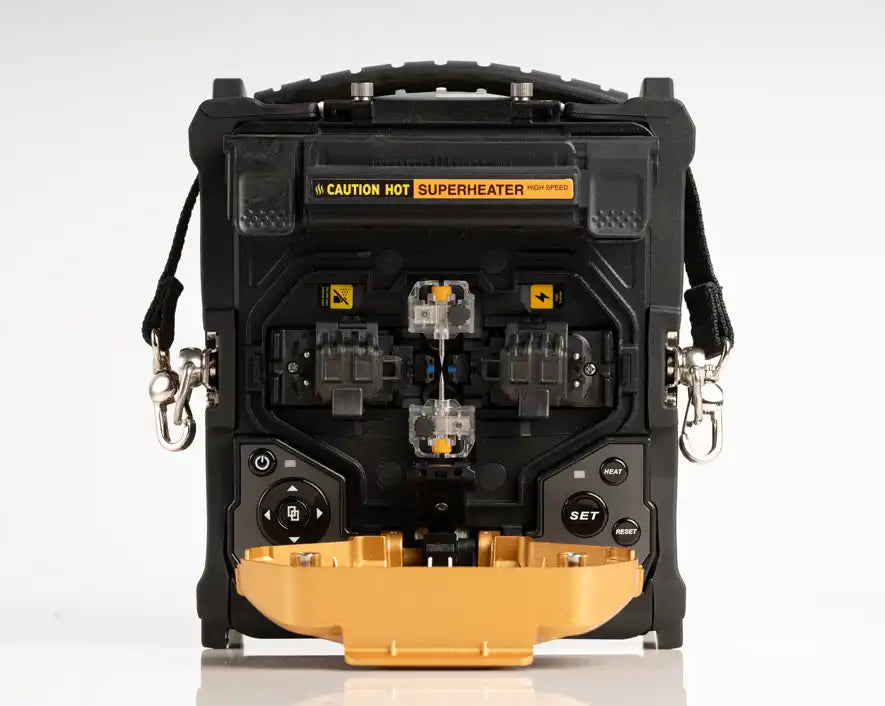

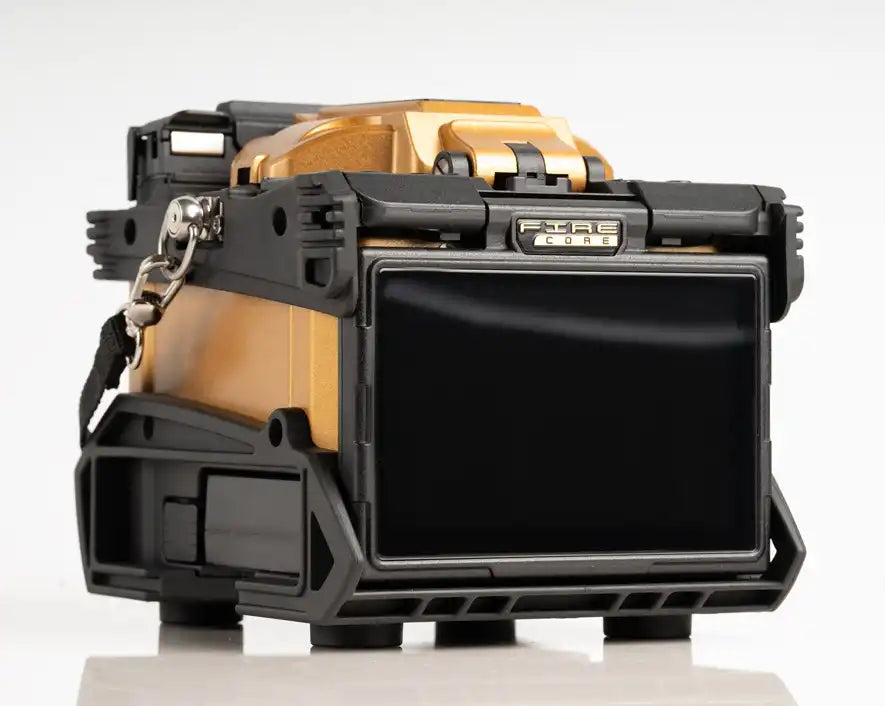

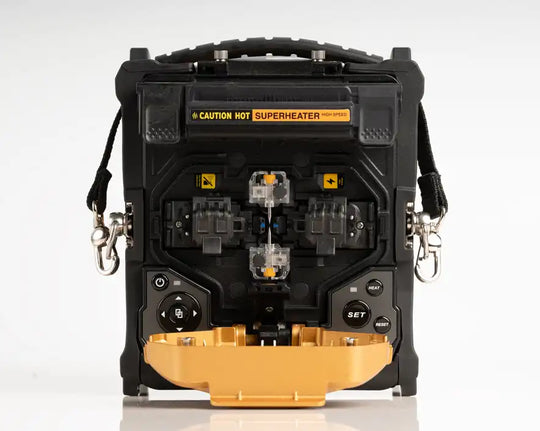

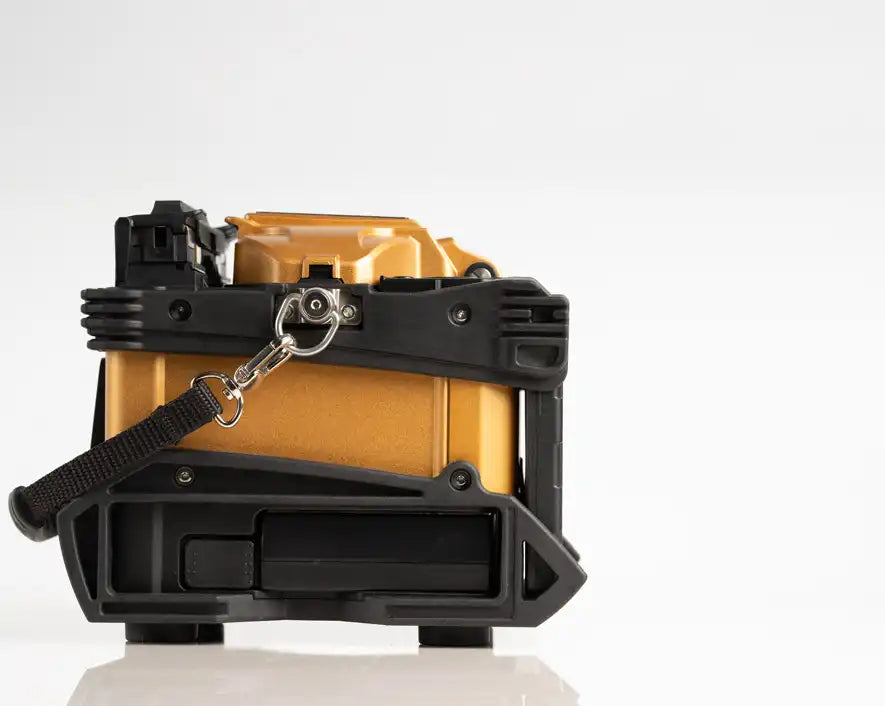

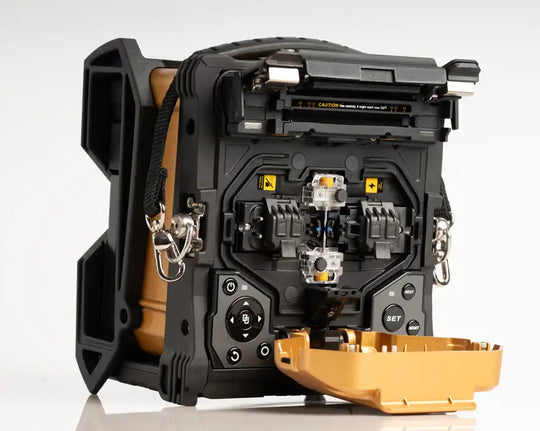

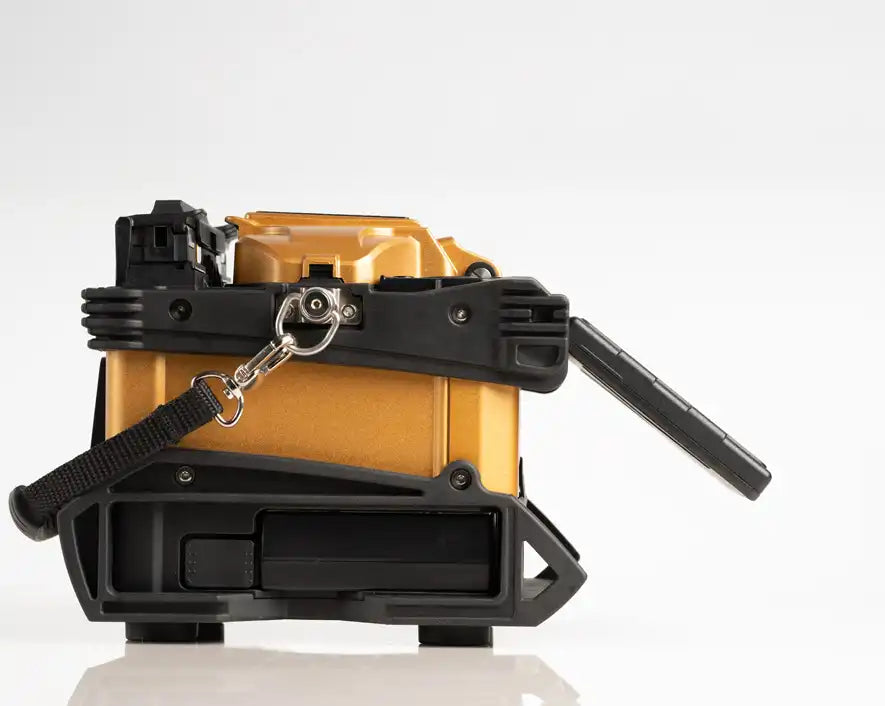

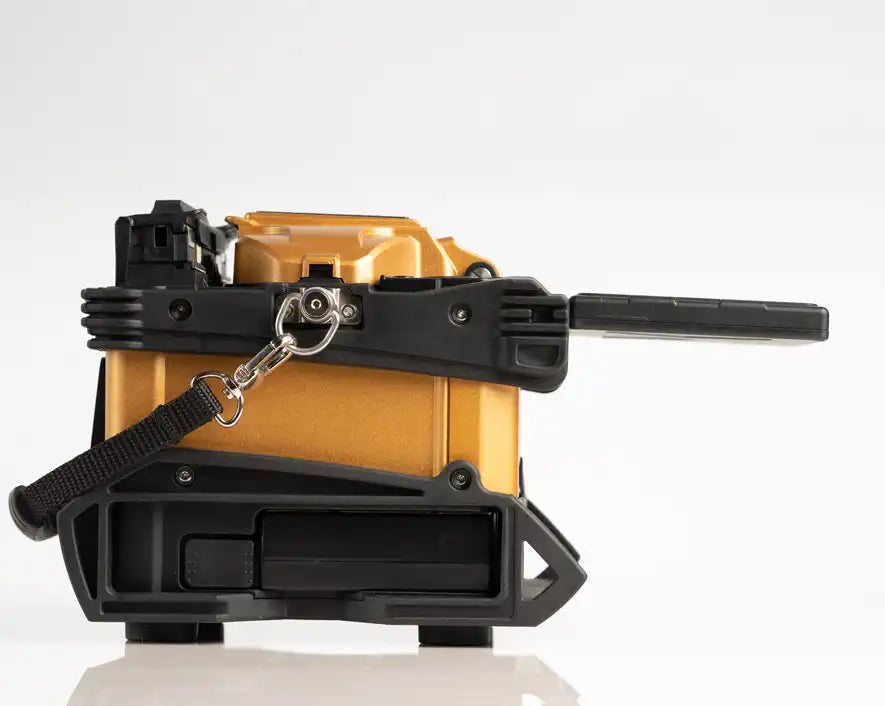

Jonard Tools SPARC Fusion Splicer, Core Alignment
SKU#: SPCO-1
UPC#:810132437922
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Splices fiber optic cables in as little as 4 seconds
- Pressure Heater Technology reduces heating time to only 9 seconds
- Versatile fiber holder to easily switch between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings

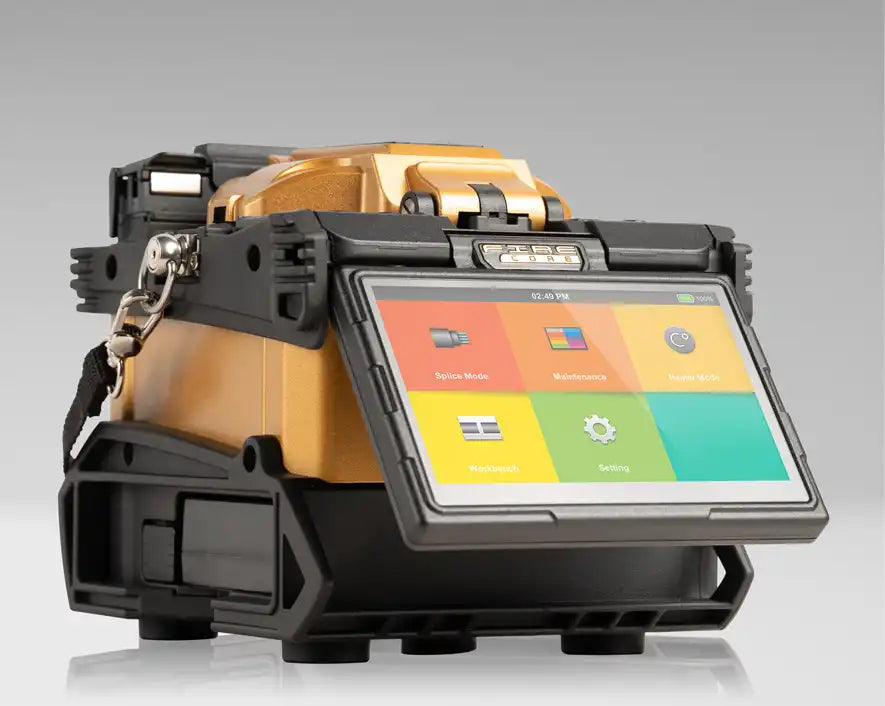

- Intuitive full touch screen for enhanced user experience
- 5200 mAh battery provides up to 300 cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 20,000 splice data or 10,000 images
- Specs+
- Package Contents+
- Reviews+
- Splices fiber optic cables in as little as 4 seconds
- Pressure Heater Technology reduces heating time to only 9 seconds
- Versatile fiber holder to easily switch between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 5200 mAh battery provides up to 300 cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 20,000 splice data or 10,000 images
SPARC Fusion Splicer, Core Alignment
The SPARC Core Alignment Fusion Splicer is an advanced Core Alignment Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
| Alignment Method |
Core Alignment |
|---|---|
| Number of Fibers |
Single |
| Applicable Fibers |
SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655) |
| Coating Diameter |
100 µm - 3 mm |
| Cladding Diameter |
80 - 150 µm |
| Cleave Length |
5 - 16 mm |
| Typical Splice Loss |
SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB |
| Return Loss |
>>60 dB |
| Splice Time |
Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec / Auto mode: Avg. 7 sec |
| Splice Programs |
Max 128 modes |
| Automatic Calibration |
Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span |
6000 Arc Discharges |
| Heating Programs |
Max 32 modes |
| Heating Time |
Quick: 9s / Average: 13s |
| Protection Sleeve Length |
20 mm - 60 mm |
| Data Output |
USB-C |
| Splice Memory |
20,000 Splice Data / 10,000 Splice Images |
| Battery Capacity |
7000mAh / Operation Cycle: 400+ cycles (Splicing + Heating) |
| Power Supply |
AC Input 100 - 240V, DC Input 9 - 19V |
| Monitor |

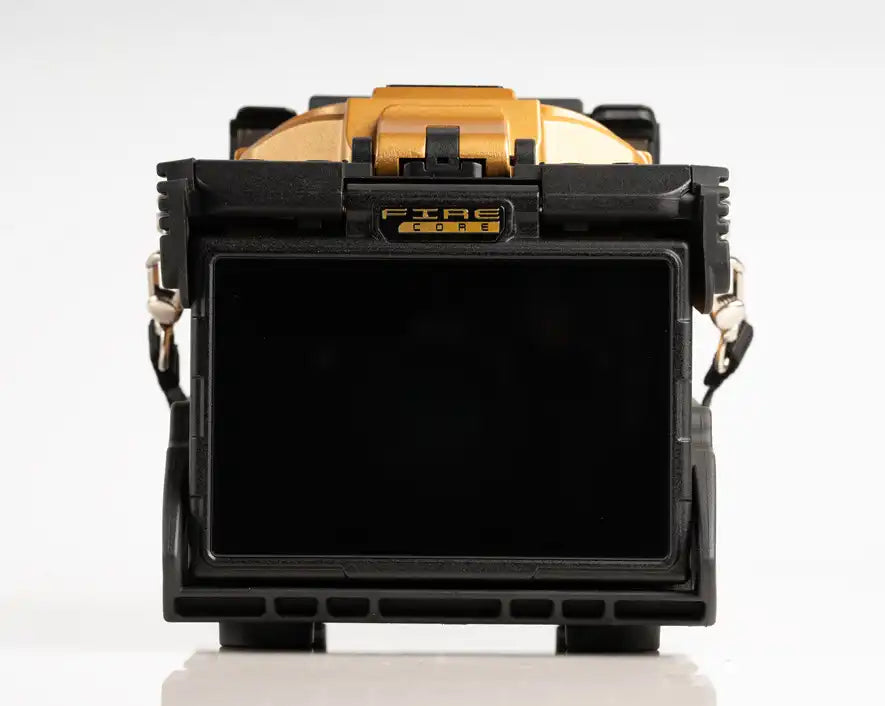

5.0" Color LCD display, Full Touch Screen |
| Magnification |
x360, x520 |
| Pull Test |
1.96 - 2.25 N |
| Product Main Color | Black/Gold |
| Dimensions | 6.5" x 6.2" x 6" (16.51 cm x 15.75 cm x 15.24 cm) |
| Weight | 5.2 lbs (2358.68 g) |
| UPC # | 810132437922 |
Kit includes
| FC-800 | SPARC Blade Fiber Cleaver |
| JIC-375 | Fiber Optic Stripper, Three Hole |
| JIC-186 | Wire & Kevlar® Cutting Shears |
| PSI-15 | Quick Sleever® |
| FW-5 | Fiber Wipes, Wet (Pack of 5) |
| FDC-66 | Fiber Scraps Disposal Can |
| CWP-125 | Pointed Cotton Swabs, Pack of 125 |
| FSP-CO | SPARC FIRE CORE Fusion Splicer |
| H-2000 | SPARC Carrying Case |
| FH-SOC | SPARC SOC Holder |
| HH-SOC | SPARC SOC Heater Holder |
| ADP-65JH | SPARC AC Adapter |
| FSP-CT | SPARC Cooling Tray |
| FSP-E50 | SPARC Electrodes (1 Spare) |
| FSP-B52 | SPARC Battery Pack |
| ADP-PC | SPARC Power Cable |
| USB-CA | SPARC USB Cable 1 |
| USB-CAF | SPARC USB Cable 2 |
| FSP-STP | SPARC Shoulder Strap |
