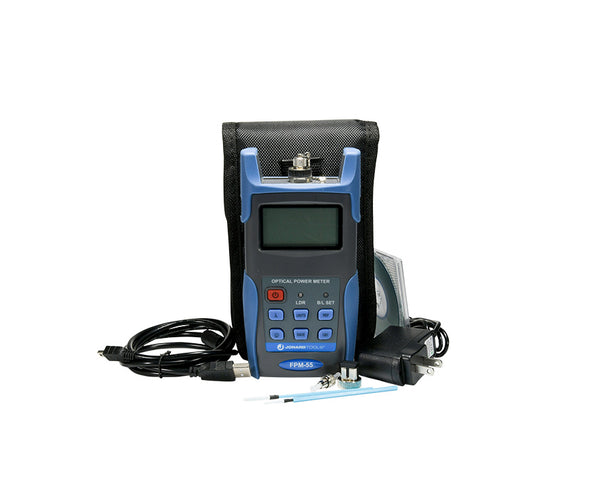

Jonard Tools Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters
SKU#: FPM-55
UPC#:810053350416
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Measures a wide variety of wavelengths from 850-1650 nm, with a mere 0.01 dB resolution
- Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power
- Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption
- Stores up to 1,000 data entries which can be downloaded via USB
- Reference power level can be set up and stored via included software
- Auto-off function can be turned on or off
- Includes carrying case, instruction manual, software (available for download on this product page), and FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
- The FC/SC adapters are for APC/PC/UPC connectors
- The LC adapter is for PC/UPC connectors only
- Specs+
- Connector Types: FC, SC (APC/PC/UPC) & LC (PC/UPC)
- Calibrated Wavelengths (nm): 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
- Detector Type: InGaAs
- Measurement Range: -50 dBm to +26 dBm
- Single Mode Range: 980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
- Multi Mode Range: 850, 1300 nm, ≤ ± 0.8 dB
- Data Storage Capacity: 1000 entries
- Resolution: 0.01 dB
- Operating Time: 200 hours (without backlight)
- Battery Type: (3) AA batteries
- Dimensions: 6.89" x 3.54" x 1.75" (175 mm x 90 mm x 44.5 mm)
- Weight: 0.66 lb (299.64 g)
- UPC: 810053350416
- Reviews+
- Measures a wide variety of wavelengths from 850-1650 nm, with a mere 0.01 dB resolution
- Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power
- Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption
- Stores up to 1,000 data entries which can be downloaded via USB
- Reference power level can be set up and stored via included software
- Auto-off function can be turned on or off
- Includes carrying case, instruction manual, software (available for download on this product page), and FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
- The FC/SC adapters are for APC/PC/UPC connectors
- The LC adapter is for PC/UPC connectors only
- Connector Types: FC, SC (APC/PC/UPC) & LC (PC/UPC)
- Calibrated Wavelengths (nm): 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
- Detector Type: InGaAs
- Measurement Range: -50 dBm to +26 dBm
- Single Mode Range: 980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
- Multi Mode Range: 850, 1300 nm, ≤ ± 0.8 dB
- Data Storage Capacity: 1000 entries
- Resolution: 0.01 dB
- Operating Time: 200 hours (without backlight)
- Battery Type: (3) AA batteries
- Dimensions: 6.89" x 3.54" x 1.75" (175 mm x 90 mm x 44.5 mm)
- Weight: 0.66 lb (299.64 g)
- UPC: 810053350416
Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters
The Jonard Tools Fiber Optic Power Meter with Data Storage is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables.
Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters
The Jonard Tools Fiber Optic Power Meter with Data Storage is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables.
