j5create JVA06 Dual HDMI™ Video Capture

SKU#: JVA06

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: JVA06

UPC#:
$239.99

SKU#: JVA06

UPC#:

SKU#: JVA06

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

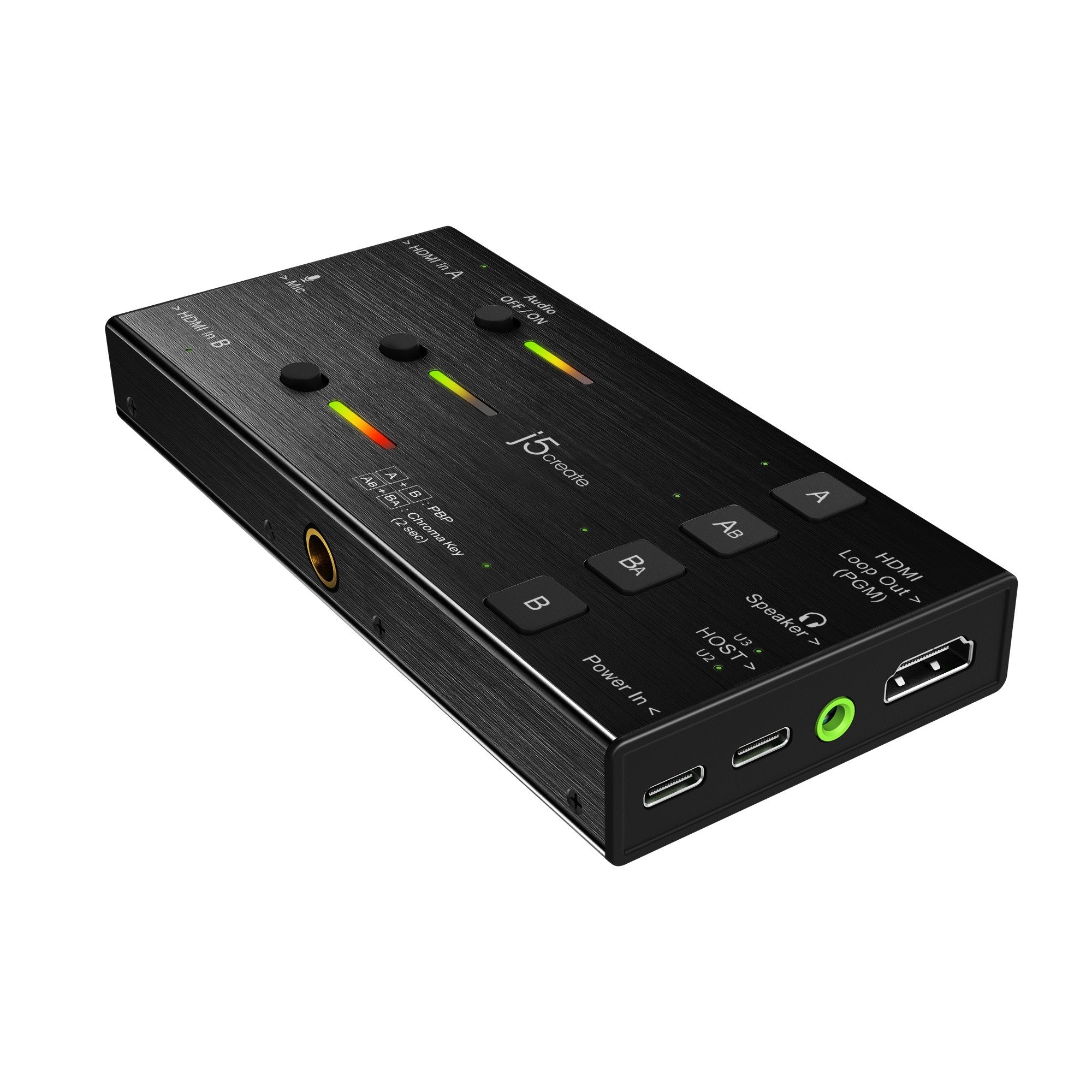

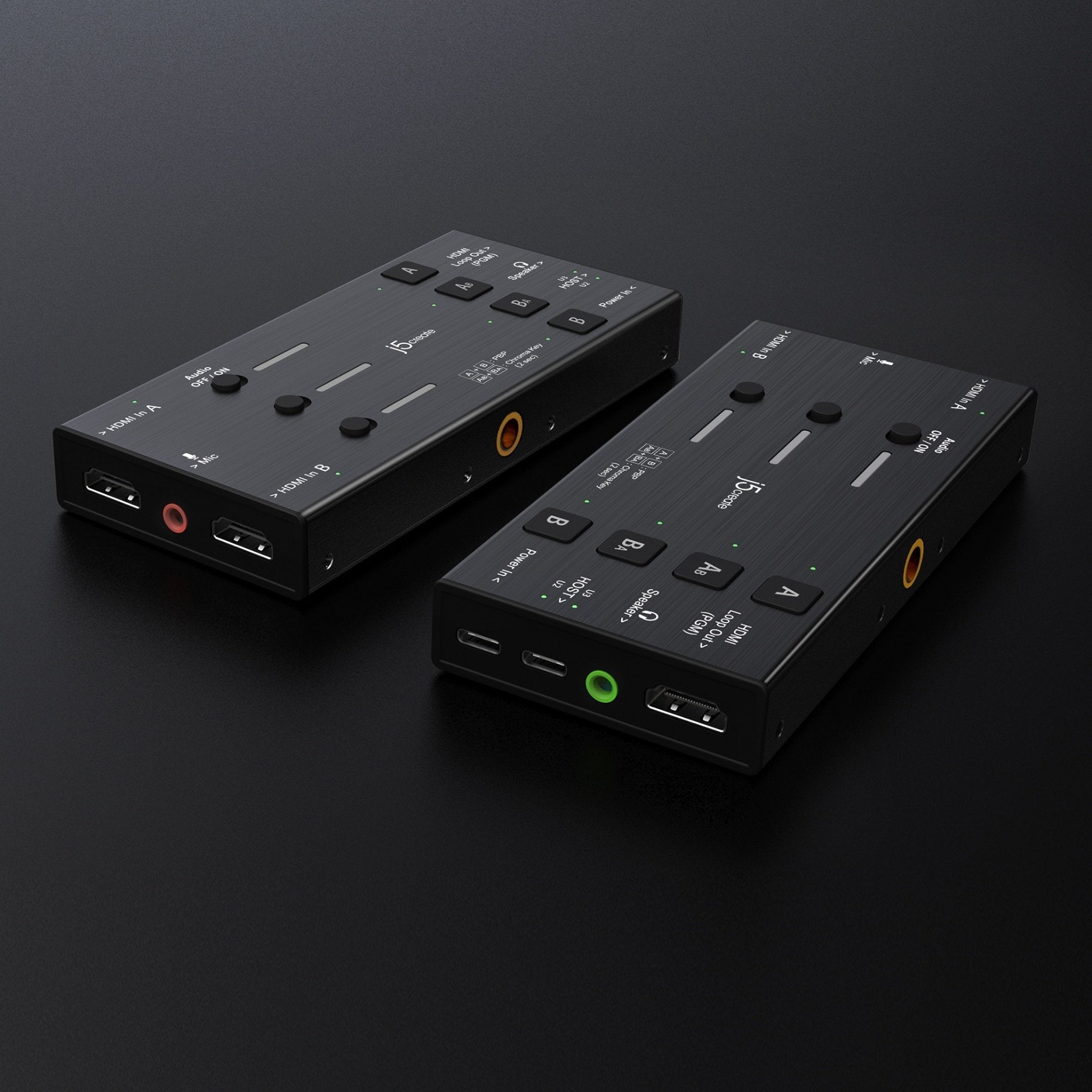

j5create JVA06 Dual HDMI™ Video Capture

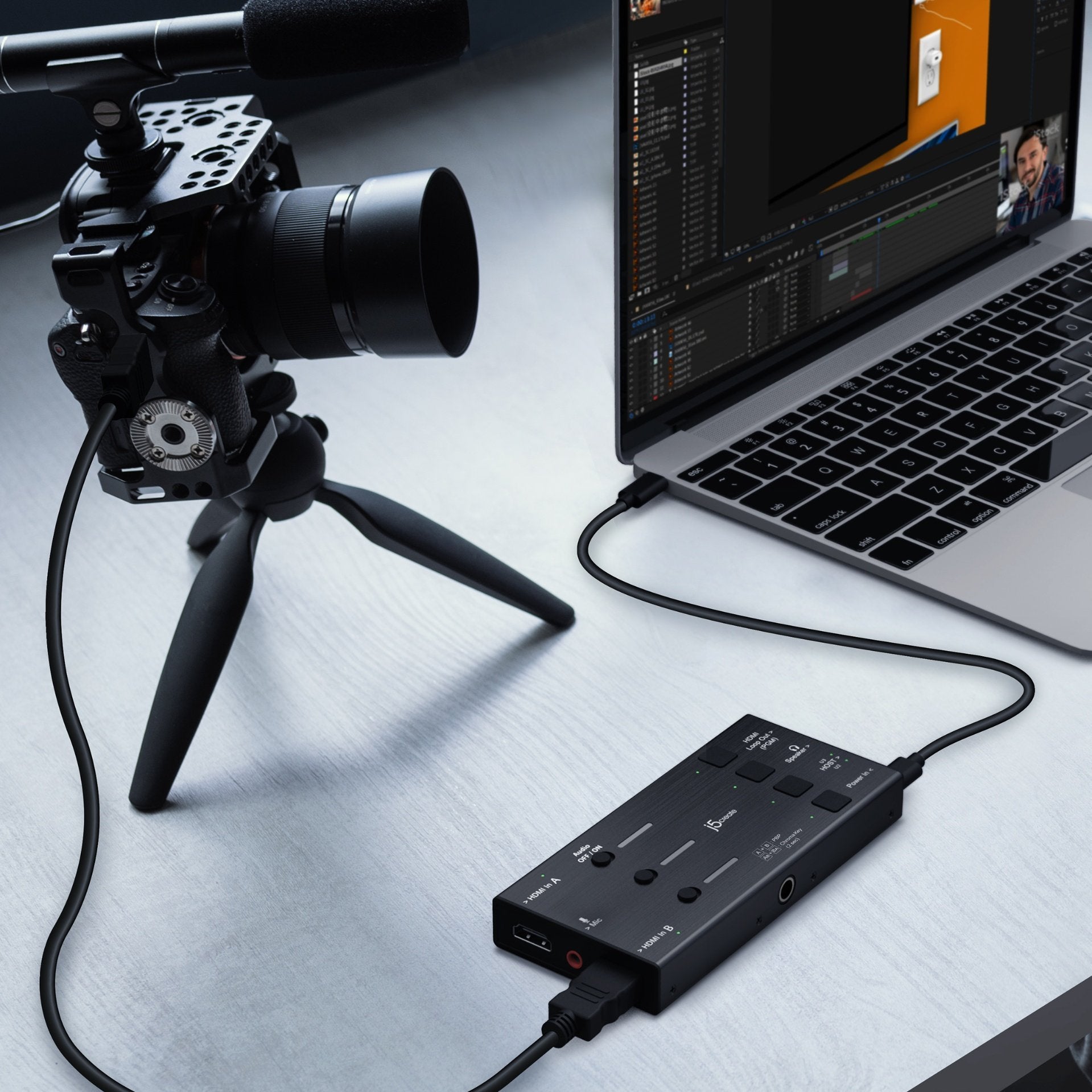

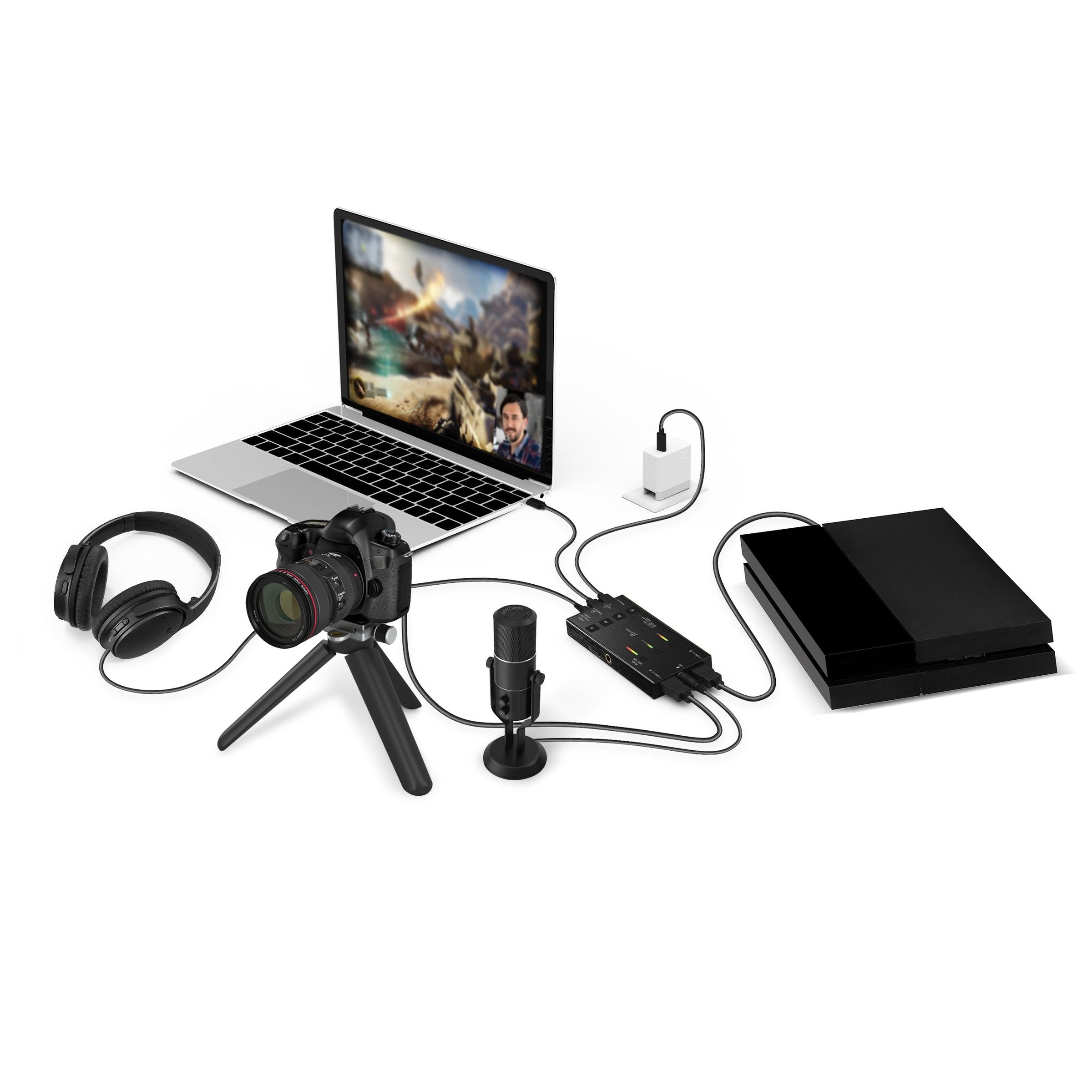

The JVA06 Dual HDMI™ Video Capture is a versatile USB™ video capture that works with all major platforms. It allows you to capture uncompressed 1080p video content from 2 HDMI™ sources simultaneously without compromising video quality. With a flexible audio connection via HDMI™ or analog 3.5 mm ports, you can record audio directly from game consoles, computers, or output to speakers/mixers. You can also press Chroma Keys "AB + BA" for 2 seconds to synthesize images from the HDMI™ in A and HDMI™ in B. Whether you’re live streaming or webcasting an event or a conference, there are six screen mode configurations available for PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can adjust the display settings with the built-in buttons.

Featuring an audio mixer and cold shoe adapter for DSLR, the JVA06 is perfect for content producers, social media influencers, entrepreneurs, and others to livestream, broadcast, or edit videos for web series, webinars and more!

System Requirements

- Computer

  • Windows® 7 and later (Driver installation is required on Windows® 7)
  • macOS® X 10.10 and later
  • Linux®
  • CPU: Intel® Core™ i5 Gen 4 (3 GHz & above)
  • CPU: Intel® Core™ i7 Gen 4 & above
  • RAM: 4 GB memory or higher (8 GB is recommended)

- Phone

  • Available USB-C™ port that supports USB™ Power Delivery 2.0 or 3.0
  • Android™ 7.0 and higher
  • CPU: Core 2 GHz & above
  • RAM: 4 GB memory or higher

- Recommended software

  • Windows®: OBS™, XSplit® Broadcaster
  • Mac®: OBS™, QuickTime®
  • Android™ : CameraFi™ Live

Special Notes

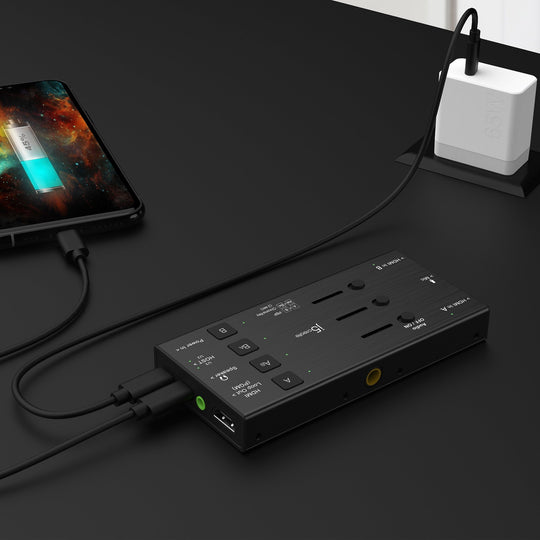

  • The JVA06 can connect to a USB-C™ port that does not support Power Delivery, but it will not pass power through the connected device.
  • When connecting a smartphone to the JVA06, we highly recommend using the USB™ 2.0 C-to-C cable included with your JVA06.
  • When connecting to a computer through a USB-C™ port, we recommend purchasing our JUCX01 or JUCX03 USB-C™ 3.1 cable for better image quality and performance.

Features+

  • Dual HDMI™ input for capturing 2 channels
  • Full HD video and audio high performance record/playback through USB-C™ 3.1 Gen1
  • Uncompressed 1080p 60 Hz capture via HDMI™ 1.3a
  • Supports 1080p 60 Hz HDMI™ loop out (PGM out)
  • 6 screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture)

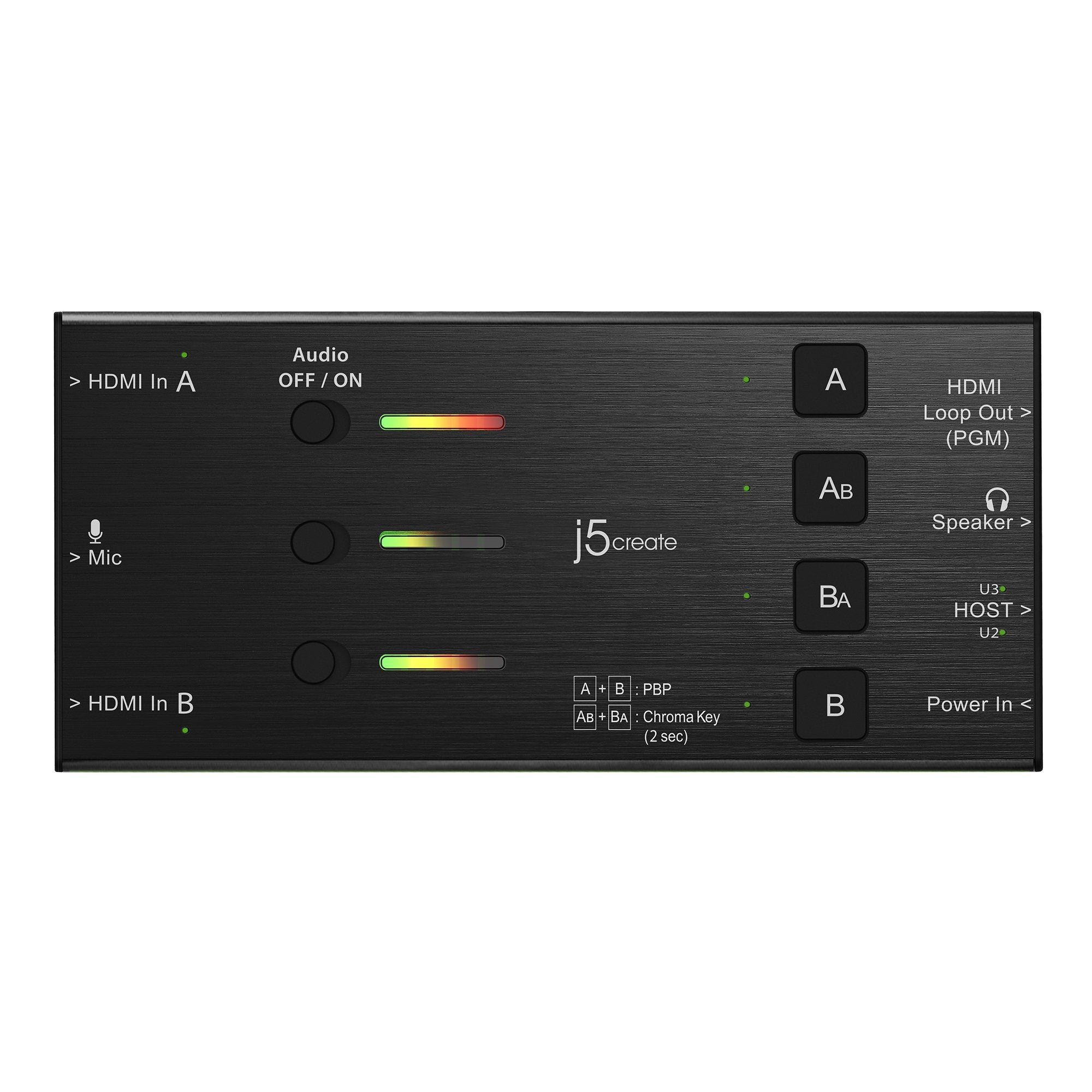

  • 4 buttons to quickly change display settings
  • Automatically remember previous settings
  • Flexible audio connection via HDMI™ or add external audio with 3.5 mm mic-in and speaker out audio jack
  • 3 individual audio mixer on/off switches supported
  • 3 channel volume indicators

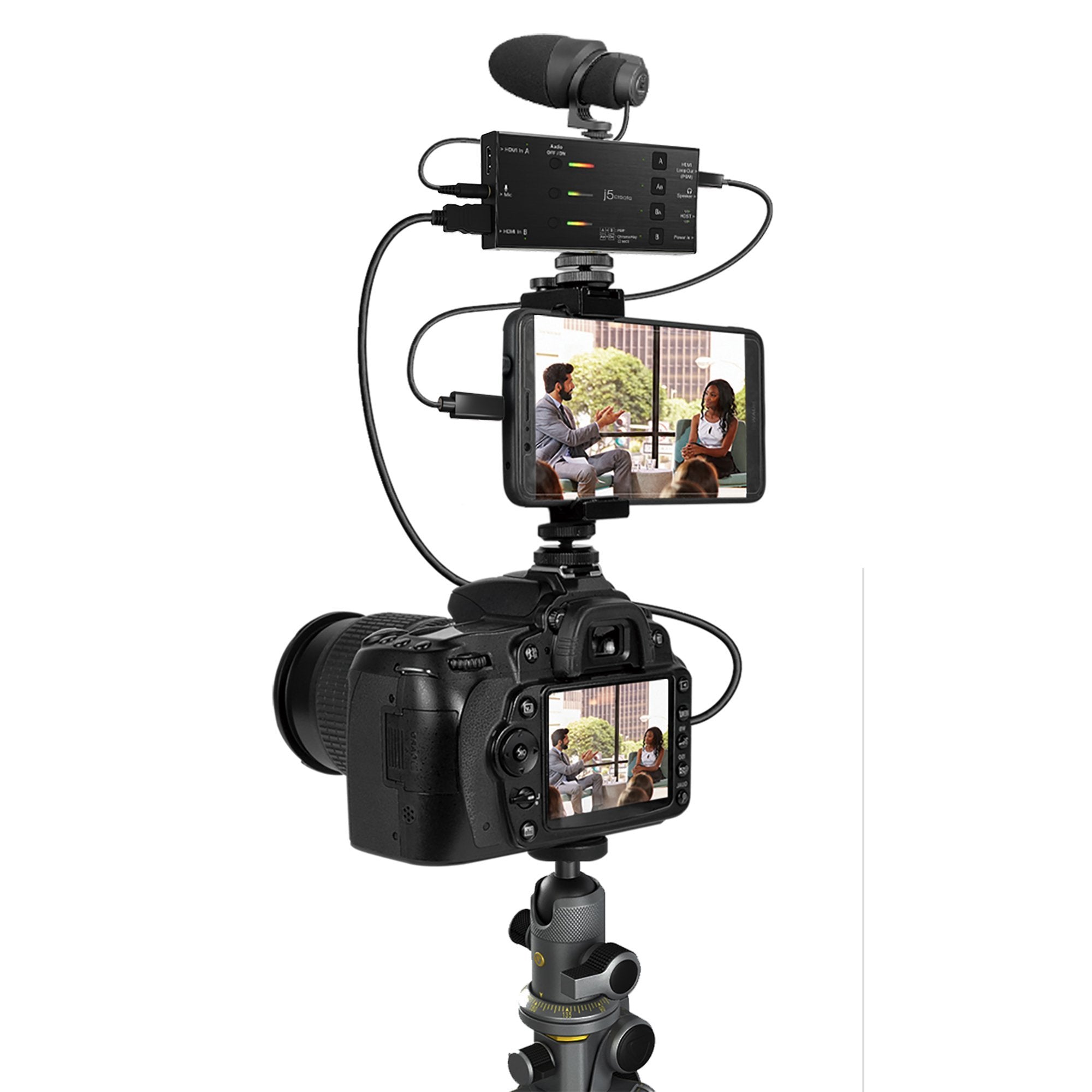

  • Easy DSLR attachment with 2 cold shoes embedded
  • Supports USB-C™ power delivery 3.0 60W
  • UVC standard, plug & play
  • LED activity indicator
    • HDMI™ IN
    • USB™ Link
    • Volume Unit
  • Image Matting: Press Chroma Keys "AB + BA" for 2 seconds to switch on/off image synthesis for HDMI™ source A and HDMI™ source B

Specs+

Hardware

Warranty

2-Year Limited

Host Connector

1 - USB-C™ Male

Video Input

2 - HDMI™ Female

Video Output

1 - HDMI™ Female

Audio Input

HDMI™ Or 3.5 Mm Mic In

Audio Output

HDMI™ Or 3.5 Mm Speaker Out

Power Source

Bus-Powered Or Self-Powered (USB-C™ PD)

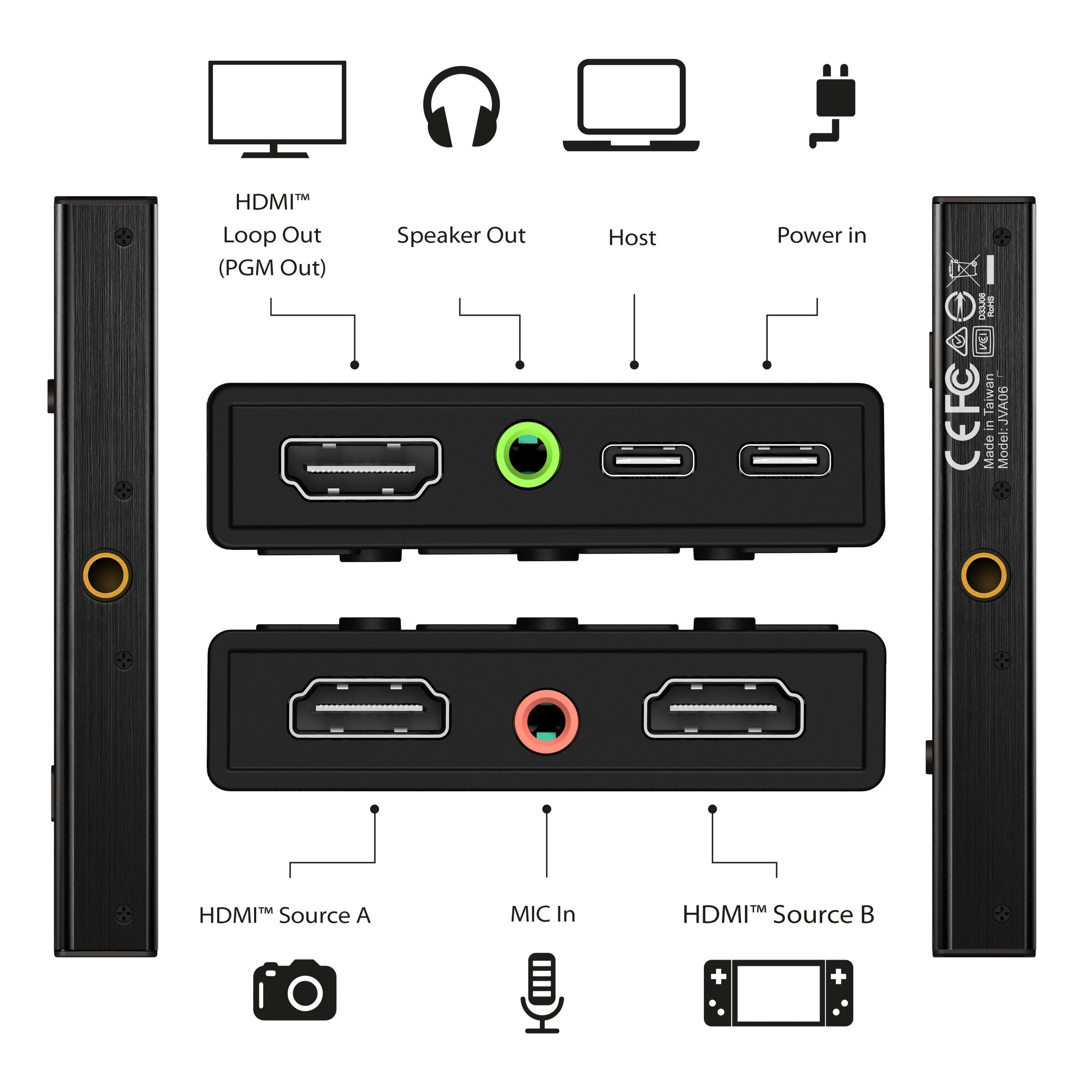

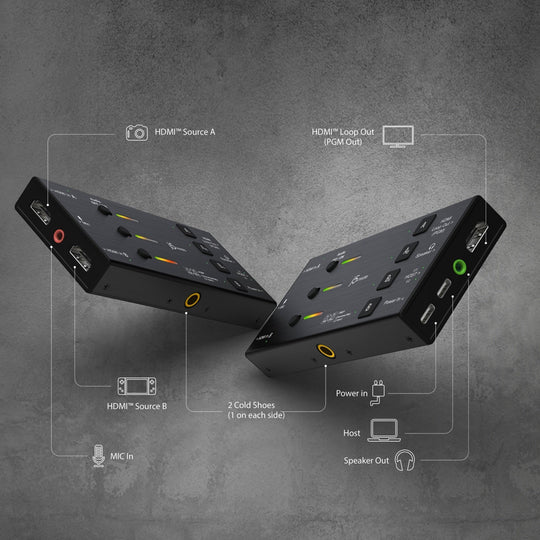

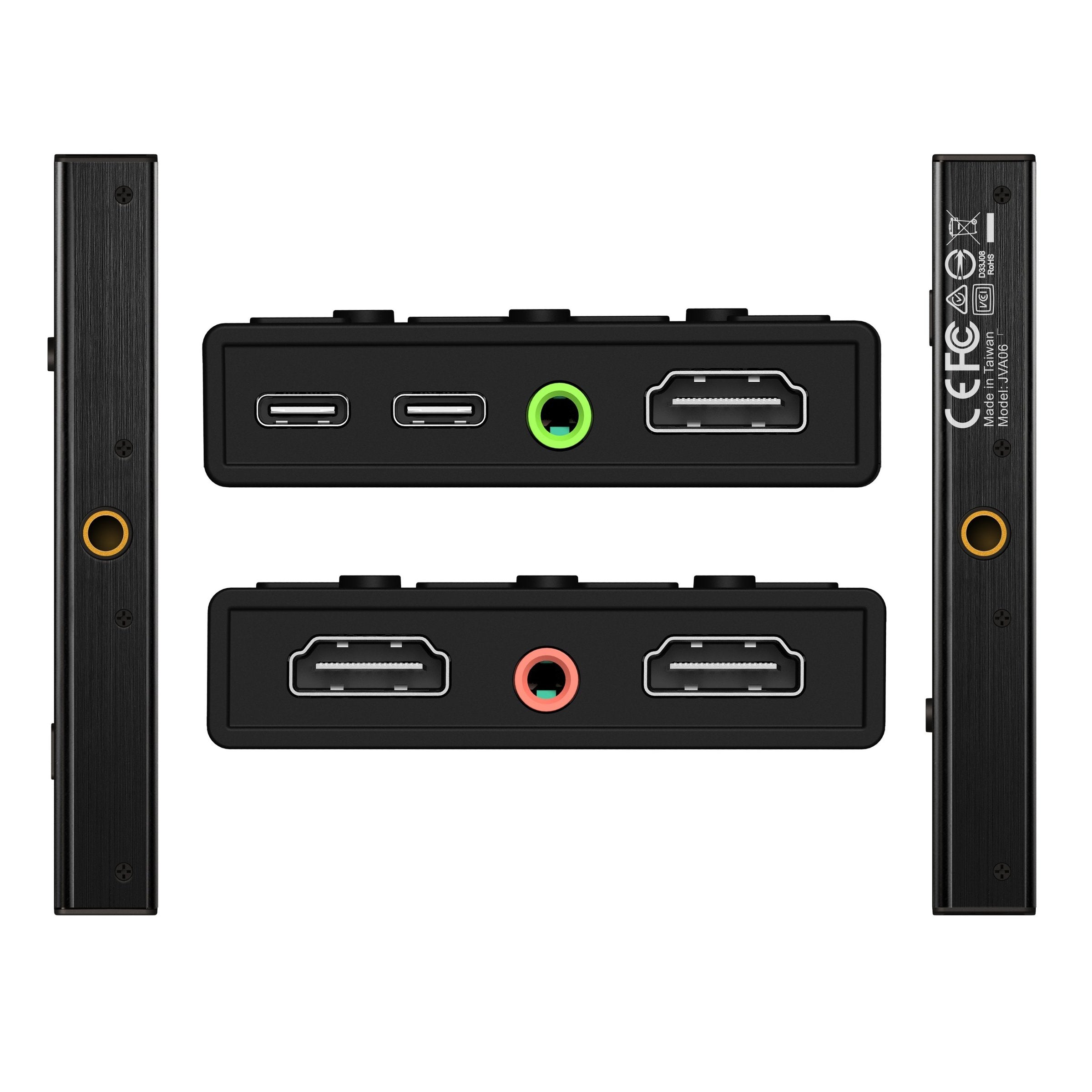

Ports

1 - USB-C™ 3.0 (Host)
1 - USB-C™ 3.0 (Power)
2 - HDMI™ Input
1 - HDMI™ Output
1 - Mic In
1 - Speaker Out
2 - Cold Shoes

Performance

Display Input Supported Resolutions

640 X 480 @ 60
720 X 480 @ 60
800 X 600 @ 60
1024 X 768 @ 60
1280 X 720 @ 50/60
1280 X 800 @ 60
1600 X 900 @ 60
1920 X 1080 @ 24/25/30/50/60

Display Output Supported Resolutions (HDMI™ /UVC)

640 X 480 @ 60
720 X 480 @ 60
720 X 576 @ 50
800 X 600 @ 60
1280 X 720 @ 60
1024 X 768 @ 60
1360 X 768 @ 60
1280 X 800 @ 60
1152 X 864 @ 60
1440 X 900 @ 60
1280 X 1024 @ 60
1400 X 1050 @ 60
1680 X 1050 @ 60
1600 X 1200 @ 60
1920 X 1080 @ 60

Maximum Display Refresh Rate

60 Hz

Audio Channel

2

Audio Frequency

48 KHz

Mic

Stereo Microphone Supported 24-Bit Sigma-Delta ADC

Headset

40 MW Output Power Into 16Ω At 3.3V
THD -75 DB At 20 MW
SNR 90 DB With 16Ω Load

Compression

USB™ 2.0: MJPG
USB™ 3.0: MJPG / YUV 4:2:2

Encode Format

USB™ 2.0: MJPG
USB™ 3.0: MJPG / YUV 4:2:2

HDR Supported

No

Power

Power Delivery

Up To 60W Via USB-C™

Power Consumption

≦ 1A

Input Current

Max 3A

Input Voltage

5V- 20V

Output Current

Max 3A

Output Voltage

5V- 20V

Physical Specifications

Color

Black

Enclosure Type

Aluminum

Cable Length

USB-C™ To USB-C™: 23.6 Inch (60 Cm)
USB-C™ To USB™ Type-A 23.6 Inch (60 Cm)

Product Height

0.7 Inch (18.4 Mm)

Product Width

5.3 Inch (134.6 Mm)

Product Depth

2.5 Inch (63.7 Mm)

Product Weight

6 Oz (172g)

Storage Temperature

14 To 149°F (-10 To 65°C)

Storage Humidity

< 85% Non-Condensing

Operating Temperature

32 To 118°F (0 To 45°C)

Operating Humidity

< 85% Non-Condensing

Package Contents+

  • 1 - JVA06 Dual HDMI™ Video Capture
  • 1 - Quick Installation Guide
  • 1 - USB-C™ 2.0 to USB-C™ cable
  • 1 - USB-C™ 3.0 to USB™ Type-A cable
  • 1 - 39.4 in./100 cm HDMI™ cable
