j5create JUD500 USB 3.0 Docking Station - Ultra Station
SKU#: JUD500
UPC#:847626000119Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Microsoft Windows 8.1, 8, 7, XP (32-bit or 64-bit) compatible
- macOS® 10.10 or later
- Available USB port (USB 3.0 is recommended)
- CPU: Intel i3 Dual Core 1.5 GHz / Intel Atom "Bay Trail" Quad Core 1.33 GHZ
- RAM: 2 GB or higher
- iPad: USB connection kit
- Features+
- Full 1080p Resolution
- VGA connection
- HDMI connection
- Use Wormhole technology to transfer files between different platforms
- Use up to 6 adapters with Windows
- Use up to 4 adapters with Mac
- Solid aluminum construction
- Simple and easy-to-use and install
- Specs+
- Package Contents+
- JUD500 USB 3.0 Ultra Station
- USB 2.0 cable
- USB 3.0 cable
- Power Adapter (5V/4A)
- Quick Installation Guide
- Driver CD
- Reviews+
- Microsoft Windows 8.1, 8, 7, XP (32-bit or 64-bit) compatible
- macOS® 10.10 or later
- Available USB port (USB 3.0 is recommended)
- CPU: Intel i3 Dual Core 1.5 GHz / Intel Atom "Bay Trail" Quad Core 1.33 GHZ
- RAM: 2 GB or higher
- iPad: USB connection kit
- Full 1080p Resolution
- VGA connection
- HDMI connection
- Use Wormhole technology to transfer files between different platforms
- Use up to 6 adapters with Windows
- Use up to 4 adapters with Mac
- Solid aluminum construction
- Simple and easy-to-use and install
- JUD500 USB 3.0 Ultra Station
- USB 2.0 cable
- USB 3.0 cable
- Power Adapter (5V/4A)
- Quick Installation Guide
- Driver CD

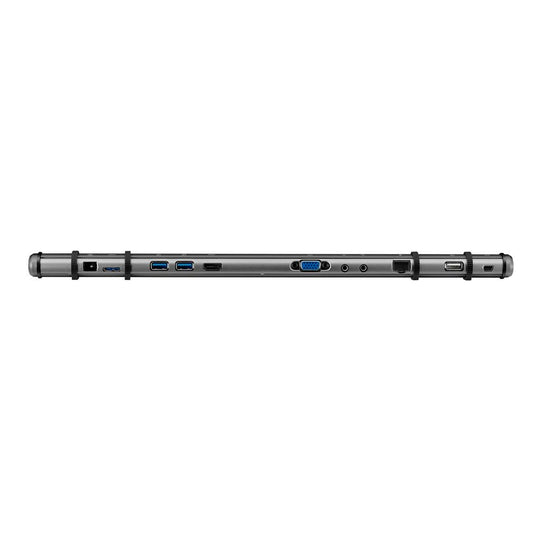

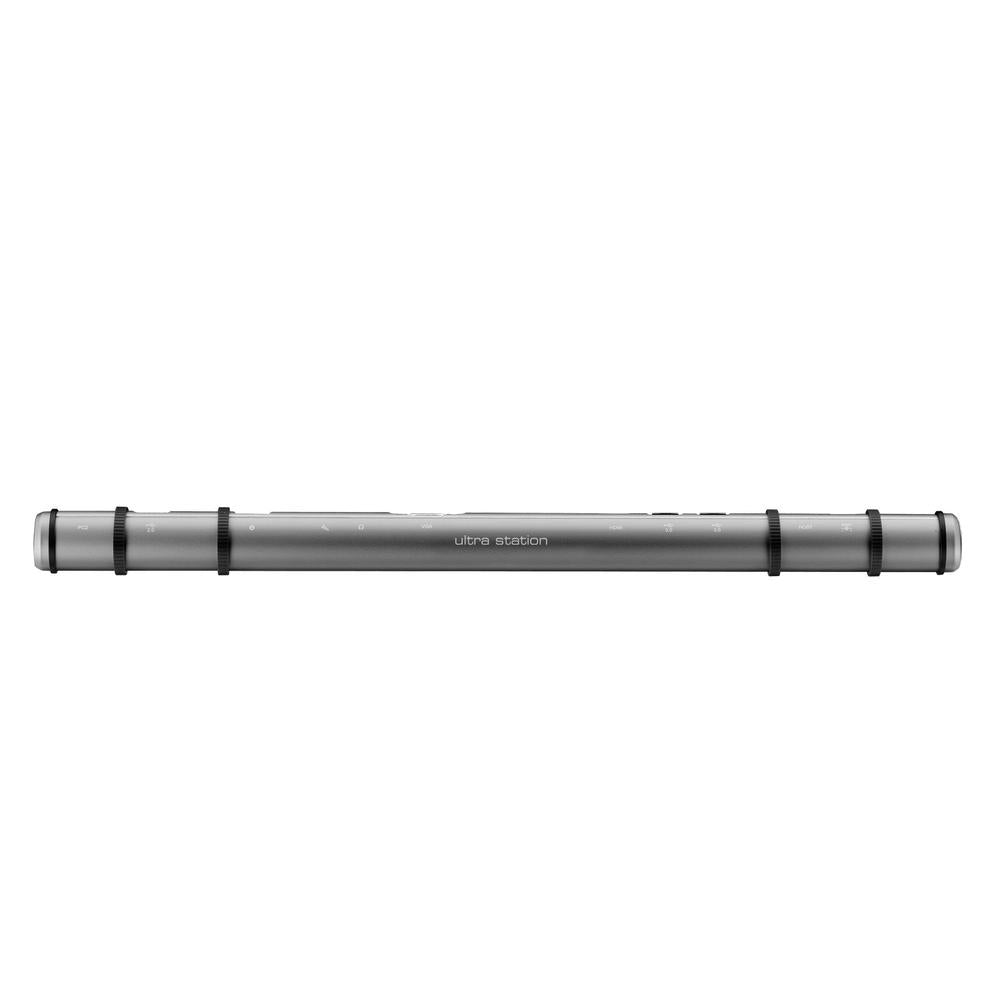

j5create USB 3.0 Ultra Docking Station
Note: This product has been discontinued.
The JUD500 USB 3.0 Ultra Station enables you to utilize wormhole technology to drag and drop files from Mac to Windows, Windows to Windows, or Mac to Mac, as well as add a second monitor instantly via HDMI or VGA connectors. When you need to get things done fast, simply connect your monitor, keyboard, mouse, Ethernet, speakers, microphone and any other USB 3.0/2.0 peripheral to your laptop with one USB 3.0 cable. It is the perfect solution for expanding your Ultrabook or MacBook into a full-sized workstation, increasing productivity with its cross-platform multitasking ability.
System Requirements
Minimum System Requirements
Note for Video Player:
Windows XP users: Windows Media Player is recommended for video playback. Windows XP users & Mac users: Some Windows XP & Mac products are not supported by USB 3.0 at this time; therefore, we suggest USB 2.0 for office applications only; Video playback is not recommended due to USB 2.0 bandwidth limitations causing limited video performance.
|
Power |
|
|
Power Button |
Blue Light when power is supplied to the docking station |
|
Power Mode |
Self-Powered |
|
Power Adapter |
Input: AC 100-240V, 50-60 Hz |
|
Host (2) |
|
|
Upstream Port |
USB 3.0 Micro B Female connector |
|
Cable |
USB 3.0 Micro B to Type A |
|
Hub |
|
|
Downstream Port (3) |
USB 3.0 Type-A Female Connector with Battery Charge |
|
Downstream Port (4) |
USB 3.0 Type-A Female Connector |
|
Downstream Port |
USB 2.0 Type-A Female Connector |
|
Video |
|
|
VGA Port (5) |
DB 15pin Female Connector |
|
HDMI Port(6) |
Standard HDMI Female Connector (Include Audio) |
|
Support Modes |
Extended, Mirror, Primary Display - Display Rotation: 0°, 90°, 180°, 270° |
|
Ethernet (9) |
|
|
Ethernet Port |
10/100 Base-T Ethernet RJ-45 connector |
|
Microphone (8) |
3.5 mm stereo audio in |
|
Speaker (7) |
3.5 mm stereo audio out |
|
Wormhole Switch (11) |
|
|
Wormhole port |
USB 2.0 mini B Female connector |
|
Cable |
USB 2.0, mini B to Type-A (2 meter) |
|
Transfer Rate |
Up to 20 Mbps, transfer rate |
|
Physical Specification |
|
|
Housing Material |
Aluminum |
|
Dimensions |
Main body: |
|
Weight |
138g |
