j5create JCD543P USB-C™ Triple Display Docking Station with 100W PD Adapter

j5create JCD543P USB-C™ Triple Display Docking Station

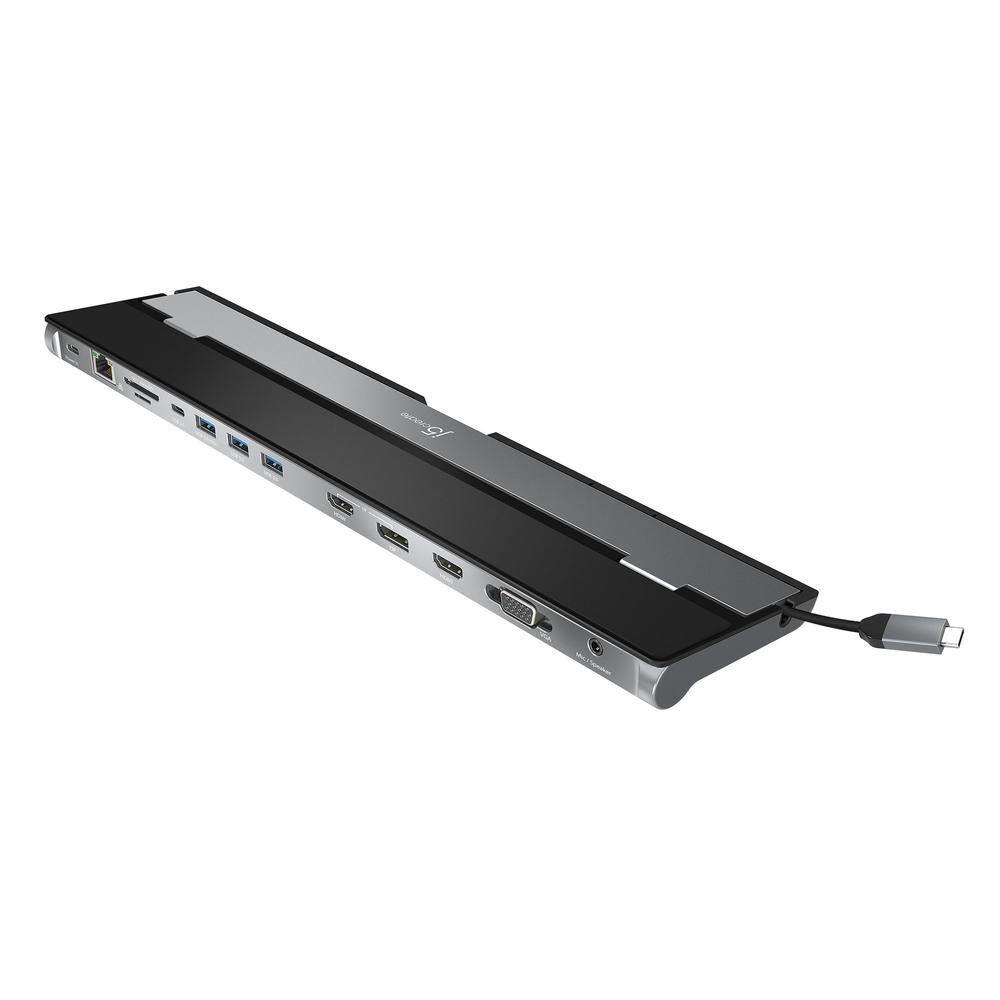

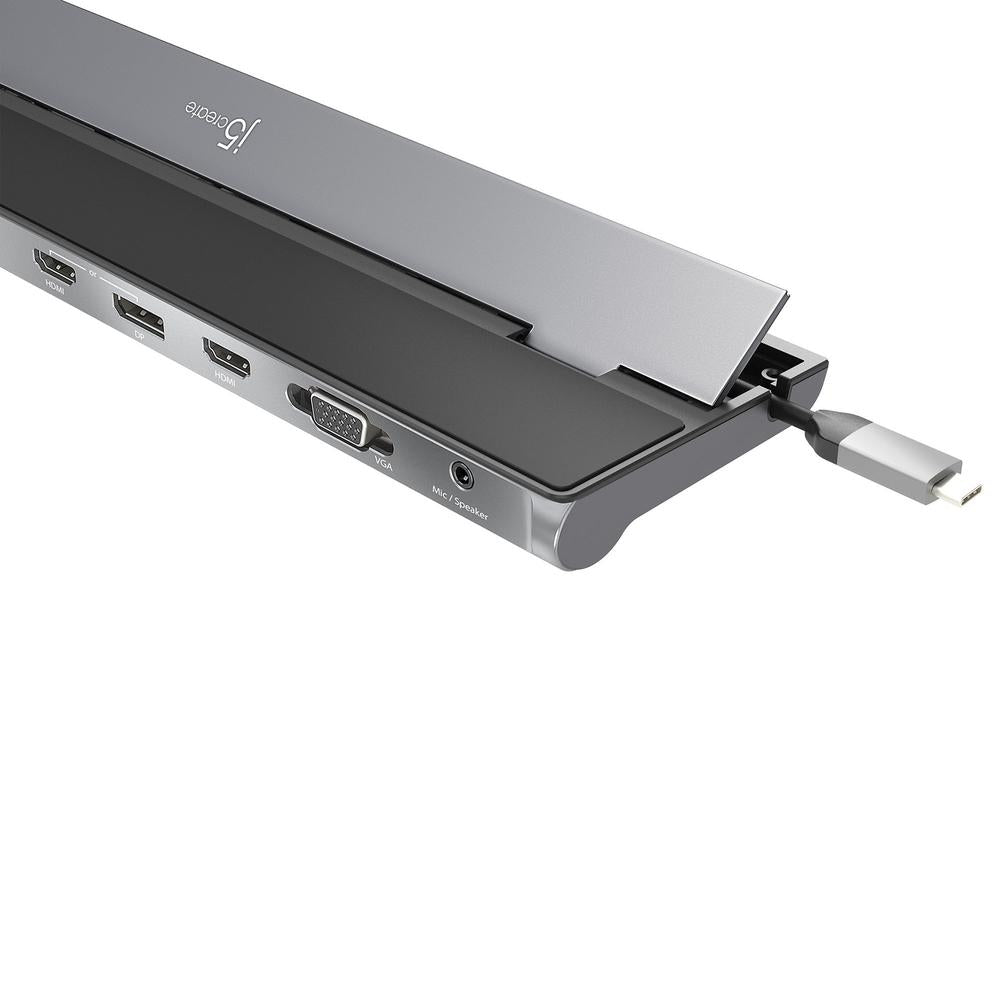

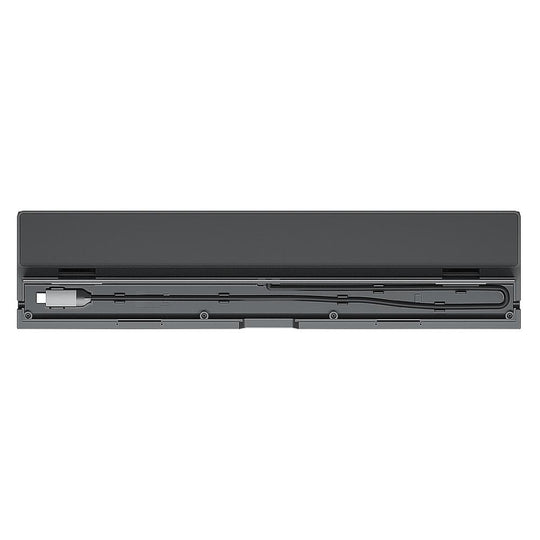

The j5create USB-C™ Triple Monitor Docking Station provides extra connectivity from your computer and extends to up to three monitors through HDMI™ , VGA and DisplayPort™ / HDMI™ . This docking station includes a NB stand that assists with heat dissipation and with its flexible USB-C™ cord, keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection. These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smart phone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smart phone while using the adapter.

USB-C™ is the new standard for connecting PCs and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. USB-C™ has a slim and reversible design, so there is no wrong way to plug it in. USB-C™ offers greater power delivery and faster data transfer rates of up to 5 Gbps.

Prefer your own USB-C™ power adapter? You can buy the docking station by itself here.

System Requirements

• Microsoft® Windows® 10 or later
   macOS® 10.14 or later

• Intel® HD Graphics 505 / AMD Radeon™ R5

• Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
  Please refer to the manufacturer of your hardware for more information on your device

• Extended Monitor System Requirements: (Higher processor recommended for multiple displays)

  • One 2K (2048 x 1152 @ 60 Hz) full-screen video playback

    • CPU: Intel® Core™ i5 Quad Core

    • RAM: 4 GB memory or higher
  • Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback

    • CPU: Intel® Core™ i7 Quad Core

    • RAM: 8 GB memory or higher

Special Notes:

• Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
• The dock can connect to a USB-C™ port that doesn’t support Power Delivery but it will not pass power through the connected device
• If you are using a high-powered USB™ device, attach a USB-C™ power adapter to the power delivery port for optimal performance
• To ensure files copy completely, do not remove the USB-C™ power adapter while copying files. For maximum performance, use a computer and USB-C™ power adapter equipped with PD 3.0
• We recommend, at most, one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time

• USB-C™ power delivery 100W pass-through
• USB-C™ downstream port Gen 1 5G x1?Power delivery adapter in port x1
• USB™ Type-A downstream port Gen 1 5G x3
• DisplayPort™ Alt mode supported
• DisplayPort™/HDMI™ output 4K @ 30 Hz
• USB™ graphic HDMI™ resolution 4K @ 30 Hz; VGA Resolution 1920 x 1080 dual output
• RJ45 Gigabit Ethernet
• SD™/microSD™ card slots allow for external memory access
• Combo audio jack mic/speaker
• Cable length 1.5 ft/45 cm

Hardware

• Audio Supported: Yes
• Host Connector: USB-C™ Male
• Network Interface: RJ45 (Gigabit Ethernet)
• Ports:

  • 2 - USB™ 3.0 Type-A
  • 1 - USB™ 3.0 Type-A fast charge
  • 1 - USB-C™ 3.1 Gen 1
  • 1 - USB-C™ Power Delivery 3.0
  • 2 - 4K HDMI™
  • 1 - DisplayPort™
  • 1 - VGA
  • 1 - SD™ & microSD™ memory card reader/writer
  • 1 - RJ45 Gigabit Ethernet
  • 1 - 3.5 mm combo audio jack
• Power Source: Bus-powered or Self-powered
• USB Pass-Through: Yes
• Video Output:
  • 2 - HDMI™ Female
  • 1 - DisplayPort™ Female
  • 1 - VGA Female
• Warranty: 2 Year Limited

Performance

• Audio Channel: 2.1 via HDMI™/DisplayPort™/3.5 mm Aux
• Compatible Networks: 10/100/1000 Mbps
• Displays Supported: 3 (HDMI™, VGA and DisplayPort™ or HDMI™)
• Max Data Transfer Rate: 5 Gbps
• Max Sisplay Refresh Rate:
  • HDMI™/DisplayPort™ 4K: 30 Hz
  • HDMI™/DisplayPort™ 1080p: 60 Hz
  • VGA: 60 Hz
• Max Display Resolution:
  • HDMI™/DisplayPort™: 3840 x 2160
  • VGA: 1920 x 1080

Power

• Input Current: 0.8A
• Input Voltage: 110 - 220V
• Output Current:
  • USB-C™ – 4.75A
  • USB™ Type-A – 2.4A
• Output Voltage: Up to 20V
• Power Consumption: ≤ 900 mA
• Power Delivery: Up to 100W via USB-C™

Physical Specifications

• Cable Length: 1.48 ft (45 cm)
• Color: Silver, Black
• Enclosure Type: Aluminum
• Operating Humidity: < 85% non-condensing
• Operating Temperature: 32 to 118°F (0 to 48°C)
• Product Depth: 13.78 in. (350 mm)
• Product Height: 0.92 in. (23.37 mm)
• Product Weight: 10.58 oz (300g)
• Product Width: 3.25 in. (82.5 mm)
• Storage Humidity: < 85% non-condensing
• Storage Temperature: 14 to 149°F (-10 to 65°C)

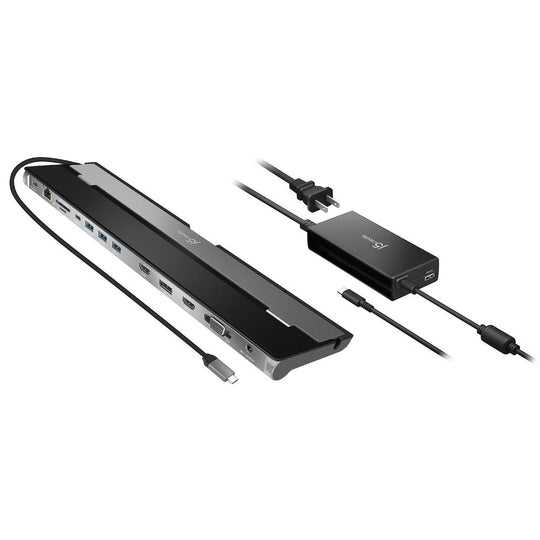

• 1 - JCD543P USB-C™ Triple Display Docking Station
• 1 - JUP2290 100W USB-C™ Super Charger
• 1 - Quick Installation Guide
