j5create 8K DisplayPort™ Cable - 6ft
SKU#: JDC43
UPC#:847626002762
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- DisplayPort™ -enabled devices
- A 8K-capable display and host device is required for obtaining the 7680 x 4320 resolution
- The cable can be used with all DisplayPort™-enabled devices, but 8K @ 60 Hz resolution can only be supported on compatible devices
- Features+
- DisplayPort™ v1.4 HBR3 certified
- Supports resolutions up to 7680 x 4320 @ 60 Hz/ 4096 x 2160p @ 120 Hz
- Supports data rates/bandwidth up to 32.4 Gbps
- Backward compatible with DisplayPort™ v1.0/v1.1/v1.2
- Triple shielded, tinned copper conductors and gold-plated metal ensures maximum protection and insulation
- Latched connectors prevent accidental disconnections
- Length: 6.6 ft (2m) / 3.3 ft (1m) / 9.8 ft (3m)
- Specs+
- Cable Jacket Type: PVC
- Cable Shield Type: Foil/Braid Tinned Copper + Al tape
- Connector A: Gold-plated DisplayPort™ Male
- Connector B: Gold-plated DisplayPort™ Male
- Warranty: 1 Year Limited
- Audio Channel: DisplayPort™ v1.4
- Displays Supported: 1
- Max Data Transfer Rate: 32.4 Gbps
- Max Display Refresh Rate:
- 7680 x 4320 @ 60 Hz
- 4096 x 2160 @ 120Hz
- Max Display Resolution: 7680 x 4320
- Cable Length: JDC43: 6.6 ft. (200 cm) JDC43L10: 3.3 ft (100 cm) / JDC43L30: 9.8 ft (300 cm)
- Color: Black
- Connector Type: DisplayPort™ Male
- Enclosure Type: Plastic
- Operating Humidity: < 85% non-condensing
- Operating Temperature: 32 to 98°F (0 to 37°C)
- Product Depth: 0.39 in. (10 mm)
- Product Height: 1.57 in. (40 mm)
- Product Weight: JDC43: 0.35 lbs. (160g) JDC43L10: 0.16 lbs. (72.5g) JDC43L30: 0.51 lbs. (230g)
- Product Width: 0.74 in. (19 mm)
- Storage Humidity: < 85% non-condensing
- Storage Temperature: 14 to 140°F (-10 to 65°C)
- Package Contents+
- 1 – 8K DisplayPort™ Cable (JDC43 / JDC43L10 / JDC43L30)
- Reviews+
- DisplayPort™ -enabled devices
- A 8K-capable display and host device is required for obtaining the 7680 x 4320 resolution
- The cable can be used with all DisplayPort™-enabled devices, but 8K @ 60 Hz resolution can only be supported on compatible devices
- DisplayPort™ v1.4 HBR3 certified
- Supports resolutions up to 7680 x 4320 @ 60 Hz/ 4096 x 2160p @ 120 Hz
- Supports data rates/bandwidth up to 32.4 Gbps
- Backward compatible with DisplayPort™ v1.0/v1.1/v1.2
- Triple shielded, tinned copper conductors and gold-plated metal ensures maximum protection and insulation
- Latched connectors prevent accidental disconnections
- Length: 6.6 ft (2m) / 3.3 ft (1m) / 9.8 ft (3m)
- Cable Jacket Type: PVC
- Cable Shield Type: Foil/Braid Tinned Copper + Al tape
- Connector A: Gold-plated DisplayPort™ Male
- Connector B: Gold-plated DisplayPort™ Male
- Warranty: 1 Year Limited
- Audio Channel: DisplayPort™ v1.4
- Displays Supported: 1
- Max Data Transfer Rate: 32.4 Gbps
- Max Display Refresh Rate:
- 7680 x 4320 @ 60 Hz
- 4096 x 2160 @ 120Hz
- Max Display Resolution: 7680 x 4320
- Cable Length: JDC43: 6.6 ft. (200 cm) JDC43L10: 3.3 ft (100 cm) / JDC43L30: 9.8 ft (300 cm)
- Color: Black
- Connector Type: DisplayPort™ Male
- Enclosure Type: Plastic
- Operating Humidity: < 85% non-condensing
- Operating Temperature: 32 to 98°F (0 to 37°C)
- Product Depth: 0.39 in. (10 mm)
- Product Height: 1.57 in. (40 mm)
- Product Weight: JDC43: 0.35 lbs. (160g) JDC43L10: 0.16 lbs. (72.5g) JDC43L30: 0.51 lbs. (230g)
- Product Width: 0.74 in. (19 mm)
- Storage Humidity: < 85% non-condensing
- Storage Temperature: 14 to 140°F (-10 to 65°C)
- 1 – 8K DisplayPort™ Cable (JDC43 / JDC43L10 / JDC43L30)
8K DisplayPort™ Cable

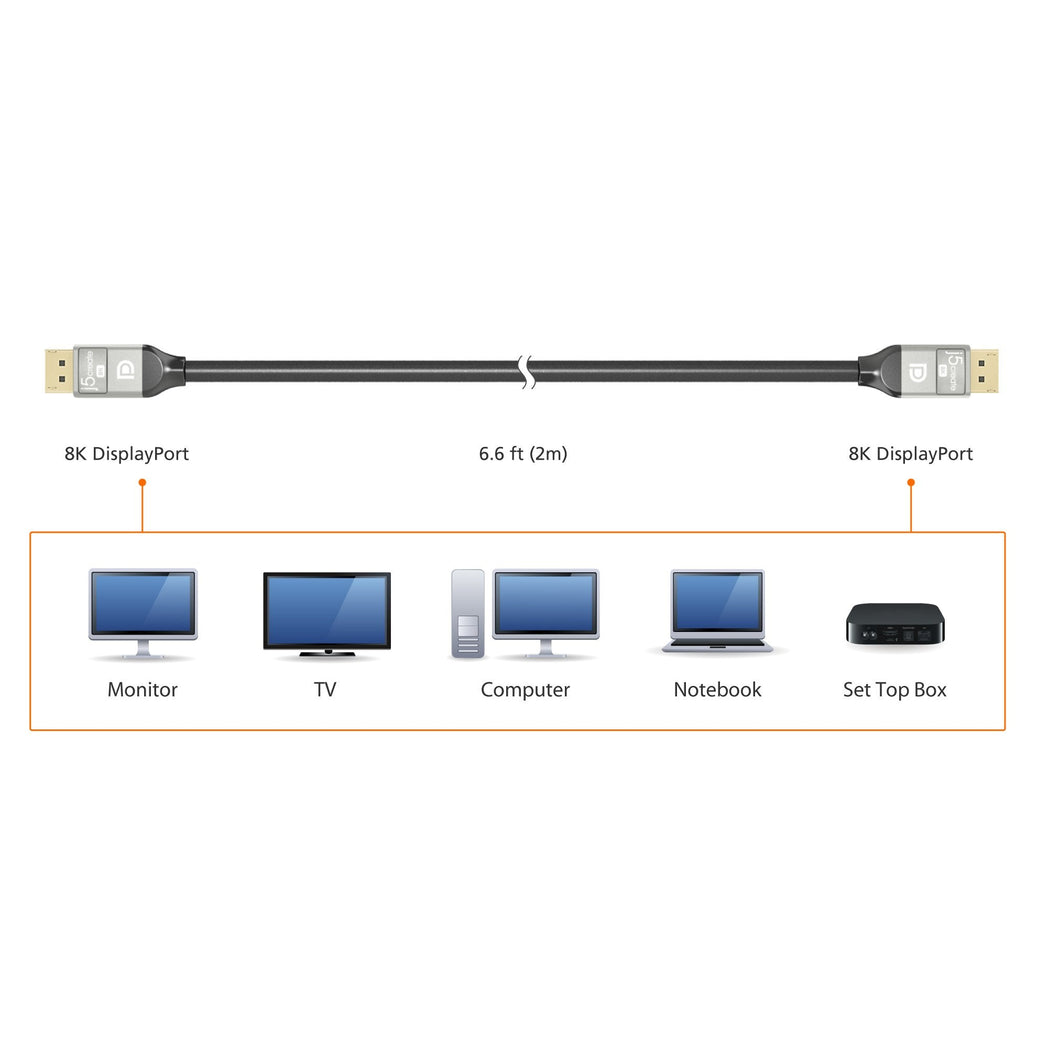

The JDC43/ JDC43L10 / JDC43L30 is an 8K DisplayPort™ cables is allow you to connect a DisplayPort™ from a laptop, desktop, or set-top box to a high-resolution monitor, HDTV or projector with DisplayPort™ input.
The JDC43 /JDC43L10 / JDC43L30 features a tinned copper conductor and aluminum + braided shielding, giving you a stable picture without distortion. Its gold-plated connectors allow for a seamless connection & reliable transmission. Latched connectors give the 8K DisplayPort™ cable a more secure connection.
The cable transmits both audio and video. DisplayPort™ v1.4 supports 8K UHD (7680 × 4320) at 60 Hz with 30 bit/px RGB color and HDR, and 4K UHD (4096 × 2160) at 120 Hz. The theoretical bandwidth is up to 32.4 Gbps, enough bandwidth to support high-end gaming displays and video cards.
System Requirements:
Special Notes:
Hardware
Performance
Physical Specifications
8K DisplayPort™ Cable
The JDC43/ JDC43L10 / JDC43L30 is an 8K DisplayPort™ cables is allow you to connect a DisplayPort™ from a laptop, desktop, or set-top box to a high-resolution monitor, HDTV or projector with DisplayPort™ input.
The JDC43 /JDC43L10 / JDC43L30 features a tinned copper conductor and aluminum + braided shielding, giving you a stable picture without distortion. Its gold-plated connectors allow for a seamless connection & reliable transmission. Latched connectors give the 8K DisplayPort™ cable a more secure connection.
The cable transmits both audio and video. DisplayPort™ v1.4 supports 8K UHD (7680 × 4320) at 60 Hz with 30 bit/px RGB color and HDR, and 4K UHD (4096 × 2160) at 120 Hz. The theoretical bandwidth is up to 32.4 Gbps, enough bandwidth to support high-end gaming displays and video cards.
