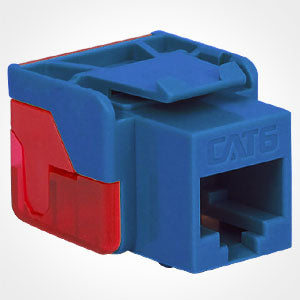

ICC Cat6 EZ Modular Keystone Jack

SKU#: IC1078L6BL

UPC#:633758017251

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: IC1078L6BL

UPC#:633758017251
$3.49

SKU#: IC1078L6BL

UPC#:633758017251
Color:
Blue
White

SKU#: IC1078L6BL

UPC#:633758017251

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

Description+

The ICC IC1078L6 Cat6 EZ Modular Keystone Jack is an 8-position, 8-conductor (8P8C) modular connector. It provides outstanding performance and reliability and supports up to Gigabit Ethernet applications. These keystone jacks are easy to terminate, simplifying installation and reducing work time.

Features+

  • Provides Excellent Performance for Data Networks Requiring Maximum Speed & Bandwidth
  • PCB Technology Provides Maximum Performance & Superior Signal Quality
  • Enhanced Crosstalk Cancellation Reduces Return Loss & Improves Performance by Rejecting Noise & Unwanted Signals
  • Includes Integrated TIA568-A/B Color Wiring Diagram
  • Backwards Compatible with All Lower Rated Category Components

Specs+

  • Electrical Current Rating: 1.5 Amps
  • Insulation Resistance: 500 mOhms Min
  • Contact Resistance: 20 mOhms Max
  • DC Resistance: 0.1 Ohm Max
  • Transmission Performance Exceeds Category 6 Connecting Hardware Requirements Specified in TIA/EIA-568-B.2 When Used with Compatible Horizontal Cable
  • Plug Insertion Life: 750 Cycles Min
  • Plug and Jack Contact Force: 100 Grams Min Using FCC Approved Plug
  • Plug Retention Force: 30 lbs Min
  • Temperature: -40°F to 150°F (-40° to 68°C)
  • Housing: High Impact Flame Retardant Plastic, UL 94V-0
  • Jack Wiring: 50 Micro Inches of Gold over 100 Micro Inches of Nickel
  • Connector: Insulation Displacement Connector (IDC)
  • Accepts 22-24 AWG Solid Wire
  • UL Listed
  • SPEC SHEET
  • SPEC SHEET
