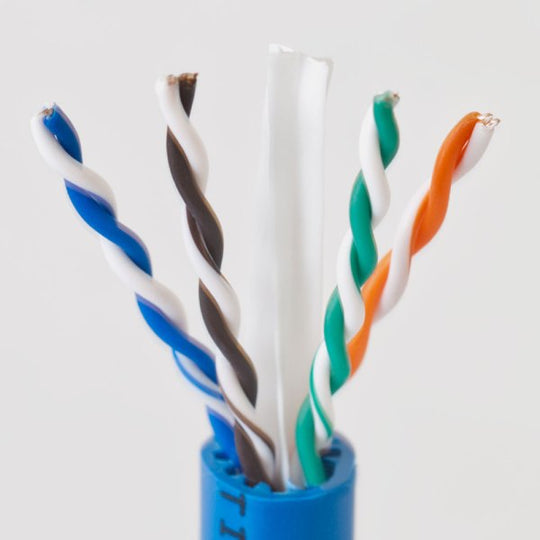

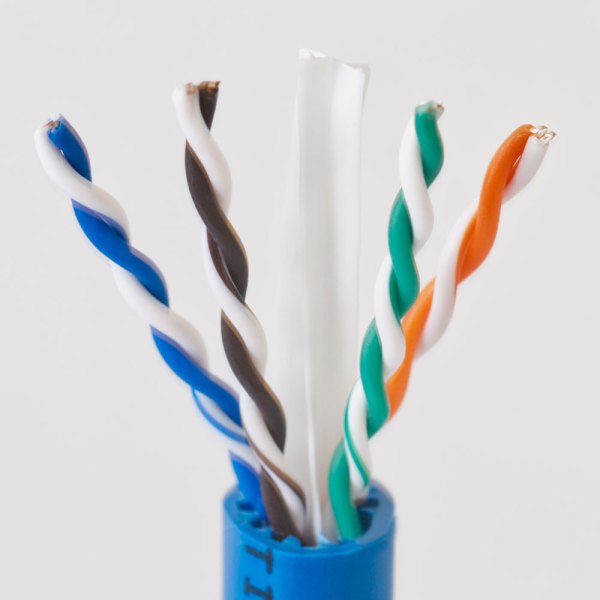

ICC 650MHz CAT6A Bulk Cable with 23 AWG UTP Solid Wires, CMP Jacket, 1000ft - Spline

ICC 650MHz CAT6A Bulk Cable with 23 AWG UTP Solid Wires

ICC’s CAT6A 10Gig UTP cable provides transmission performance beyond 650MHz and Alien Crosstalk (AXT) requirements exceeding the industry standards and ETL Verified to TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with a unique spline design and non-concentric to minimize AXT from neighboring cables. This cabling provides support for high bandwidth applications such as data centers and other data-intensive or backbone requirements. This cable qualifies installations for the ICC Lifetime Performance Limited Warranty when installed by ICC Certified Elite installers (conditions apply). The cable comes packaged on a reel.

• ETL Verified to TIA-568-C.2.
• UL Type CMR for non-plenum.
• UL Type CMP for plenum.
• FT4.
• UL 444.

Standard:

• ANSI/TIA 568-C2
• ANSI/TIA 862
• ISO/IEC 11801
• ICEA S-116-732
• NEC/CEC Type CMP
• ROHS Compliant Directive 2002/95/EC
• UL 444
• Rated Temperature: 75 degree C
• Flame Test: FT6
• Electrical Properties:
• Conductor DCR:9.38 ohms/100M at 20 degrees C
• DCR Unbalance: 3% max
• 10 Base-T
• 100 Base-T (IEEE 802.3u)
• 1000 Base-T
• High Definition Video
• Digital Broadcast Video/IP Video/VoIP
• ISDN/ADSL
• 622Mbps ATM
• Conductor: Solid Bare Copper
• Insulation: FEP
• Jacket: Flame Retardant PVC

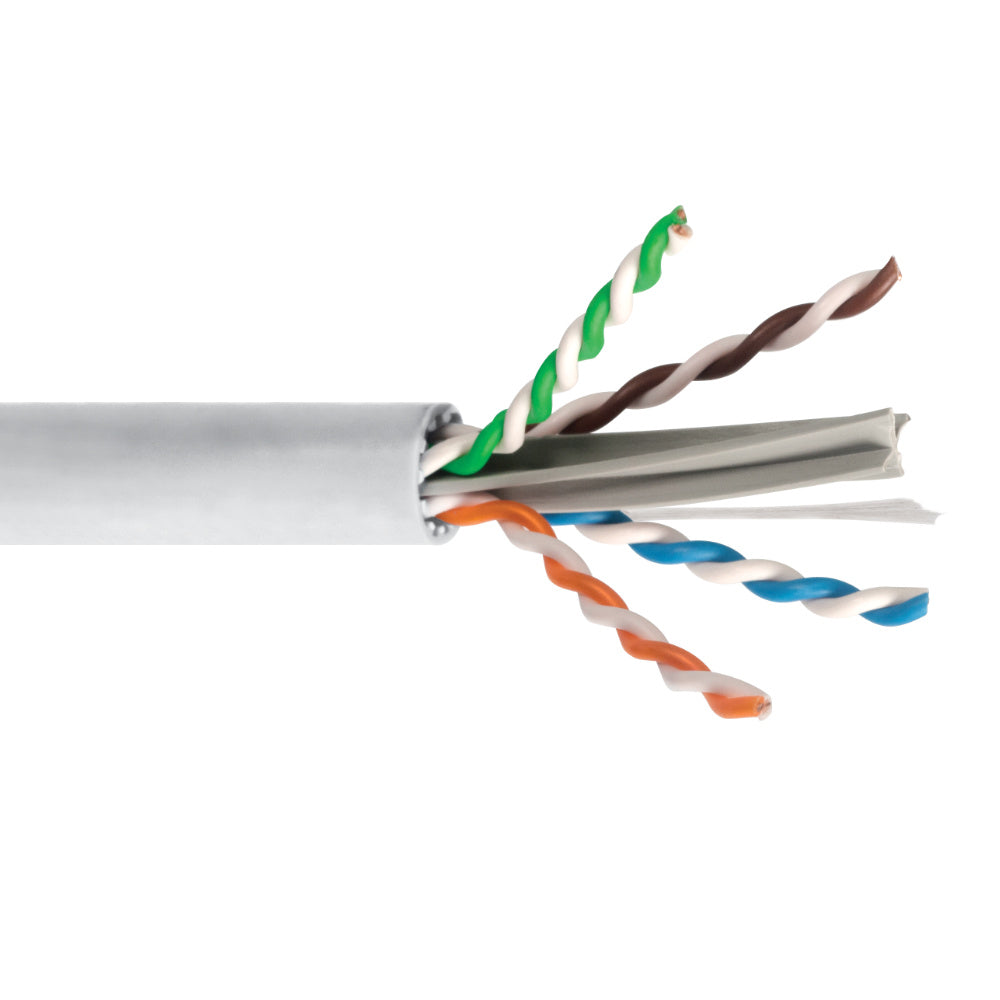

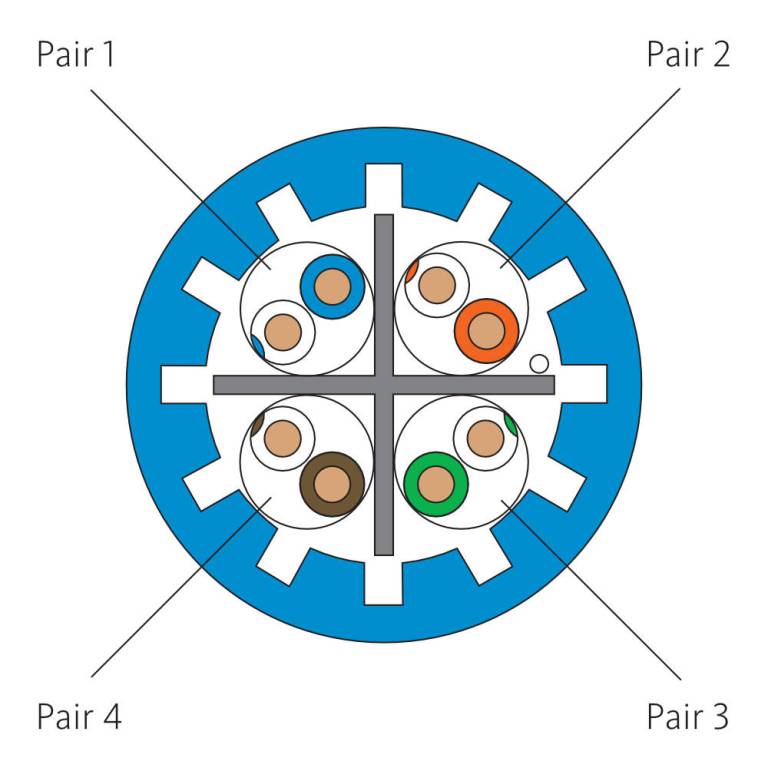

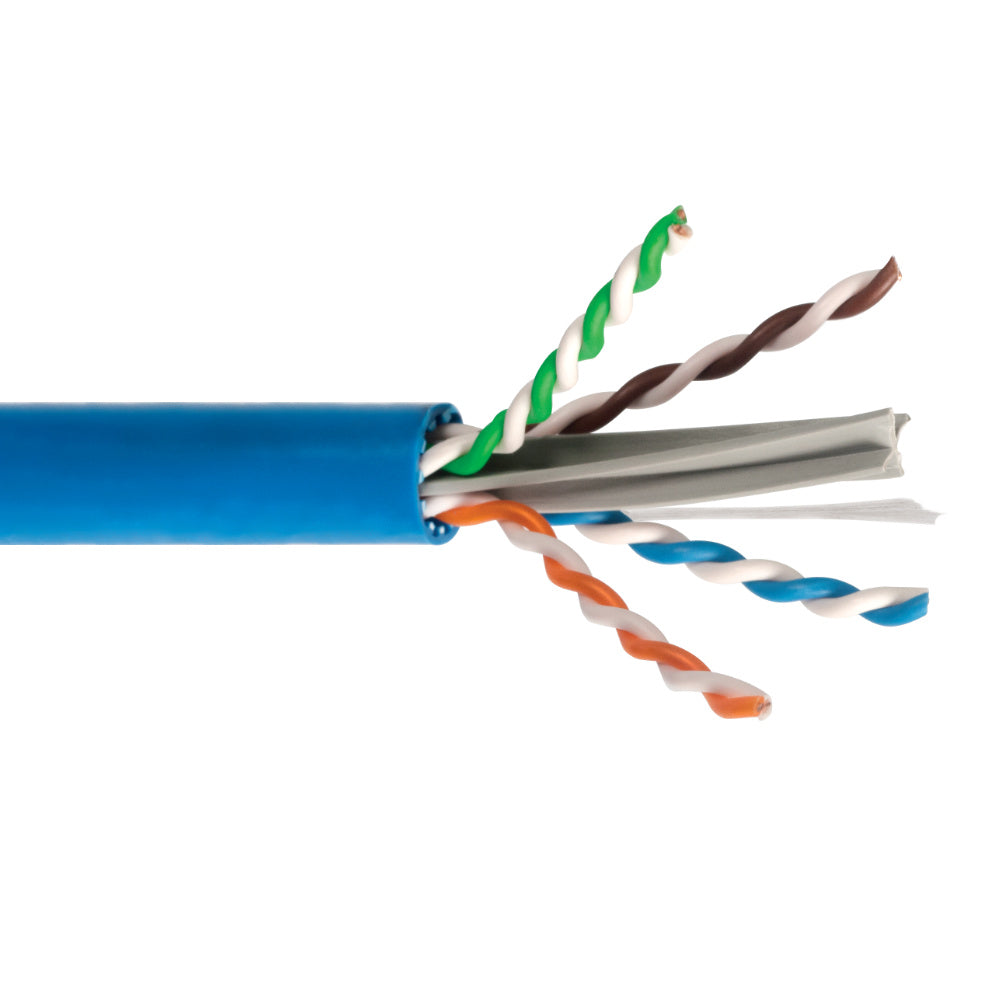

• Cable spine separator X
• Component: 4 twisted pair
• Outer Dia.(in): 0.34″

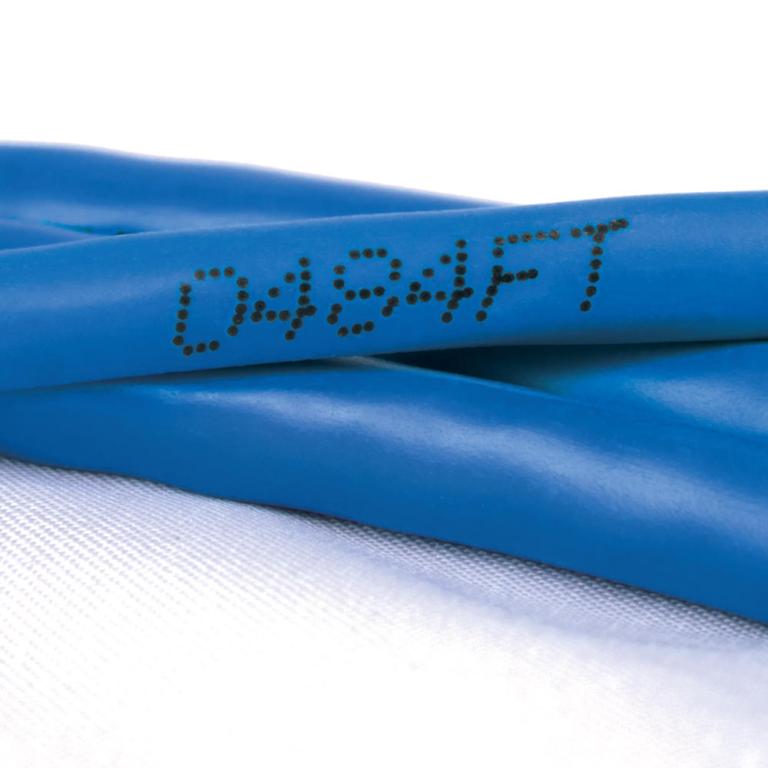

• Sequential footage marking for easy usage tracking.

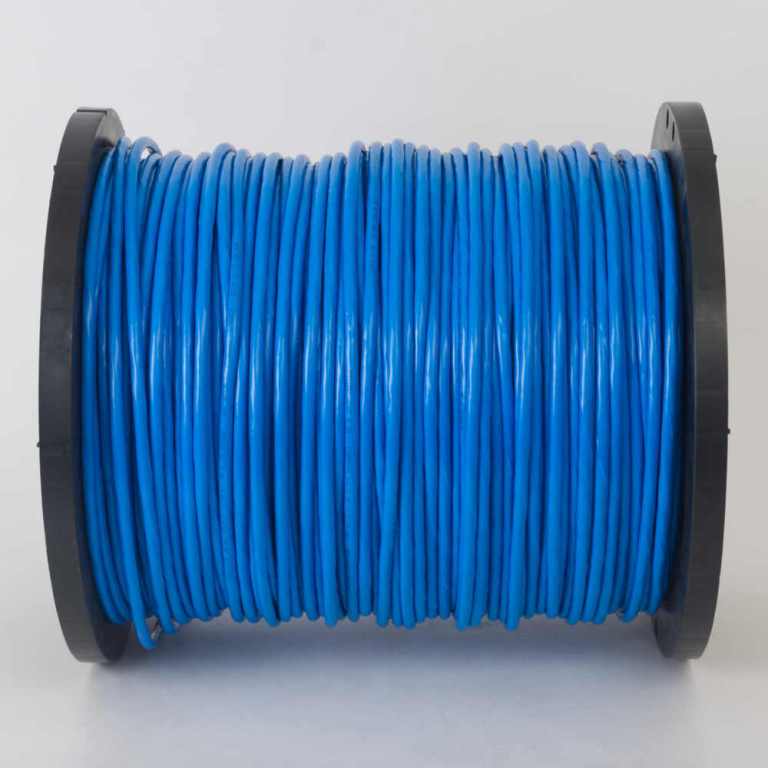

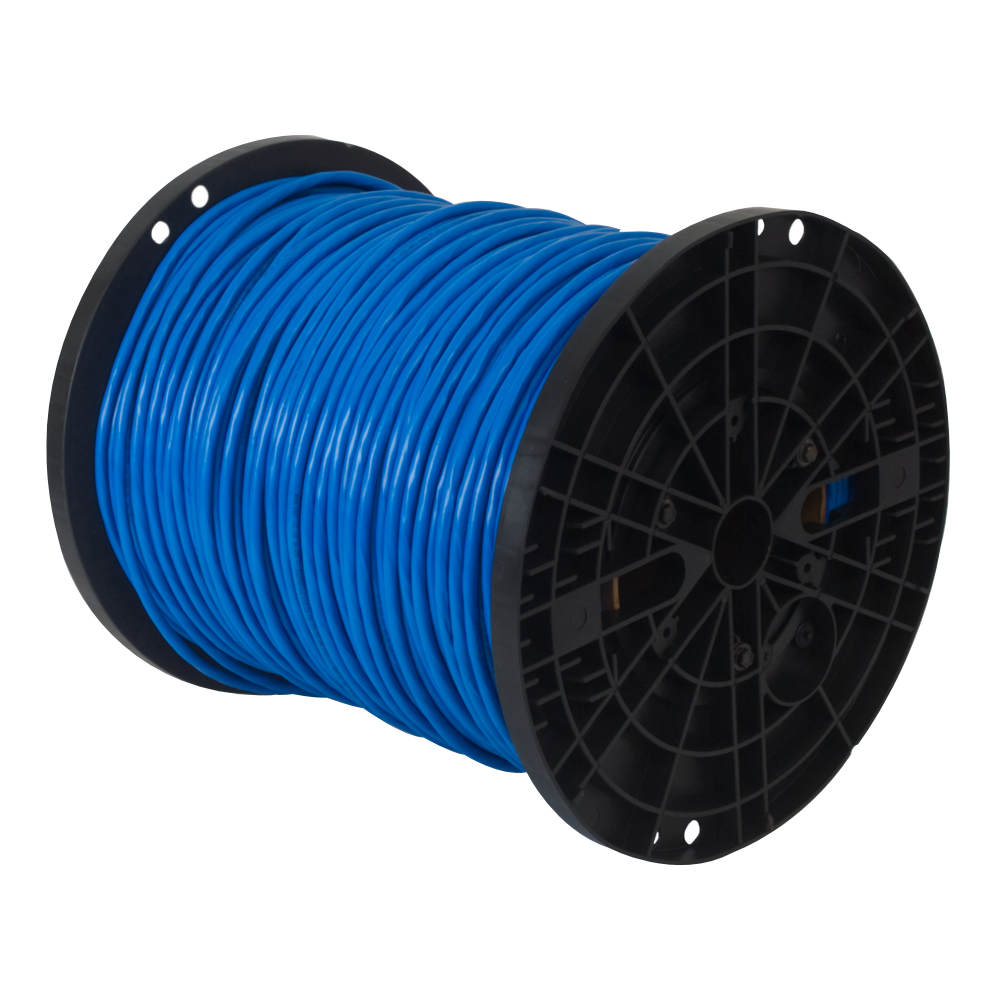

• Packaged on a reel (Size: 17.3W X 13.0H)
• Weight: 45 LBS
• Temperature Rating (°F)
• Installation temperature: 32 to 140 Fahrenheit (°F)
• Operating temperature: -4 to 167 Fahrenheit (°F)

Color:

• Color XX: BL-Blue, WH-White
