HDMI 4K Extender over Single Cat6 w/ IR Extension - 229ft

SKU#: HDMI20-SINGLE-EXTEND

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

SKU#: HDMI20-SINGLE-EXTEND

UPC#:
$169.99

SKU#: HDMI20-SINGLE-EXTEND

UPC#:

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

  • Description+
  • HDMI 4K Extender over Single Cat6 w/ IR Extension - 229ft

    When trying to extend a HDMI connection, using longer HDMI cables may not be an option, nor may it be easy to run the cable in the walls of your residential or commercial building when compared to Ethernet cables. The HDMI extender over Cat6 cable provides an efficient and simple method to extend the HDMI connection using Ethernet cables. With support for resolutions up to 4K 60Hz at 229 feet, expanding the HDMI signal couldn't be easier, while supporting Ultra HD resolutions for an optimal viewing experience.

    How it Works

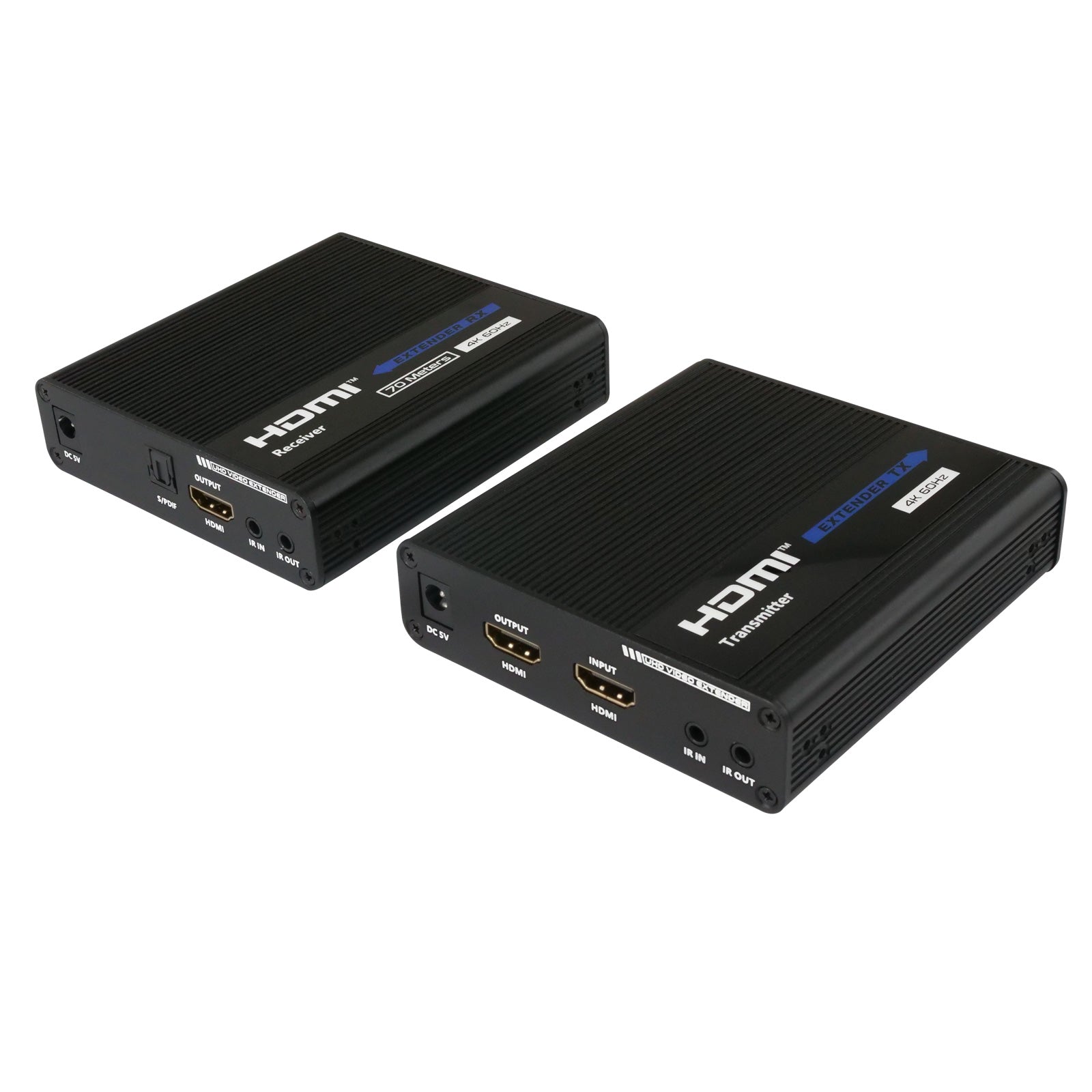

    The HDMI extender comes with a sender and receiver. The sender will plug into a HDMI source, such as a Blu-ray or DVR player. On the other end of the sender is a Cat6 RJ45 Ethernet port. A Cat6 cable is plugged into the RJ45 Ethernet port and then plugged into the other end on the receiver side. On the receiver side, another HDMI cable would then plug into a display for output. IR cables are also included for using a remote control.

    Metal Enclosure

    Constructed with a metal enclosure, the HDMI extender provides a solid and sturdy build that can be used in a variety of applications.

    4K 60Hz HDR Support

    The HDMI extender supports resolutions up to 4K / 60Hz at 229 feet with Cat6/6a, delivering stunning picture quality at a longer distance. For those limited by 1080p over longer distances, this solves the issue.

    IR Support

    What's the point in extending a HDMI signal if you can't control the source device remotely. The extender includes IR support, allowing IR cables to be plugged in on the sender and receiver side. This provides remote control functionality on the display side.

    HDMI Loopout, S/PDIF Audio Output, Lightning, Surge, and ESD protection

    The HDMI extender features an HDMI loop out port for connecting and viewing a local HDMI display. The extender also includes a independent S/PDIF audio port for extracting and outputting audio. Easily switch between the two audio output modes on the receiver, ARC or S/PDIF. Audio Return Channel (ARC): Allows user to have one connection between TV to audio receiver or sound bar. Send video to the TV with an HDMI cable and the same HDMI cable sends audio from TV back down the same cable. Lightning, Surge, and ESD protection are all built into the device to keep it safe and lasting long.

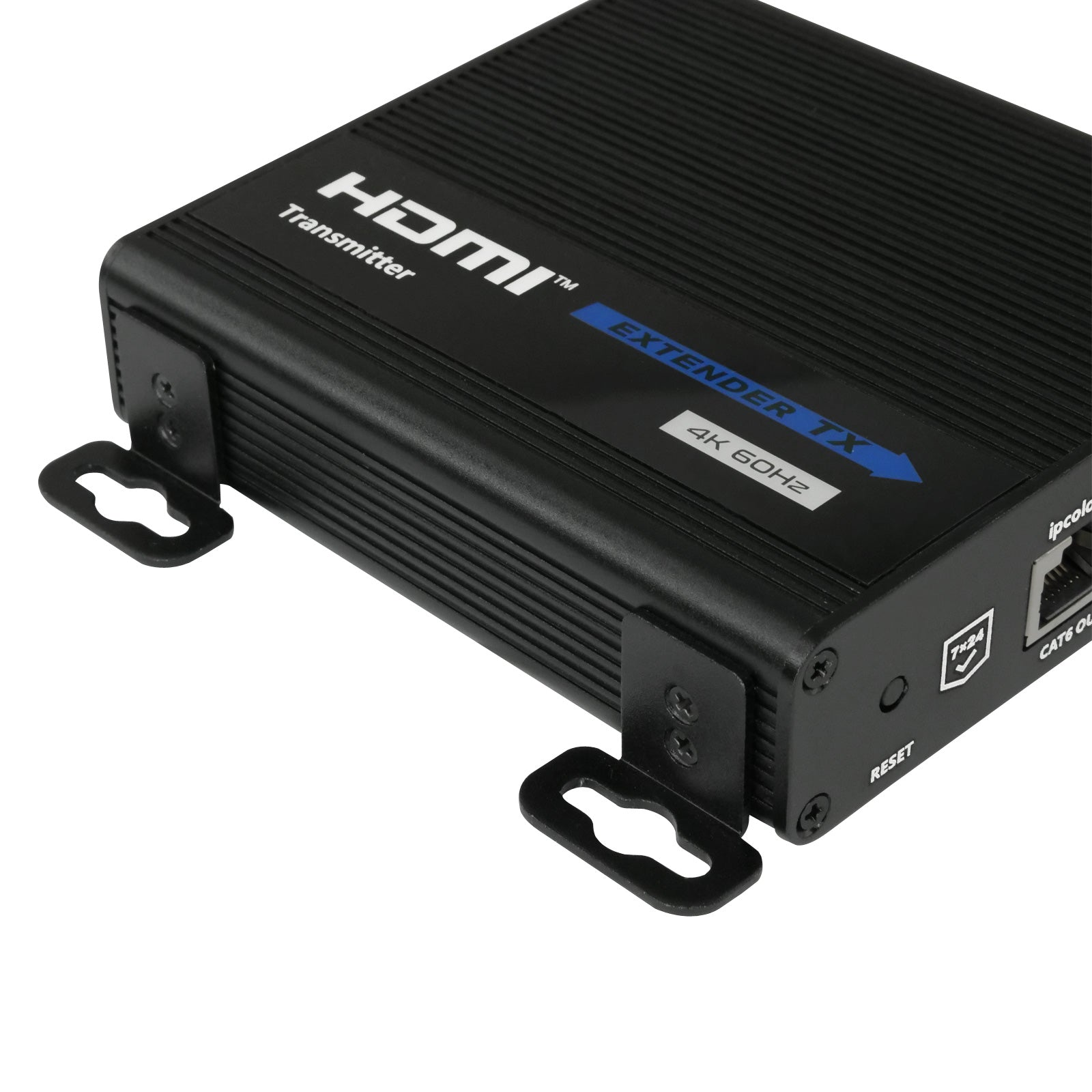

    Wall Mountable Design

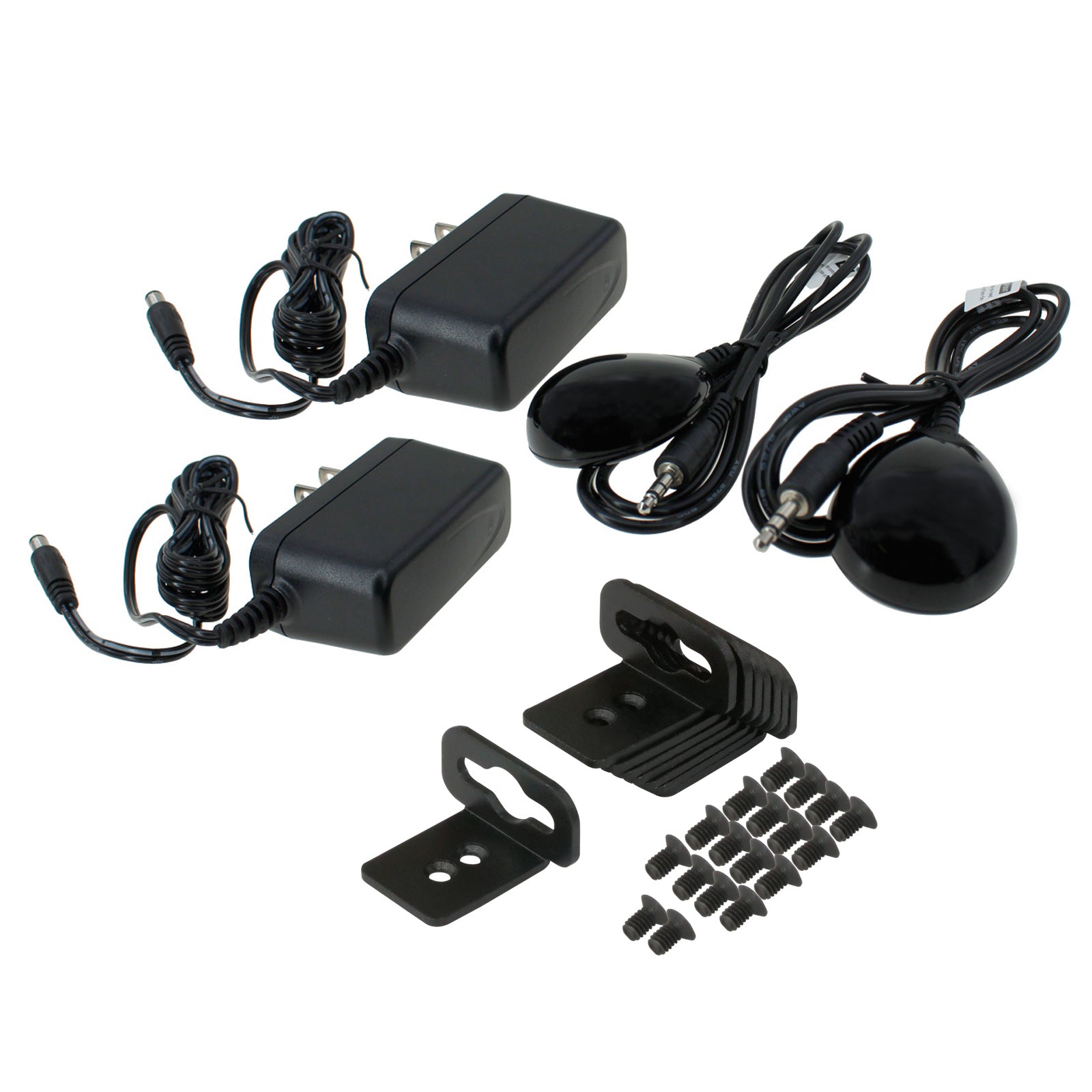

    Included with the HDMI extender are mounting brackets and screws. This extender features a wall-mountable design for a clean and flexible installation.

    Applications

  • Features+
    • Extends a HDMI connection when standard HDMI cable lengths will not work
    • Use with Cat6 or higher Ethernet cables (Accepts 24AWG wire)
    • Support resolution up 4K@60Hz (4:4:4 chroma subsampling) and 18Gbps bandwidth
    • 4K 60Hz HDR at up to 229 feet
    • HDCP 2.2 compatible
    • IPColor protocol for zero latency real time display and video game applications
    • Toslink Optical Digital audio output - can extract HDMI audio for home stereo systems
    • Support Dolby audio 5.1CH / Dolby TrueHD 7.1CH / ARC
    • Support bi-directional IR pass back (20~60KHz) for controlling devices remotely
    • Metal enclosure for durability
    • Mounting brackets with screws included
  • Specs+
  • Technical
    HDCP Compliance HDCP 2.2
    HDMI Compliance HDMI 2.0
    Video Bandwidth 18Gbps
    Resolutions 480i @ 60Hz
    480p @ 60Hz
    576i @ 50Hz
    576p @ 50Hz
    720p @ 50/60Hz
    1080i @ 50/60Hz
    1080p @ 50/60
    3840x2160 @ 24/25/30/50/60Hz
    4096x2160 @ 24/25Hz
    Audio Format Support LPCM, DTS-HD, DTS-Audio, Dolby Digital 5.1CH, Dolby TrueHD 7.1CH
    Input and Output TMDS Signal 0.7~1.2Vp-p (TMDS)
    Input and Output DDC Signal 5Vp-p (TTL)
    HDR10 (YUV 4:4:4) Support
    HDMI Loop Out Support
    ARC and S/PDIF Out Support
    EDID Support
    Cascade Connection Support (Up to 10 receivers), Auto adapt display resolution
    Bi-directional IR pass back Support
    Input HDMI Cable Length ≤8m (AWG24)
    Output HDMI Cable Length ≤8m (AWG24)
    Transmission Distance
    RJ45 Ethernet Cable Cat6a: Up to 70m (229ft)
    Cat6: Up to 70m (229ft)
    Protection Level
    Lightning Protection Yes
    Surge Protection Yes
    ESD Protection Yes

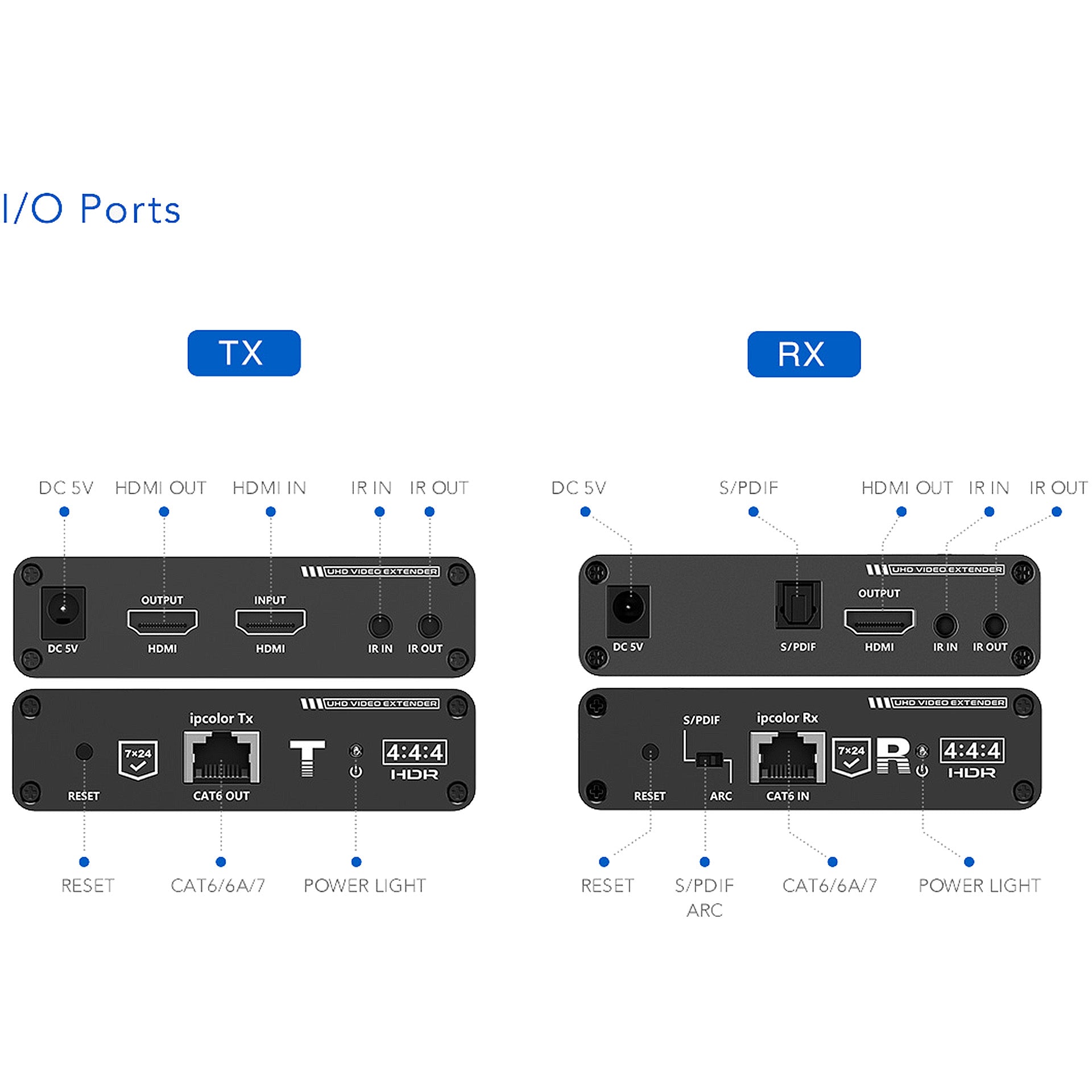

    Interface

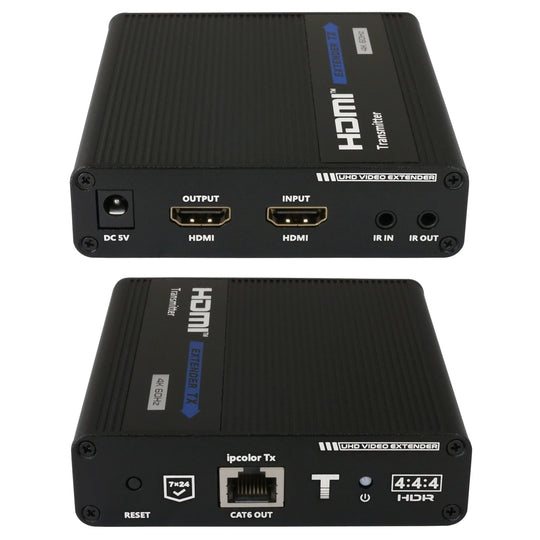

    Transceiver Front panel: RJ45 Output, Rest Button, Power/Signal Indicator
    Back panel: HDMI In, HDMI Out, DC Plug, IR In, IR Out
    Receiver Front panel: RJ45 Input, Rest Button, Audio Switch, Power/Signal Indicator
    Back panel: HDMI Out, IR In, IR Out, S/PDIF, DC Plug
    Power Supply
    Voltage / Current DC5V / 2A
    Power Consumption TX < 4W , RX < 4W
    Operating Temperature
    Working Temperature -20 to +60° C (-4 to +140° F)
    Storage Temperature -30 to +70° C (-22 to +158° F)
    Humidity (No Condensation) 0~90% RH
    Others
    Dimension 106mm (L) x 99mm (W) x 26.2mm (H)
    Material Aluminum Alloy
    Treatment Grit Blast
    Weight TX: 210g, RX: 210g
    Color Black
