Platinum Tools 100025C ezEX™44 Shielded, External Ground, CAT6 Connector 25 Pack

SKU#: 100025C

UPC#:849160009979

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

SKU#: 100025C

UPC#:849160009979

Regular price Our Price   $49.99

Sale   $49.22

SKU#: 100025C

UPC#:849160009979

SKU#: 100025C

UPC#:849160009979

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

Description+

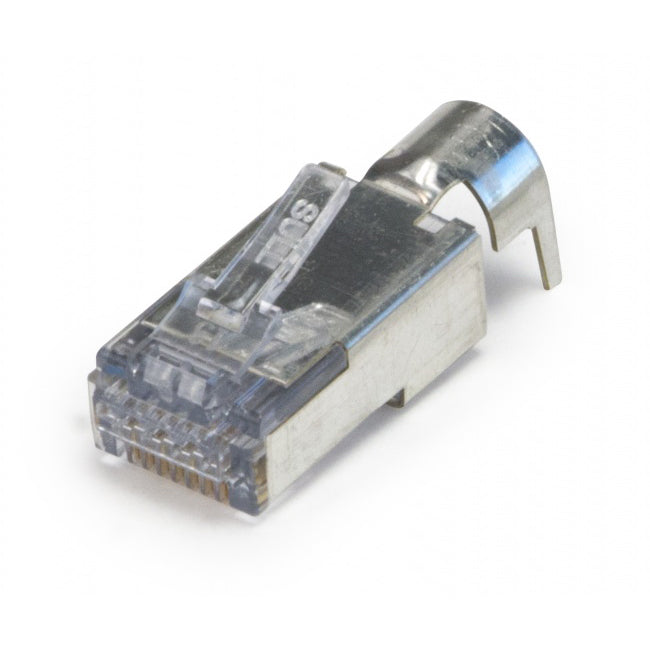

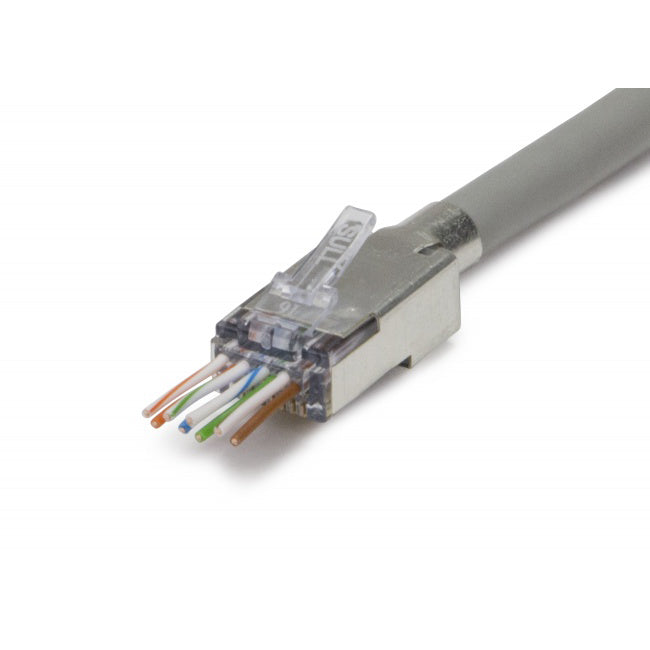

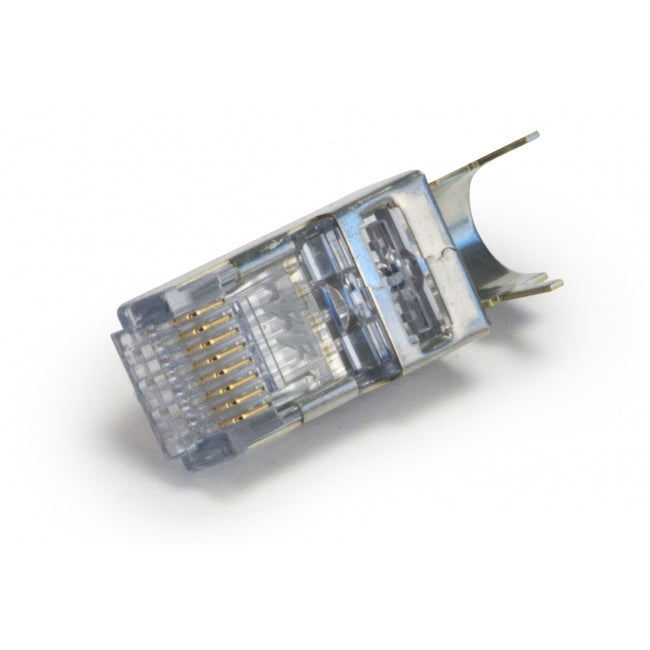

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

Features+

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 5e/6/6A compliant
  • Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
  • Max Outer Diameter: 0.305” (7.75mm)
  • Solid or Stranded 24-22 AWG
  • TAA, TIA, RoHS, UL & FCC compliant

Specs+

Reviews+

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 5e/6/6A compliant
  • Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
  • Max Outer Diameter: 0.305” (7.75mm)
  • Solid or Stranded 24-22 AWG
  • TAA, TIA, RoHS, UL & FCC compliant
