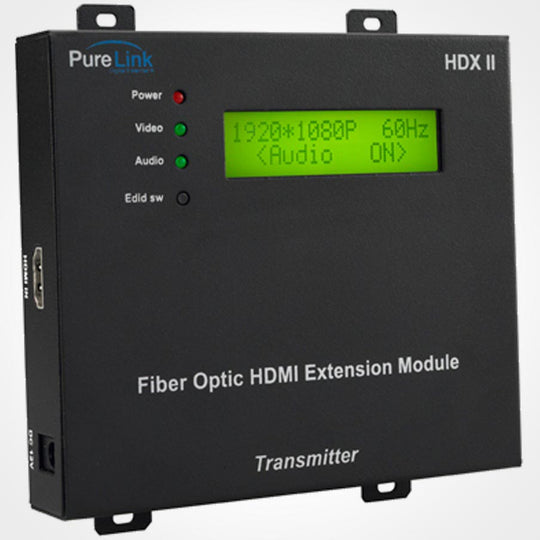

PureLink HDMI over 4 LC Fiber Extender Kit
SKU#: HDX II Tx/Rx
UPC#:817705020918
Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.
Description+
The PureLink HDX II Tx/Rx HDMI over 4 LC Fiber Extender Kit is designed to transmit 1080p HDMI signals up to 5000 feet using LC fiber optic cable. It features full HDCP compliance.
Features+
- Designed for Large Scale Installations
- Extends 1080p HDMI up to 5000ft
- Fully HDCP Compliant
- Includes Both Transmitter and Receiver for a Complete Solution
Specs+
- Data Rate: 2.25 Gbps (HDMI Single Link)
- Resolution Support: Up to 5000ft at WUXGA (1920x1200)
- Connector Type: DVI Type/LC
- Power Consumption: Transmitter 1.65 Watts (Max), Receiver 2.48 Watts (Max)
- Optical Source: 850nm Vcsel
- Optical Cable Type: 50/125 or 62.5/125 LC Multi-mode Fiber
- Power: DC 12V, 3A Power Supply Adapter
- Dimensions: 5.16 x 4.17 x 1.18"
Package Contents+
- (1) HDX II Transmitter Module
- (1) HDX II Receiver Module
- (2) 6ft HDMI Cable
- (1) DC 12V Power Supply Unit with Power Cord
