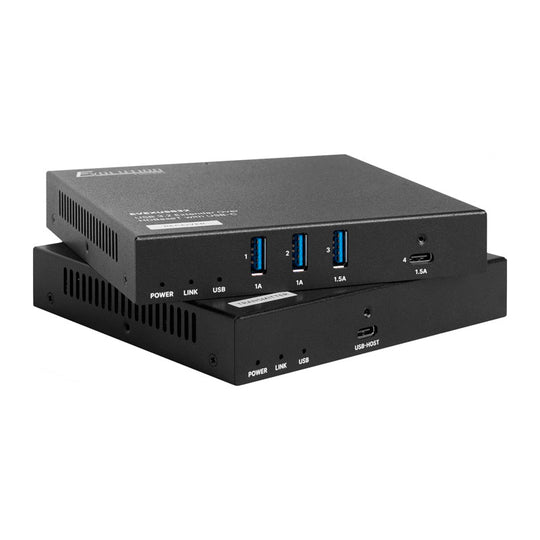

Evolution HDBaseT USB 3.2 Extender with USB-C
SKU#: EVEXUSB32
UPC#:741835128315
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Supports USB 3.2 Gen 1×1 standards
- 5Gbps data transfer up to 328ft (100m) over a single Cat6A cable
- Backwards compatible with USB 3.0, 2.0, and 1.1 standards
- One USB-C port on the transmitter (host) unit

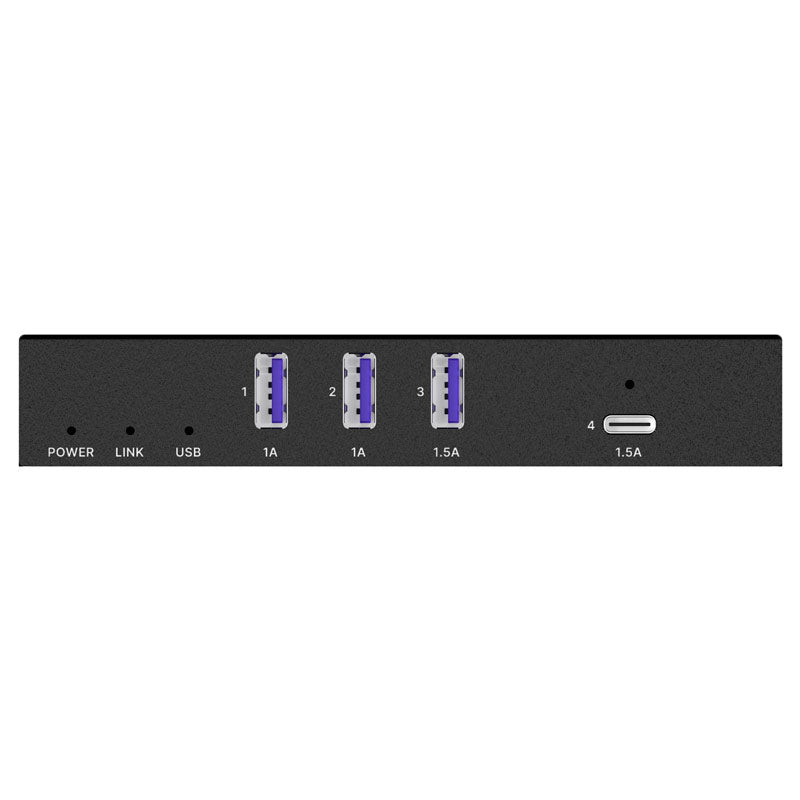

- One USB-C port and three USB-A ports on the receiver (device) unit

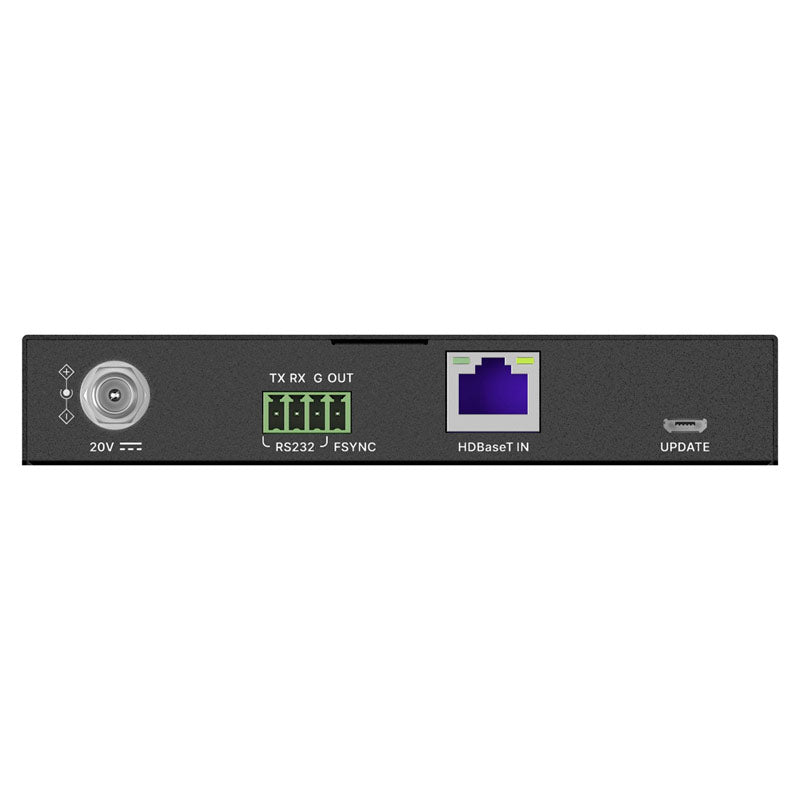

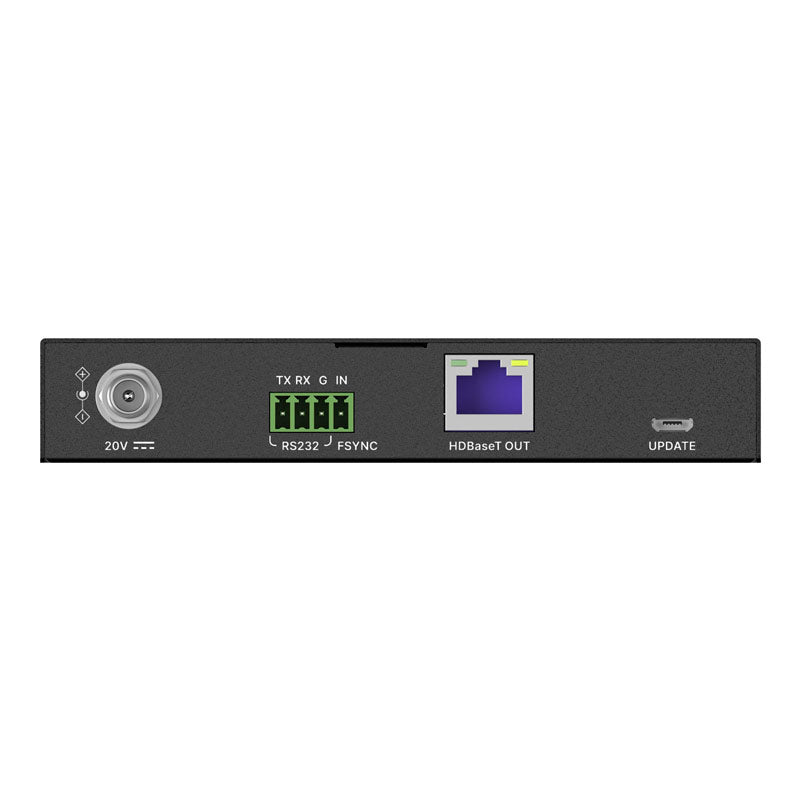

- Features VBUS, FSYNC, and RS232 pass-through
- Power over HDBaseT (PoH) technology allows for a single power supply on either end
- Includes two 1.5A ports (USB-A & USB-C) and two 1A (USB-A) ports on the receiver (host) unit
- Features the HDBaseT-USB3 standard for high performance and reliable connectivity with low power consumption
- Specs+
- Package Contents+
- (1) Transmitter (host) unit
- (1) Receiver (device) unit
- (1) DC 20V/3A power adapter and cable
- (4) Mounting brackets and screws
- (2) 4-pin screwdown terminal connectors
- Reviews+
- Supports USB 3.2 Gen 1×1 standards
- 5Gbps data transfer up to 328ft (100m) over a single Cat6A cable
- Backwards compatible with USB 3.0, 2.0, and 1.1 standards
- One USB-C port on the transmitter (host) unit
- One USB-C port and three USB-A ports on the receiver (device) unit
- Features VBUS, FSYNC, and RS232 pass-through
- Power over HDBaseT (PoH) technology allows for a single power supply on either end
- Includes two 1.5A ports (USB-A & USB-C) and two 1A (USB-A) ports on the receiver (host) unit
- Features the HDBaseT-USB3 standard for high performance and reliable connectivity with low power consumption
- (1) Transmitter (host) unit
- (1) Receiver (device) unit
- (1) DC 20V/3A power adapter and cable
- (4) Mounting brackets and screws
- (2) 4-pin screwdown terminal connectors
USB 3.2 Extender Over HDBaseT with USB-C
The EVEXUSB32 supports up to four USB 3.2 devices, such as webcams, keyboards, mice, and storage devices using USB-A and USB-C connections. Power over HDBaseT (PoH) technology allows for a single power supply on either end while two 1.5A ports (USB-A & USB-C) and two 1A ports (USB-A) provide power to the connected devices. With its reliable transmission and versatile connectivity options, the EVEXUSB32 supports corporate, medical, security, educational, and other applications.
USB 3.2 Extender Over HDBaseT with USB-C
The EVEXUSB32 supports up to four USB 3.2 devices, such as webcams, keyboards, mice, and storage devices using USB-A and USB-C connections. Power over HDBaseT (PoH) technology allows for a single power supply on either end while two 1.5A ports (USB-A & USB-C) and two 1A ports (USB-A) provide power to the connected devices. With its reliable transmission and versatile connectivity options, the EVEXUSB32 supports corporate, medical, security, educational, and other applications.
