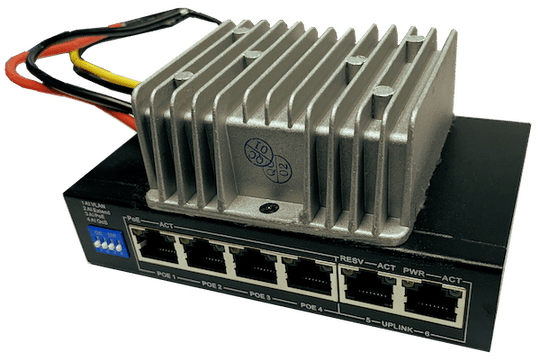

Enable-IT Automotive / Mobile Gigabit PoE 5 Port Switch

SKU#: 8805M

UPC#:896741002416

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

SKU#: 8805M

UPC#:896741002416
$153.00

SKU#: 8805M

UPC#:896741002416

SKU#: 8805M

UPC#:896741002416

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

The Enable-IT 8805M Automotive / Marine 6 port Gigabit PoE Switch is a unique product. It can automatically detect any LAN device and determine if it is a PoE device and supply power with IEEE 802.3af/at standard voltage and watts.

The Enable-IT 8805M Automotive / Marine 6 port Gigabit PoE Switch has 5 dedicated 10/100/1000Mbps Auto- Negotiation RJ-45 LAN ports with each port PoE auto detect enabled. Auto detect PoE uses IEEE 802.3 PoE Power Detection (PD). There is no need to worry about the damage of PoE being applied to Non-PoE Devices and PoE connected devices are supplied with up to 30W per port.

The Gigabit PoE Switch supplies PoE electrical power on industry standard 2-pair (RJ-45 pins 4/5 positive and 7/8 negative) along with Ethernet data in one single cable allowing you to expand your network where there are no power lines or outlets. This enable you to deploy PoE devices such as WiFi Access Points, PoE IP Cameras, Poe Access controls or PoE IP Phones.

This Gigabit PoE Switch supports Gigabit PoE extension up to 3,500ft by using our 865X PRO Gigabit PoE Extender kit.

Features+

  • (4) 10/100/1000Mbps Auto-Negotiation RJ-45 ports with PoE auto detect<
  • (2) Uplink 10/100/1000Mbps Auto-Negotiation RJ-45 ports
  • Complies with IEEE 802.3af/at standards
  • Each port supports full duplex auto-negotiation -10/100/1000Mbps
  • Maximum Bandwidth backplane 12 Gbps
  • Supports PoE power up to 30W for each PoE port
  • Supports automatic-detect function to protect the system when the system power is overloaded or there is a non-PoE device
  • LED indicators for monitoring PoE power, Physical link, LAN activity and LAN speed
  • 48V 2A 60W power adapter included

Specs+

Power

  • Use your supplied 9v~23v (typical automotive or marine battery) Positive and Negative leads (Red/Black) attached to the 8805M transformer.
  • 8805M PoE Switch outputs up to 192W 4A 48V DC PoE

Data Rate

  • Gigabit full-duplex Ethernet Data & PoE (802.3af) or PoE (802.3at)
  • High Power Gigabit PoE Switch 6 port

Interface

  • Ethernet: (4) LAN RJ-45 Standard 10/100 Base-TX autosensing ports
  • Uplink: (2) LAN RJ-45 Standard 10/100 Base-TX autosensing port

Dimensions

  • Height 1″ (27mm) Depth 2.95″ (75mm) Width 4.9″ (125mm)

Environment

  • Operational Temperature: -49°F to 168°F (-45°to 76°C)
  • Humidity: 10% to 95%, non-condensing

Enclosure

  • Ruggedized wall mount black Aluminum casing Optimized for heat extraction and isolation without fans.

Package Contents+

  • (1) Enable-IT 8805M Gigabit PoE Switch 12V DC Powered
  • (1) 12/24V DC input 192W 4A 48V DC Output Transformer
  • (1) Enable-IT 8805M Gigabit PoE Switch Quickstart Guide

Reviews+

The Enable-IT 8805M Automotive / Marine 6 port Gigabit PoE Switch is a unique product. It can automatically detect any LAN device and determine if it is a PoE device and supply power with IEEE 802.3af/at standard voltage and watts.

The Enable-IT 8805M Automotive / Marine 6 port Gigabit PoE Switch has 5 dedicated 10/100/1000Mbps Auto- Negotiation RJ-45 LAN ports with each port PoE auto detect enabled. Auto detect PoE uses IEEE 802.3 PoE Power Detection (PD). There is no need to worry about the damage of PoE being applied to Non-PoE Devices and PoE connected devices are supplied with up to 30W per port.

The Gigabit PoE Switch supplies PoE electrical power on industry standard 2-pair (RJ-45 pins 4/5 positive and 7/8 negative) along with Ethernet data in one single cable allowing you to expand your network where there are no power lines or outlets. This enable you to deploy PoE devices such as WiFi Access Points, PoE IP Cameras, Poe Access controls or PoE IP Phones.

This Gigabit PoE Switch supports Gigabit PoE extension up to 3,500ft by using our 865X PRO Gigabit PoE Extender kit.

  • (4) 10/100/1000Mbps Auto-Negotiation RJ-45 ports with PoE auto detect<
  • (2) Uplink 10/100/1000Mbps Auto-Negotiation RJ-45 ports
  • Complies with IEEE 802.3af/at standards
  • Each port supports full duplex auto-negotiation -10/100/1000Mbps
  • Maximum Bandwidth backplane 12 Gbps
  • Supports PoE power up to 30W for each PoE port
  • Supports automatic-detect function to protect the system when the system power is overloaded or there is a non-PoE device
  • LED indicators for monitoring PoE power, Physical link, LAN activity and LAN speed
  • 48V 2A 60W power adapter included

Power

  • Use your supplied 9v~23v (typical automotive or marine battery) Positive and Negative leads (Red/Black) attached to the 8805M transformer.
  • 8805M PoE Switch outputs up to 192W 4A 48V DC PoE

Data Rate

  • Gigabit full-duplex Ethernet Data & PoE (802.3af) or PoE (802.3at)
  • High Power Gigabit PoE Switch 6 port

Interface

  • Ethernet: (4) LAN RJ-45 Standard 10/100 Base-TX autosensing ports
  • Uplink: (2) LAN RJ-45 Standard 10/100 Base-TX autosensing port

Dimensions

  • Height 1″ (27mm) Depth 2.95″ (75mm) Width 4.9″ (125mm)

Environment

  • Operational Temperature: -49°F to 168°F (-45°to 76°C)
  • Humidity: 10% to 95%, non-condensing

Enclosure

  • Ruggedized wall mount black Aluminum casing Optimized for heat extraction and isolation without fans.
  • (1) Enable-IT 8805M Gigabit PoE Switch 12V DC Powered
  • (1) 12/24V DC input 192W 4A 48V DC Output Transformer
  • (1) Enable-IT 8805M Gigabit PoE Switch Quickstart Guide
