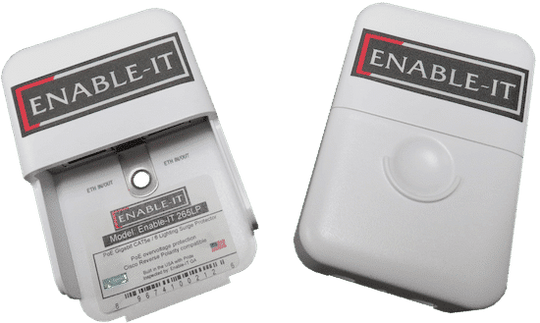

Enable-IT 265LP Gigabit PoE Lightning Surge Protector Kit

SKU#: 265LP

UPC#:896741002126

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

SKU#: 265LP

UPC#:896741002126
$85.50

SKU#: 265LP

UPC#:896741002126

SKU#: 265LP

UPC#:896741002126

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

The Enable-IT™ 265LP Gigabit PoE Lightning Protection Kit is a set of compact weather resistant units that provides cost-effective solution for protecting PoE and Ethernet devices from damaging electrostatic discharge and surges.

The units are fully compatible with industry-standard Power-over-Ethernet (PoE) devices and 10/100/1000 Base-T Ethernet networks, providing Surge Protection for Ethernet data pairs as well as the PoE DC power feed.

The internal High speed semiconductors clamp any voltage, positive or negative on the wires. The limits are /- 15 volts on pins, 1, 2, 3 and 6 and /- 58 volts on pins 4, 5, 7 and 8. The units are compatible with both normal and inverted polarity voltage PoE equipment.

For maximum Surge Protection for Ethernet and PoE installs, this kit provides two 265LP units – one at each end of your Ethernet cable run. Most PoE capable equipment is not protected from surges on Ethernet cabling. The Enable-IT™ 265LP Gigabit Ethernet Lightning Protector Kit is compatible with 10/100/1000 Base-T devices as well as Power-over-Ethernet (PoE) devices, including Wireless Access Points, Access Servers and Outdoor Routers that support Power-over-Ethernet (PoE).

These units will save your expensive LAN or PoE IP Equipment at both ends and they do their job by taking the brunt of a lightning strike damage. They are not repairable once they perform this task and will need to be replaced. If you live in a lightning prone area it is advisable to have a spare set for each outdoor line your trying to protect so that you maintain the safety of your expensive LAN and PoE Equipment.

Features+

  • Weatherproof micro design ideal for wall or pole mounting.
  • All in one simple solution. that protects each end of your outdoor line.
  • Compatible with any IEEE 802.3 AF / AT PoE injector / Midspan up to 58V DC.
  • LAN Device independence – Transparent to 802.3 Protocols, Applications, and MAC / IP addresses.
  • Gigabit Ethernet and PoE compatible.

Specs+

Power

  • ESD/EMP Protection – Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs
  • DC Spark-Over Voltage – 90V @ 100V/s
  • Impulse Spark-over Voltage – 700V @ 1kV/µs

Data Rate

  • Gigabit LAN full-duplex Ethernet Data & with simultaneous PoE delivery on all 8 pairs

Interface

  • Ethernet: (2) LAN RJ-45 ports

Dimensions

  • Height 3.5″ (90mm) Depth 1.28″ (32mm) Width 2.4″ (61mm)

Environment

  • Operational Temperature: -22°F to 150°F (-30°to 65°C)
  • Humidity: 10% to 90%, non-condensing

Enclosure

  • Ruggedized wallmount plastic casing with enclosed Network ports

Package Contents+

  • (2) Enable-IT 265LP Outdoor Lightning Protection units
  • (1) Enable-IT 265LP Quickstart Guide

Reviews+

The Enable-IT™ 265LP Gigabit PoE Lightning Protection Kit is a set of compact weather resistant units that provides cost-effective solution for protecting PoE and Ethernet devices from damaging electrostatic discharge and surges.

The units are fully compatible with industry-standard Power-over-Ethernet (PoE) devices and 10/100/1000 Base-T Ethernet networks, providing Surge Protection for Ethernet data pairs as well as the PoE DC power feed.

The internal High speed semiconductors clamp any voltage, positive or negative on the wires. The limits are /- 15 volts on pins, 1, 2, 3 and 6 and /- 58 volts on pins 4, 5, 7 and 8. The units are compatible with both normal and inverted polarity voltage PoE equipment.

For maximum Surge Protection for Ethernet and PoE installs, this kit provides two 265LP units – one at each end of your Ethernet cable run. Most PoE capable equipment is not protected from surges on Ethernet cabling. The Enable-IT™ 265LP Gigabit Ethernet Lightning Protector Kit is compatible with 10/100/1000 Base-T devices as well as Power-over-Ethernet (PoE) devices, including Wireless Access Points, Access Servers and Outdoor Routers that support Power-over-Ethernet (PoE).

These units will save your expensive LAN or PoE IP Equipment at both ends and they do their job by taking the brunt of a lightning strike damage. They are not repairable once they perform this task and will need to be replaced. If you live in a lightning prone area it is advisable to have a spare set for each outdoor line your trying to protect so that you maintain the safety of your expensive LAN and PoE Equipment.

  • Weatherproof micro design ideal for wall or pole mounting.
  • All in one simple solution. that protects each end of your outdoor line.
  • Compatible with any IEEE 802.3 AF / AT PoE injector / Midspan up to 58V DC.
  • LAN Device independence – Transparent to 802.3 Protocols, Applications, and MAC / IP addresses.
  • Gigabit Ethernet and PoE compatible.

Power

  • ESD/EMP Protection – Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs
  • DC Spark-Over Voltage – 90V @ 100V/s
  • Impulse Spark-over Voltage – 700V @ 1kV/µs

Data Rate

  • Gigabit LAN full-duplex Ethernet Data & with simultaneous PoE delivery on all 8 pairs

Interface

  • Ethernet: (2) LAN RJ-45 ports

Dimensions

  • Height 3.5″ (90mm) Depth 1.28″ (32mm) Width 2.4″ (61mm)

Environment

  • Operational Temperature: -22°F to 150°F (-30°to 65°C)
  • Humidity: 10% to 90%, non-condensing

Enclosure

  • Ruggedized wallmount plastic casing with enclosed Network ports
  • (2) Enable-IT 265LP Outdoor Lightning Protection units
  • (1) Enable-IT 265LP Quickstart Guide
