Enable-IT 2-Port Coax Gigabit Ethernet Extender Kit

SKU#: 860WC PRO

UPC#:896741002492

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

SKU#: 860WC PRO

UPC#:896741002492
$675.00

SKU#: 860WC PRO

UPC#:896741002492

SKU#: 860WC PRO

UPC#:896741002492

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

The Enable-IT 860WC PRO IP68 rated Outdoor Coax Gigabit Ethernet Extender delivers real Gigabit Ethernet throughput up to NINE times further than the IEEE 802.3 specifications for Ethernet LAN limits of just 328 feet and is the highest-throughput encrypted and Secure Ethernet Extender on the planet bar none!

This is trusted Business Reliable Professional Grade Ethernet Extension without the high cost of fiber or unsecured wireless.
Why risk your business to lower quality imported equipment? The value of your network communications should be a protected investment.

Beware of Cheap Chinese “so called Business Use” (not even suitable US Home use) gear that is banned in the US due to proven hidden spyware.

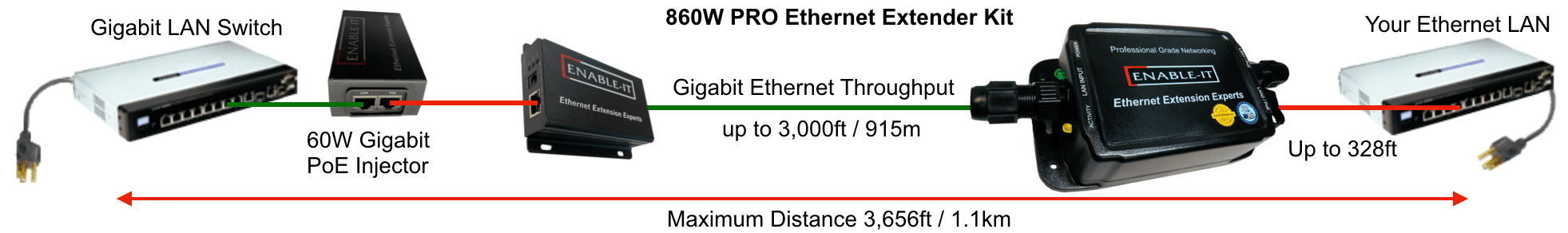

The 860WC PRO IP68 rated Outdoor Coax Gigabit Ethernet Extender can extend your Ethernet all the way up to 3,000ft / 915m, effectively saving you thousands in labor, administration, and security. What’s more, it achieves these distances at a throughput no other Ethernet extension solution can match and at a cost, quality and reliability our “Made in China” competitors cannot match.

Made in the USA with quality and pride – the only manufacturer to do so in our industry we started.

The American-made 860WC PRO IP68 rated Outdoor Coax Gigabit Ethernet Extenders are also very easy to install and ready to work in most any environment. The 860W PRO IP68 rated Outdoor Coax Gigabit Ethernet Extender uses industry LAN standard RJ-45 (8-pin) connectors.

Gigabit LAN switches built into each end coupled with industrial strength components to survive harsh temperature extremes delivers twice as much value and capabilities no other competitor can touch. IP68 Casing comes with 2 output ports.

Features+

  • Extended Coax Gigabit Ethernet throughput over new or existing coaxial wiring up 3,000ft / 915m encrypted and secure.
  • Can be daisy chained to extend infinitely in linear or tree topology.
  • Rapid LAN style installation RJ45 jacks – no programming required.
  • Supports up to 9 Enable-IT 860WC PRO Coax Gigabit CPE units on the same 1-pair wire for the entire length of the run – ideal for multidrop off of a single Enable-IT 860X PRO Extender kit.
  • Ruggedized Professional Business Grade mountable casing for harsh environments.
  • LAN Device independence – Transparent to 802.3 Protocols, Applications and MAC / IP addresses.
  • Longest warranty protection included exceeding any knockoff competitors.
  • Dual Gigabit LAN RJ-45 ports on remote outdoor end. 1-port model available as the 860XC PRO.

Specs+

Power

  • 56V-2.5A 60W DC Country Specific (120-260V AC) Power Injector.
  • Country Specific (120-260V AC) Power Adapter.

Data Rate

  • 1,000Mbps full-duplex Ethernet Data
  • 1,000Mbps Interconnect throughput – Maximum*
  • Ethernet LAN Protocol Independent
  • Ethernet LAN MTU 1500
  • IP VLAN passthough

Interface

  • Ethernet: (2) LAN RJ-45 Standard 10/100/1000 Base-TX autosensing ports
  • Interlink: (1) 75 Ohm Coax Gigabit BNC

860X PRO CO Dimensions

  • Height 1″ (26mm) Depth 3.25″ (82.5mm) Width 4.37″ (111mm)

860WC PRO CPE Dimensions

  • Height 2.5″ (89mm) Depth 3.4″ (86mm) Width 4.37″ (216mm)

Environment

  • Operational Temperature: -49°F to 168°F (-45°to 76°C)
  • Humidity: 5% to 95%, non-condensing

Enclosure

  • Ruggedized wallmount black Aluminum casing and IP68 Rated wall mount thick plastic casing. Optimized for heat extraction and isolation without fans.

Package Contents+

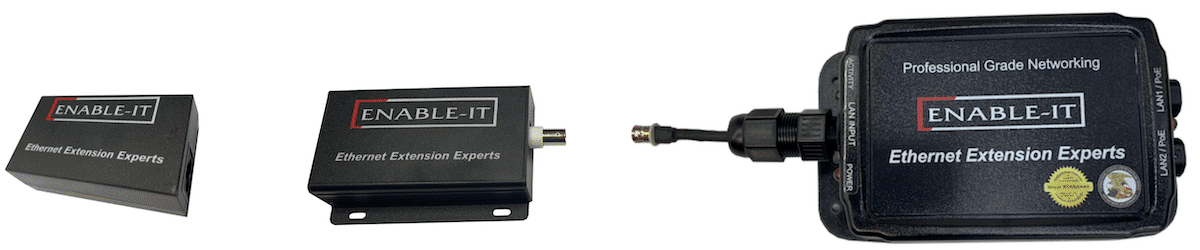

  • (1) EnableIT 860XC PRO Coax Gigabit Ethernet Extender CO unit
  • (1) EnableIT 860W PRO Outdoor Coax Gigabit Ethernet Extender CPE unit
  • (2) 10′ Black RJ-45 Ethernet Patch Cords
  • (1) 56V-2.5A 60W DC Country Specific (120-260V AC) Power Adapter.
  • (1) Enable-IT 860WC PRO Quickstart Guide

Reviews+

The Enable-IT 860WC PRO IP68 rated Outdoor Coax Gigabit Ethernet Extender delivers real Gigabit Ethernet throughput up to NINE times further than the IEEE 802.3 specifications for Ethernet LAN limits of just 328 feet and is the highest-throughput encrypted and Secure Ethernet Extender on the planet bar none!

This is trusted Business Reliable Professional Grade Ethernet Extension without the high cost of fiber or unsecured wireless.
Why risk your business to lower quality imported equipment? The value of your network communications should be a protected investment.

Beware of Cheap Chinese “so called Business Use” (not even suitable US Home use) gear that is banned in the US due to proven hidden spyware.

The 860WC PRO IP68 rated Outdoor Coax Gigabit Ethernet Extender can extend your Ethernet all the way up to 3,000ft / 915m, effectively saving you thousands in labor, administration, and security. What’s more, it achieves these distances at a throughput no other Ethernet extension solution can match and at a cost, quality and reliability our “Made in China” competitors cannot match.

Made in the USA with quality and pride – the only manufacturer to do so in our industry we started.

The American-made 860WC PRO IP68 rated Outdoor Coax Gigabit Ethernet Extenders are also very easy to install and ready to work in most any environment. The 860W PRO IP68 rated Outdoor Coax Gigabit Ethernet Extender uses industry LAN standard RJ-45 (8-pin) connectors.

Gigabit LAN switches built into each end coupled with industrial strength components to survive harsh temperature extremes delivers twice as much value and capabilities no other competitor can touch. IP68 Casing comes with 2 output ports.

  • Extended Coax Gigabit Ethernet throughput over new or existing coaxial wiring up 3,000ft / 915m encrypted and secure.
  • Can be daisy chained to extend infinitely in linear or tree topology.
  • Rapid LAN style installation RJ45 jacks – no programming required.
  • Supports up to 9 Enable-IT 860WC PRO Coax Gigabit CPE units on the same 1-pair wire for the entire length of the run – ideal for multidrop off of a single Enable-IT 860X PRO Extender kit.
  • Ruggedized Professional Business Grade mountable casing for harsh environments.
  • LAN Device independence – Transparent to 802.3 Protocols, Applications and MAC / IP addresses.
  • Longest warranty protection included exceeding any knockoff competitors.
  • Dual Gigabit LAN RJ-45 ports on remote outdoor end. 1-port model available as the 860XC PRO.

Power

  • 56V-2.5A 60W DC Country Specific (120-260V AC) Power Injector.
  • Country Specific (120-260V AC) Power Adapter.

Data Rate

  • 1,000Mbps full-duplex Ethernet Data
  • 1,000Mbps Interconnect throughput – Maximum*
  • Ethernet LAN Protocol Independent
  • Ethernet LAN MTU 1500
  • IP VLAN passthough

Interface

  • Ethernet: (2) LAN RJ-45 Standard 10/100/1000 Base-TX autosensing ports
  • Interlink: (1) 75 Ohm Coax Gigabit BNC

860X PRO CO Dimensions

  • Height 1″ (26mm) Depth 3.25″ (82.5mm) Width 4.37″ (111mm)

860WC PRO CPE Dimensions

  • Height 2.5″ (89mm) Depth 3.4″ (86mm) Width 4.37″ (216mm)

Environment

  • Operational Temperature: -49°F to 168°F (-45°to 76°C)
  • Humidity: 5% to 95%, non-condensing

Enclosure

  • Ruggedized wallmount black Aluminum casing and IP68 Rated wall mount thick plastic casing. Optimized for heat extraction and isolation without fans.
  • (1) EnableIT 860XC PRO Coax Gigabit Ethernet Extender CO unit
  • (1) EnableIT 860W PRO Outdoor Coax Gigabit Ethernet Extender CPE unit
  • (2) 10′ Black RJ-45 Ethernet Patch Cords
  • (1) 56V-2.5A 60W DC Country Specific (120-260V AC) Power Adapter.
  • (1) Enable-IT 860WC PRO Quickstart Guide
