Remote 70 Volt to 8 Ohm Line Matching Transformer
Product Information
The Current Audio R70VT adapts our 8 Ohm speakers for use with multi-speaker 70-volt commercial distributed public address and sound systems. It features a high power, low insertion loss, wide frequency response quality line matching design.

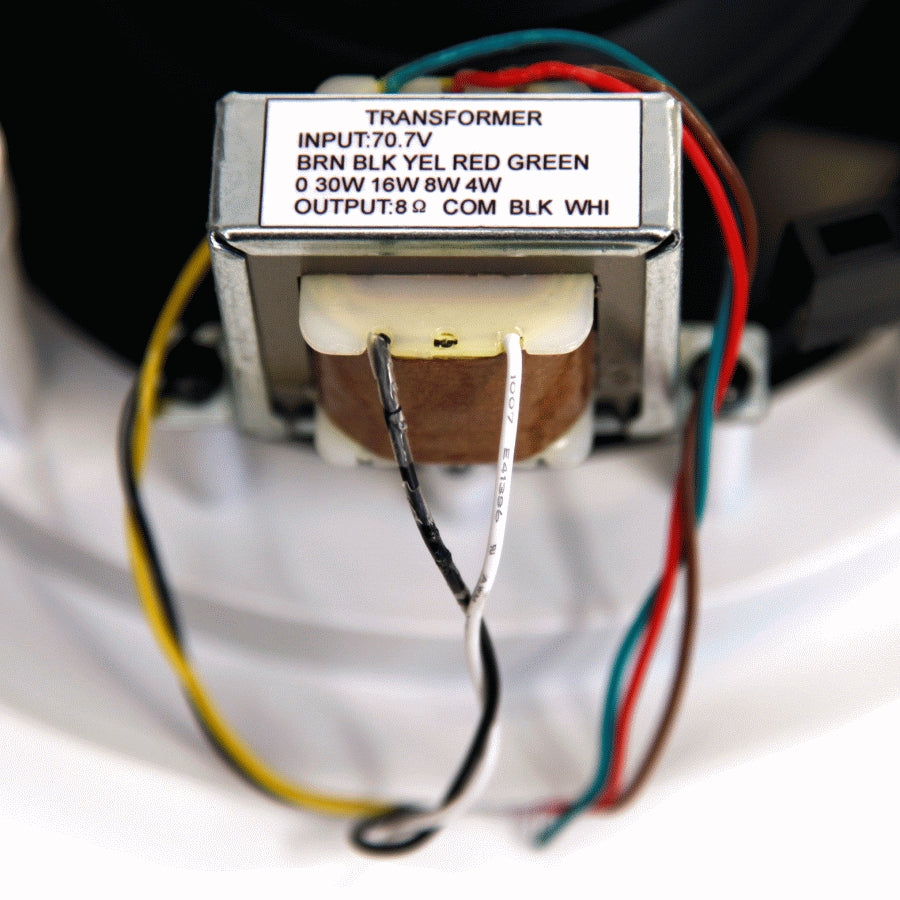

The transformer has multiple primary taps of 30-16-8-4 watts with the secondary at 8 Ohms.
The transformer is constructed of audio caliber laminations. It has a very low insertion loss and has a frequency response of 40-16kHz.

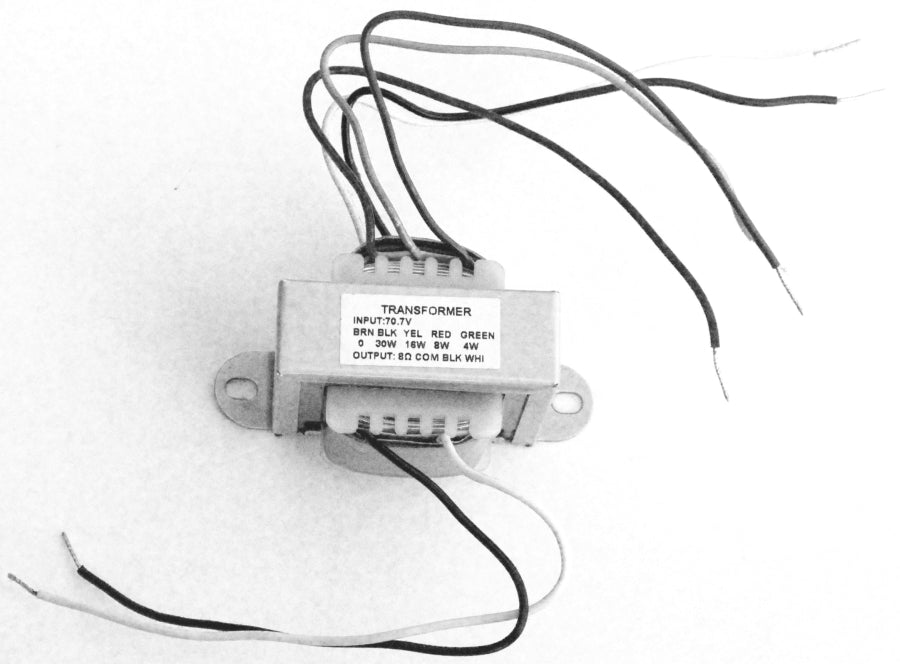

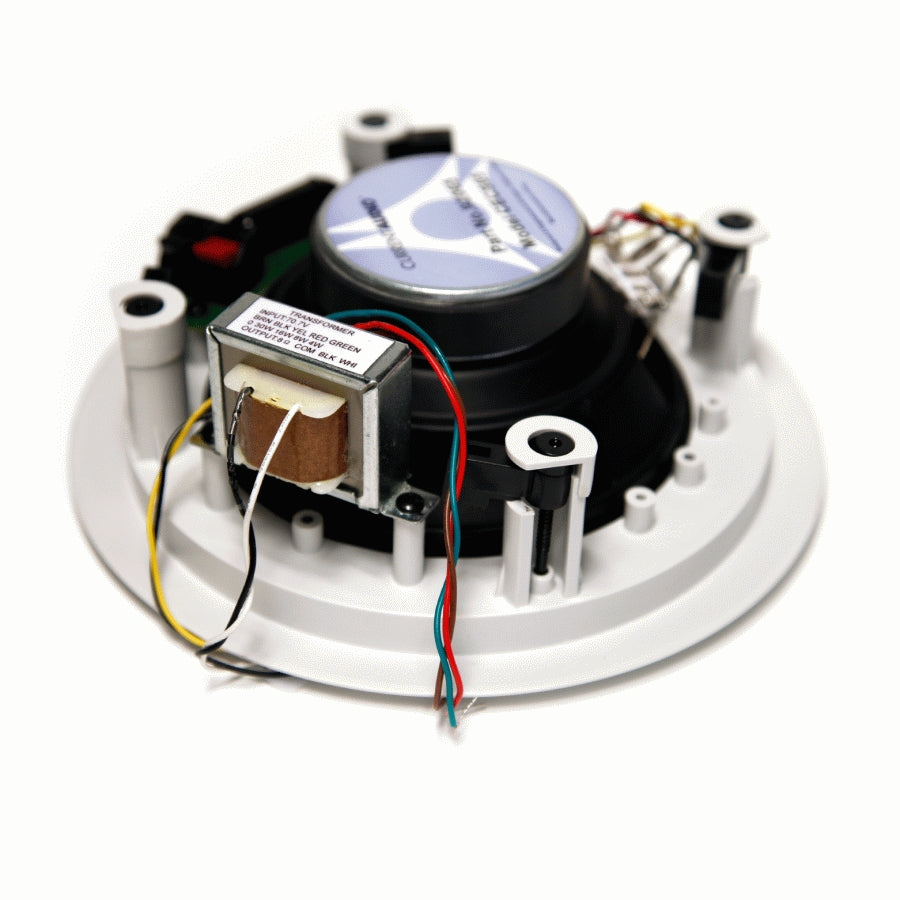

The unit has two mounting holes for easy attachment to locations on the speaker or any hard surface.
With our limited 5 year warranty you are assured years of superior trouble-free operation.
| TAPS @70 Volts | 30-16-8-4 Watts |
| TAPS @100 Volts | 30-15-7.5 Watts |
| Impedance | 8 Ohm Secondary to Speaker |
| Taps | Color Coded wire Leads |
| Hardware | Transformer Only. #6 Machine Screws Required for Mounting |
