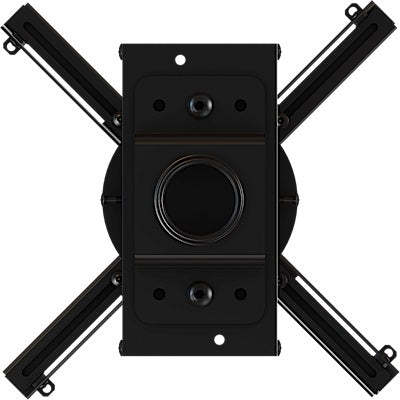

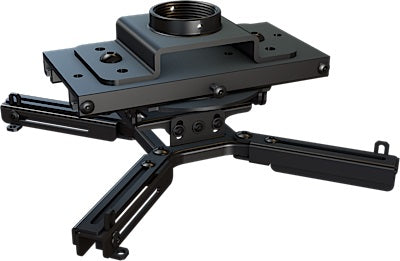

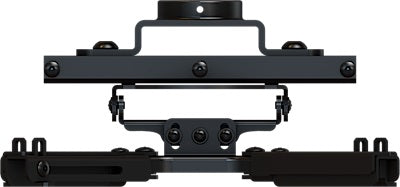

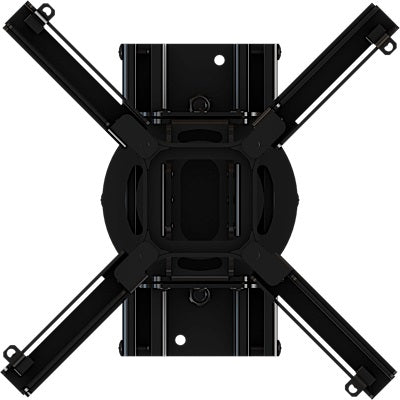

Crimson-AV Universal Mount for Projectors with 3" of Post Installation Shift

SKU#: JR2A

UPC#: 0815885015403

60 Day Money Back Guarantee

100% Secure Shopping

10-year-warranty10

10 Year Warranty

SKU#: JR2A

UPC#:0815885015403
$129.99

SKU#: JR2A

UPC#:0815885015403

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • Universal Mount for Projectors with 3" of Post Installation Shift (side to side or front to back)

    Mount to 1.5” NPT pipe or flush mount directly to ceiling. Install in either lateral or front to back orientation. Allows post-installation shift of up to 3”. A total of 12 adjustment points; 6 for pitch and 6 for roll to ensure that projector stays in place and does not slip after installation.

  • Features+
    • 3" of post installation adjustment either front to back or lateral
    • Completely pre-assembled mounting interface for quick installation
    • Fully adjustable roll, pitch and yaw
    • 12 total adjustment points; 6 for pitch and 6 for roll
    • Mounts to any 1.5" NPT threaded pipe or mounts flush to the ceiling
    • Pre-sorted hardware pack for easy installation
  • Specs+
    • Weight capacity: 70lb (31.8kg)
    • Max mounting pattern: 18.1" (460mm) diameter
    • Sliding adjustment: 3" total travel
    • Height: 4.51” (114.5mm) from ceiling to projector surface
    • Pitch (up/down): +/- 20°
    • Roll (side to side): +/- 8°
    • Rotation (yaw): 360°
    • 1.5” NPT thread compatible: Yes
    • Mounting interface: 1.5” NPT thread compatible
    • Construction: aluminum/high-grade cold rolled steel
    • Product finish: scratch resistant epoxy powder coat
    • Product weight: 4.4lb (2kg)
    • Package specifications: 12”x6”x5”
    • Color: black
    • Model numberJ: R2A
  • Reviews+
  • Universal Mount for Projectors with 3" of Post Installation Shift (side to side or front to back)

    Mount to 1.5” NPT pipe or flush mount directly to ceiling. Install in either lateral or front to back orientation. Allows post-installation shift of up to 3”. A total of 12 adjustment points; 6 for pitch and 6 for roll to ensure that projector stays in place and does not slip after installation.

    • 3" of post installation adjustment either front to back or lateral
    • Completely pre-assembled mounting interface for quick installation
    • Fully adjustable roll, pitch and yaw
    • 12 total adjustment points; 6 for pitch and 6 for roll
    • Mounts to any 1.5" NPT threaded pipe or mounts flush to the ceiling
    • Pre-sorted hardware pack for easy installation
    • Weight capacity: 70lb (31.8kg)
    • Max mounting pattern: 18.1" (460mm) diameter
    • Sliding adjustment: 3" total travel
    • Height: 4.51” (114.5mm) from ceiling to projector surface
    • Pitch (up/down): +/- 20°
    • Roll (side to side): +/- 8°
    • Rotation (yaw): 360°
    • 1.5” NPT thread compatible: Yes
    • Mounting interface: 1.5” NPT thread compatible
    • Construction: aluminum/high-grade cold rolled steel
    • Product finish: scratch resistant epoxy powder coat
    • Product weight: 4.4lb (2kg)
    • Package specifications: 12”x6”x5”
    • Color: black
    • Model numberJ: R2A
