- Description+
- Features+
- VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm
- Screen mounts perpendicular to floor in portrait or landscape orientation
- Tilt has flexibility to achieve multiple viewing angles

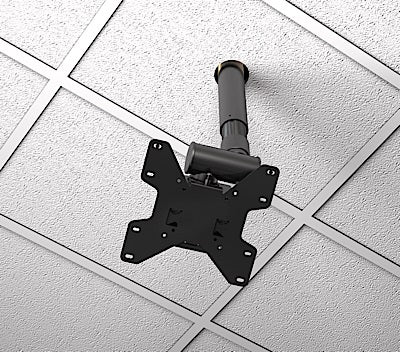

- Can be used to replace ceiling tile with TV screen
- Installs include digital signage, dentist offices or medical centers
- Specs+
- TV size range: 13" – 46"
- Weight capacity: 80lb (36kg)
- Max mounting pattern: 200x200mm
- VESA mounting patterns: 75x75mm, 100x100mm, 200x100mm, 200x200mm
- Tilt: 70° to 90°
- Rotation (yaw): 360°
- 1.5" NPT thread compatible: Yes
- Mounting interface: 1.5" NPT thread compatible
- Construction: high-grade cold rolled steel
- Product finish: scratch resistant epoxy powder coat
- Product weight: 5.3lb (2.4kg)
- Package specifications: 20"x10"x6"
- Color: black
- Model number: CXT42
- Reviews+
- VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm
- Screen mounts perpendicular to floor in portrait or landscape orientation
- Tilt has flexibility to achieve multiple viewing angles
- Can be used to replace ceiling tile with TV screen
- Installs include digital signage, dentist offices or medical centers
- TV size range: 13" – 46"
- Weight capacity: 80lb (36kg)
- Max mounting pattern: 200x200mm
- VESA mounting patterns: 75x75mm, 100x100mm, 200x100mm, 200x200mm
- Tilt: 70° to 90°
- Rotation (yaw): 360°
- 1.5" NPT thread compatible: Yes
- Mounting interface: 1.5" NPT thread compatible
- Construction: high-grade cold rolled steel
- Product finish: scratch resistant epoxy powder coat
- Product weight: 5.3lb (2.4kg)
- Package specifications: 20"x10"x6"
- Color: black
- Model number: CXT42

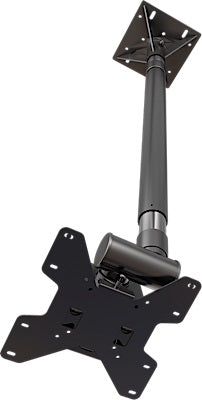

Ceiling Mount Kit for Extreme Tilt, up to 90º (Ceiling plate and column not included)
Includes mount hardware and 1.5" thread connector for attaching to E or EA 1.5" threaded columns. Mounting interface is VESA from 75x75mm through 200x200mm. Optional AD400 adapter extends mounting pattern through 400x400mm. Mount is set at a 70° angle, and the mounting plate can be adjusted from 70° up to 90° maximum tilt. CEILING PLATES AND COLUMNS SOLD SEPARATELY.
Ceiling Mount Kit for Extreme Tilt, up to 90º (Ceiling plate and column not included)
Includes mount hardware and 1.5" thread connector for attaching to E or EA 1.5" threaded columns. Mounting interface is VESA from 75x75mm through 200x200mm. Optional AD400 adapter extends mounting pattern through 400x400mm. Mount is set at a 70° angle, and the mounting plate can be adjusted from 70° up to 90° maximum tilt. CEILING PLATES AND COLUMNS SOLD SEPARATELY.
