- Description+
- Features+
- Universal design
- VESA compatible
- Pre-tensioned tilt mechanism for smooth adjustment
- Post installation screen leveling without use of tools
- Integrated cable management for clean look
- Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
- Specs+
- TV size range: 37” – 70”
- Weight capacity: 130lb (59kg)
- Max mounting pattern: 600x400mm
- VESA mounting patterns
- 75x75mm
- 100x100mm
- 200x100mm
- 200x200mm
- 300x200mm
- 300x300mm
- 400x200mm
- 400x300mm
- 400x400mm
- 600x200mm
- 600x400mm
- Depth from wall: 2.5” (63.5mm)
- Max extension: 21.04” (534mm)
- Tilt: +15°/-5°
- Lateral adjustment: 10” (254mm)
- Pivot: 54°
- Roll (side to side): 3°
- Mounting surface: wood stud, concrete or cinder block
- Stud spacing: dual stud 16” on center
- Construction: aluminum/high-grade cold rolled steel
- Product finish: scratch resistant epoxy powder coat
- Product weight: 21.8lb (9.9kg)
- Package specifications: 33”x15”x6”
- Color: black
- Model number: A70F
- SPEC SHEET
- Reviews+
- Universal design
- VESA compatible
- Pre-tensioned tilt mechanism for smooth adjustment
- Post installation screen leveling without use of tools
- Integrated cable management for clean look
- Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
- TV size range: 37” – 70”
- Weight capacity: 130lb (59kg)
- Max mounting pattern: 600x400mm
- VESA mounting patterns
- 75x75mm
- 100x100mm
- 200x100mm
- 200x200mm
- 300x200mm
- 300x300mm
- 400x200mm
- 400x300mm
- 400x400mm
- 600x200mm
- 600x400mm
- Depth from wall: 2.5” (63.5mm)
- Max extension: 21.04” (534mm)
- Tilt: +15°/-5°
- Lateral adjustment: 10” (254mm)
- Pivot: 54°
- Roll (side to side): 3°
- Mounting surface: wood stud, concrete or cinder block
- Stud spacing: dual stud 16” on center
- Construction: aluminum/high-grade cold rolled steel
- Product finish: scratch resistant epoxy powder coat
- Product weight: 21.8lb (9.9kg)
- Package specifications: 33”x15”x6”
- Color: black
- Model number: A70F
- SPEC SHEET

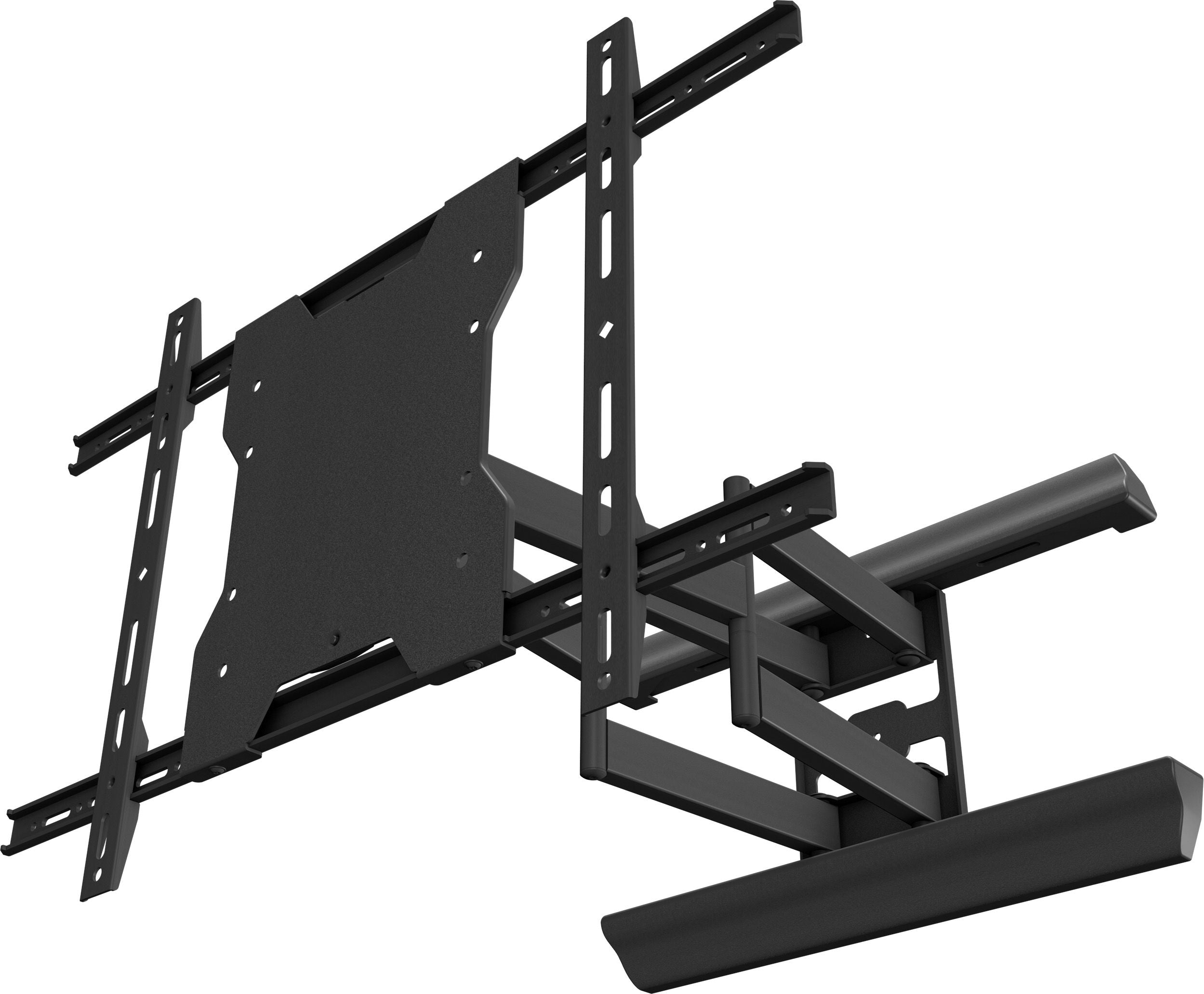

Crimson-AV Articulating Mount for 37" to 70" Displays
Multiple joint arms hold screen 2.5” from wall when retracted and 21.04” when fully extended. Smooth tilt adjustments of +15° (forward) and -5° (back) with a locking knob and 3° side-to-side roll facilitates a variety of viewing angles and perfect screen positioning. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screws to lock in place. Integrated cable management for clean look.
Crimson-AV Articulating Mount for 37" to 70" Displays
Multiple joint arms hold screen 2.5” from wall when retracted and 21.04” when fully extended. Smooth tilt adjustments of +15° (forward) and -5° (back) with a locking knob and 3° side-to-side roll facilitates a variety of viewing angles and perfect screen positioning. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screws to lock in place. Integrated cable management for clean look.
