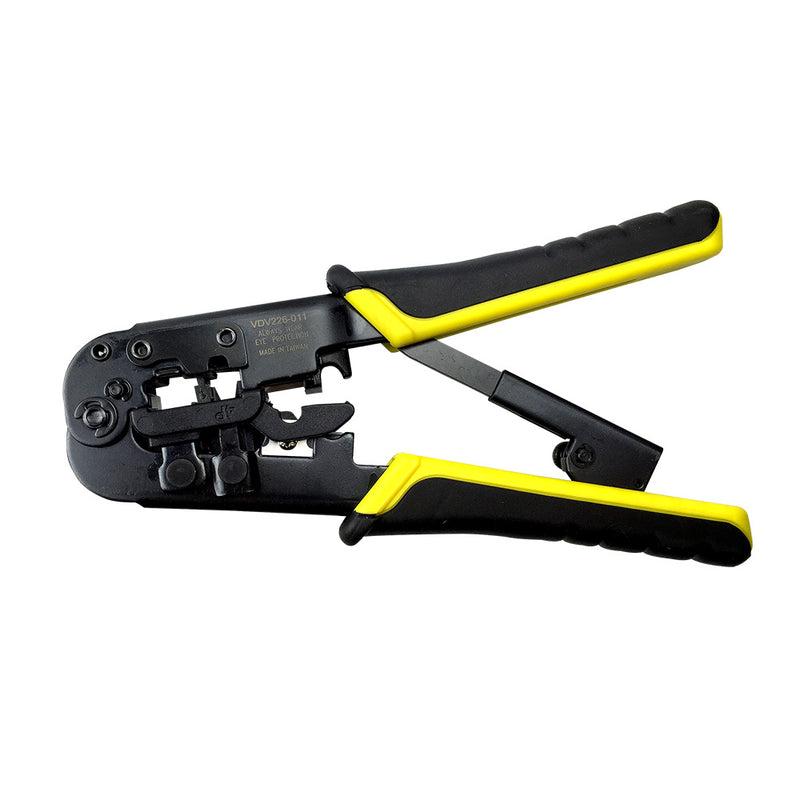

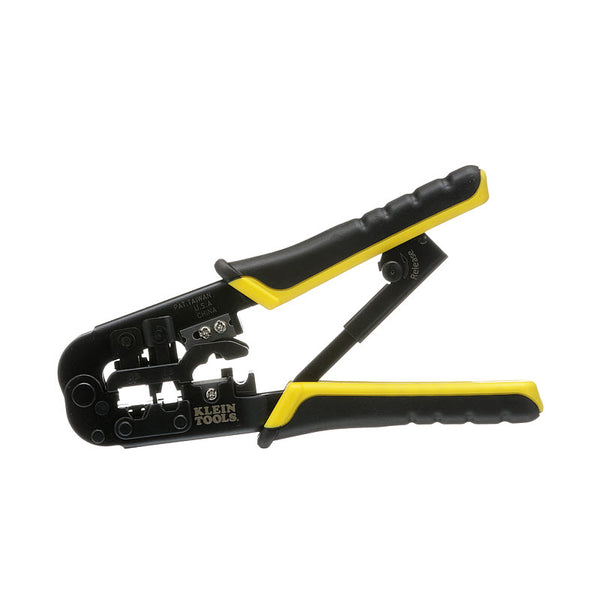

Klein Tools VDV226-011-SEN Ratcheting Modular Crimper/Stripper

SKU#: VDV226-011-SEN

UPC#:092644580147

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

SKU#: VDV226-011-SEN

UPC#:092644580147

Regular price Our Price   $33.99

Sale   $29.97

SKU#: VDV226-011-SEN

UPC#:092644580147

SKU#: VDV226-011-SEN

UPC#:092644580147

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

Description+

The all-in-one Ratcheting Modular Crimper/Stripper cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables). Durably made from steel and finished in black oxide for high performance, it provides fast, reliable modular-crimp connector installation for voice- and data applications. Other features include: Crimps 4-, 6- and 8-position modular connectors (RJ22, RJ11/RJ12 and RJ45); Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors. Dimensions: 4-Inch x 7.5-Inch x 0.9-Inch. Klein Tools offers a comprehensive line of VDV products created to prep, connect, and test network, phone, CATV, home theater, satellite, and security cables for residential or commercial systems.

Features+

  • Fast, reliable modular-crimp connector installation for voice and data applications
  • All-In-One Tool, cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cable)
  • Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45)
  • Steel body with black-oxide finish for excellent performance and durability
  • Crimping dies are precision ground from high-carbon steel
  • Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors
  • Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
  • Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
  • Yellow and black grips enhance comfort, visibility, and allow quick identification
  • Three crimping dies (8-position, 6-position and 4-position)
  • Cable parameters: 28-22 AWG (.08 - .34 mm²) flat or round; solid or stranded telephone and data
  • Not for use with AMP® connectors
  • AMP® is a registered trademark of TYCO, Inc.
  • Replacement blade set available (Cat. No. VDV999-064)

Specs+

  • Type: Crimper
  • Application: Cable Connection
  • Material: Steel with Black Oxide
  • Handle Color: Yellow/Black
  • Cuts & Strips: STP/UTP, Flat-Satin Phone Cable, and 22-28 AWG (0.08 - 0.34 mm²)
  • Cable Size: CAT3, CAT5e, CAT6/6A
  • Connector Type: RJ45, RJ11, RJ12 Standard
  • Position/Pair/Conductors: 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
  • Overall Length: 7.5'' (190.5 mm)
  • Weight: 0.10 lb (0.05 kg)
  • UPC: 092644580147

Package Contents+

  • (1) VDV226-011-SEN Ratcheting Modular Crimper/Stripper

Reviews+

The all-in-one Ratcheting Modular Crimper/Stripper cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables). Durably made from steel and finished in black oxide for high performance, it provides fast, reliable modular-crimp connector installation for voice- and data applications. Other features include: Crimps 4-, 6- and 8-position modular connectors (RJ22, RJ11/RJ12 and RJ45); Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors. Dimensions: 4-Inch x 7.5-Inch x 0.9-Inch. Klein Tools offers a comprehensive line of VDV products created to prep, connect, and test network, phone, CATV, home theater, satellite, and security cables for residential or commercial systems.

  • Fast, reliable modular-crimp connector installation for voice and data applications
  • All-In-One Tool, cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cable)
  • Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45)
  • Steel body with black-oxide finish for excellent performance and durability
  • Crimping dies are precision ground from high-carbon steel
  • Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors
  • Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
  • Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
  • Yellow and black grips enhance comfort, visibility, and allow quick identification
  • Three crimping dies (8-position, 6-position and 4-position)
  • Cable parameters: 28-22 AWG (.08 - .34 mm²) flat or round; solid or stranded telephone and data
  • Not for use with AMP® connectors
  • AMP® is a registered trademark of TYCO, Inc.
  • Replacement blade set available (Cat. No. VDV999-064)
  • Type: Crimper
  • Application: Cable Connection
  • Material: Steel with Black Oxide
  • Handle Color: Yellow/Black
  • Cuts & Strips: STP/UTP, Flat-Satin Phone Cable, and 22-28 AWG (0.08 - 0.34 mm²)
  • Cable Size: CAT3, CAT5e, CAT6/6A
  • Connector Type: RJ45, RJ11, RJ12 Standard
  • Position/Pair/Conductors: 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
  • Overall Length: 7.5'' (190.5 mm)
  • Weight: 0.10 lb (0.05 kg)
  • UPC: 092644580147
  • (1) VDV226-011-SEN Ratcheting Modular Crimper/Stripper

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
P.
Best Crimper - Best Price

I picked up my Klein Crimper since I had misplaced my old crimper. I knew in getting a Klein Tools Crimper I was going to be getting a solid product that would work and work right. Well, I wasn’t wrong! The thing about Klein Tools is they build their stuff right, out of the box it just feels good in your hand. The blades on the stripper portion were very sharp and my first strip was effortless and simple. The bottom line is that it just works! If you’ve ever used a junk crimper you know what a headache it can be. Save yourself the headache - save yourself some money. Go Klein, and go Firefold!

M
M.
Tool review

Great tool easy to use, really helped finish the job.
