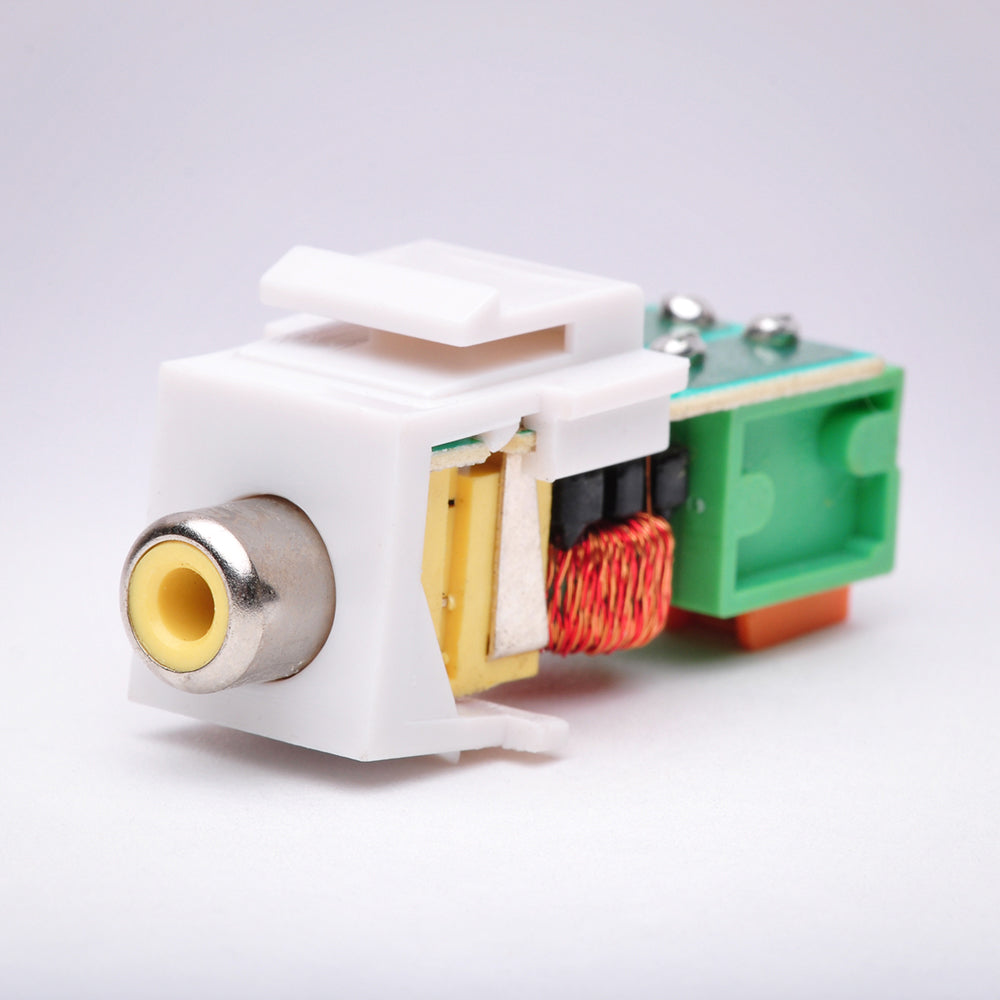

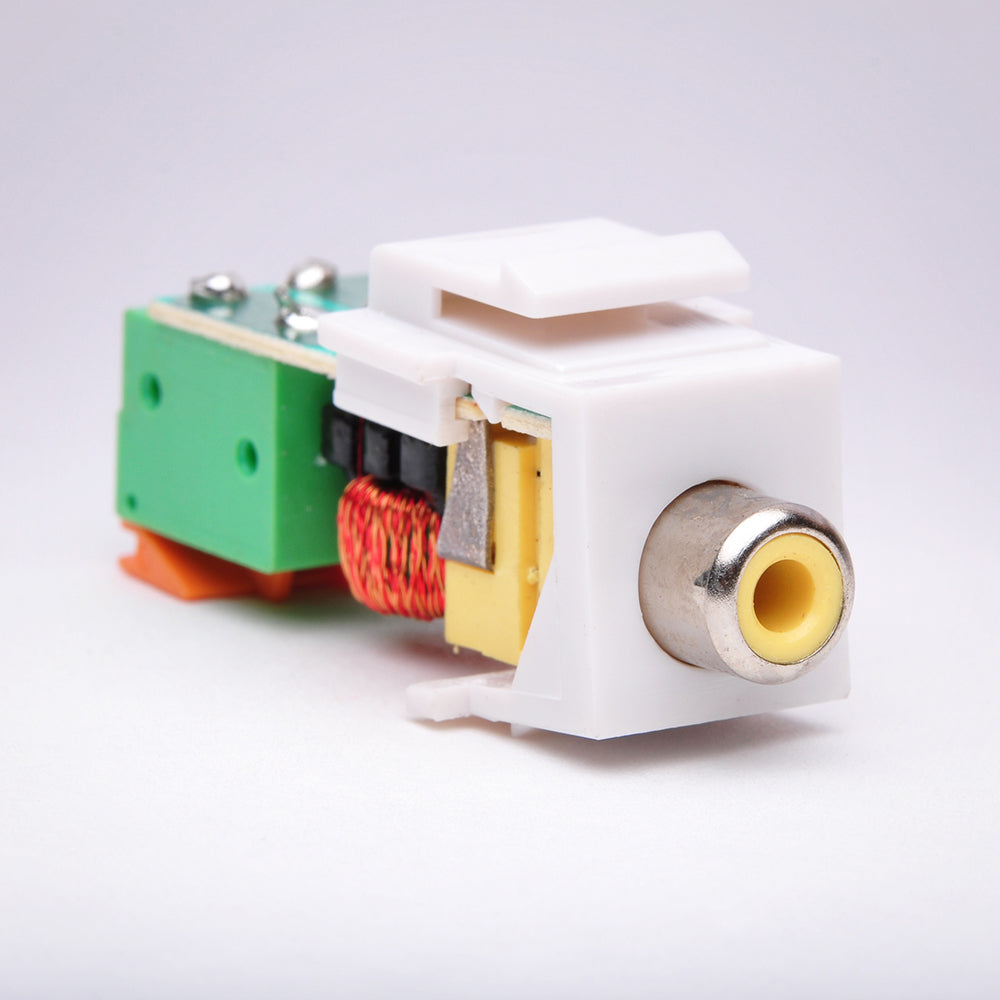

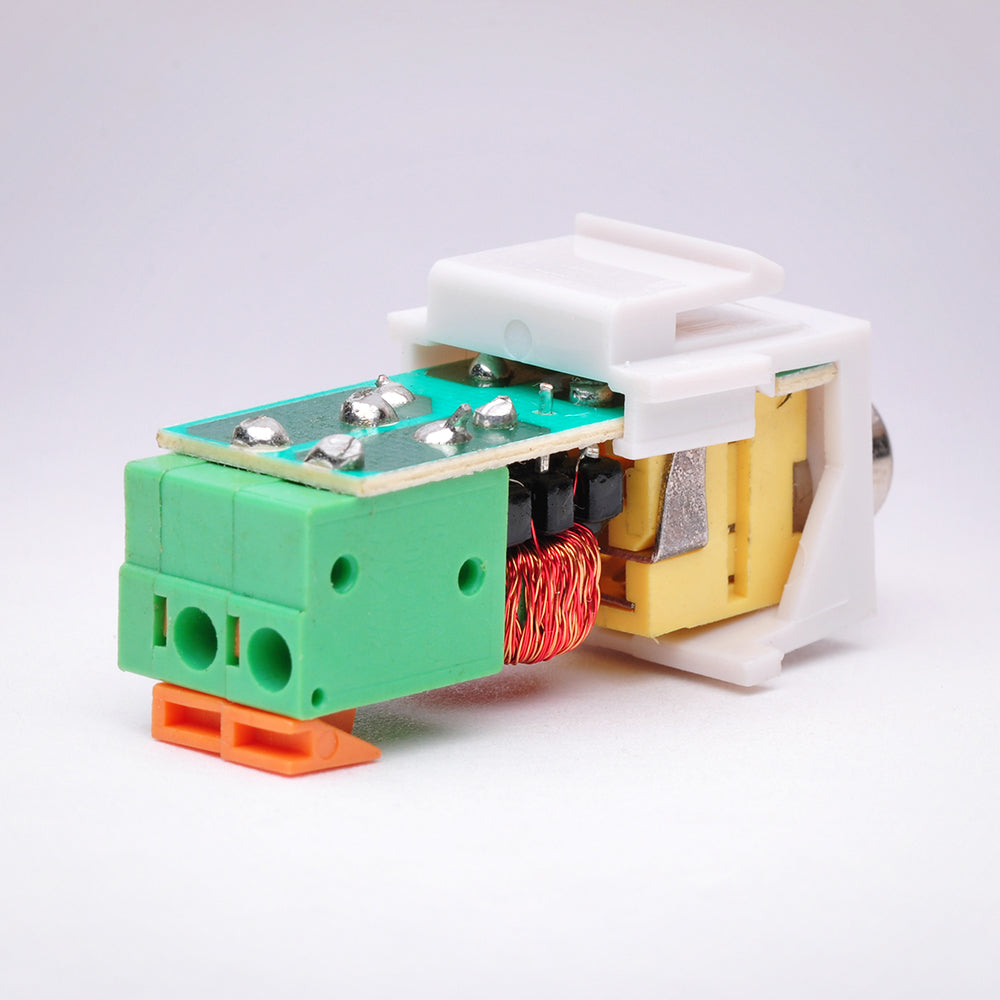

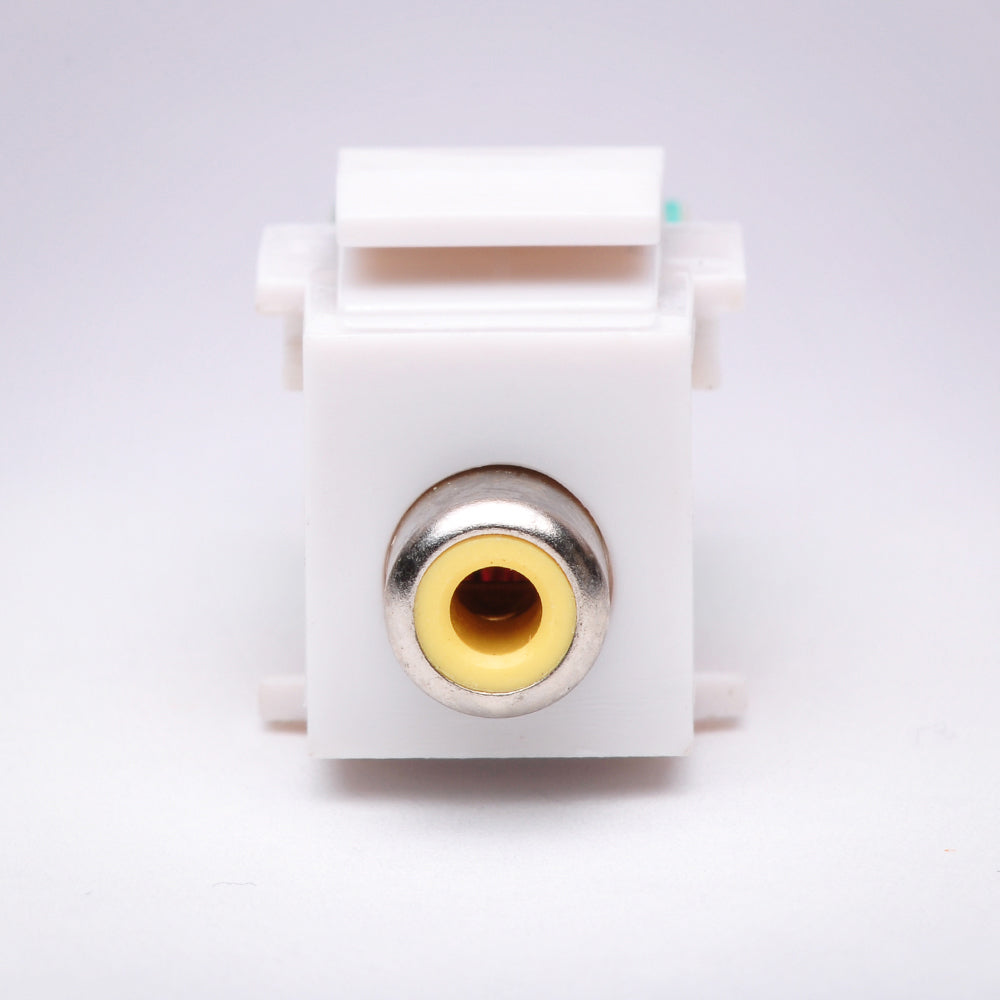

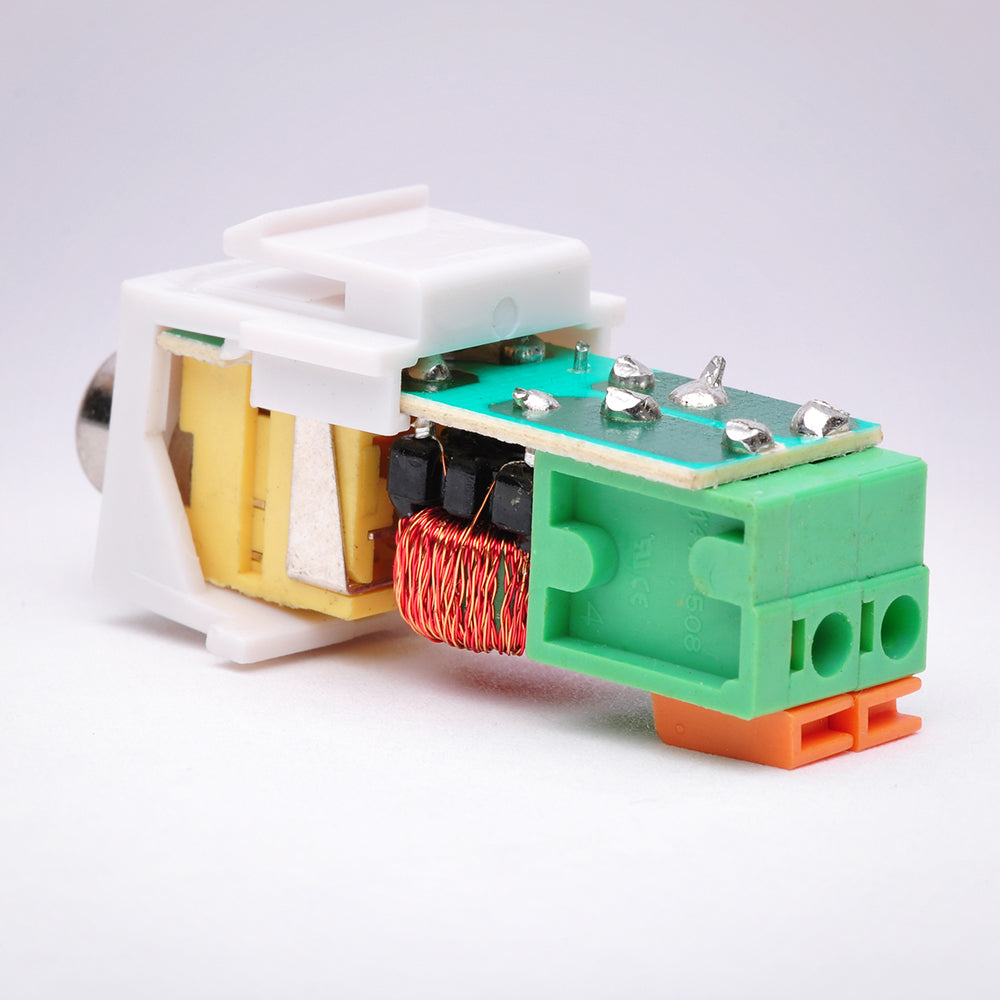

Composite RCA (Yellow) Balun over CAT5 Keystone Jack
SKU#: RCAY-KJ-C5
UPC#:704438133650
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
Description+
Transfers composite RCA video from one balun over CAT5 Ethernet cable to another composite RCA video balun.
Features+
- Extend Your Video Signal by up to 1000ft
- Snaps Easily Into a Keystone Wall Plate for a Professional Look
Specs+
- Input/Output: Composite RCA

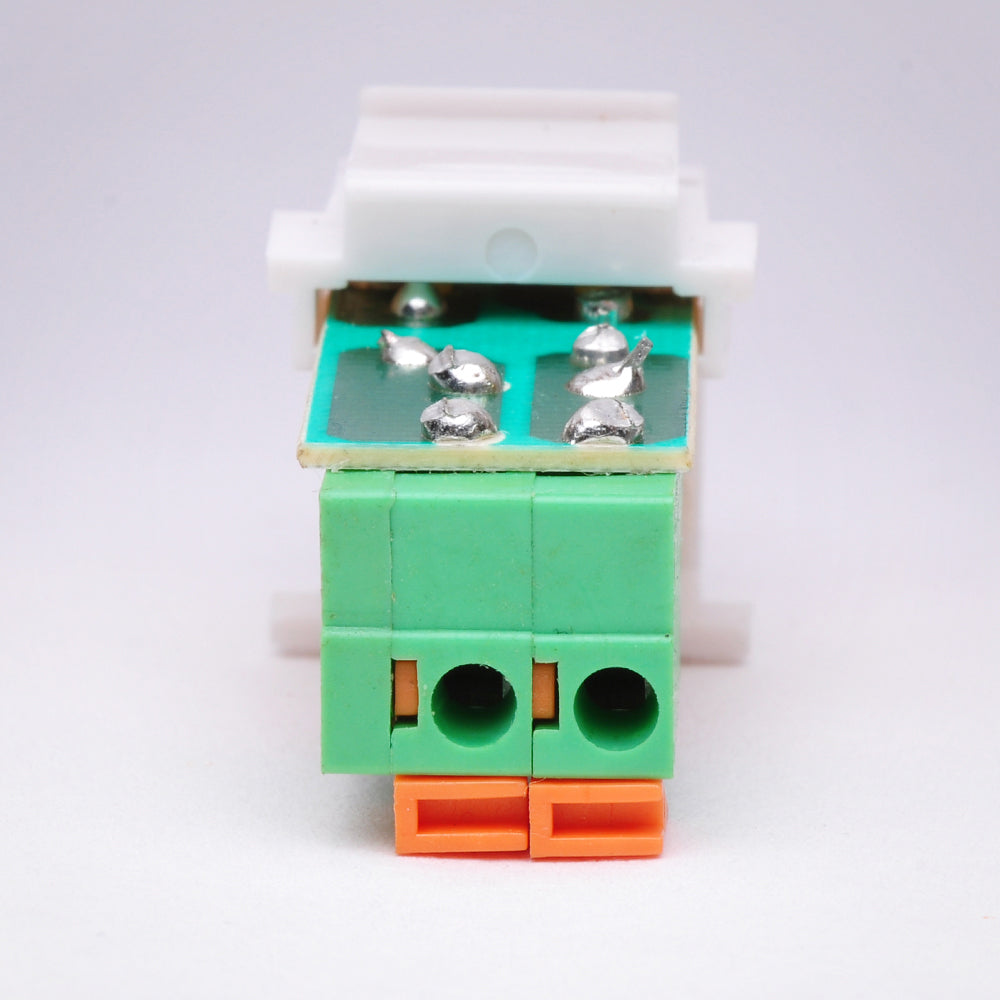

- RJ45 Terminal Block CAT5 Connector
- For Use with UTP Solid or Stranded Wire
- Shielded Cable Can Be Used but Must Be Grounded Properly
- Works with CAT5 or CAT6 Cable
- Frequency Response: DC to 220MHz
- Attenuation
- RL = 75 to 100: 0.4dB
- RL = 75 to 600: 1.2dB
- UTP C5E: Balanced Twisted Pair, 24AWG, 100ohm
- Maximum Distance: 1000ft
- One Wire Pair Required for Each Balun
- Indoor Use Only
- 48mm x 19mm x 22mm
- Insert Color: White
- Jack Color: Yellow
