  • Composite RCA (White) Balun over CAT5 Keystone Jack

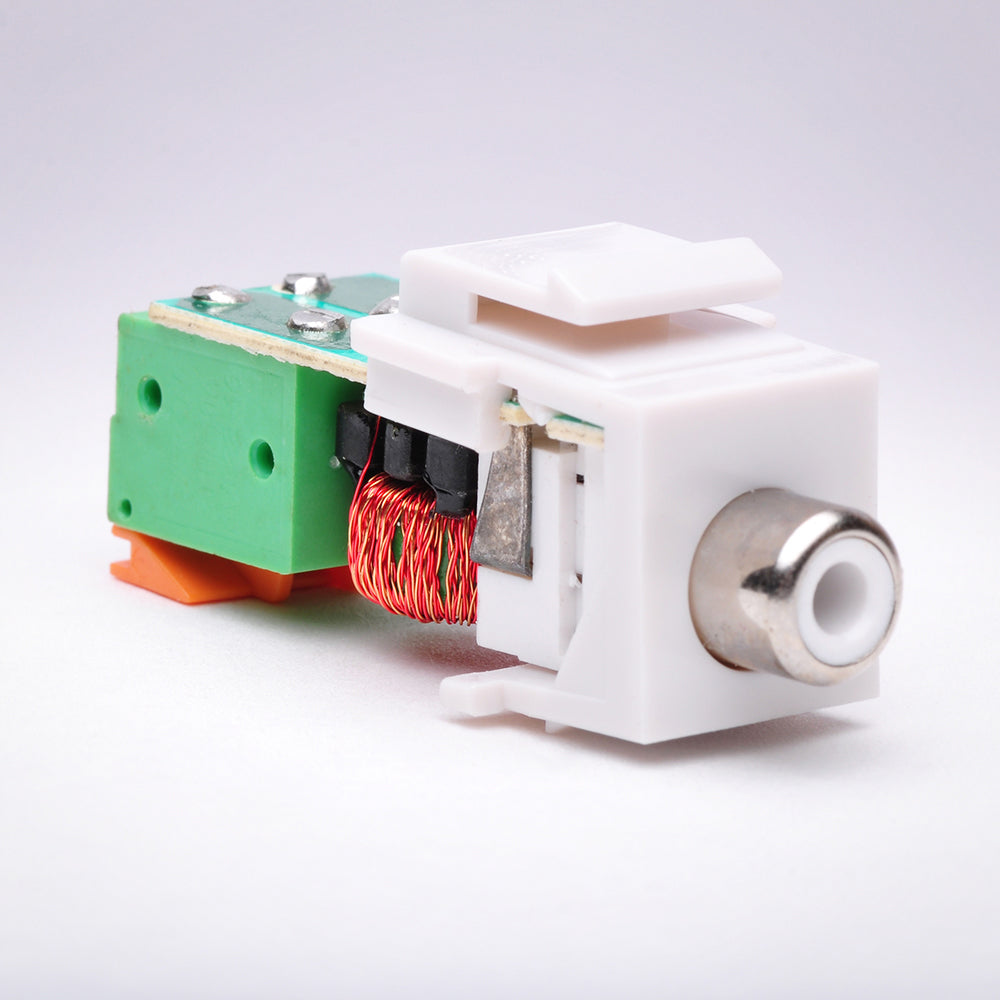

  • Composite RCA (White) Balun over CAT5 Keystone Jack Alternative View

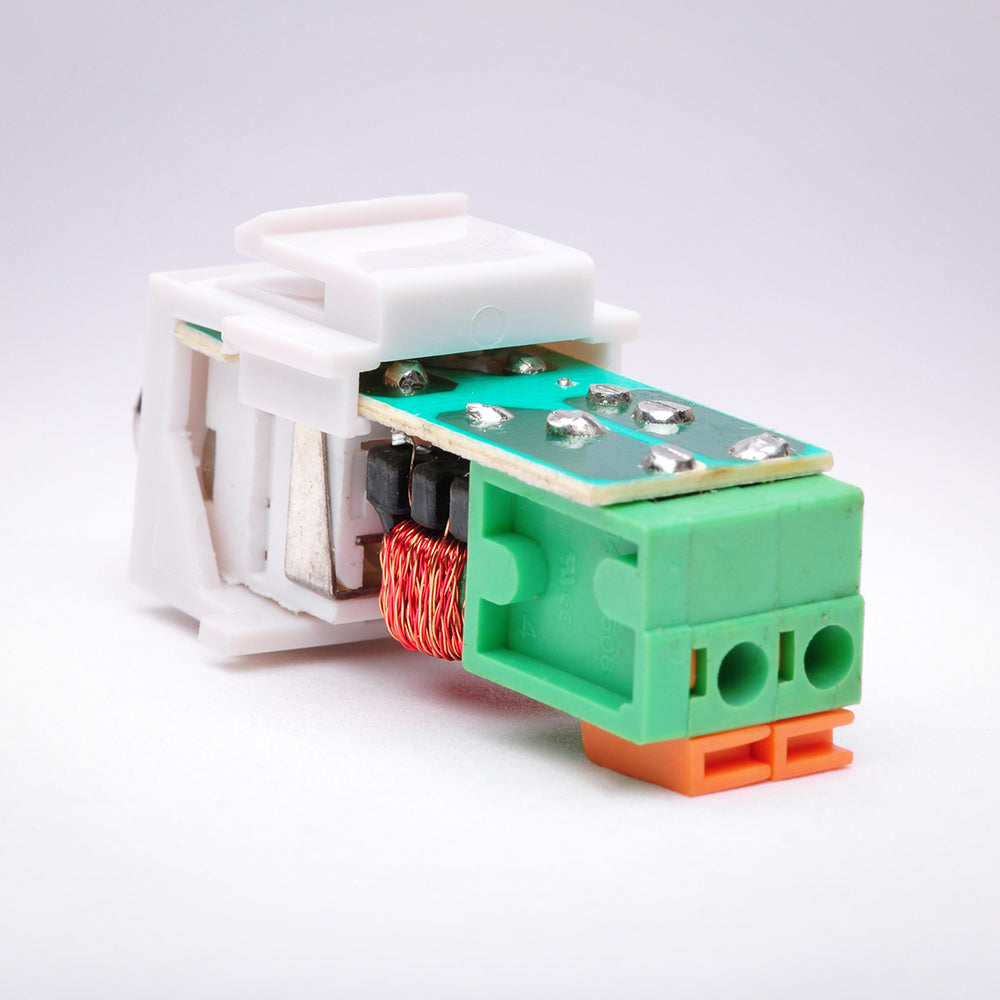

  • Composite RCA (White) Balun over CAT5 Keystone Jack Rear View

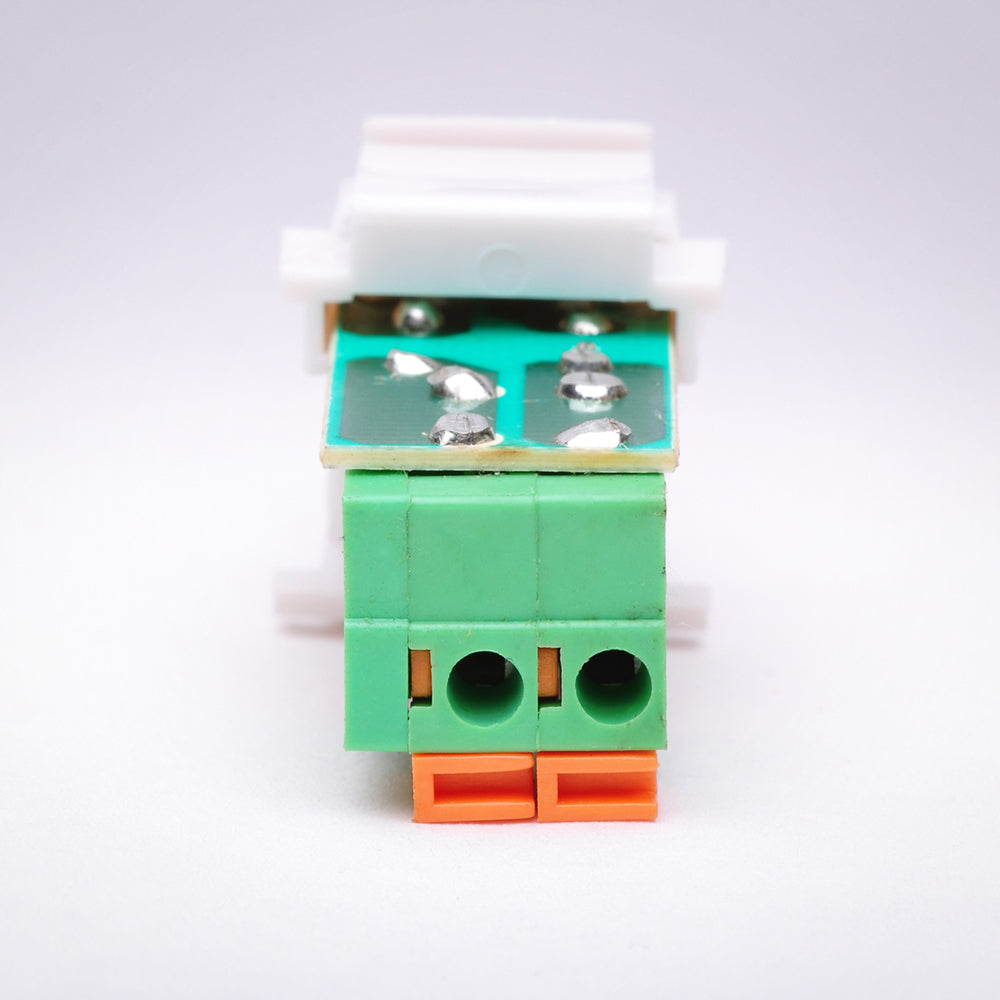

  • Composite RCA (White) Balun over CAT5 Keystone Jack Rear Alternative View

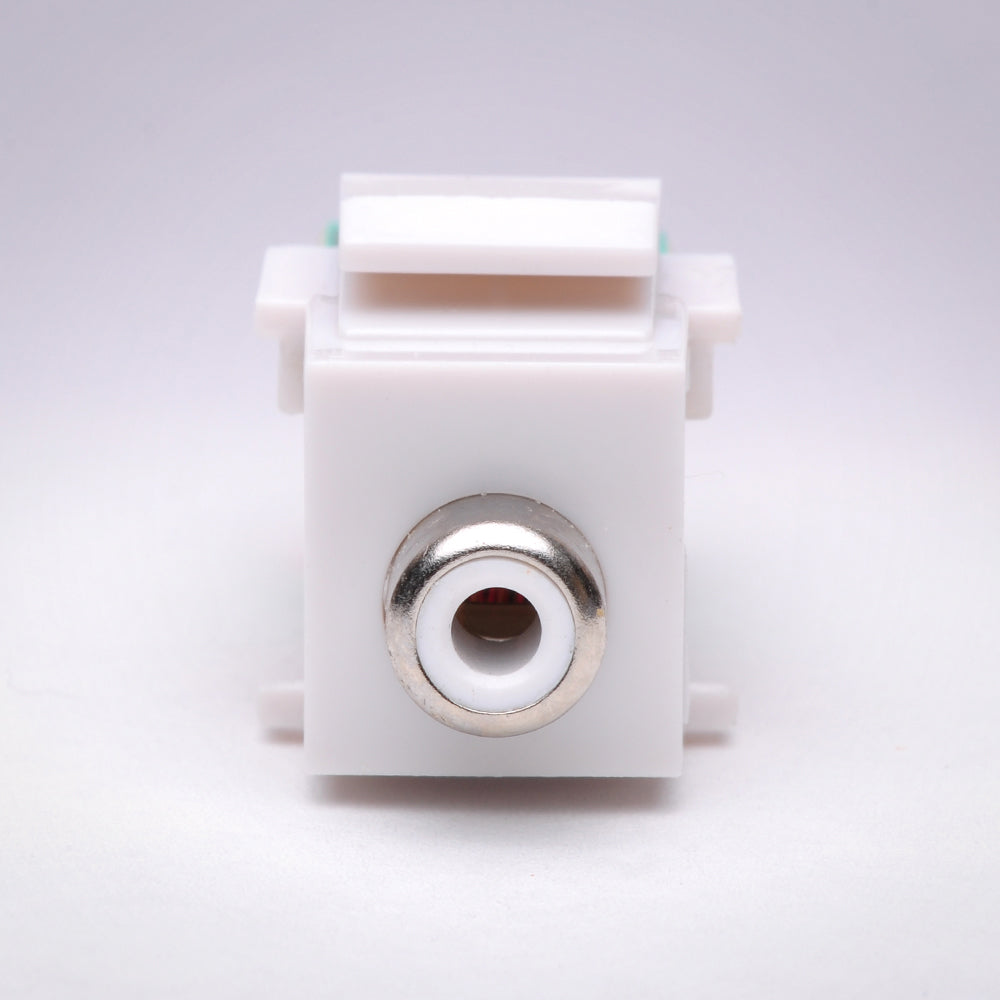

  • Composite RCA (White) Balun over CAT5 Keystone Jack Front View
  • Composite RCA (White) Balun over CAT5 Keystone Jack Side Alternative View

Composite RCA (White) Balun over CAT5 Keystone Jack

SKU#: RCAW-KJ-C5

$10.49

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available for more information.

Description+

Transfers composite RCA video from one balun over CAT5 Ethernet cable to another composite RCA video balun.

Features+

  • Extend Your Video Signal by up to 1000ft
  • Snaps Easily Into a Keystone Wall Plate for a Professional Look

Specs+

  • Input/Output: Composite RCA
  • RJ45 Terminal Block CAT5 Connector
  • For Use with UTP Solid or Stranded Wire
  • Shielded Cable Can Be Used but Must Be Grounded Properly
  • Works with CAT5 or CAT6 Cable
  • Frequency Response: DC to 220MHz
  • Attenuation
    • RL = 75 to 100: 0.4dB
    • RL = 75 to 600: 1.2dB
  • UTP C5E: Balanced Twisted Pair, 24AWG, 100ohm
  • Maximum Distance: 1000ft
  • One Wire Pair Required for Each Balun
  • Indoor Use Only
  • 48mm x 19mm x 22mm
  • Insert Color: White
  • Jack Color: White
