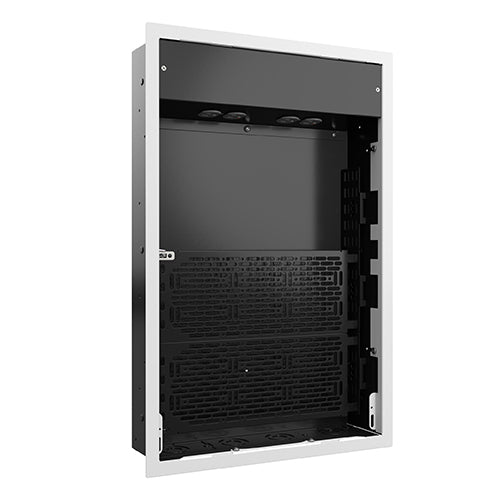

Chief Proximity® Extra-Large In-Wall Storage Box with 4-Receptacles and Lever Lock™

SKU#: PAC527LFBP4

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

10-year-warranty10

10 Year Warranty

SKU#: PAC527LFBP4

UPC#:
$896.80

SKU#: PAC527LFBP4

UPC#:
Color:
Black
White

SKU#: PAC527LFBP4

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

10-year-warranty10

10 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • The new PAC527LFBP4 now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box. The PAC527LFBP4 also includes a paintable black flange to blend into any space aesthetics.

    Includes a high-performance, dual gang housing, isolated ground, 4-receptacle outlets featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

  • Features+
    • Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
    • Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
    • Pre- and post-construction installation options
    • Knockouts for single gang outlets and 1 ¼”, 1", and ½" conduit
    • Unmatched small device mounting flexibility built-in, with patented Lever Lock™ plates
    • Patented universal hole pattern simplifies mounting of small devices
    • Includes PACL2 Lever Lock™ plates mountable at four different depths in four different locations
    • Paintable black flange to blend in any environment
    • Allows for AV devices to be mounted in advance before terminating cables on site
    • PACL2 plate can be snapped in half to create two smaller sections
    • Printable backplane template for planning purposes
    • For electrical safety, Lever Lock™ plates are black zinc plated which allows them to be grounded to the in-wall box via the spring-loaded lever
    • Enclosure is UL 2416 Listed for installation of AV, IT & Communication Technology Equipment

    Filter and Surge Protected Receptacles

    • Non-volatile spike protection with LED power indicator
    • Non-sacrificial multi-stage technology
    • Non-current limiting design passes full power on a regular circuit; redundant protection circuits
    • Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can
    • cause gear degradation and downtime
    • Line filter reduces common and differential mode noise by up to 40 dB
    • Rated for 125 VAC, 60 Hz, 15 A
    • 1875 watt maximum
    • Ferrite toroid based EMI Filter
    • Withstand rating of 240 VAC continuous without damage or loss of protection
  • Specs+
    • Certifications: UL Listed
    • Color: Black
    • Notes: Four NEMA 5-15R Isolated Ground Receptacles, Green LED Status Indicator
    • Overall Dimensions: (H x W x D)For 3.5" stud bays: 14.25 x 22 x 3.9” (362 x 559 x 99 mm) - For 2.5” stud bays: 14.25 x 22 x 3” (362 x 559 x 76 mm)
    • Power Note: 622 Joule MOV Energy Rating, Type 3 Surge Protective Device (SPD). Power Consumption: < 0.5 W
    • Power Requirements: 125 VAC, 60 Hz, 15 A
    • Temperature Range: 30° F to 104° F?
    • Weight Capacity: In-wall Box: 40 lbs (18.1 kg) - Lever Lock Plate Capacity: 10 lbs (4.5 kg)
    • SPEC SHEET
