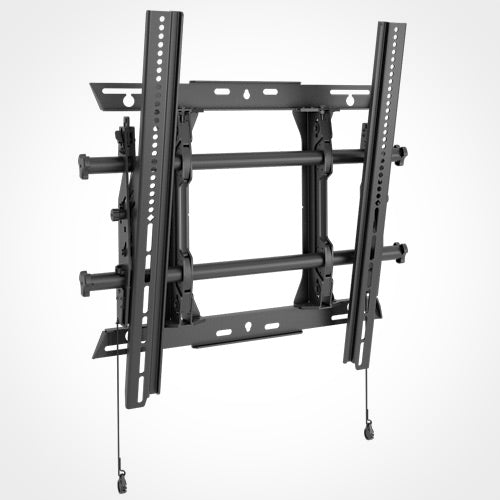

Chief Medium Fusion Portrait Tilt Wall Mount - 32 to 47 Inch Screens

SKU#: MTMP1U

UPC#: 841872163895

60 Day Money Back Guarantee

100% Secure Shopping

10-year-warranty10

10 Year Warranty

SKU#: MTMP1U

UPC#:841872163895
$175.20

SKU#: MTMP1U

UPC#:841872163895

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • The MTMP1U Medium Fusion Portrait Tilt Wall Mount from Chief Manufacturing is designed to accommodate installers. With added stability, faster install time, improved lateral shift, easier cable management, and enhanced security, this mount is perfect for the thorough, but the time-pressed technician.

    This is a universal mount, which fits most TVs with screen sizes from 32 to 47 inches. It allows up to 12 degrees tilt.

    The integrated teardrop design speeds up wall plate installation by allowing you to pre-install the bolts to the wall. ControlZone Leveling allows post-installation fine-tuning and Centerless Shift provides up to 10.4" post-installation lateral shift for unlimited centering.

  • Features+
    • Bolts Can Be Pre-Installed to Speed Up Installation
    • ControlZone Leveling Allows Post-Installation Adjustments
    • Audible Click Ensures Screen Has Safely Engaged with Mount
    • Built-in Cable Stand for Easy Access
  • Specs+
    • Certifications: UL Listed
    • Color: Black
    • Lateral Shift: 10.4"
    • Manual Height Adjustment: 1"
    • Maximum Screen Thickness: 6"
    • Minimum Depth: 3.2"
    • Mounting Pattern Compatibility: 100 x 100 mm - 570 x 600 mm
    • Orientation: Portrait
    • Dimensions (H x W x D): 24.5 x 20.88 x 3.2"
    • Tilt: up to 12°
    • Screen Size: 32 - 47"
    • Wall Stud Compatibility: Single stud and 16"
    • Weight Capacity: 200 lbs Dual Stud / 125 lbs Single Stud
    • INSTALLATION INSTRUCTIONS
    • SPEC SHEET
  • Reviews+
  • Q&A+
  • Will this fit my TV?

    This will fit most 32-47" TVs. Please make sure your TV's mounting pattern is 570x600 or smaller and your TV weighs 125 lbs or less.

    Will I need anything else?

    You may need additional hardware if your TV uses a different screw size or if you are mounting to anything other than studs. You will also want an electric screwdriver with a drill bit and a stud finder. A drop cloth to cover your carpet or furniture may help, and a separate level can be a good idea as well.

    What is a VESA pattern?

    VESA pattern is the mounting pattern. There are several different sizes used by manufacturers. It is the measurement between mounting holes side to size and then up and down. This measurement will always be in millimeters.

    What are the dimensions on the mount?

    The base of this mount is 20.9 inches wide and 17.4 inches tall. The arms are 24.5 inches long.

    Does this tilt or swivel?

    This mount can be used flat or tilted down.

    Can you mount this on brick, plaster, or stone?

    This mounting kit includes hardware to mount on drywall over studs and concrete. With special tools and hardware, you may be able to mount on other surfaces. Please consult an installation professional if you are unsure about how to mount in your home.

    Will this work with a curved TV?

    Unfortunately, we do not recommend this mount with a curved TV.

    How far away from the wall does this sit?

    When flat, this mount sits 3.2 inches from the wall.

    Does this have any special features?

    Yes, this is a portrait mount. This mount allows for installing the bolts first and post-installation leveling.

    The MTMP1U Medium Fusion Portrait Tilt Wall Mount from Chief Manufacturing is designed to accommodate installers. With added stability, faster install time, improved lateral shift, easier cable management, and enhanced security, this mount is perfect for the thorough, but the time-pressed technician.

    This is a universal mount, which fits most TVs with screen sizes from 32 to 47 inches. It allows up to 12 degrees tilt.

    The integrated teardrop design speeds up wall plate installation by allowing you to pre-install the bolts to the wall. ControlZone Leveling allows post-installation fine-tuning and Centerless Shift provides up to 10.4" post-installation lateral shift for unlimited centering.

    • Bolts Can Be Pre-Installed to Speed Up Installation
    • ControlZone Leveling Allows Post-Installation Adjustments
    • Audible Click Ensures Screen Has Safely Engaged with Mount
    • Built-in Cable Stand for Easy Access
    • Certifications: UL Listed
    • Color: Black
    • Lateral Shift: 10.4"
    • Manual Height Adjustment: 1"
    • Maximum Screen Thickness: 6"
    • Minimum Depth: 3.2"
    • Mounting Pattern Compatibility: 100 x 100 mm - 570 x 600 mm
    • Orientation: Portrait
    • Dimensions (H x W x D): 24.5 x 20.88 x 3.2"
    • Tilt: up to 12°
    • Screen Size: 32 - 47"
    • Wall Stud Compatibility: Single stud and 16"
    • Weight Capacity: 200 lbs Dual Stud / 125 lbs Single Stud
    • INSTALLATION INSTRUCTIONS
    • SPEC SHEET

    Will this fit my TV?

    This will fit most 32-47" TVs. Please make sure your TV's mounting pattern is 570x600 or smaller and your TV weighs 125 lbs or less.

    Will I need anything else?

    You may need additional hardware if your TV uses a different screw size or if you are mounting to anything other than studs. You will also want an electric screwdriver with a drill bit and a stud finder. A drop cloth to cover your carpet or furniture may help, and a separate level can be a good idea as well.

    What is a VESA pattern?

    VESA pattern is the mounting pattern. There are several different sizes used by manufacturers. It is the measurement between mounting holes side to size and then up and down. This measurement will always be in millimeters.

    What are the dimensions on the mount?

    The base of this mount is 20.9 inches wide and 17.4 inches tall. The arms are 24.5 inches long.

    Does this tilt or swivel?

    This mount can be used flat or tilted down.

    Can you mount this on brick, plaster, or stone?

    This mounting kit includes hardware to mount on drywall over studs and concrete. With special tools and hardware, you may be able to mount on other surfaces. Please consult an installation professional if you are unsure about how to mount in your home.

    Will this work with a curved TV?

    Unfortunately, we do not recommend this mount with a curved TV.

    How far away from the wall does this sit?

    When flat, this mount sits 3.2 inches from the wall.

    Does this have any special features?

    Yes, this is a portrait mount. This mount allows for installing the bolts first and post-installation leveling.
