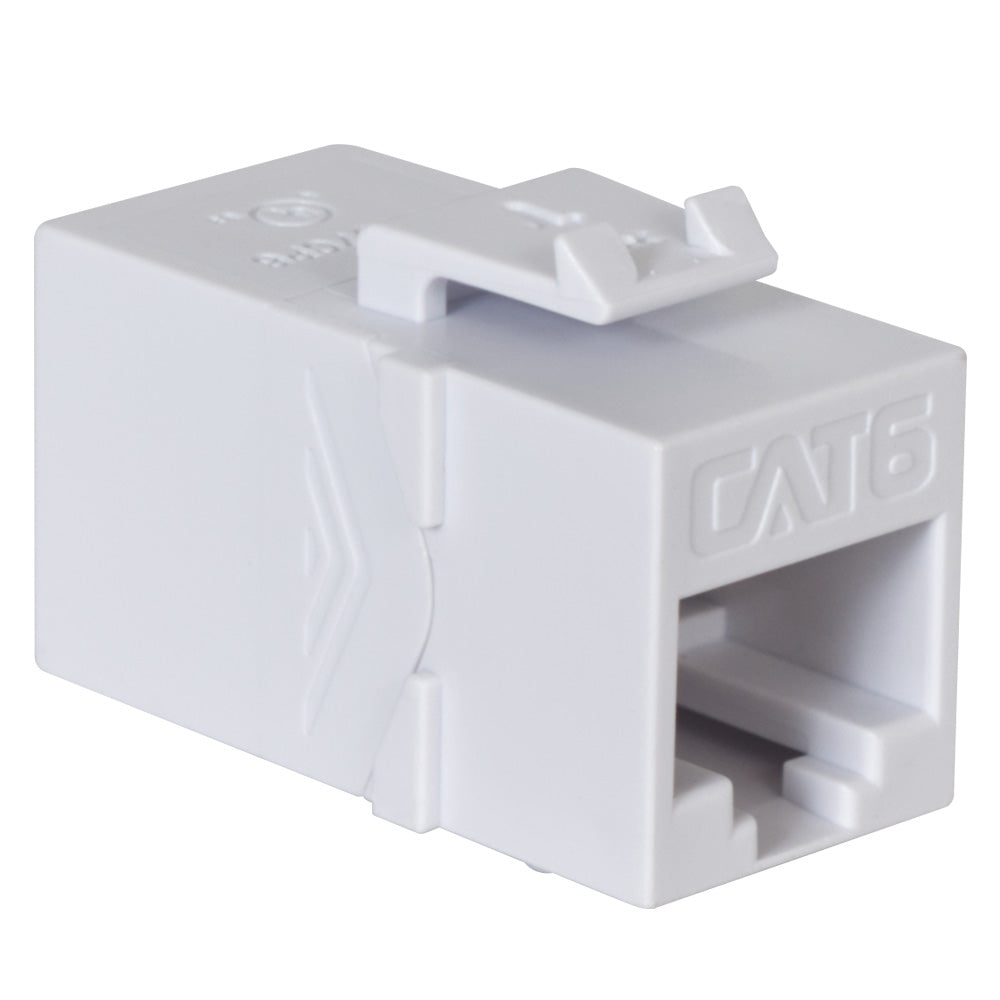

ICC CAT6 RJ45 Keystone Coupler for HD Style

SKU#: IC107CP6WH

UPC#: 633758037488

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: IC107CP6WH

UPC#:633758037488
$4.33

SKU#: IC107CP6WH

UPC#:633758037488
Color:
Black
White
Quantity:

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • ICC CAT6 RJ45 Keystone Coupler For HD Style

    ICC Category 6 feedthrough in-line coupler module has been tested to ensure that it surpasses Category 6 specifications without degradation in performance. Compatible with all ICC faceplates and blank patch panels.

  • Features+
    • Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.
    • PCB technology provides maximum performance and superior signal quality.
    • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.
    • Backwards compatible with all lower rated category components.
    • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
    • Used with ICC Category 6 patch cords.
    • UL listed.
  • Specs+
  • Material:

    • Housing: ABS, UL 94V-0
    • Contact: Phosphor bronze gold plating over 100 microinch nickel
    • Gold Plating: 1.27 micron/50 micro inch min

    Electrical:

    • Current Rating: 1.5 amp max
    • Voltage Rating: 150 volts alternating
    • Dielectric Withstanding Voltage: 1000 volts RMS, 60Hz
    • Insulation Resistance: > 10mohms

    Mechanical:

    • Mating Force: 5 lbs max
    • Unmating Force: 5 lbs max
    • Plug Retention in Jack: 20 lbs min
    • Durability: 750 cycles

    Color:

    • Color XX: BK-Black, WH-White
  • Reviews+
  • ICC CAT6 RJ45 Keystone Coupler For HD Style

    ICC Category 6 feedthrough in-line coupler module has been tested to ensure that it surpasses Category 6 specifications without degradation in performance. Compatible with all ICC faceplates and blank patch panels.

    • Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.
    • PCB technology provides maximum performance and superior signal quality.
    • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.
    • Backwards compatible with all lower rated category components.
    • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
    • Used with ICC Category 6 patch cords.
    • UL listed.

    Material:

    • Housing: ABS, UL 94V-0
    • Contact: Phosphor bronze gold plating over 100 microinch nickel
    • Gold Plating: 1.27 micron/50 micro inch min

    Electrical:

    • Current Rating: 1.5 amp max
    • Voltage Rating: 150 volts alternating
    • Dielectric Withstanding Voltage: 1000 volts RMS, 60Hz
    • Insulation Resistance: > 10mohms

    Mechanical:

    • Mating Force: 5 lbs max
    • Unmating Force: 5 lbs max
    • Plug Retention in Jack: 20 lbs min
    • Durability: 750 cycles

    Color:

    • Color XX: BK-Black, WH-White
