Vertical Cable 012-023/EZF-100 Cat6 RJ45 Modular Feed Through Plug 100 Pack
SKU#: 012-023/EZF-100
UPC#:845643017158
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- CAT6 COMPATIBLE. For round solid or stranded Cat6 networking cable.
- SAVES TIME. Fast and easy to terminate with easier sequence verification than with standard plugs.
- GOLD PLATED. Terminal contacts are gold-plated, offering corrosion-resistance and increased signal integrity.
- A YEAR OF REASSURANCE. Comes with the Vertical Cable 1 Year Manufacturer Warranty against defects in workmanship.
- Specs+
- Voltage Rating: 250 VAC RMS
- Current Rating: 2 Amps
- Termination Resistance: 35m Ω Max
- Insulation Resistance: 500m Ω Min. @500V DC
- Cable to Plug Tensile Strength: 20 lbs
- Durability: 500 Cycles Min.
- Housing: Polycarbonate UL94V-2
- Contact Blade: Gold Plated (3 Prong)
- Conductor Type: Solid or Stranded Wire
- Conductor Size: 23AWG
- Insulation Size: 1.10mm Max

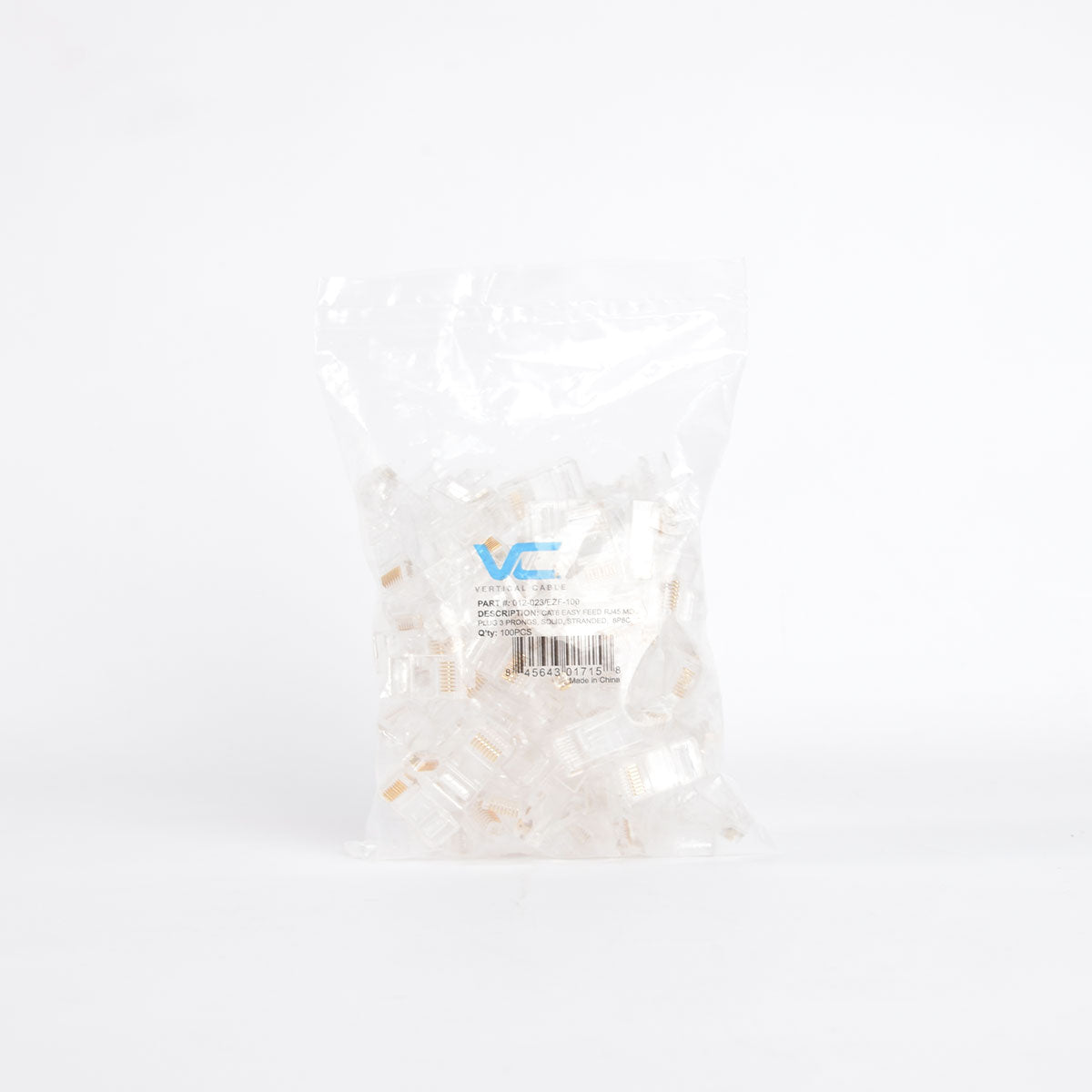

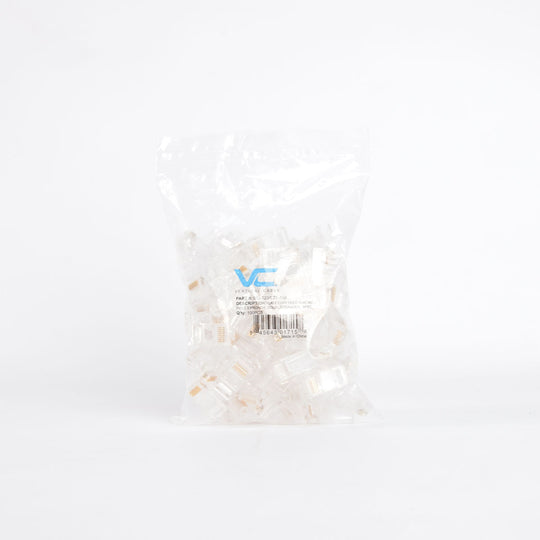

- 100 Pieces Per Bag
- UL Listed
- SPEC SHEET
- Reviews+
- CAT6 COMPATIBLE. For round solid or stranded Cat6 networking cable.
- SAVES TIME. Fast and easy to terminate with easier sequence verification than with standard plugs.
- GOLD PLATED. Terminal contacts are gold-plated, offering corrosion-resistance and increased signal integrity.
- A YEAR OF REASSURANCE. Comes with the Vertical Cable 1 Year Manufacturer Warranty against defects in workmanship.
- Voltage Rating: 250 VAC RMS
- Current Rating: 2 Amps
- Termination Resistance: 35m Ω Max
- Insulation Resistance: 500m Ω Min. @500V DC
- Cable to Plug Tensile Strength: 20 lbs
- Durability: 500 Cycles Min.
- Housing: Polycarbonate UL94V-2
- Contact Blade: Gold Plated (3 Prong)
- Conductor Type: Solid or Stranded Wire
- Conductor Size: 23AWG
- Insulation Size: 1.10mm Max
- 100 Pieces Per Bag
- UL Listed
- SPEC SHEET

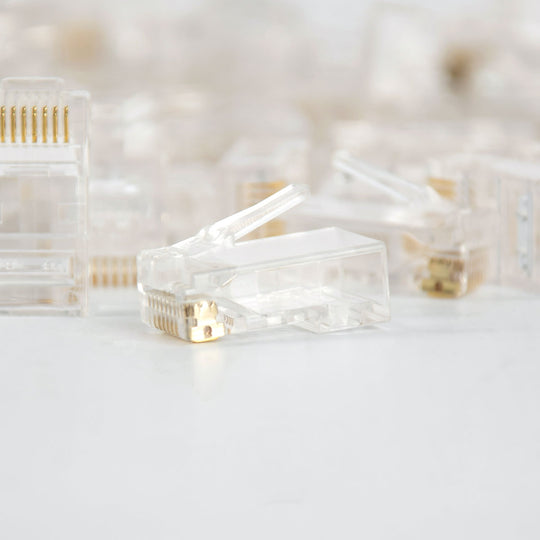

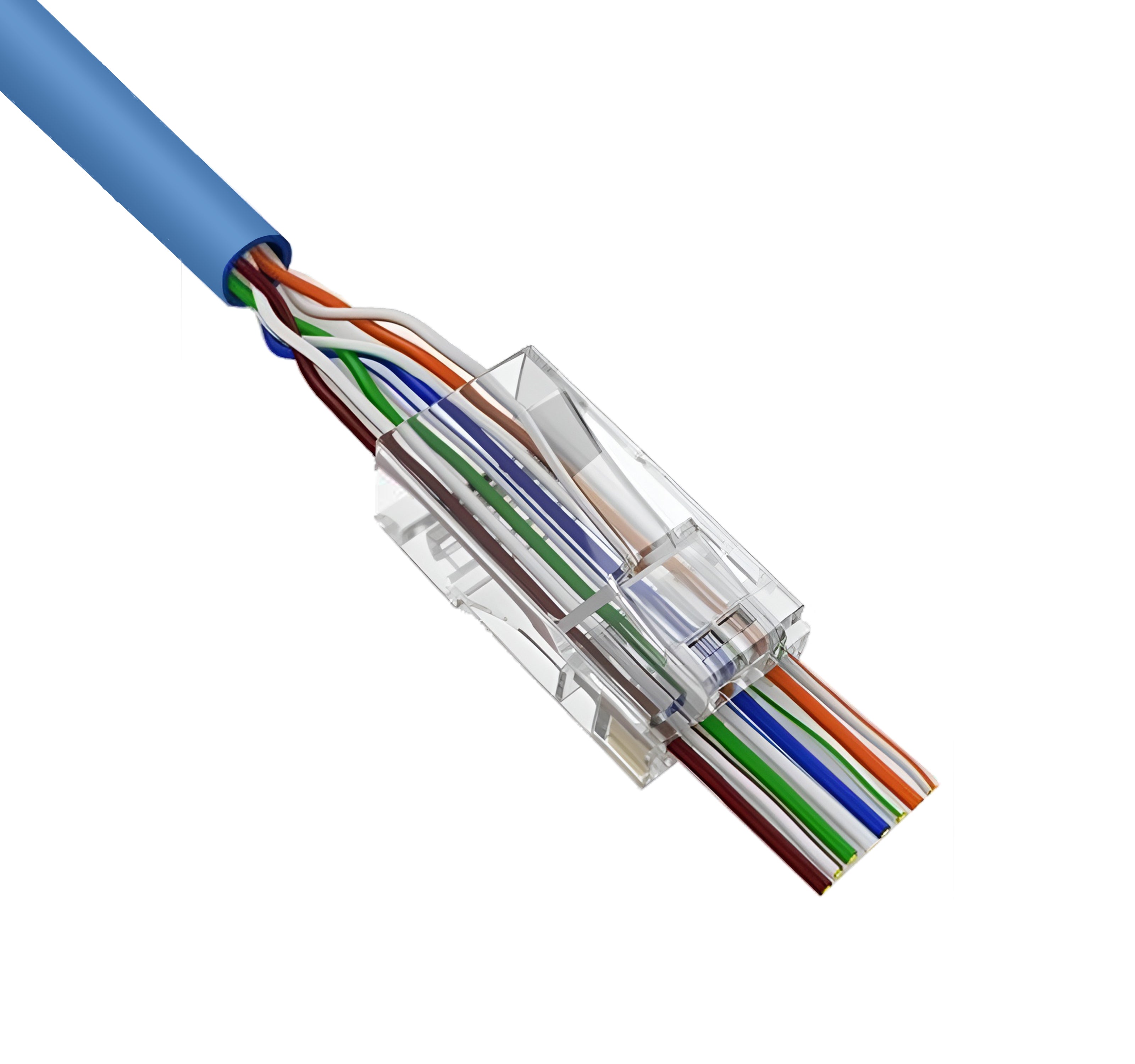

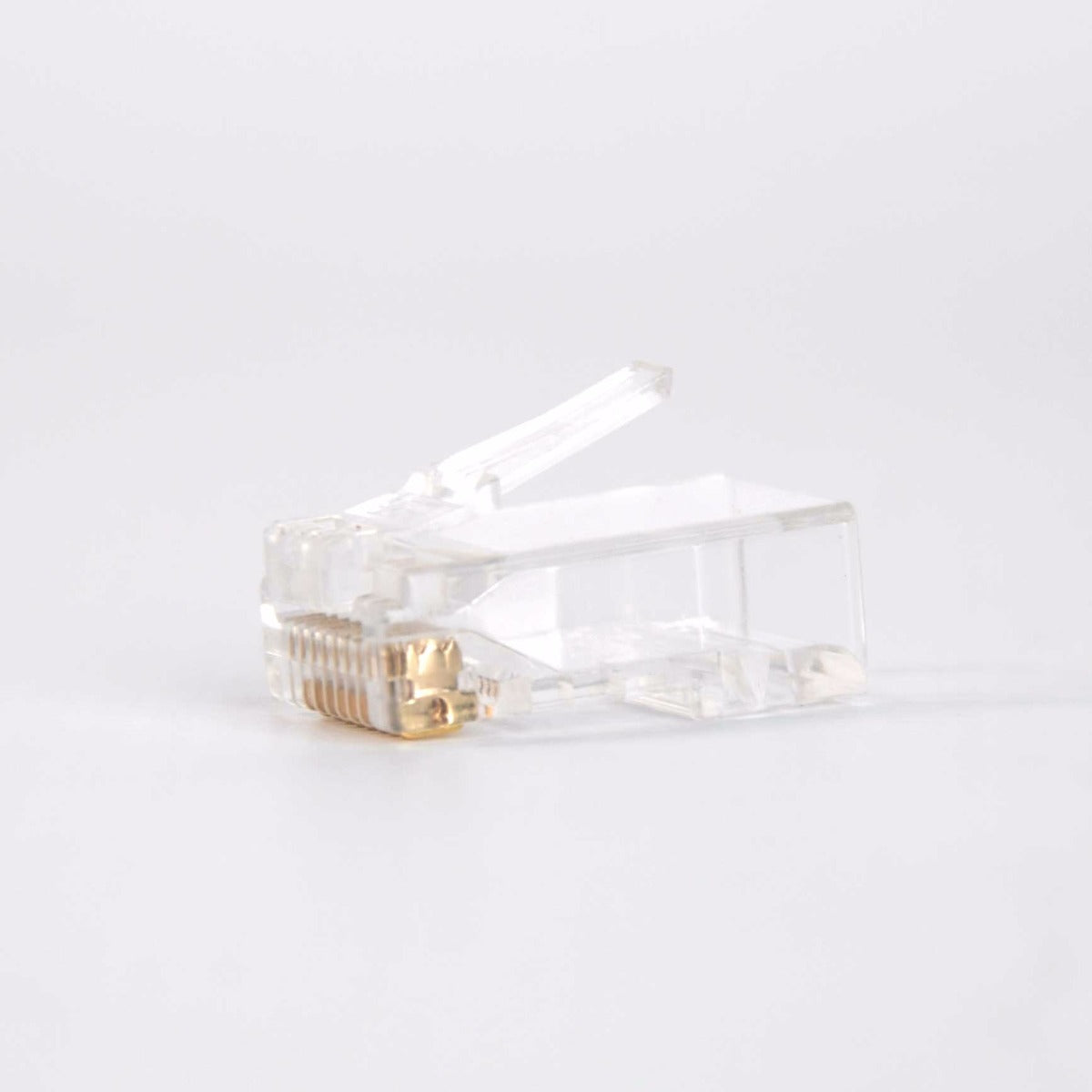

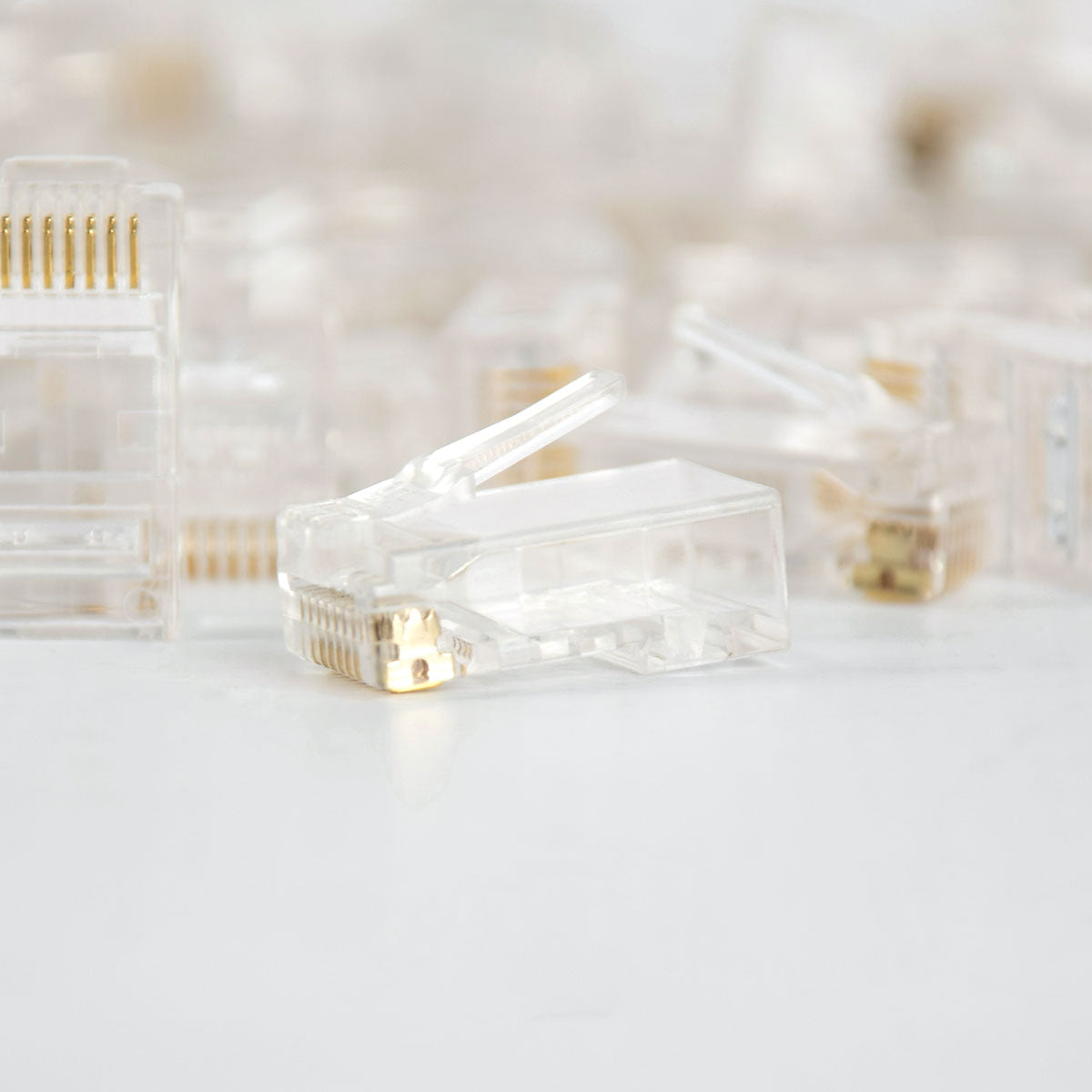

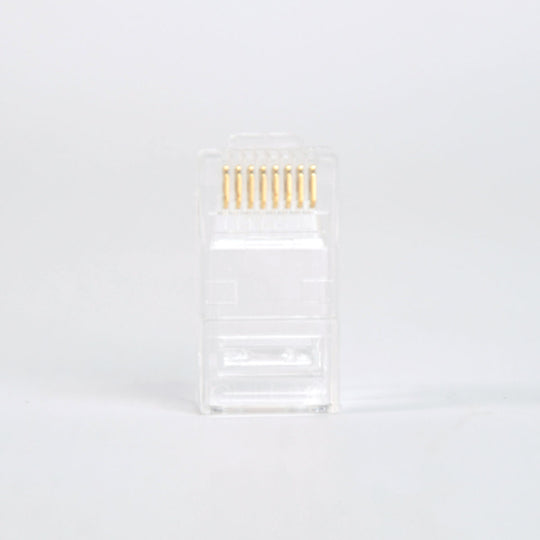

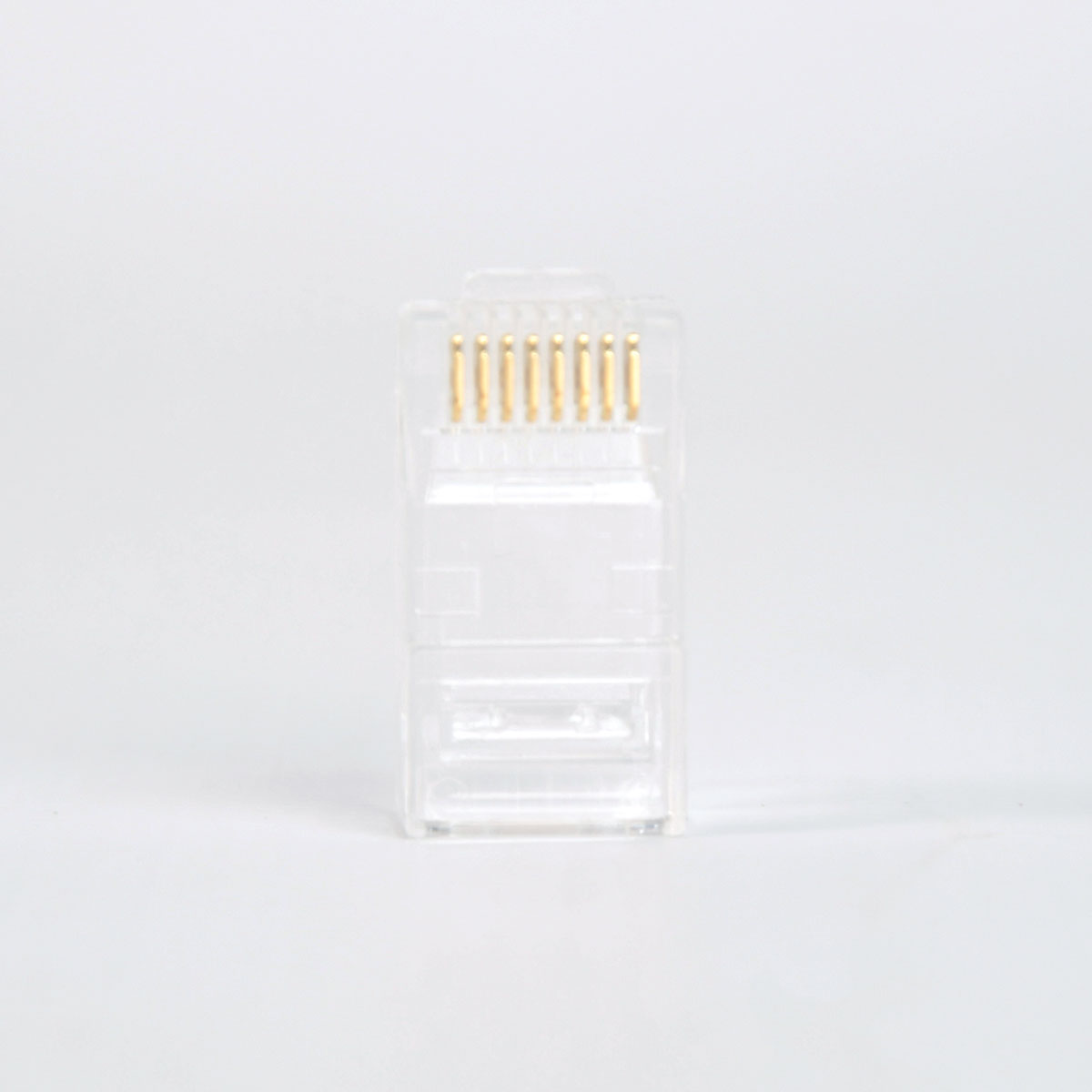

The Vertical Cable 012-023/EZF-100 Cat6 RJ45 Modular Feed Through Plug features a fast and easy feed-through design. It's easy to terminate and offers easier sequence verification than with standard RJ45 plugs. Gold plated terminal contacts offer corrosion resistance and optimal signal integrity. Available in bags of 100 pieces.
The Vertical Cable 012-023/EZF-100 Cat6 RJ45 Modular Feed Through Plug features a fast and easy feed-through design. It's easy to terminate and offers easier sequence verification than with standard RJ45 plugs. Gold plated terminal contacts offer corrosion resistance and optimal signal integrity. Available in bags of 100 pieces.
