- Description+
- Features+
- 1080P 60Hz Resolution - Capture and store Full HD video
- Portable - Ideal for recording presentations on the go
- USB 3.1 - Delivers power and captures HDMI signal
- Audio Input - Embeds audio from a microphone or other device
- H.264 - Supports H.264 compression format
- Specs+
- Package Contents+
- 1x BG-CSA USB 3.1 Gen 1 3G-SDI Capture Device
- 1x USB 3.1 Gen 1 A to A Cable (host to device)
- 1x User Manual
- Reviews+
- 1080P 60Hz Resolution - Capture and store Full HD video
- Portable - Ideal for recording presentations on the go
- USB 3.1 - Delivers power and captures HDMI signal
- Audio Input - Embeds audio from a microphone or other device
- H.264 - Supports H.264 compression format
- 1x BG-CSA USB 3.1 Gen 1 3G-SDI Capture Device
- 1x USB 3.1 Gen 1 A to A Cable (host to device)
- 1x User Manual

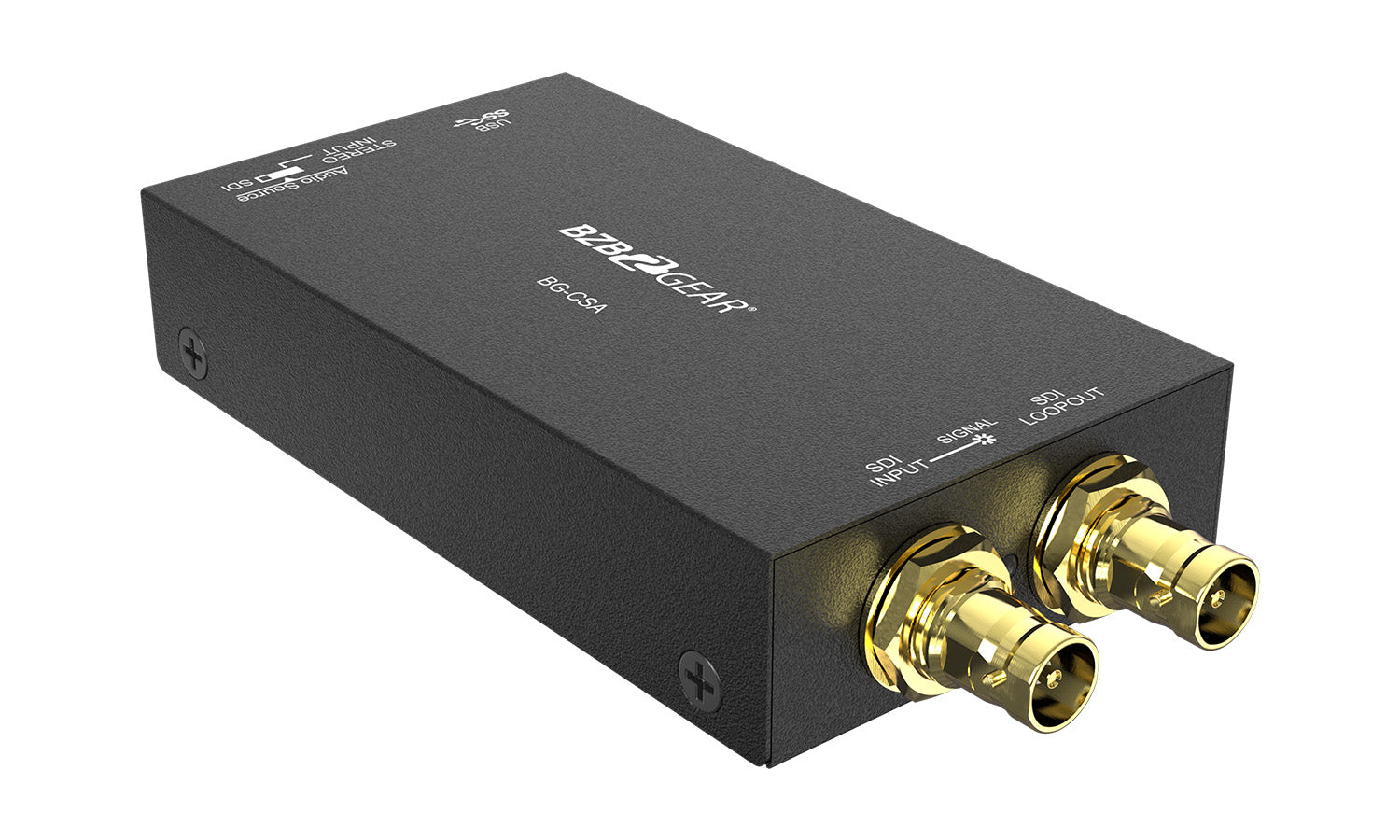

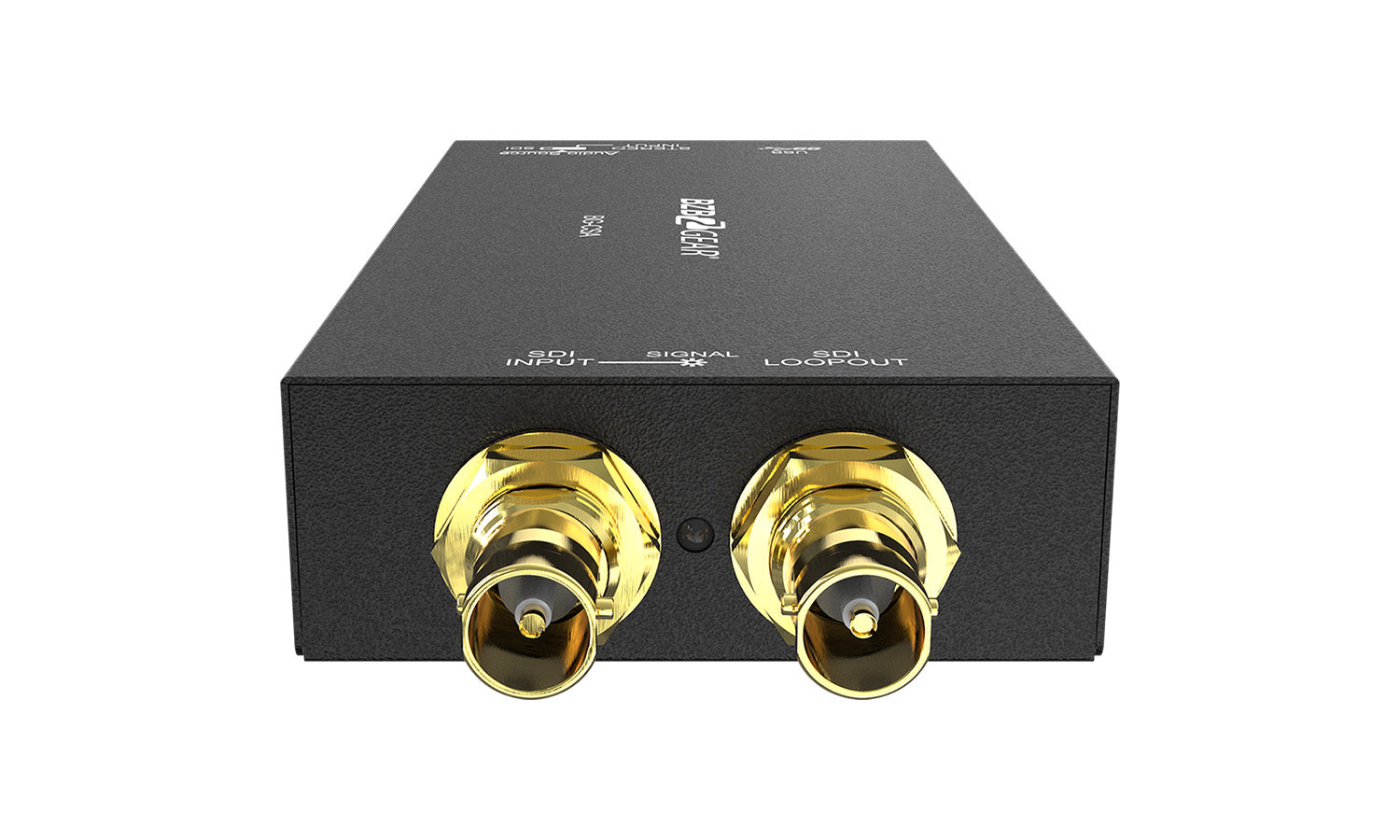

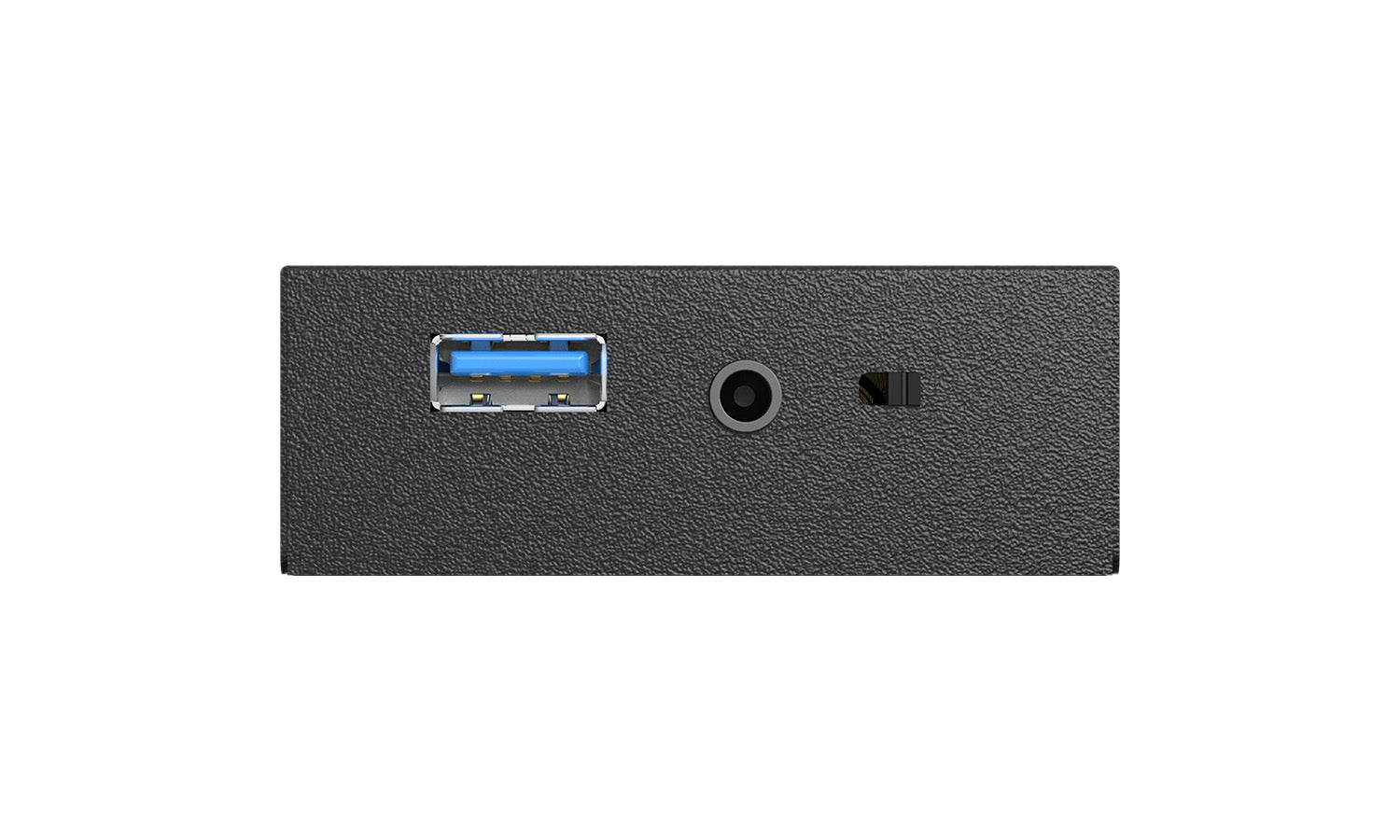

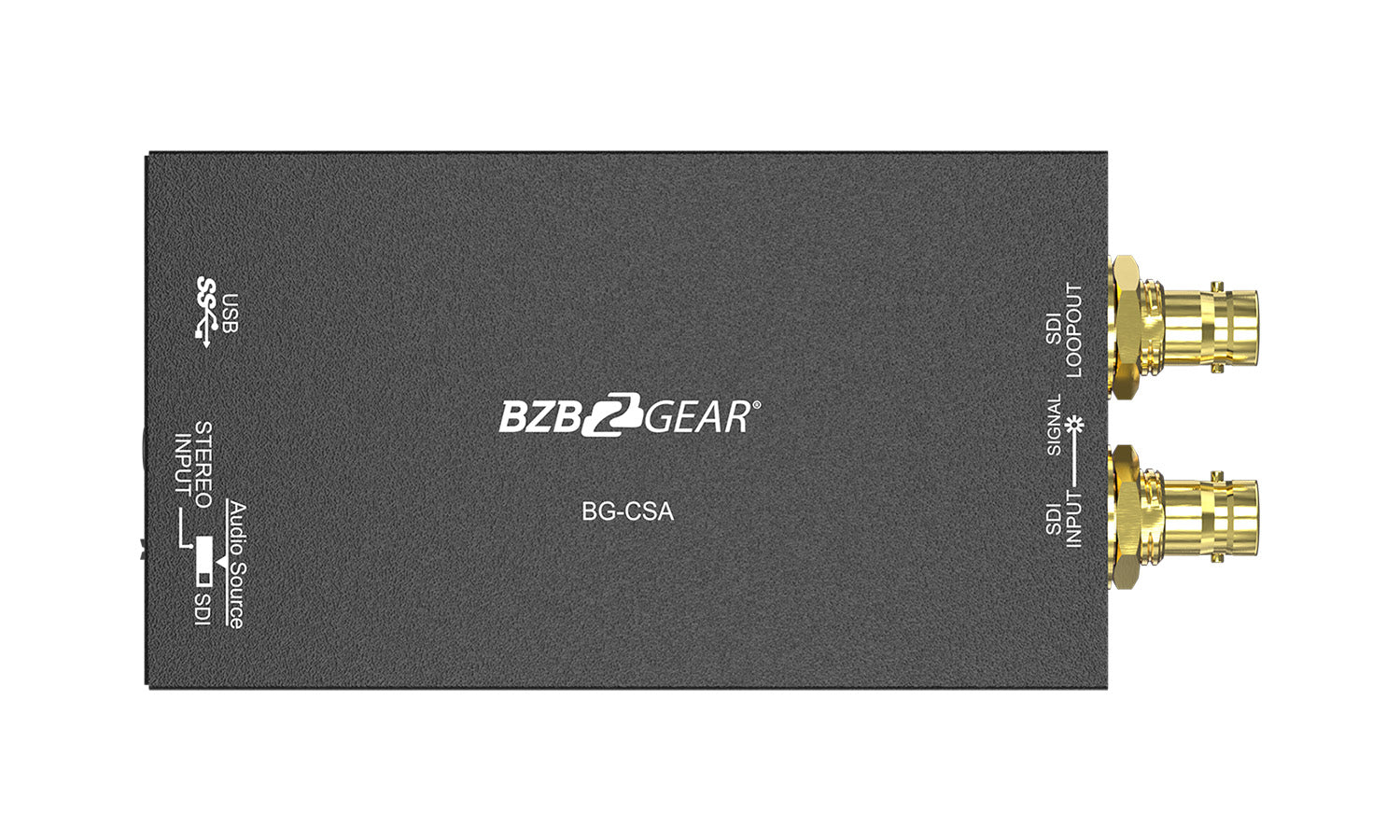

The BG-CSA lets you easily capture an uncompressed 1080P/60Hz 3G-SDI source and save it on your computer or storage device via USB. Portable and easy to use, capturing uncompressed signals at resolutions up to 1080p 60Hz. It utilizes large volume image buffering to eliminate video tearing while the high sampling rate ensures you receive a pristine image. The loop output ensures your display remains uninterrupted. Insert an external stereo audio source via the 3.5mm input. The USB 3.1 connection supplies power to the unit, meaning no extra power cables to carry.
| Technical | |
| Max. Data Rate | 350 Mbps |
| UAC Video Output Resolution | SMPTE 424M-2.97 Gbps?3G-SDI: ?- 1080p at 50/59.94/60 Hz (4:2:2) SMPTE 274M-1.485 Gbps?HD-SDI: ?- 1080p at 23.98, 24, 25, 29.97, 30 Hz, 1080i at 50, 59.94, 60 Hz SMPTE 292M-1.485 Gbps?HD-SDI: ?- 1080i at 30 Hz, 720p at 60 Hz SMPTE 296M-1.485 Gbps?HD-SDI: ?- 720p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz SMPTE 259M-270 Mbps?SD-SDI: ?- NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz |
| UAC Audio Output Format | Stereo / 16-bit / 48000Hz |
| Recording Video Format | YUY2 (USB3.1 Gen 1), MJPG (USB2.0/3.1 Gen 1) |
| Audio Input |
SDI Embedded Audio |
| Operating System Compatibility | Windows 7, 8, 10, Mac OS X 10.9 or above, Linux |
| 3rd-Party Software Compatibility | OBS Studio (Windows, Linux)/AMCap (Windows) Potplayer (Windows)/Skype (Windows, OS X) Hangout (Windows)/TeamViewer (Windows) |
| Hardware Requirements | Desktop: Intel Core i5-3400+NVIDIA GTX660 or higher Notebook: Intel Core i7-4810MQ+NVIDIA GTX870M or higher+4GB RAM or higher |
| ESD Protection | 8 KV - Contact Discharge 15KV - Air Discharge |
| Mechanical | |
| Housing Design | Aluminum |
| Casing Style | Portable |
| Power Connection | Micro-USB Port |
| Power Supply | 5V DC, 1A |
| Power Consumption | 4 watts (Max) |
| Operating Humidity | 20-90% RH (no condensation) |
| Operation temperature | 0~40°C (32~104°F) |
| Product Weight | 135g (0.3 lb) |
| Package Weight | 270g (0.6 lb) |
| Certifications | CE, FCC, RoHS |
