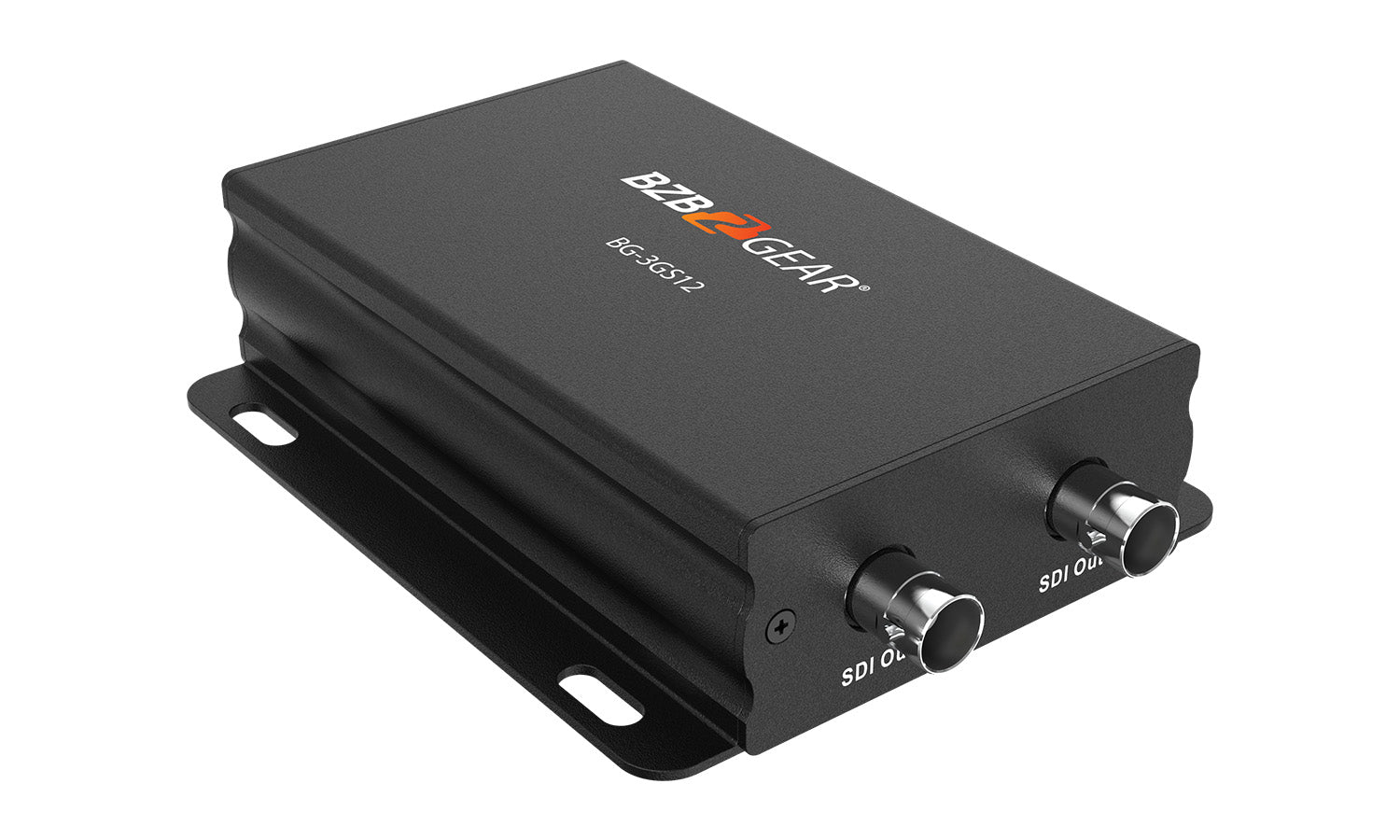

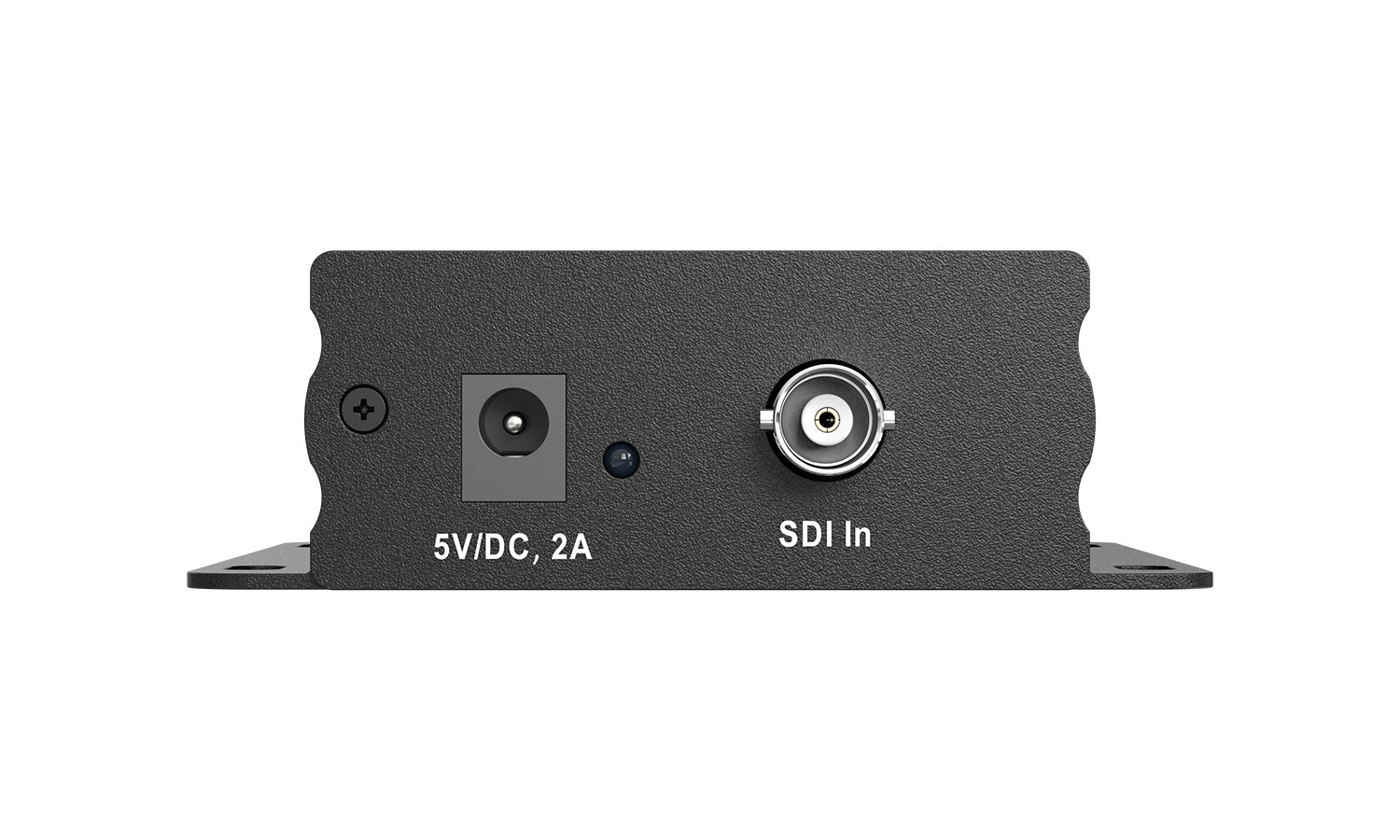

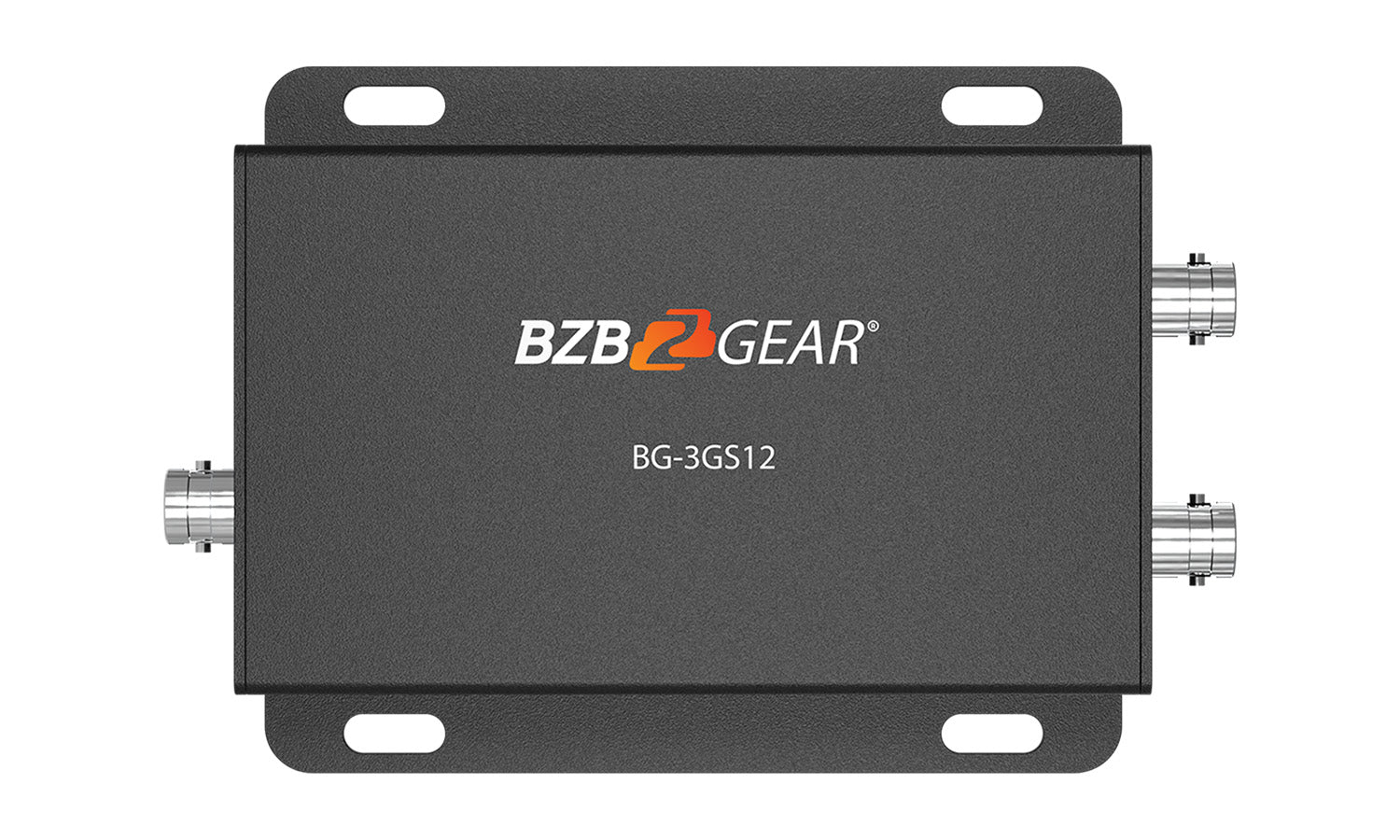

BZBGEAR SDI Splitter Amplifier with long distance support up to 200m for SD, 120m for HD, and 80m for 3G

SKU#: BG-3GS12

UPC#: 850023208125

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: BG-3GS12

UPC#:850023208125
$99.00

SKU#: BG-3GS12

UPC#:850023208125
Splitter Ports:

SKU#: BG-3GS12

UPC#: 850023208125

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • The BG-3GS12 is a compact and reliable 2-way SDI splitter. It is the perfect solution for dividing your SDI feed to run 2 displays. The combination of its small size and budget-friendly price make it an essential part of any video production tool kit. It supports SD to 200m, HD to 120m, and 3G to 80m, and resolutions up to 1080p@60fps.

  • Features+
    • This product is specially designed with equalizer IC in its input and drive IC in its outputs. All of the input and outputs support long coaxial cable
    • Supports multiple video resolution: SD 480i, 576i and 625i HD 720p @24/25/30/50/60 HD 1080i @50/60 HD 1080p @24/25/30 3G 1080p @50/60
    • Supports multiple color space: RGB or YCbCr 4:4:4 sampled YCbCr 4:2:2 or 4:2:0 sampled
    • Supports wide range data rates: 270Mbps?2.97Gbps
    • Supports multiple deep color: 8bit, 10bit, 12bit
  • Specs+
  • Signal Inputs/Output
    Input Connector 1x SDI BNC Male
    Output Connector 2x SDI BNC Male
    SDI Cable Distance (RG59 cable):
    3G Mode Up to 80m
    HD Mode Up to 120m
    SD Mode Up to 200m
    Mechanical
    Size (L-W-H) 112×90×29.3mm
    Weight (Net) 150g
    Environmental
    Operating Temperature 0°C to +70°C
    Operating Humidity 10% to 85% RH (no condensation)
    Storage Temperature -10°C to +80°C
    Storage Humidity 5% to 90% RH (no condensation)
    Power Requirement
    External Power Supply 5V DC@ 2A
    Power Consumption (max) 1W
  • Package Contents+
    • 1x BG-3GS 3G SDI Splitter
    • 1x Power adapter 5V@2A
    • 1x User Manual
  • Reviews+
  • The BG-3GS12 is a compact and reliable 2-way SDI splitter. It is the perfect solution for dividing your SDI feed to run 2 displays. The combination of its small size and budget-friendly price make it an essential part of any video production tool kit. It supports SD to 200m, HD to 120m, and 3G to 80m, and resolutions up to 1080p@60fps.

    • This product is specially designed with equalizer IC in its input and drive IC in its outputs. All of the input and outputs support long coaxial cable
    • Supports multiple video resolution: SD 480i, 576i and 625i HD 720p @24/25/30/50/60 HD 1080i @50/60 HD 1080p @24/25/30 3G 1080p @50/60
    • Supports multiple color space: RGB or YCbCr 4:4:4 sampled YCbCr 4:2:2 or 4:2:0 sampled
    • Supports wide range data rates: 270Mbps?2.97Gbps
    • Supports multiple deep color: 8bit, 10bit, 12bit
    Signal Inputs/Output
    Input Connector 1x SDI BNC Male
    Output Connector 2x SDI BNC Male
    SDI Cable Distance (RG59 cable):
    3G Mode Up to 80m
    HD Mode Up to 120m
    SD Mode Up to 200m
    Mechanical
    Size (L-W-H) 112×90×29.3mm
    Weight (Net) 150g
    Environmental
    Operating Temperature 0°C to +70°C
    Operating Humidity 10% to 85% RH (no condensation)
    Storage Temperature -10°C to +80°C
    Storage Humidity 5% to 90% RH (no condensation)
    Power Requirement
    External Power Supply 5V DC@ 2A
    Power Consumption (max) 1W
    • 1x BG-3GS 3G SDI Splitter
    • 1x Power adapter 5V@2A
    • 1x User Manual
