BZBGEAR PTZ 4K NDI HDMI/USB 3.0 Live Streaming Camera Series With Sony CMOS
SKU#: BG-4KND-12XUHP
UPC#:850023208194Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Compatible with NDI 4.0 from NewTek and supports all NDI tools like NDI Studio Monitor, Scan Converter, Virtual Input and other
- Stunning 4K/60fps output: Delivers the ultimate in clarity. Mutiple Video Outputs: Simultaneous USB 3.0, HDMI, and IP Streaming
- POE: Deliver power directly over ethernet cable from your POE enabled network switch
- Control: IP, IR, and cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
- Powerful 12X-30X Optical Zoom Lens
- Specs+
- Package Contents+
- 1x BG-4KND-UHP Camera
- 1x IR Remote Control
- 1x Power adapter
- 1x Wireless Remote Control
- 1x RS232 Cable
- 1x User Manual
- 1x USB3.0 Cable
- Reviews+
- Compatible with NDI 4.0 from NewTek and supports all NDI tools like NDI Studio Monitor, Scan Converter, Virtual Input and other
- Stunning 4K/60fps output: Delivers the ultimate in clarity. Mutiple Video Outputs: Simultaneous USB 3.0, HDMI, and IP Streaming
- POE: Deliver power directly over ethernet cable from your POE enabled network switch
- Control: IP, IR, and cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
- Powerful 12X-30X Optical Zoom Lens
- 1x BG-4KND-UHP Camera
- 1x IR Remote Control
- 1x Power adapter
- 1x Wireless Remote Control
- 1x RS232 Cable
- 1x User Manual
- 1x USB3.0 Cable
Note: This product has been discontinued.

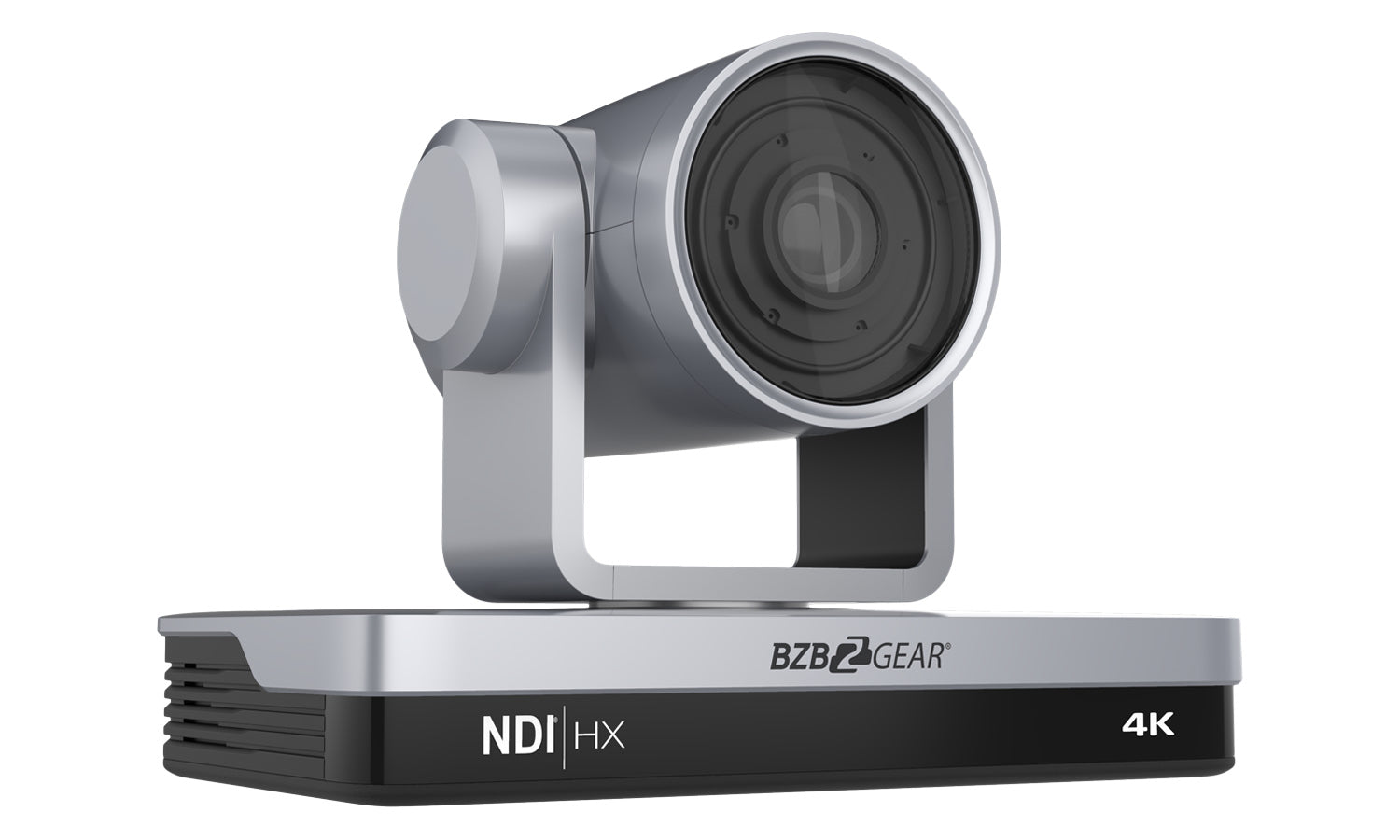

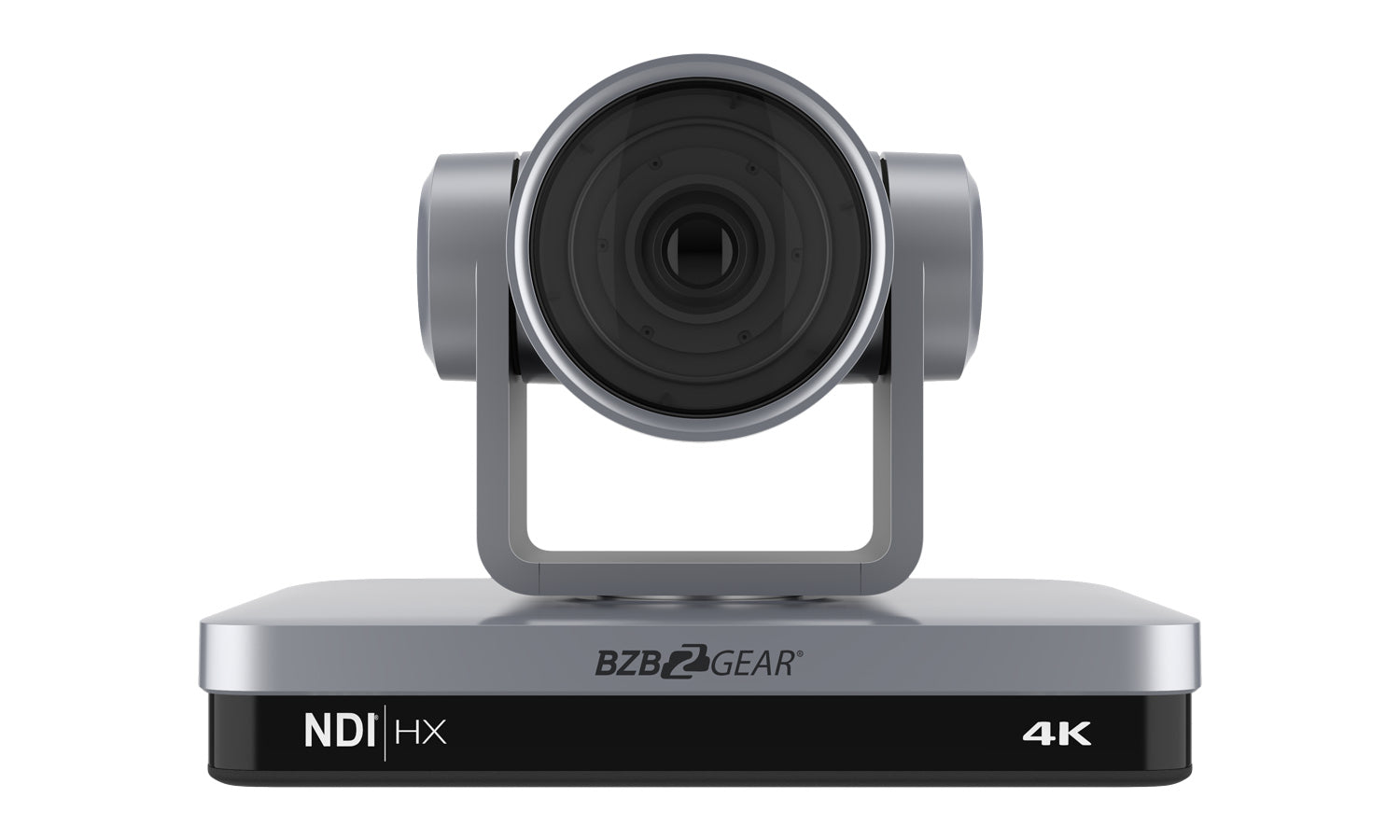

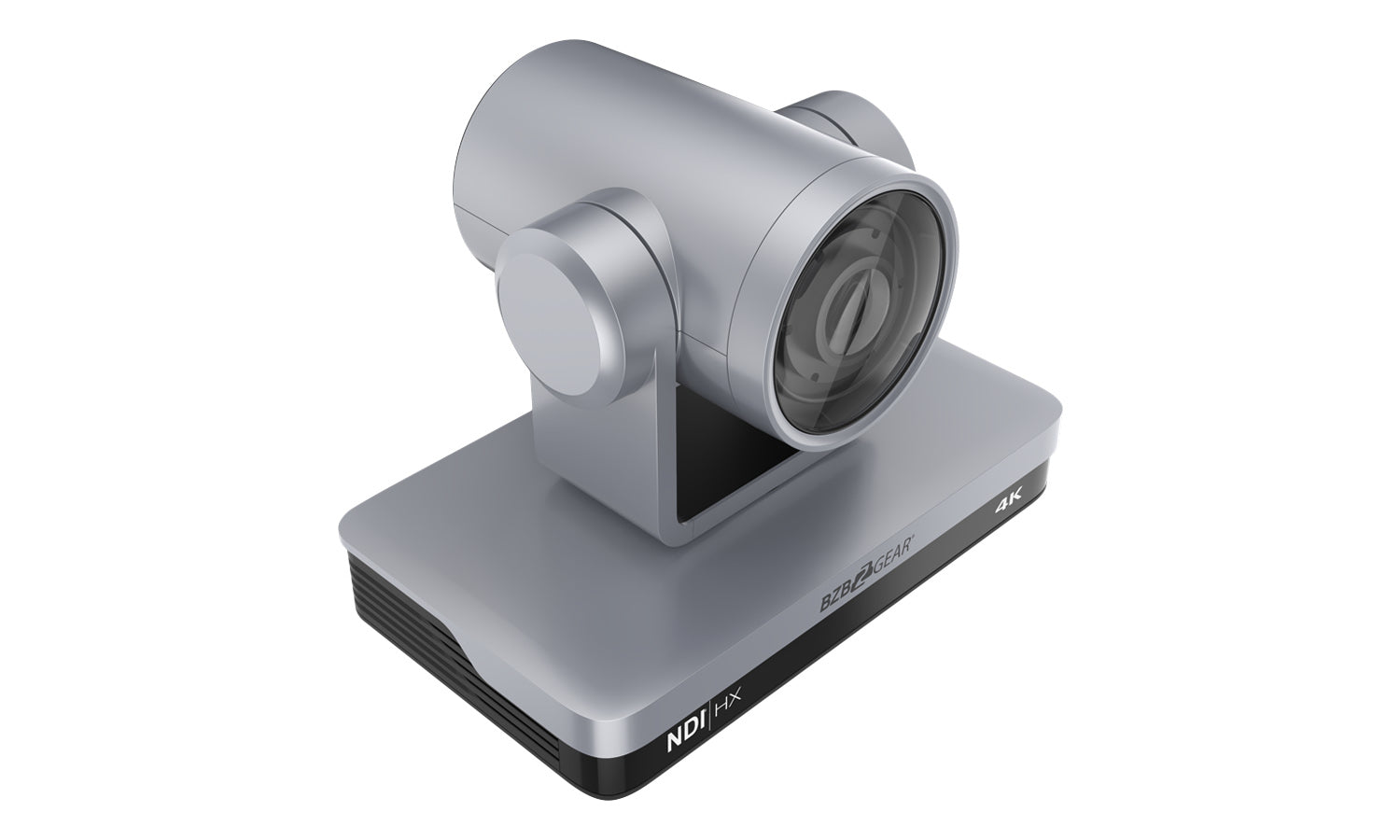

The versatile BG-4KND-12XUHP is the first 4K/60fps PTZ IP NDI|HX camera from BZBGEAR. Featuring a 12X optical zoom lens, it is ideal for use in a broad range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship, and lecture halls. The BG-4KND-12XUHP, with its simultaneous USB 3.0, HDMI, and IP NDI|HX streaming outputs, fits any streaming applications. It will deliver broadcast-quality 4K images with excellent detail, very low noise, and rich, natural color reproduction. Dynamic IP-based live production is bolstered with NDI/HX support, allowing easy integration with other networked NDI-enabled devices for control and streaming. This camera can be controlled via NDI, IR, IP, RS-232, or RS-485.
| Optical Zoom | 12X |
| Focus | f=3.85 mm ~ 43.06 mm ±5% |
| FOV | Horizontal?7.59° (tele) ~ 80.4° (wide) Vertical?4.6° (tele) ~ 50.0° (wide) |
| Aperture | F1.8 ~ F3.56±5% |
| Image Sensor | 1/2.5 Inch SONY CMOS Sensor |
| Effective pixels | 8.51M; 16:9 |
| Video Format | HDMI Video Output Format: 4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50 USB3.0 Video Output Format: YUY2/NV12: 1920x1080P30, 1280x720P30,1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30 MJPEG/H.264: 3840x2160P30, 1920x1080P30, 1280x720P30,1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30 USB3.0 downward compatible USB2.0: YUY2/NV12: 640x360P30, 640x480P30, 320x176P30 MJPEG/H.264: 3840x2160P30, 1920x1080P30, 1280x720P30, 1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30 |
| Minimum Illumination | 0.05Lux (F1.8, AGC ON) |
| DNR | 2D&3D DNR |
| White Balance | Auto / Manual / One Push / Specified Color Temperature |
| Focus | Auto / Manual / One Push |
| Exposure mode | Auto / Manual / Shutter Priority / Aperture Priority / Brightness priority |
| Aperture | F1.8 ~ F11, CLOSE |
| Shutter speed | 1/25 ~ 1/10000 |
| BLC | OFF/ON |
| Dynamic range | OFF/ Dynamic Level Adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | ≥50dB |
| Interface Features | |

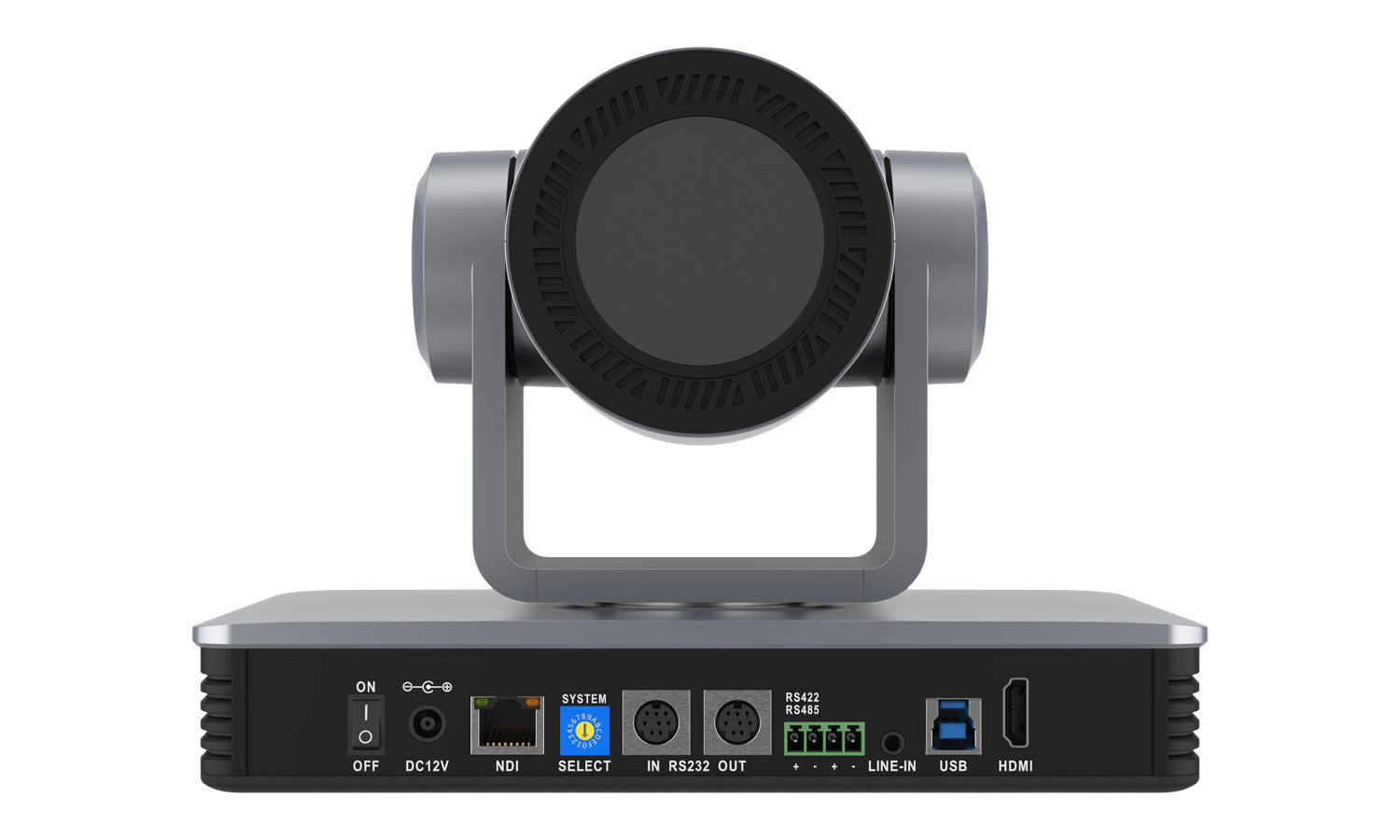

| Interfaces | HDMI, NDI, USB3.0 (Type B, compatible with USB2.0), A-IN, RS232-in & out; RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch |
| Video Compression | LAN: H.264,H.265 USB 3.0: MJPG,H264,YUY2,NV12 |
| Audio-in Interface | Double track 3.5mm linear Input |
| Audio out | HDMI, NDI, USB3.0 |
| Audio Compression | AAC, MP3, G.711A |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset |
| Control Interface | RS232-IN, RS232-OUT, RS422 (RS485) |
| Serial Protocol | VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400 |
| USB Communication Protocol | UVC (video), UAC (audio) |
| Power Interface | HEC3800 (DC12V) |
| Power Adapter | In: AC110V-AC220V; Out: DC12V/2.5A |
| Input Voltage | DC12V±10% |
| Input Current | <1A |
| Power Consumption | <12W |
| PTZ Parameters | |
| Pan Rotation | -170°~+170° |
| Tilt Rotation | -30°~+90° |
| Pan Control Speed | 0.1°/s~120°/s |
| Tilt Control Speed | 0.1°/s~80°/s |
| Preset Speed | Pan: 120°/s, Tilt: 80°/s |
| Preset Number | 255 Presets (10 presets by remote control) |
| Other Parameters | |
| Storage Temperature | -10°C~+60°C |
| Storage Humidity | 20%~95% |
| Working Temperature | -10°C~+50°C |
| Working Humidity | 20%~80% |
| Dimension | 157.5mm(L) x 189mm(W) x 201mm(H) |
| Weight | 2.60kg |
| Usage | Indoor |
Note: This product has been discontinued.
The versatile BG-4KND-12XUHP is the first 4K/60fps PTZ IP NDI|HX camera from BZBGEAR. Featuring a 12X optical zoom lens, it is ideal for use in a broad range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship, and lecture halls. The BG-4KND-12XUHP, with its simultaneous USB 3.0, HDMI, and IP NDI|HX streaming outputs, fits any streaming applications. It will deliver broadcast-quality 4K images with excellent detail, very low noise, and rich, natural color reproduction. Dynamic IP-based live production is bolstered with NDI/HX support, allowing easy integration with other networked NDI-enabled devices for control and streaming. This camera can be controlled via NDI, IR, IP, RS-232, or RS-485.
| Optical Zoom | 12X |
| Focus | f=3.85 mm ~ 43.06 mm ±5% |
| FOV | Horizontal?7.59° (tele) ~ 80.4° (wide) Vertical?4.6° (tele) ~ 50.0° (wide) |
| Aperture | F1.8 ~ F3.56±5% |
| Image Sensor | 1/2.5 Inch SONY CMOS Sensor |
| Effective pixels | 8.51M; 16:9 |
| Video Format | HDMI Video Output Format: 4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50 USB3.0 Video Output Format: YUY2/NV12: 1920x1080P30, 1280x720P30,1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30 MJPEG/H.264: 3840x2160P30, 1920x1080P30, 1280x720P30,1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30 USB3.0 downward compatible USB2.0: YUY2/NV12: 640x360P30, 640x480P30, 320x176P30 MJPEG/H.264: 3840x2160P30, 1920x1080P30, 1280x720P30, 1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30 |
| Minimum Illumination | 0.05Lux (F1.8, AGC ON) |
| DNR | 2D&3D DNR |
| White Balance | Auto / Manual / One Push / Specified Color Temperature |
| Focus | Auto / Manual / One Push |
| Exposure mode | Auto / Manual / Shutter Priority / Aperture Priority / Brightness priority |
| Aperture | F1.8 ~ F11, CLOSE |
| Shutter speed | 1/25 ~ 1/10000 |
| BLC | OFF/ON |
| Dynamic range | OFF/ Dynamic Level Adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | ≥50dB |
| Interface Features | |
| Interfaces | HDMI, NDI, USB3.0 (Type B, compatible with USB2.0), A-IN, RS232-in & out; RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch |
| Video Compression | LAN: H.264,H.265 USB 3.0: MJPG,H264,YUY2,NV12 |
| Audio-in Interface | Double track 3.5mm linear Input |
| Audio out | HDMI, NDI, USB3.0 |
| Audio Compression | AAC, MP3, G.711A |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset |
| Control Interface | RS232-IN, RS232-OUT, RS422 (RS485) |
| Serial Protocol | VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400 |
| USB Communication Protocol | UVC (video), UAC (audio) |
| Power Interface | HEC3800 (DC12V) |
| Power Adapter | In: AC110V-AC220V; Out: DC12V/2.5A |
| Input Voltage | DC12V±10% |
| Input Current | <1A |
| Power Consumption | <12W |
| PTZ Parameters | |
| Pan Rotation | -170°~+170° |
| Tilt Rotation | -30°~+90° |
| Pan Control Speed | 0.1°/s~120°/s |
| Tilt Control Speed | 0.1°/s~80°/s |
| Preset Speed | Pan: 120°/s, Tilt: 80°/s |
| Preset Number | 255 Presets (10 presets by remote control) |
| Other Parameters | |
| Storage Temperature | -10°C~+60°C |
| Storage Humidity | 20%~95% |
| Working Temperature | -10°C~+50°C |
| Working Humidity | 20%~80% |
| Dimension | 157.5mm(L) x 189mm(W) x 201mm(H) |
| Weight | 2.60kg |
| Usage | Indoor |
