BZBGEAR PTZ 1080P NDI HDMI 3G-SDI RS232 Live Streaming Camera with POE
SKU#: BG-ND-20XHSRP
UPC#:850009357519
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Compatible with NDI® 4.0 from NewTek and supports all NDI® tools like NDI® Studio Monitor, NDI® Scan Converter, NDI® Virtual Input and other
- Superb Auto Focus: Latest auto focusing algorithms resulting in quick, accurate, and stable focus
- Latest Streaming Tech: Supports H.264/H.265 video compression and RTMP(S) network protocol for Youtube/Facebook live streaming
- Control : IP, IR, and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions
- POE : Deliver power directly over ethernet cable from your POE enabled network switch
- Specs+
- Package Contents+
- 1x BG-ND Camera
- 1x Power Supply
- 1x RS232 Control Cable
- 1x Remote Control
- 1x User’s Manual
- Reviews+
- Compatible with NDI® 4.0 from NewTek and supports all NDI® tools like NDI® Studio Monitor, NDI® Scan Converter, NDI® Virtual Input and other
- Superb Auto Focus: Latest auto focusing algorithms resulting in quick, accurate, and stable focus
- Latest Streaming Tech: Supports H.264/H.265 video compression and RTMP(S) network protocol for Youtube/Facebook live streaming
- Control : IP, IR, and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions
- POE : Deliver power directly over ethernet cable from your POE enabled network switch
- 1x BG-ND Camera
- 1x Power Supply
- 1x RS232 Control Cable
- 1x Remote Control
- 1x User’s Manual
Note: This product has been discontinued and replaced by BG-VPTZN-20HSU3.

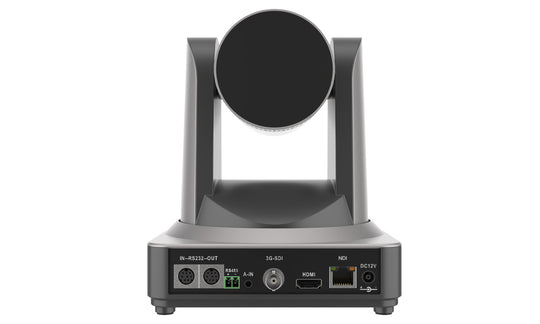

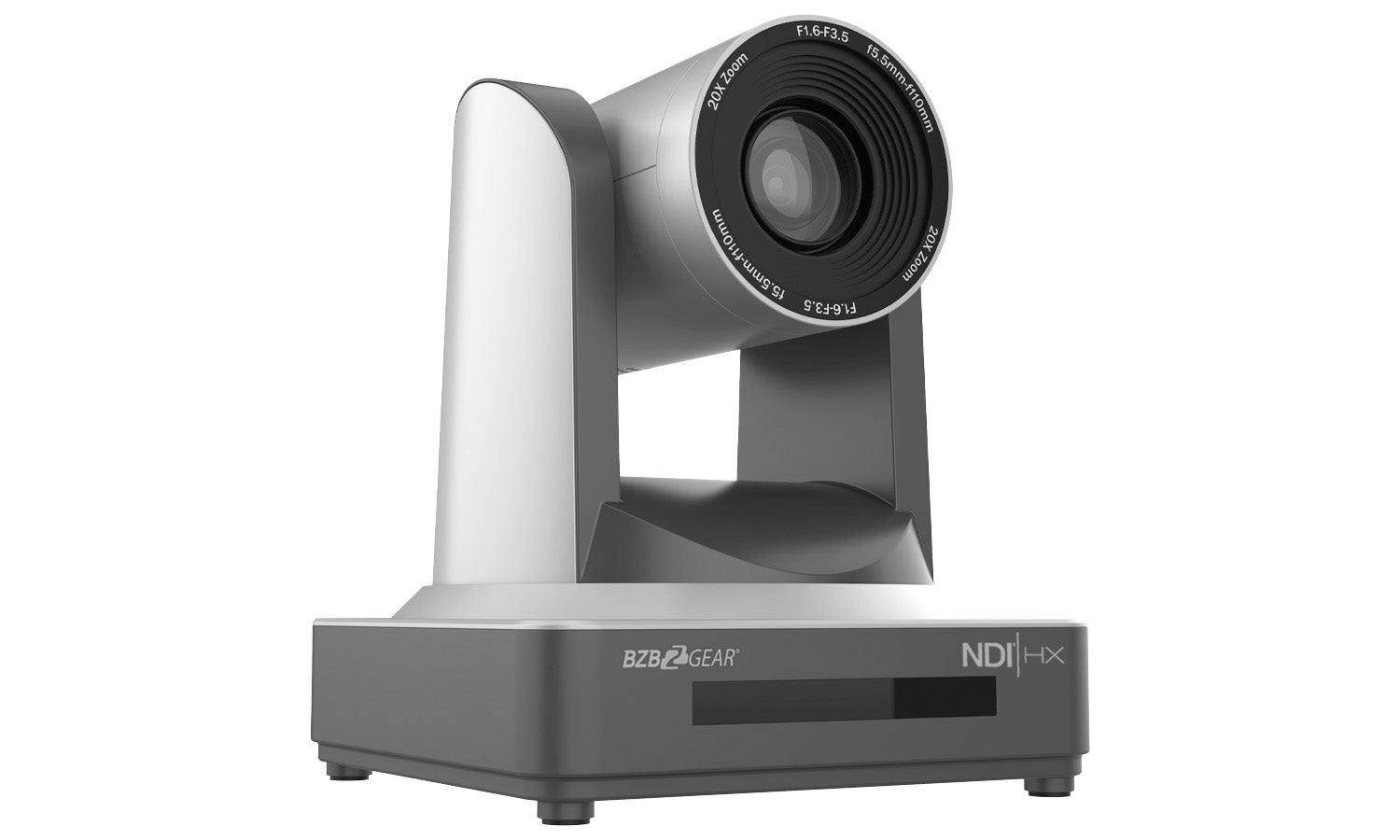

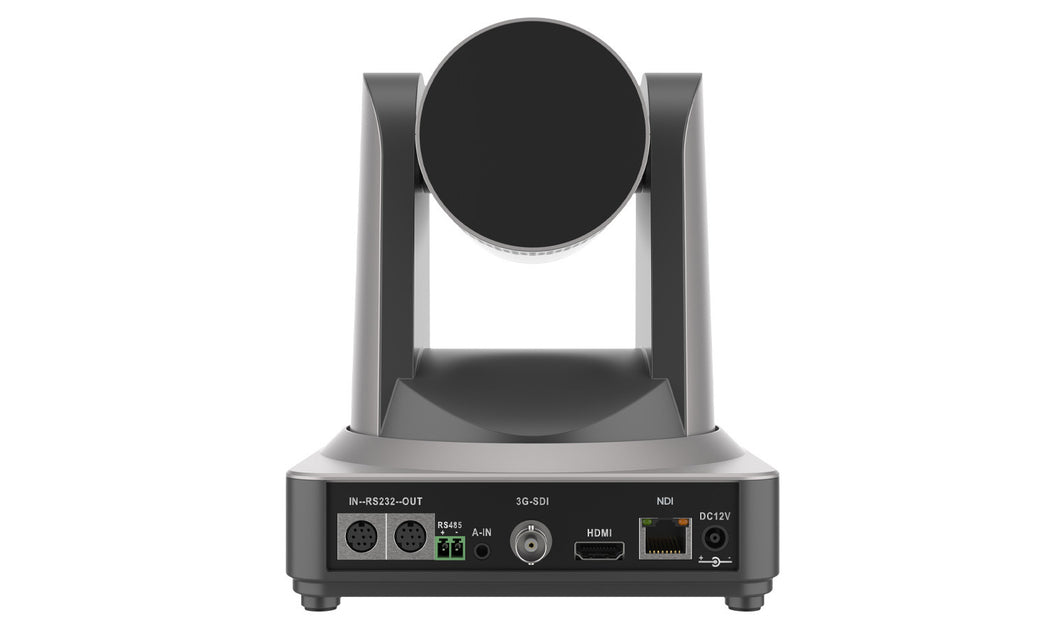

BZGEAR BG-ND-20XHSRP is a 20X Zoom 1080P PTZ IP Streaming Camera featuring NDI|HX technology. NDI|HX provides the ability to easily share the IP stream to multiple devices and platforms simultaneously across a Local Area Network without intensive bandwidth requirements. Combined with PoE support, this means High-Resolution 1080P/60Hz video, audio, control, and power all can all be delivered via a single ethernet cable. Hallmarks of the NDI|HX protocol include low latency, support for multi-GPU acceleration, support for the most advanced compression formats currently available, and the ability to operate over a wireless network. There has never been a simpler way to connect video equipment together. The BG-ND-20XHSRP camera is ideally suited for studio and live streaming environments, featuring RTMP(S) support for direct streaming to platforms like Facebook and Youtube. Simultaneous HDMI, SDI, and IP streaming outputs add versatility. The 3.5mm input allows for an external audio connection. IP, IR, cascading RS232, RS485, and NDI controls are all supported.
| Model | BG-ND-20XHSRP | BG-ND-30XHSRP |
| Camera Parameters | ||
| Optical Zoom | 20X f?5.5~110mm | 30X f?4.3~129mm |
| View Angle | 3.3° (tele) 54.7° (wide) | 2.34° (tele) 65.1° (wide) |
| AV | F1.6 – F3.5 | F1.6– F4.7 |
| Sensor | 1/2.8 inch high quality HD CMOS sensor | |
| Effective Pixels | 16:9 2.07 megapixel | |
| Video Format | HDMI/SDI: 1080P60 / 50 / 30 / 25 / 59.94 /29.97; 1080I60 / 50 / 59.94; 720P60 / 50 / 30 / 25 / 59.94 / 29.97 | |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | |
| DNR | 2D & 3D DNR | |
| White Balance | Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K | |
| Focus | Auto/Manual | |
| Aperture | Auto/Manual | |
| Electronic Shutter | Auto/Manual | |
| BLC | ON/OFF | |
| WDR | OFF/ Dynamic level adjustment | |
| Video adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
| SNR | >55dB | |
| Input/Output Interface | |
| Video Interfaces | NDI | HX 4.0, SDI, HDMI, LAN |
| Image code stream | Double streams outputs simultaneously |
| Video Compression format | H.264, H.265 |
| Control Signal Interface | RS-232 Ring through RS232 output, RS-485 |
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/ 9600/ 4800/ 2400bps |
| Audio input Interface | Double track 3.5mm linear input |
| Audio Compression Format | AAC/MP3/PMC Audio compression |
| HD IP Interface | 100M IP port (100BASE-TX); support NDI& IP Visca control protocol |
| Network Protocol | NDI, RTSP/RTMP,ONVIF |
| Power Interface | HEC3800 outlet (DC12V), PoE |
| PTZ Parameters | |
| Pan Rotation | ±170° |
| Tilt Rotation | -30°~+90° |
| Pan Control Speed | 0.1 -180°/sec |
| Tilt Control Speed | 0.1-80°/sec |
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec |
| Preset Number | 255 presets (10 presets by remote controller) |
| Other Parameters | |
| Power Supply Adapter | AC110V-AC220V to DC12V/2A |
| Input Voltage | DC12V±10% |
| Input Current | 1A (Max) |
| Consumption | 12W (Max) |
| Store Temperature | -10°C to +60°C |
| Store Humidity | 20% - 95% |
| Working Temperature | -10°C to +50°C |
| Working Humidity | 20% - 80% |
| Dimensions | 150mm x 150mm x 167.5mm |
| Weight | 1.4KG |
| Working Environment | Indoor |
| Remote Operation (IP) | WebGUI, Remote Upgrade, Reboot and Reset |
Note: This product has been discontinued and replaced by BG-VPTZN-20HSU3.
BZGEAR BG-ND-20XHSRP is a 20X Zoom 1080P PTZ IP Streaming Camera featuring NDI|HX technology. NDI|HX provides the ability to easily share the IP stream to multiple devices and platforms simultaneously across a Local Area Network without intensive bandwidth requirements. Combined with PoE support, this means High-Resolution 1080P/60Hz video, audio, control, and power all can all be delivered via a single ethernet cable. Hallmarks of the NDI|HX protocol include low latency, support for multi-GPU acceleration, support for the most advanced compression formats currently available, and the ability to operate over a wireless network. There has never been a simpler way to connect video equipment together. The BG-ND-20XHSRP camera is ideally suited for studio and live streaming environments, featuring RTMP(S) support for direct streaming to platforms like Facebook and Youtube. Simultaneous HDMI, SDI, and IP streaming outputs add versatility. The 3.5mm input allows for an external audio connection. IP, IR, cascading RS232, RS485, and NDI controls are all supported.
| Model | BG-ND-20XHSRP | BG-ND-30XHSRP |
| Camera Parameters | ||
| Optical Zoom | 20X f?5.5~110mm | 30X f?4.3~129mm |
| View Angle | 3.3° (tele) 54.7° (wide) | 2.34° (tele) 65.1° (wide) |
| AV | F1.6 – F3.5 | F1.6– F4.7 |
| Sensor | 1/2.8 inch high quality HD CMOS sensor | |
| Effective Pixels | 16:9 2.07 megapixel | |
| Video Format | HDMI/SDI: 1080P60 / 50 / 30 / 25 / 59.94 /29.97; 1080I60 / 50 / 59.94; 720P60 / 50 / 30 / 25 / 59.94 / 29.97 | |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | |
| DNR | 2D & 3D DNR | |
| White Balance | Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K | |
| Focus | Auto/Manual | |
| Aperture | Auto/Manual | |
| Electronic Shutter | Auto/Manual | |
| BLC | ON/OFF | |
| WDR | OFF/ Dynamic level adjustment | |
| Video adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
| SNR | >55dB | |
| Input/Output Interface | |
| Video Interfaces | NDI | HX 4.0, SDI, HDMI, LAN |
| Image code stream | Double streams outputs simultaneously |
| Video Compression format | H.264, H.265 |
| Control Signal Interface | RS-232 Ring through RS232 output, RS-485 |
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/ 9600/ 4800/ 2400bps |
| Audio input Interface | Double track 3.5mm linear input |
| Audio Compression Format | AAC/MP3/PMC Audio compression |
| HD IP Interface | 100M IP port (100BASE-TX); support NDI& IP Visca control protocol |
| Network Protocol | NDI, RTSP/RTMP,ONVIF |
| Power Interface | HEC3800 outlet (DC12V), PoE |
| PTZ Parameters | |
| Pan Rotation | ±170° |
| Tilt Rotation | -30°~+90° |
| Pan Control Speed | 0.1 -180°/sec |
| Tilt Control Speed | 0.1-80°/sec |
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec |
| Preset Number | 255 presets (10 presets by remote controller) |
| Other Parameters | |
| Power Supply Adapter | AC110V-AC220V to DC12V/2A |
| Input Voltage | DC12V±10% |
| Input Current | 1A (Max) |
| Consumption | 12W (Max) |
| Store Temperature | -10°C to +60°C |
| Store Humidity | 20% - 95% |
| Working Temperature | -10°C to +50°C |
| Working Humidity | 20% - 80% |
| Dimensions | 150mm x 150mm x 167.5mm |
| Weight | 1.4KG |
| Working Environment | Indoor |
| Remote Operation (IP) | WebGUI, Remote Upgrade, Reboot and Reset |
