BZBGEAR HDMI and HDBaseT Matrix Switch with Bi-directional IR and ARC Function
SKU#: BG-UM44-100M-KIT
UPC#:850009357946
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
- Description+
- Features+
- HDCP 2.2 and HDCP 1.4 compliant
- 4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
- HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
- Support 18Gbps lossless compressed HDBaseT signal transmission
- Dolby Vision, HDR10+, HLG are supported
- Specs+
- Package Contents+
- 1x 4 by 4-8 HDMI and HDBaseT Matrix Switch
- 4x HDBaseT Receiver
- 1x Matrix IR Remote
- 1x 100~240V AC 50/60Hz Power cable
- 1x RS-232 serial cable (1.5 meters, male to female head)
- 8x 3-pin Phoenix Connector
- 5x IR Blaster cable (1.5 meters)
- 6x 20~60KHz IR Receiver cable (1.5 meters)
- 10x Mounting Ear (Matrix and Receiver)
- 1x User Manual
- Reviews+
- HDCP 2.2 and HDCP 1.4 compliant
- 4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
- HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
- Support 18Gbps lossless compressed HDBaseT signal transmission
- Dolby Vision, HDR10+, HLG are supported
- 1x 4 by 4-8 HDMI and HDBaseT Matrix Switch
- 4x HDBaseT Receiver
- 1x Matrix IR Remote
- 1x 100~240V AC 50/60Hz Power cable
- 1x RS-232 serial cable (1.5 meters, male to female head)
- 8x 3-pin Phoenix Connector
- 5x IR Blaster cable (1.5 meters)
- 6x 20~60KHz IR Receiver cable (1.5 meters)
- 10x Mounting Ear (Matrix and Receiver)
- 1x User Manual

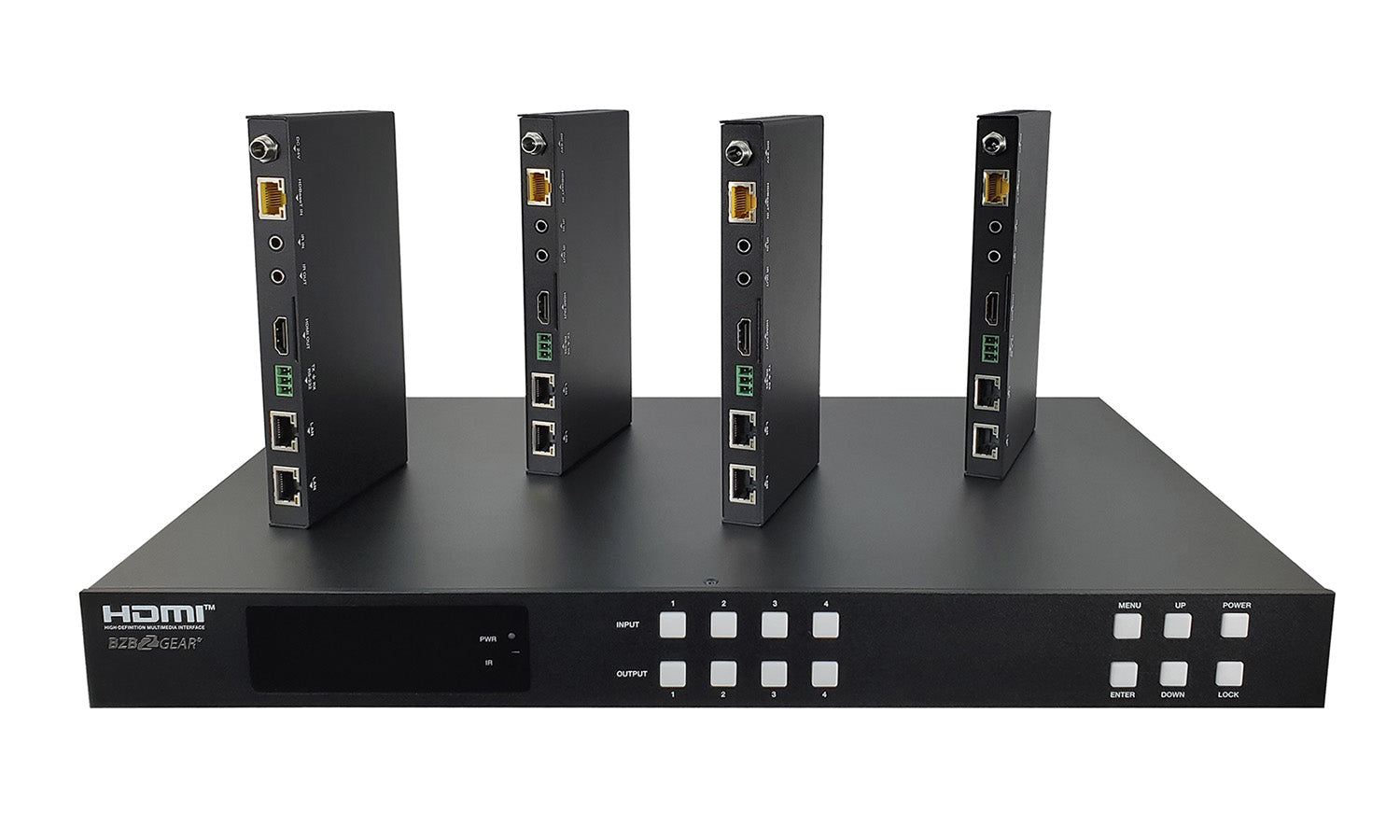

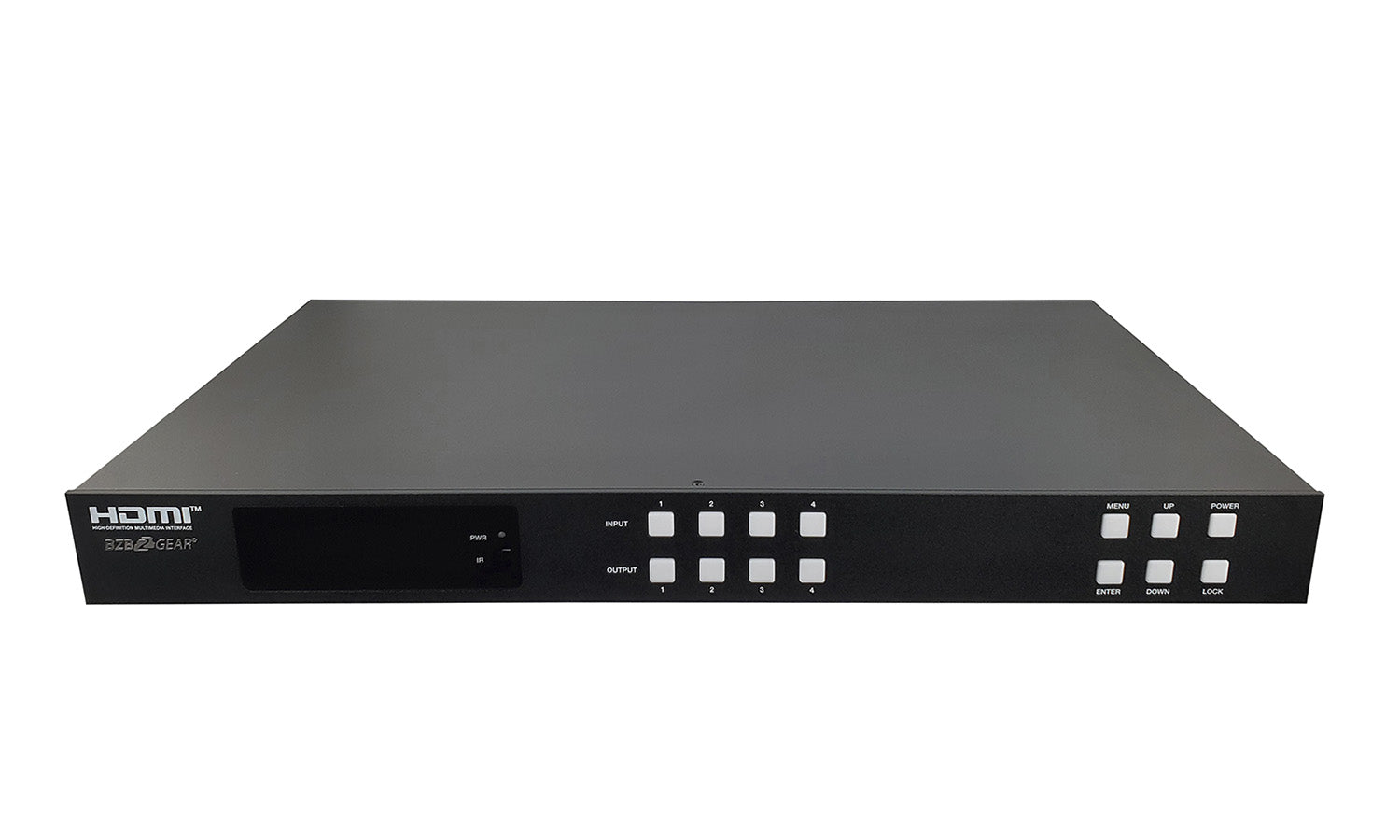

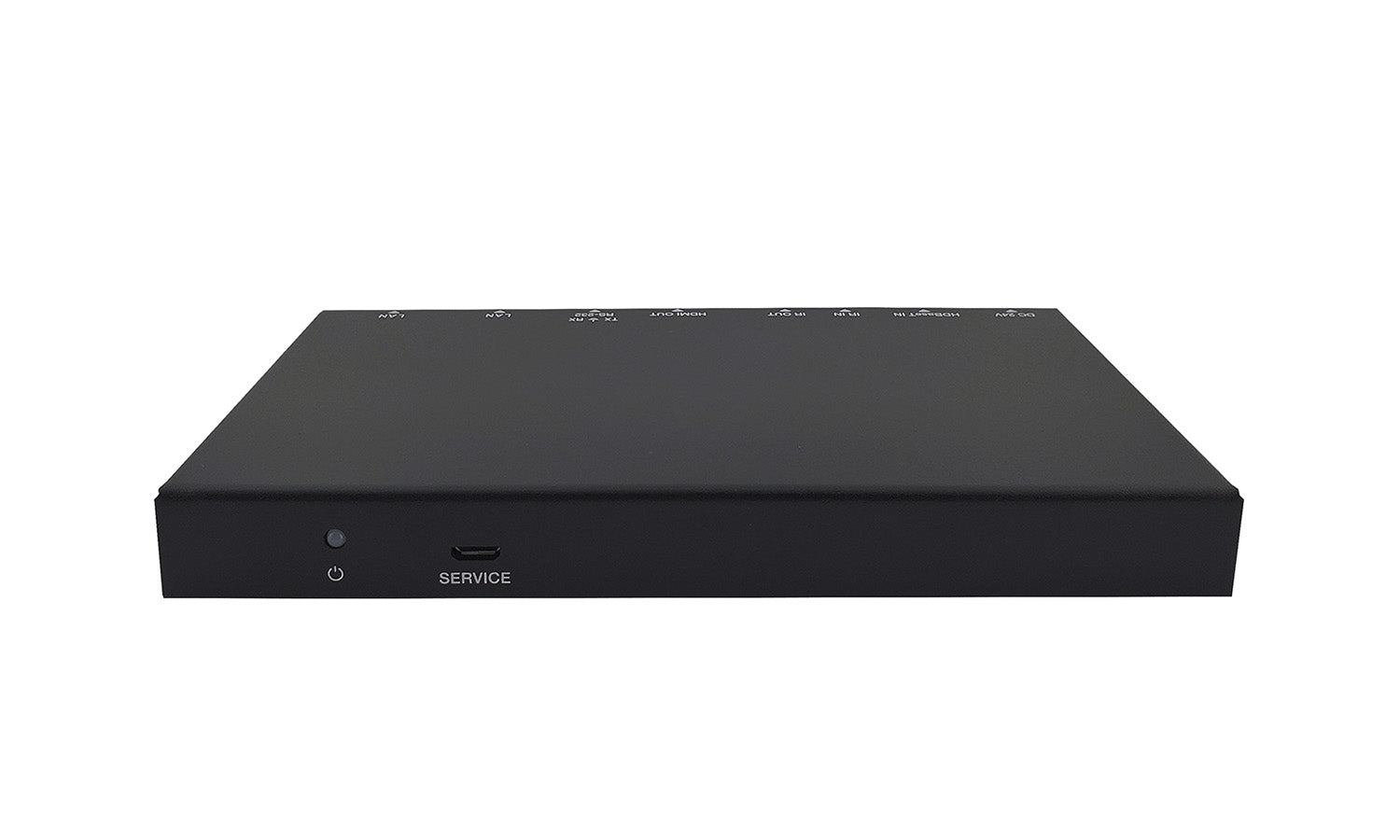

The 4X4 HDMI and HDBaseT Matrix Switch can connect four HDMI sources to eight displays. It features four HDMI outputs with each HDMI output mirrored to a simultaneous HDBaseT output. The HDBaseT output can extend video transmission distance up to 328ft / 100 meters via a single cat5e/6/7 cable at resolutions up to 4K@60Hz 4:4:4.
This product performs full IR and audio matrix switching. With the ARC function, it can return the audio signal from an HDMI or HDBaseT display device to the coaxial audio output. It can also extract the audio signal from HDMI source devices to the analog audio output. Each extender features bi-directional IR, RS232, and 2 LAN ports for IP Control. The base unit has an intuitive set of front panel controls with OLED screen and also supports control using IR, RS-232, IP, and Web GUI.
The BG-UM44-100M-KIT is loaded with all the features you need to form the core of a future-proof A/V Distribution system. Contact a friendly BZB sales engineer today to order yours!
| Technical | |||
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) | ||
| Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 | ||
| Color Depth | 12-bit (4K), 16-bit (1080P) | ||
| HDMI Audio Formats (Pass-through) | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | ||
| Coax Audio Formats | PCM 2.0, Dolby Digital / Plus, DTS, | ||
| L/R Audio Formats | PCM2.0 | ||
| HDR formats | 4:4:4, 4:2:2, 4:2:0(10,12bit deep color) HDR10, HDR10+, Dolby Vision, HLG | ||
| Infrared | 20KHz ~ 60KHz | ||
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) | ||
| Connection | |||
| Matrix | |||
| Input Ports | 4xINPUT [HDMI Type A, 19-pin female] 6xIR INPUT [3.5mm Stereo Mini-jack] 2xStereo Audio [3.5mm Stereo Mini-jack B] 1xSPDIF(OPTICAL) 1xSPDIF(COAX) |
||

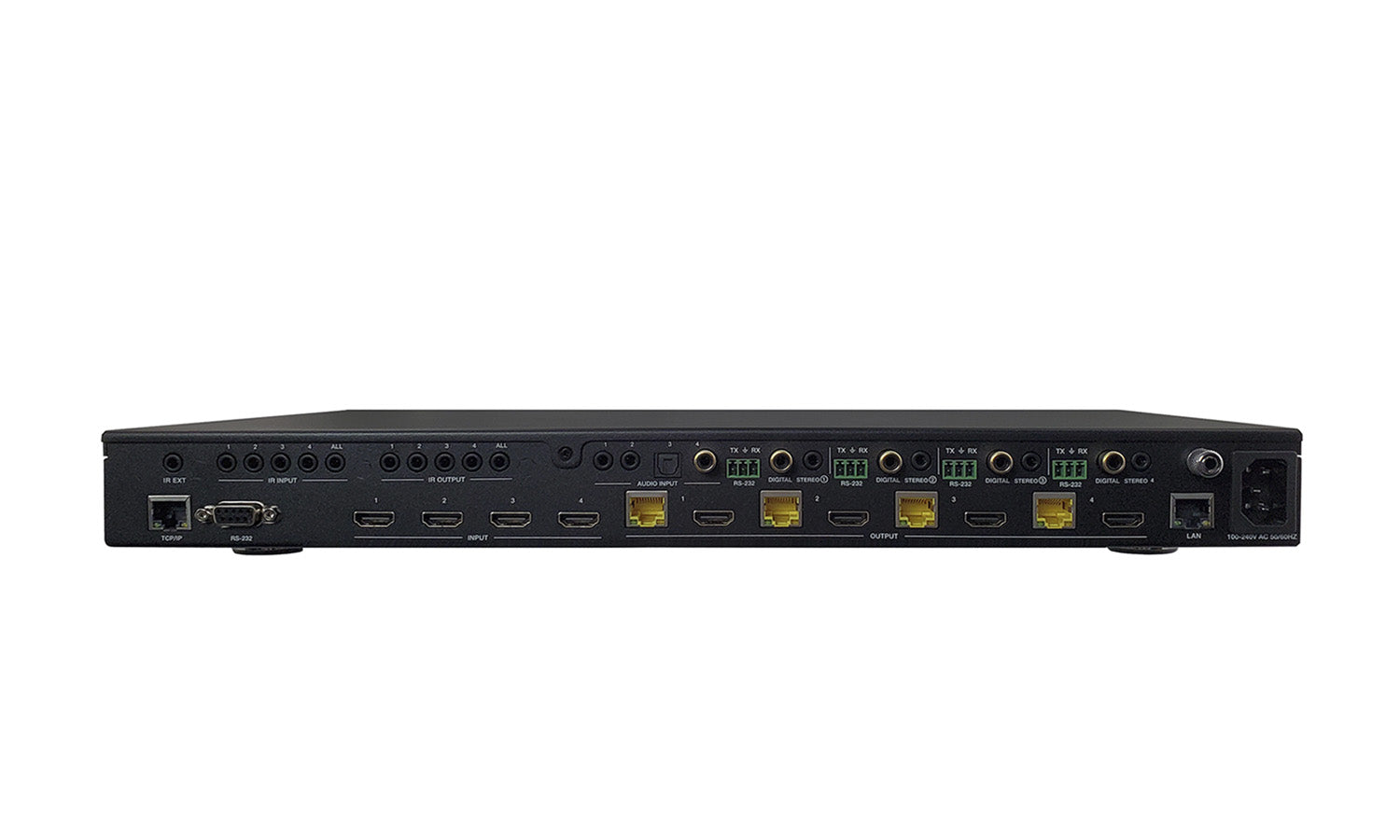

| Output Ports | 4xHDMI OUTPUT [HDMI Type A, 19-pin female] 4xHDBaseT port [RJ45] 5xIR OUTPUT [3.5mm Stereo Mini-jack] 4xRS-232 [3-pin Phoenix connector] 4xSPDIF(COAX) 4xStereo Audio[3.5mm Stereo Mini-jack] 1xLAN [RJ45] |
||
