  • BZBGEAR 8x8 HDMI Video Wall Processor & Seamless Matrix Switcher w/Scaler, IR and Audio
  • BZBGEAR 8x8 HDMI Video Wall Processor & Seamless Matrix Switcher w/Scaler, IR and Audio
  • BZBGEAR 8x8 HDMI Video Wall Processor & Seamless Matrix Switcher w/Scaler, IR and Audio
  • BZBGEAR 8x8 HDMI Video Wall Processor & Seamless Matrix Switcher w/Scaler, IR and Audio
  • BZBGEAR 8x8 HDMI Video Wall Processor & Seamless Matrix Switcher w/Scaler, IR and Audio

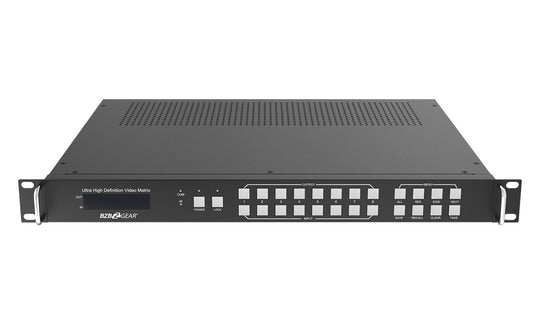

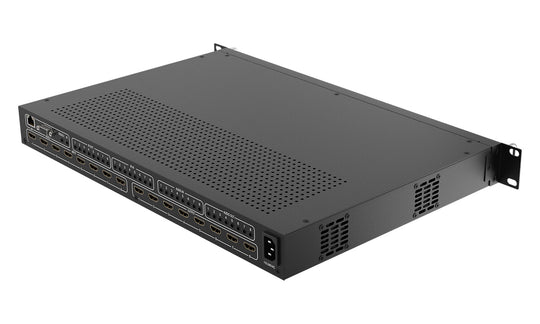

BZBGEAR 8x8 HDMI Video Wall Processor & Seamless Matrix Switcher w/Scaler, IR and Audio

SKU#: BZ-MVS8X8-4K

UPC#: 850009357991

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: BZ-MVS8X8-4K

UPC#:850009357991
$3,999.00

SKU#: BZ-MVS8X8-4K

UPC#:850009357991

SKU#: BZ-MVS8X8-4K

UPC#: 850009357991

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • This is not just any matrix switch! The BZ-MVS8x8-4k is an 8X8 HDMI Matrix Switcher combined with a Video Wall Processor. It performs seamless switching between its 8 inputs and 8 outputs, but what sets this unit apart is its ability to create a single video wall of up to 6 displays, while still providing full matrix switching to the remaining displays. Layouts include 2x2, 3x2 and 2x3.

    This switcher/processor is perfect for conference rooms, “war rooms” or command centers, sports bars, and anywhere that an impressive, eye-catching video display is required. Easily toggle from one large video wall to multiple individual displays using the front panel controls, IR remote, RS-232 control, or WebGUI.

    Equipped with the latest HDMI 2.0 ports and HDCP 2.2 compliance, this matrix delivers outstanding picture quality at resolutions up to 4Kx2K@60Hz with Chroma Sampling 4:4:4. This Matrix Switcher is capable of 2-Channel Stereo HDMI audio extraction/de-embedding as well as HDMI Audio insertion/embedding.

  • Features+
    • Supports resolutions up to 4K@60Hz
    • Multiple Control Options, Front Panel, IR, RS-232, IP, WebGUI
    • Analog Audio : Insertion/Extraction via 8 x 3.5mm inputs and outputs
    • Video Wall 2x2, 3x2, 2x3
    • Seamless Switching: Quickly change inputs with no interruption in signal
  • Specs+
  • Electrical parameters
    Interface HDMI-A
    HDMI /DP /VGA Version HDMI2.0, HDCP2.2
    Bandwidth 18Gbps
    Video Resolution
    Input 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p, 3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz
    Output 1920x1080@60Hz, 3840x2160@30Hz, 3840x2160@60Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1200@60Hz
    HDMI Amplitude T.M.D.S +/- 0.4Vpp
    Differential impedance 100±15ohm
    RS232/Ethernet control
    Baud rate and protocol Baud rate?9600, data bit?8
    stop bit?1, no parity checking
    Ethernet IE10.0+, HTML5
    Power
    Max Consumption 100W, 110-240VAC
    Matrix Mechanical dimensions
    Size(mm) 430(L) x 300(W) x 44(H)
    Weight 5Kg
    Other
    Operating temperature 0 to 40°C
    Storage temperature -20 to 70°C
    Permissible humidity 10%-50%
  • Package Contents+
    • 1xBZ-MVS8X8-4K unit
    • 1xBZ-MVS8X8-4K User Manual
    • 1xAC Power Cord
    • 1xRemote Control
    • 1xRS-232 / USB Cable
  • Reviews+
  • This is not just any matrix switch! The BZ-MVS8x8-4k is an 8X8 HDMI Matrix Switcher combined with a Video Wall Processor. It performs seamless switching between its 8 inputs and 8 outputs, but what sets this unit apart is its ability to create a single video wall of up to 6 displays, while still providing full matrix switching to the remaining displays. Layouts include 2x2, 3x2 and 2x3.

    This switcher/processor is perfect for conference rooms, “war rooms” or command centers, sports bars, and anywhere that an impressive, eye-catching video display is required. Easily toggle from one large video wall to multiple individual displays using the front panel controls, IR remote, RS-232 control, or WebGUI.

    Equipped with the latest HDMI 2.0 ports and HDCP 2.2 compliance, this matrix delivers outstanding picture quality at resolutions up to 4Kx2K@60Hz with Chroma Sampling 4:4:4. This Matrix Switcher is capable of 2-Channel Stereo HDMI audio extraction/de-embedding as well as HDMI Audio insertion/embedding.

    • Supports resolutions up to 4K@60Hz
    • Multiple Control Options, Front Panel, IR, RS-232, IP, WebGUI
    • Analog Audio : Insertion/Extraction via 8 x 3.5mm inputs and outputs
    • Video Wall 2x2, 3x2, 2x3
    • Seamless Switching: Quickly change inputs with no interruption in signal
    Electrical parameters
    Interface HDMI-A
    HDMI /DP /VGA Version HDMI2.0, HDCP2.2
    Bandwidth 18Gbps
    Video Resolution
    Input 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p, 3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz
    Output 1920x1080@60Hz, 3840x2160@30Hz, 3840x2160@60Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1200@60Hz
    HDMI Amplitude T.M.D.S +/- 0.4Vpp
    Differential impedance 100±15ohm
    RS232/Ethernet control
    Baud rate and protocol Baud rate?9600, data bit?8
    stop bit?1, no parity checking
    Ethernet IE10.0+, HTML5
    Power
    Max Consumption 100W, 110-240VAC
    Matrix Mechanical dimensions
    Size(mm) 430(L) x 300(W) x 44(H)
    Weight 5Kg
    Other
    Operating temperature 0 to 40°C
    Storage temperature -20 to 70°C
    Permissible humidity 10%-50%
    • 1xBZ-MVS8X8-4K unit
    • 1xBZ-MVS8X8-4K User Manual
    • 1xAC Power Cord
    • 1xRemote Control
    • 1xRS-232 / USB Cable
