BZBGEAR 8X8 HDMI 18Gbps Matrix with Audio De-embedded
SKU#: BG-UM-88ANS
UPC#:850023208729
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
- Description+
- Features+
- HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
- Up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
- Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Audio de-embedded is supported via coax port
- HDR, CEC and smart EDID management supported
- Specs+
- Package Contents+
- 1x 8x8 HDMI Matrix
- 1x 12V/3A Locking Power Adaptor
- 1x IR Remote
- 1x Wideband IR Receiver cable
- 1x User Manual
- Reviews+
- HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
- Up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
- Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Audio de-embedded is supported via coax port
- HDR, CEC and smart EDID management supported
- 1x 8x8 HDMI Matrix
- 1x 12V/3A Locking Power Adaptor
- 1x IR Remote
- 1x Wideband IR Receiver cable
- 1x User Manual

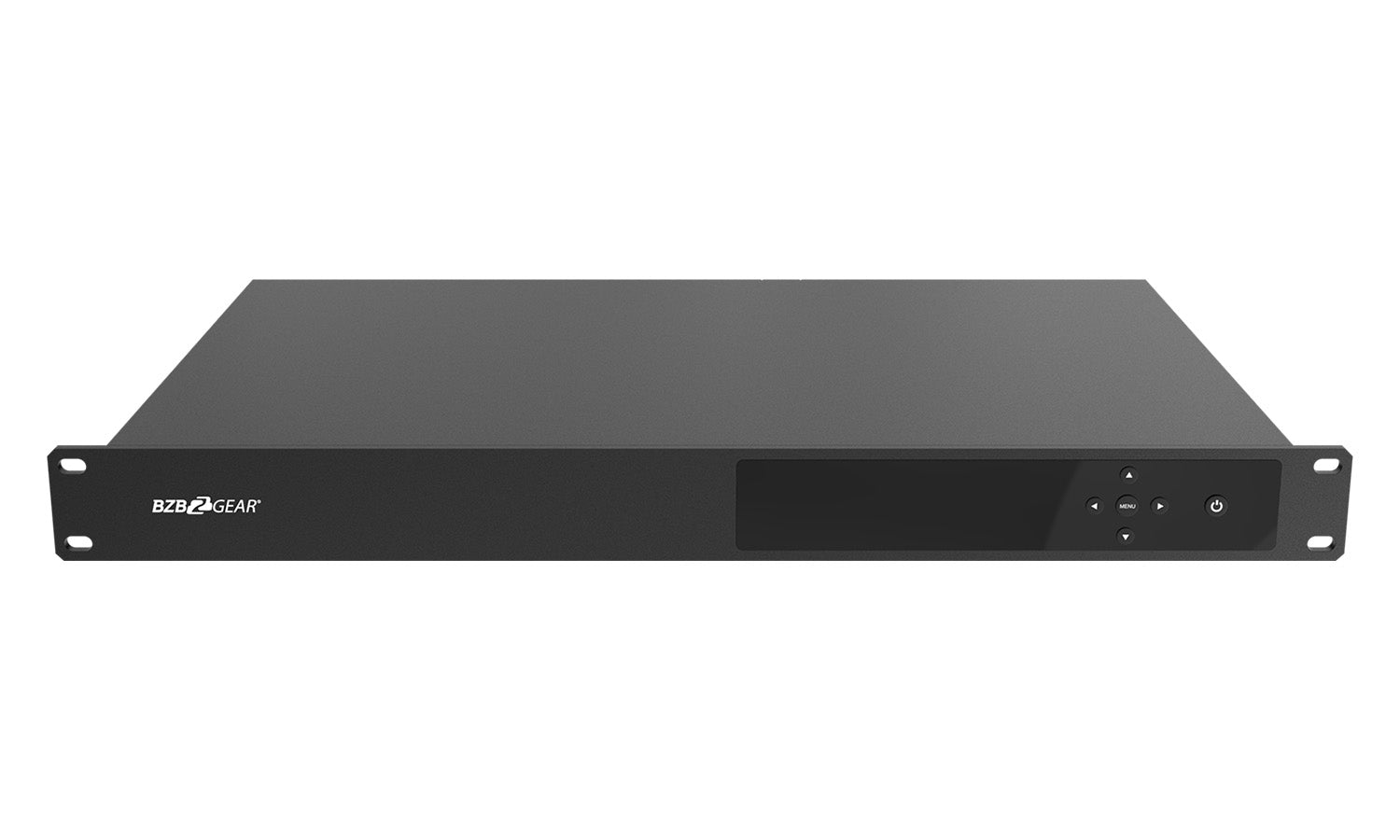

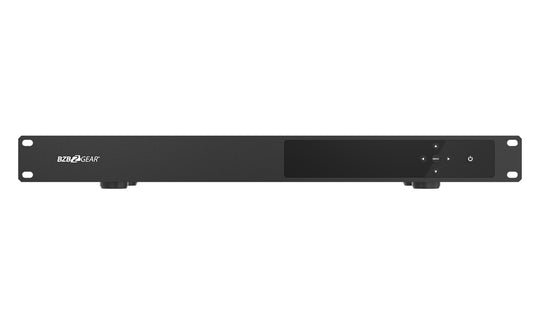

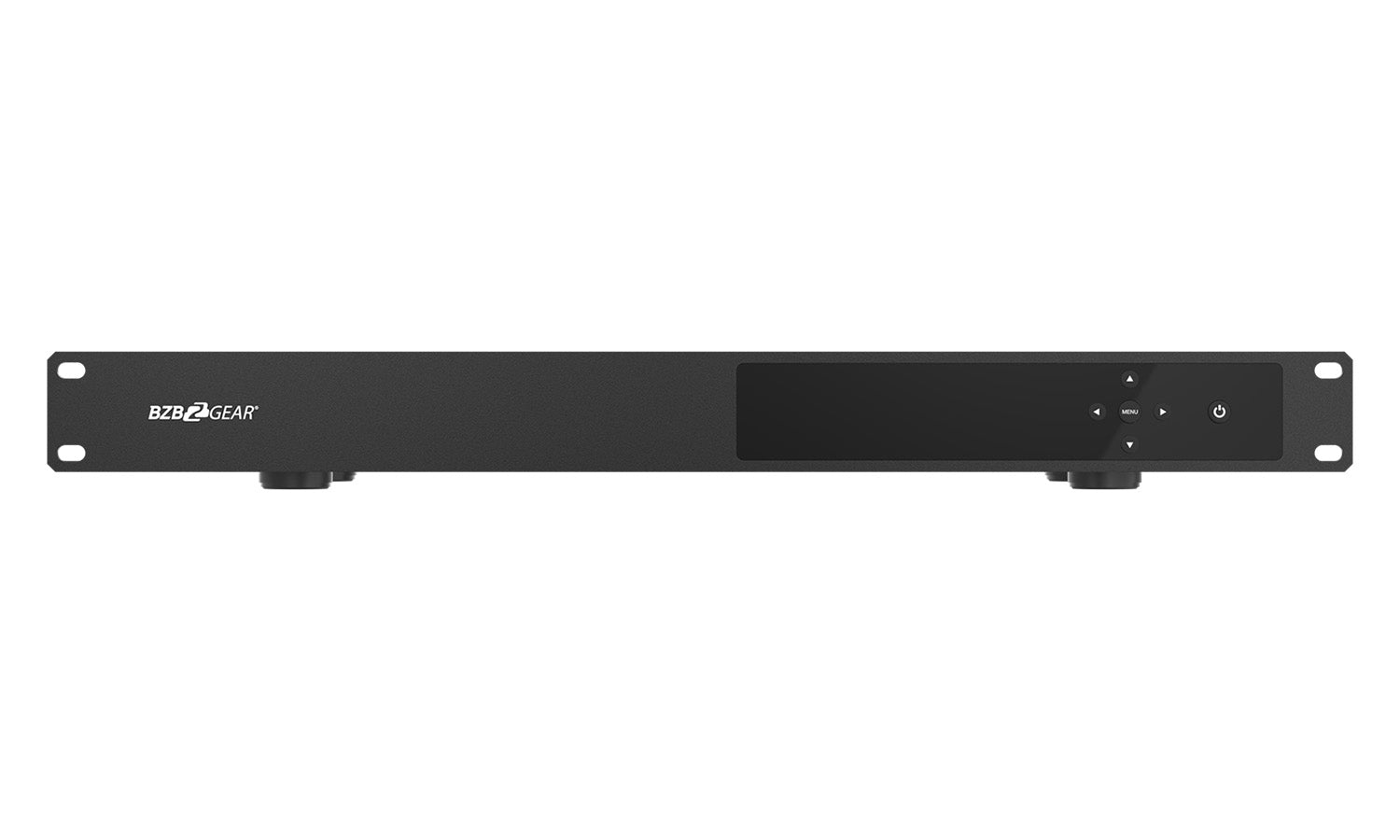

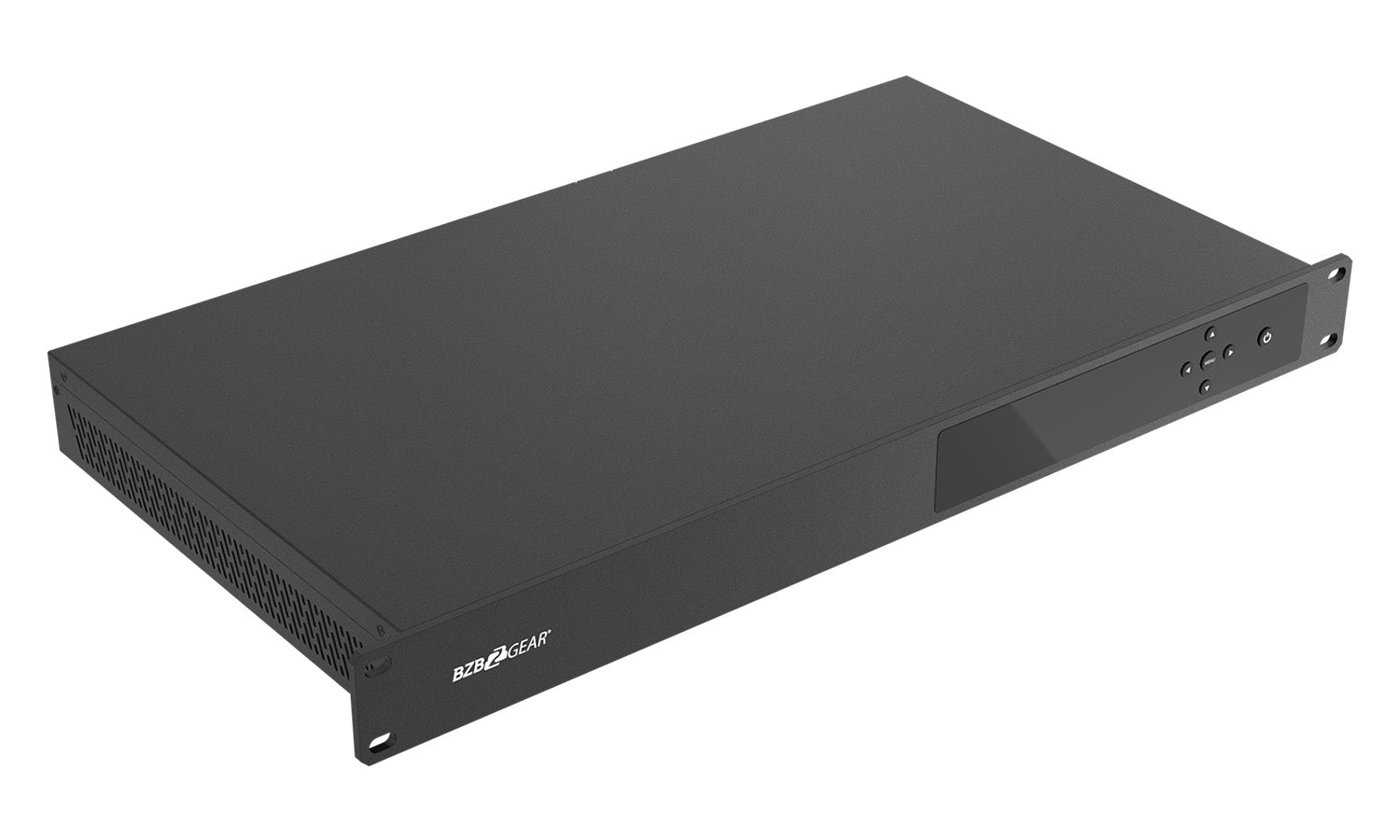

The BG-UM-88ANS is an 8x8 4K HDMI Matrix featuring audio de-embedding for all eight outputs. It supports resolutions up to 4K@60Hz 4:4:4 HDR with 7.1 channel audio including LPCM, Dolby TrueHD, and DTS-HD Master Audio. It supports multiple control methods including front panel buttons, IR remote, CEC, Web UI, and RS-232.
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolutions | Up to 4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080p@120Hz, and 1080p 3D@60Hz |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| HDMI Audio Formats | LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Audio Formats | PCM2.0, 32K/44.1K/48K/88.2K/96K/192K, 16/20/24bit |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connections | |

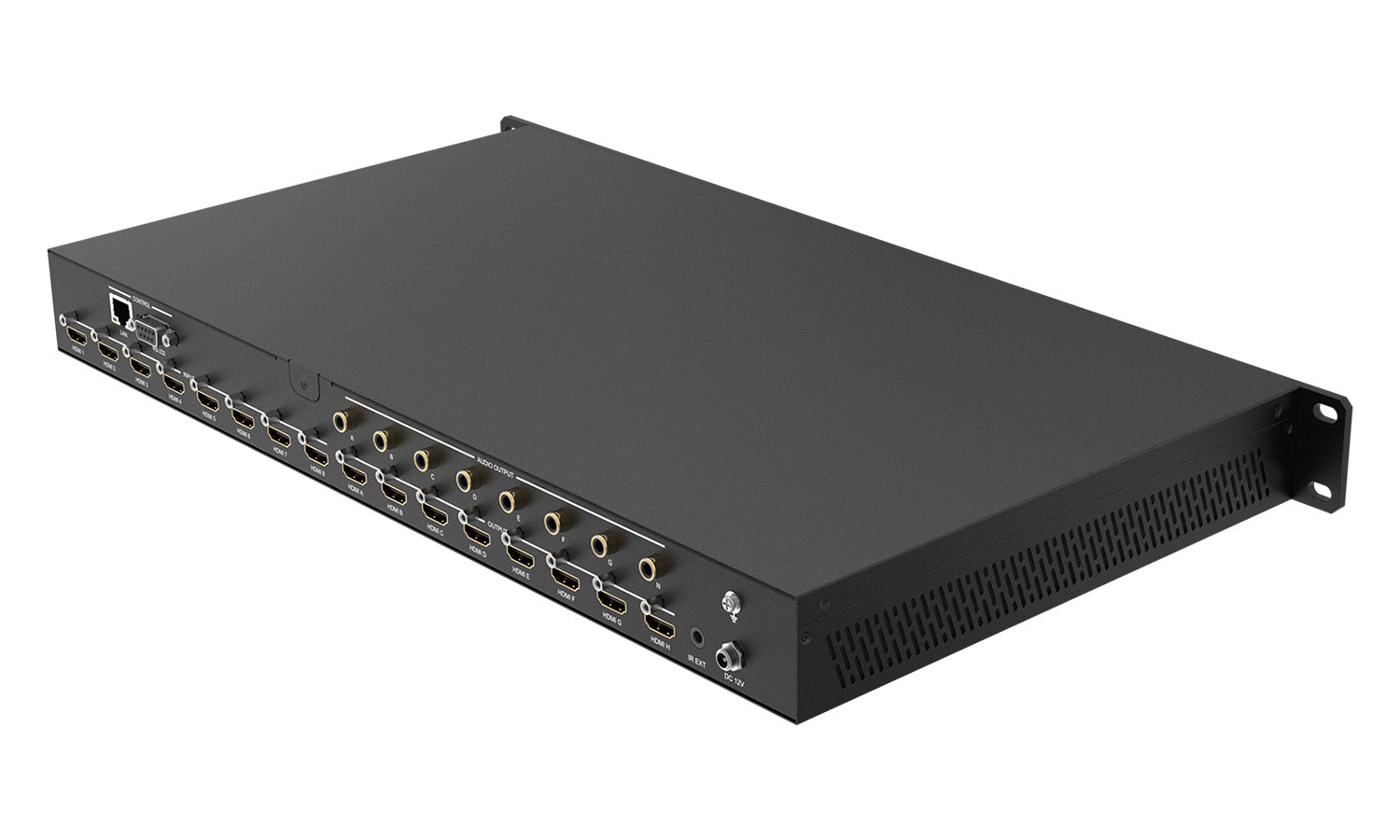

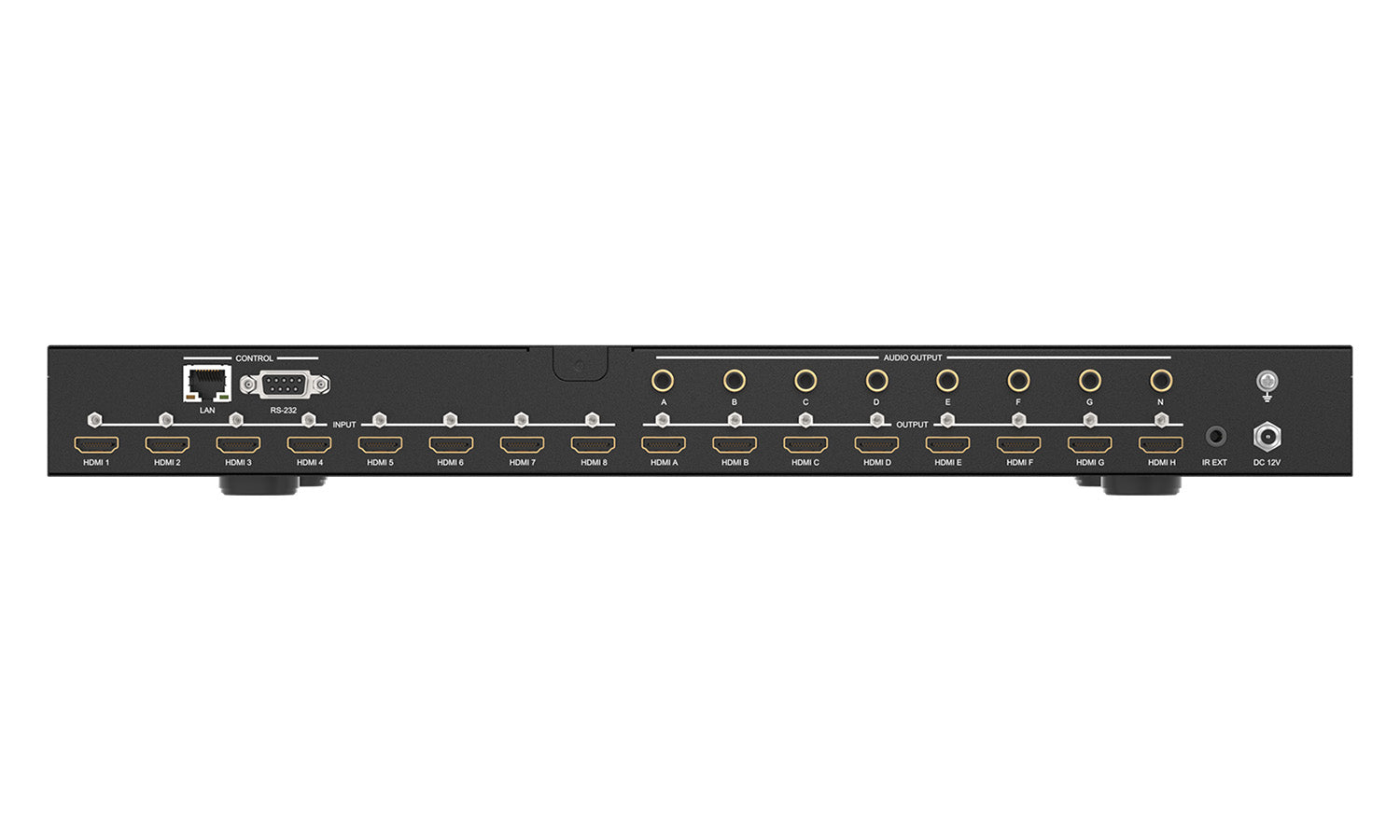

| Inputs | 8x HDMI Type A [19-pin female] 1x LAN [RJ45, Control] 1x RS-232 [9-pin D-sub, Control] 1x IR EXT [3.5mm Stereo Mini-jack] |
| Outputs | 8x HDMI Type A [19-pin female] 8x Coaxial Audio [RCA] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 483mm (W)×253mm (D)×44.5mm (H) |
| Weight | 3.35kg |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC12V/3A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 26.5W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
