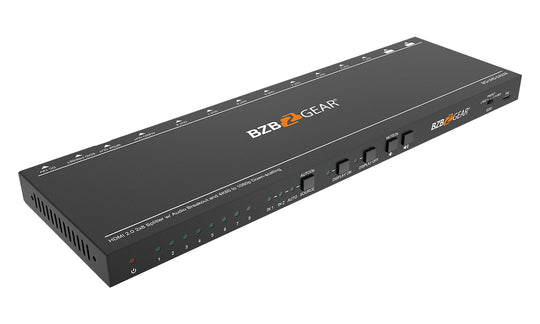

BZBGEAR 8-Port HDMI 4K 18Gbps 60Hz Splitter/Distribution Amplifier w/CEC Turn On/Off TV

SKU#: BG-UHD-DA2X8

UPC#: 850009357199

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: BG-UHD-DA2X8

UPC#:850009357199
$349.00

SKU#: BG-UHD-DA2X8

UPC#:850009357199

SKU#: BG-UHD-DA2X8

UPC#: 850009357199

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • The BG-UHD-DA2X8 HDMI splitter connects two HDMI video sources with up to eight HDMI displays. A simple source control toggles between the two inputs. It works with resolutions up to 4K@60fps with 4:4:4: chroma subsampling and full surround sound. Stereo RCA and Toslink outputs provide de-embedded audio for external audio systems. The thoughtful inclusion of a volume control allows you to easily adjust the output signal. HDMI 2.0 and HDCP 2.2 compatibility ensure trouble free compatibility with connected devices.

  • Features+
    • 4K Support: Supports resolutions up to 4K@ 60 Hz with 4:4:4 Chroma sampling.
    • Video Scaling: Supports 4k to 1080p down-scaling.
    • Customizable EDID: Eliminates HDMI connection issues.
    • Volume Control: Easily adjust audio output signal.
    • Dual Input: Easily toggle between sources.
  • Specs+
  • Video Input
    Input (2) HDMI
    Input Connector (2) Female type-A HDMI
    HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
    HDMI Standard 2.0
    HDCP Version 2.2
    CEC Supported
    Video Output
    Output (8) HDMI
    Output Connector (8) Female type-A HDMI
    HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
    HDMI Standard 2.0
    CEC Supported
    Audio
    De-embedded Output (1) AUDIO OUT; (1) SPDIF OUT
    Output Connector (1) RCA (L/R) jack; (1) Toslink connector
    HDMI Audio Format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X, and DTS-HD® Master Audio pass-through
    Stereo Analog L/R Audio Format PCM
    Toslink Digital Audio Format PCM, Dolby Digital, DTS, DTS-HD
    Frequency Response 20Hz - 20KHz, ±3dB
    Max Output Level 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
    THD+N <0.05% (-80 dB), 20Hz - 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
    SNR >80dB, 20Hz ~ 20KHz bandwidth
    Crosstalk Isolation >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
    L-R Level Deviation < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
    Frequency Response Deviation <± 0.5 dB 20Hz ~ 20KHz
    Output Load Capability 1K ohm and higher (supports 10x paralleled 10k ohm loads)
    Stereo Channel Separation >70dB@1kHz
    Control
    Control Part

    (5) Control buttons, (1) EDID 3-pin DIP swtch;

    (1) EDID 4-pin DIP switch, (1) Micro-USB port

    General
    Bandwidth 18Gbps
    Operation Temperature -10°C ~ +55°C
    Storage Temperature -25°C ~ +70°C
    Relative Humility 10%-90%
    Power Supply Input:100V~240V AC; Output: 12V DC 1A
    Power Consumption 12W(Max)
    Dimension (W*H*D) 324mm x 20mm x 100mm
    Net Weight About 900g
  • Package Contents+
    • 1x HDMI 2.0 2x8 Splitter
    • 2x Mounting Ears with 4 Screws
    • 4x Plastic Cushions
    • 1x Power Adapter (12V DC 1A)
    • 1x User Manual
  • Reviews+
  • The BG-UHD-DA2X8 HDMI splitter connects two HDMI video sources with up to eight HDMI displays. A simple source control toggles between the two inputs. It works with resolutions up to 4K@60fps with 4:4:4: chroma subsampling and full surround sound. Stereo RCA and Toslink outputs provide de-embedded audio for external audio systems. The thoughtful inclusion of a volume control allows you to easily adjust the output signal. HDMI 2.0 and HDCP 2.2 compatibility ensure trouble free compatibility with connected devices.

    • 4K Support: Supports resolutions up to 4K@ 60 Hz with 4:4:4 Chroma sampling.
    • Video Scaling: Supports 4k to 1080p down-scaling.
    • Customizable EDID: Eliminates HDMI connection issues.
    • Volume Control: Easily adjust audio output signal.
    • Dual Input: Easily toggle between sources.
    Video Input
    Input (2) HDMI
    Input Connector (2) Female type-A HDMI
    HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
    HDMI Standard 2.0
    HDCP Version 2.2
    CEC Supported
    Video Output
    Output (8) HDMI
    Output Connector (8) Female type-A HDMI
    HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
    HDMI Standard 2.0
    CEC Supported
    Audio
    De-embedded Output (1) AUDIO OUT; (1) SPDIF OUT
    Output Connector (1) RCA (L/R) jack; (1) Toslink connector
    HDMI Audio Format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X, and DTS-HD® Master Audio pass-through
    Stereo Analog L/R Audio Format PCM
    Toslink Digital Audio Format PCM, Dolby Digital, DTS, DTS-HD
    Frequency Response 20Hz - 20KHz, ±3dB
    Max Output Level 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
    THD+N <0.05% (-80 dB), 20Hz - 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
    SNR >80dB, 20Hz ~ 20KHz bandwidth
    Crosstalk Isolation >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
    L-R Level Deviation < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
    Frequency Response Deviation <± 0.5 dB 20Hz ~ 20KHz
    Output Load Capability 1K ohm and higher (supports 10x paralleled 10k ohm loads)
    Stereo Channel Separation >70dB@1kHz
    Control
    Control Part

    (5) Control buttons, (1) EDID 3-pin DIP swtch;

    (1) EDID 4-pin DIP switch, (1) Micro-USB port

    General
    Bandwidth 18Gbps
    Operation Temperature -10°C ~ +55°C
    Storage Temperature -25°C ~ +70°C
    Relative Humility 10%-90%
    Power Supply Input:100V~240V AC; Output: 12V DC 1A
    Power Consumption 12W(Max)
    Dimension (W*H*D) 324mm x 20mm x 100mm
    Net Weight About 900g
    • 1x HDMI 2.0 2x8 Splitter
    • 2x Mounting Ears with 4 Screws
    • 4x Plastic Cushions
    • 1x Power Adapter (12V DC 1A)
    • 1x User Manual
