BZBGEAR 6-input 3G-SDI and HDMI Video Mixer and Production Switcher with Integrated Capture

SKU#: BG-MFVS61-G2

UPC#: 850009357892

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: BG-MFVS61-G2

UPC#:850009357892
$1,099.00

SKU#: BG-MFVS61-G2

UPC#:850009357892

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • Don’t let the compact size of the BG-MFVS61-G2 portable A/V Mixer fool you, it packs a punch! The ideal mixer for mobile events or situations in which space is a premium, it’s lightweight and portable yet tough enough to withstand field deployments. 4 SDI and 2 HDMI inputs provide the flexibility to handle nearly any video device you need to connect, while the integrated scaler ensures you have stable 1080P HD output regardless of input source.

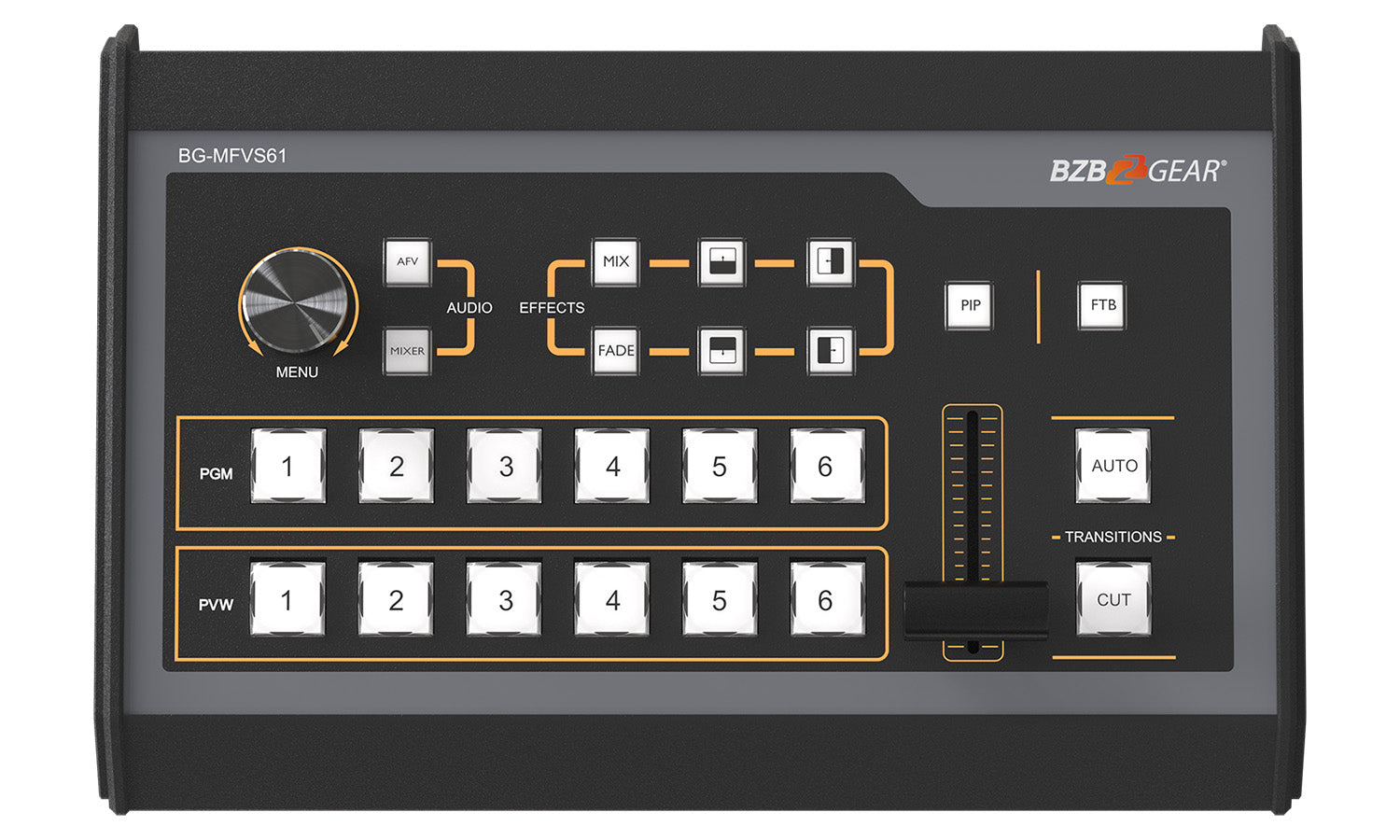

    The T-Bar allows for smooth transitions from preview to program and the built-in wipe, mix, and fade effects give any production a professional look. Capture all the action with no cutaways using the PIP feature. The fade to black key terminates the video output in case of an emergency. Simultaneously monitor all 6 inputs as well as preview and program on one display using the SDI or HDMI Multiview outputs.
    Integrated components include a capture card and an audio mixer to blend 3.5mm or RCA external inputs with 6 channels of embedded audio, eliminating the need for additional equipment.
    This combination of advanced features and intuitive controls allows everyone from volunteers to seasoned pros to consistently deliver a high-quality production.

  • Features+
    • Integrated Audio Mixer: 3.5mm, RCA, HDMI Audio
    • PIP Mode: Adjustable size and position
    • Multiple Transition Options: T-Bar, Auto, and Cut controls for Mix, Wipe, and Fade effects
    • Multiview Outputs: 1 x SDI, 1 x HDMI
    • 1080p/60 Support: Crystal clear image with resolutions up to 1080p@60Hz
  • Specs+

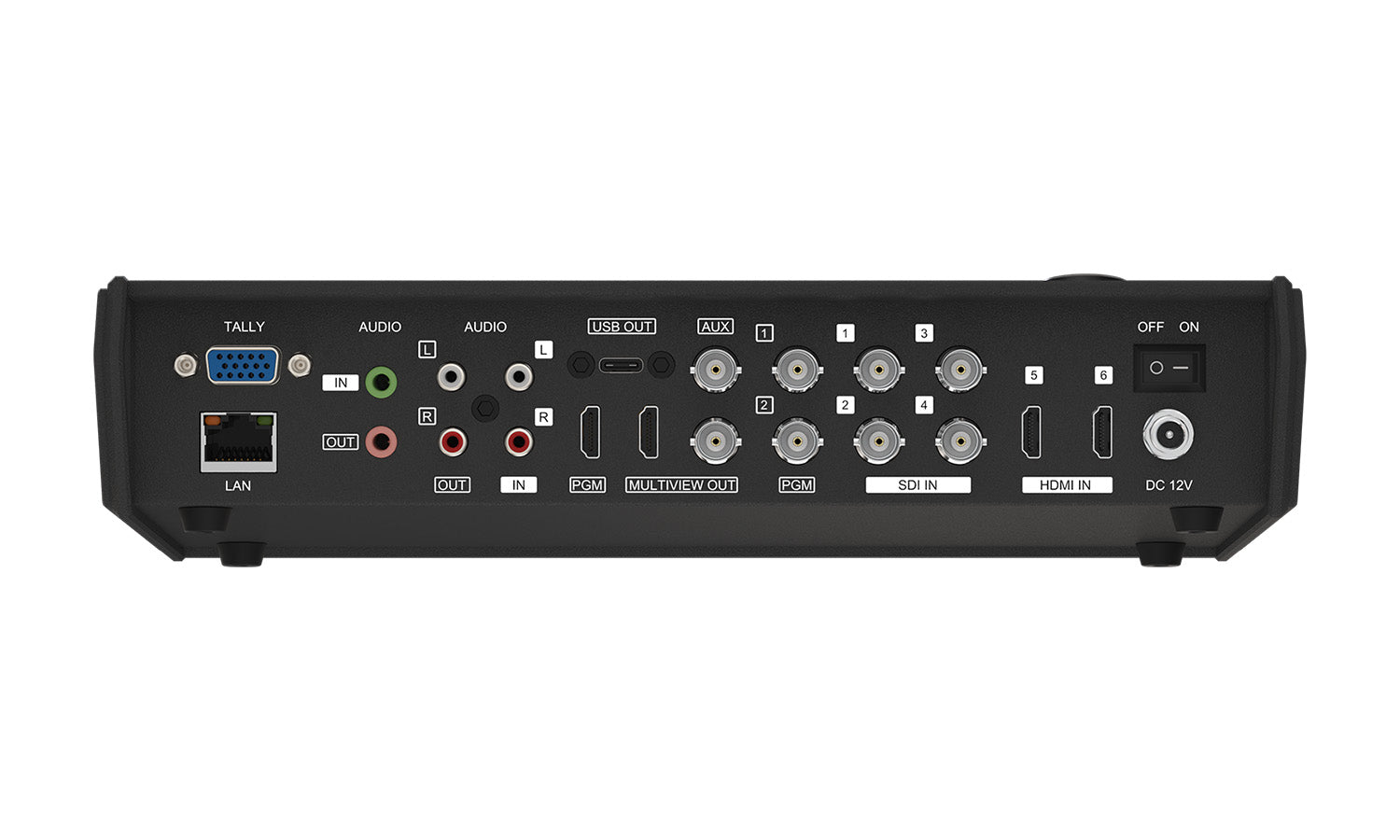

  • Inputs:
    Video Inputs P4×3G/HD/SD-SDI, 2×HDMI
    SDI Input Format

    1080p 60/59.94/50/30/29.97/25/24/23.98

    1080psF 30/29.97/25/24/23.98

    1080i 60/59.94/50

    720p 60/59.94/50/30/29.97/25/24/23.98

    HDMI Input Format

    1080p 60/59.94/50/30/29.97/25/24/23.98/23.976

    1080i 50/59.94/60

    720p 60/59.94/50/30/29.97/25/24/23.98

    576i 50, 576p 50

    SDI Video Rate Auto detection, SD/HD/3G-SDI
    SDI Compliance SMPTE 259M/ SMPTE 292M/ SMPTE 424M
    Color Space and Precision

    SDI: YUV 4:2:2, 10-bit;

    HDMI: RGB 444 8/10/12bit; YUV 444 8/10/12bit;

    YUV 422 8/10/12bit

    Outputs:
    PGM Outputs PGM Outputs
    PGM Output Format 1080p 60/50/30/25/24; 1080i 50/60
    Multiview Output 1×3G-SDI; 1×HDMI Type A
    Multiview Output Format 1080p 60
    Audio:
    Audio Input 1×3.5mm Stereo audio; 1×RCA(L/R)
    Audio Output 1×3.5mm Stereo audio; 1×RCA(L/R)
    Others:
    GPIO Tally
    LAN RJ45
    Power DC 12V, 1.8A
    Consumption ≤ 22W
    Operation Temperature -20°C~60°C
    Storage Temperature -30°C~70°C
    Operation Humidity 20%~70%RH
    Dimension 330×243.5×67mm
    Weight 2.2 lbs
  • Package Contents+
    • 1x BG-MFVS61-G2
    • 1x Power Supply (DC12V 2A)
    • 1x 3' USB-C to USB-A cable
    • 1x Padded Carrying Case
    • 1x User Manual
