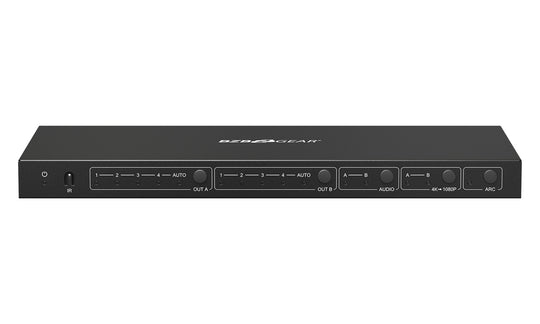

BZBGEAR 4X2 HDMI 4K 60Hz 18Gbps Matrix Switcher with Audio/Downscaling Support

SKU#: BG-UHD-42M

UPC#: 850009357045

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: BG-UHD-42M

UPC#:850009357045
$249.00

SKU#: BG-UHD-42M

UPC#:850009357045

SKU#: BG-UHD-42M

UPC#: 850009357045

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • The BG-UHD-42M 4x2 HDMI Matrix Switch is the perfect solution for distributing high definition audio and video sources at resolutions up to 4k@60Hz 4:4:4 8 bits with HDR. HDCP 2.2 compliant, this unit offers 4 HDMI 2.0a inputs and 2 HDMI 2.0a outputs with full multi-channel audio support. This switch is capable of downscaling from 4K to 1080P, ensuring that legacy displays are supported. It is ideal for use in environments such as conference rooms, restaurants, and home A/V systems. Integration-friendly features include IR control (remote included), external IR input, RS-232, IP, and Cloud Control ability. High-quality, cost-effective, and only available from BZBGEAR!

  • Features+
    • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
    • Supports 4 HDMI inputs and 2 HDMI outputs
    • Video resolution up to 4K2K@60Hz YCbCr 4:4:4
    • Supports 18Gbps uncompressed bandwidth on all HDMI
    • Supports Dolby Vision, HDR 10+, HLG and CEC function
  • Specs+
  • Technical

    HDMI Compliance HDMI 2.0
    HDCP Compliance HDCP 2.2 and HDCP 1.4
    Video Bandwidth 18 Gbps
    Video Resolution Up to 4K2K@50/60Hz(YCbCr 4:4:4), 4K2K@30Hz. All HDMI 3D TV format, etc.
    Color Space RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0
    Color Depth 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr4:4:4)]
    HDMI Audio Formats PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    Optical Audio Formats PCM2.0, Dolby Digital / Plus, DTS
    L/R Audio Formats PCM2.0CH (Note: If ARC function is turned on, the audio port will mute.)
    ESD Protection Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

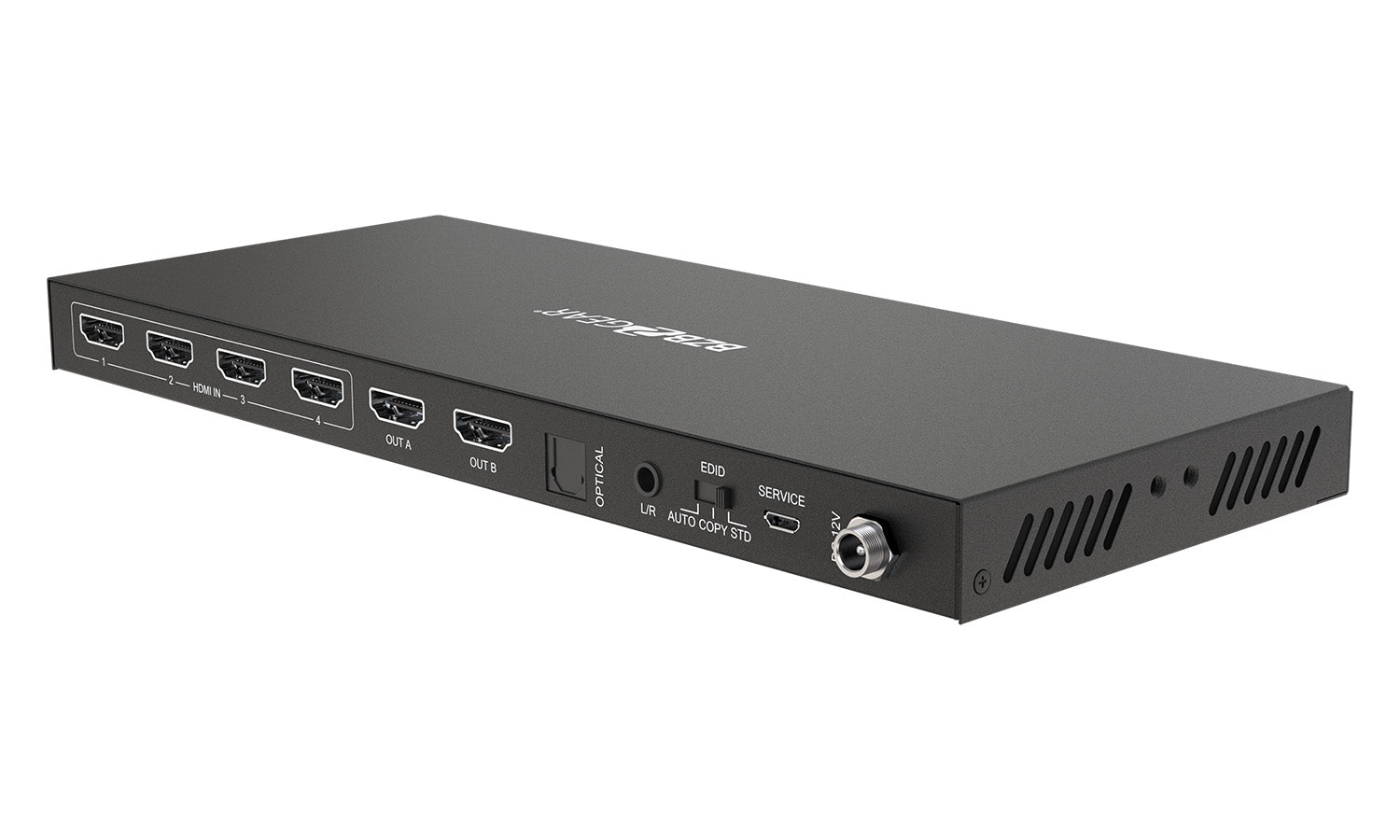

    Connections

    Input Ports 4×HDMI Type A [19-pin female]
    Output Ports 2×HDMI Type A [19-pin female] 1×L/R audio out [3.5mm Stereo Mini-jack] 1×OPTICAL audio out [S/PDIF]

    Mechanical

    Housing Metal Enclosure
    Color Black
    Dimensions 251mm(W)×105mm(D)×20mm(H)
    Weight 620g
    Power Supply Input: AC100~240V 50/60Hz, Output: DC12V/1A
    Power Consumption 3.8W (max)
    Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
    Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
    Relative Humidity 20~90% RH (non-condensing)
  • Package Contents+
    • 1x HDMI2.0 Matrix Switcher
    • 1x 12V/1A Locking Power Adapter
    • 2x Mounting Ears
    • 1x IR Remote
    • 1x User Manual
  • Reviews+
  • The BG-UHD-42M 4x2 HDMI Matrix Switch is the perfect solution for distributing high definition audio and video sources at resolutions up to 4k@60Hz 4:4:4 8 bits with HDR. HDCP 2.2 compliant, this unit offers 4 HDMI 2.0a inputs and 2 HDMI 2.0a outputs with full multi-channel audio support. This switch is capable of downscaling from 4K to 1080P, ensuring that legacy displays are supported. It is ideal for use in environments such as conference rooms, restaurants, and home A/V systems. Integration-friendly features include IR control (remote included), external IR input, RS-232, IP, and Cloud Control ability. High-quality, cost-effective, and only available from BZBGEAR!

    • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
    • Supports 4 HDMI inputs and 2 HDMI outputs
    • Video resolution up to 4K2K@60Hz YCbCr 4:4:4
    • Supports 18Gbps uncompressed bandwidth on all HDMI
    • Supports Dolby Vision, HDR 10+, HLG and CEC function

    Technical

    HDMI Compliance HDMI 2.0
    HDCP Compliance HDCP 2.2 and HDCP 1.4
    Video Bandwidth 18 Gbps
    Video Resolution Up to 4K2K@50/60Hz(YCbCr 4:4:4), 4K2K@30Hz. All HDMI 3D TV format, etc.
    Color Space RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0
    Color Depth 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr4:4:4)]
    HDMI Audio Formats PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    Optical Audio Formats PCM2.0, Dolby Digital / Plus, DTS
    L/R Audio Formats PCM2.0CH (Note: If ARC function is turned on, the audio port will mute.)
    ESD Protection Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

    Connections

    Input Ports 4×HDMI Type A [19-pin female]
    Output Ports 2×HDMI Type A [19-pin female] 1×L/R audio out [3.5mm Stereo Mini-jack] 1×OPTICAL audio out [S/PDIF]

    Mechanical

    Housing Metal Enclosure
    Color Black
    Dimensions 251mm(W)×105mm(D)×20mm(H)
    Weight 620g
    Power Supply Input: AC100~240V 50/60Hz, Output: DC12V/1A
    Power Consumption 3.8W (max)
    Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
    Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
    Relative Humidity 20~90% RH (non-condensing)
    • 1x HDMI2.0 Matrix Switcher
    • 1x 12V/1A Locking Power Adapter
    • 2x Mounting Ears
    • 1x IR Remote
    • 1x User Manual
