AdderView DDX30 Receiver
SKU#: DDX-USR-US
UPC#:Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- User Station for the Direct Connect Matrix system: hardware can be removed from desks up to 50m away from user console, reducing noise levels and increasing employee comfort and productivity
- Easily expand your installation: for each new computer system and user,simply add a USR and CAM module, safeguarding your investment
- High Quality video: lossless HD video in real-time
- Features+
- Specs+
- Daetwyler 7702 Flexible patch cable
- Daetwyler 7120 Bulk cable
- Package Contents+
- DDX-USR module and locking power adapter with US power cord
- Reviews+
- User Station for the Direct Connect Matrix system: hardware can be removed from desks up to 50m away from user console, reducing noise levels and increasing employee comfort and productivity
- Easily expand your installation: for each new computer system and user,simply add a USR and CAM module, safeguarding your investment
- High Quality video: lossless HD video in real-time
- Daetwyler 7702 Flexible patch cable
- Daetwyler 7120 Bulk cable
- DDX-USR module and locking power adapter with US power cord
AdderView DDX USR Receiver - Adder Technology

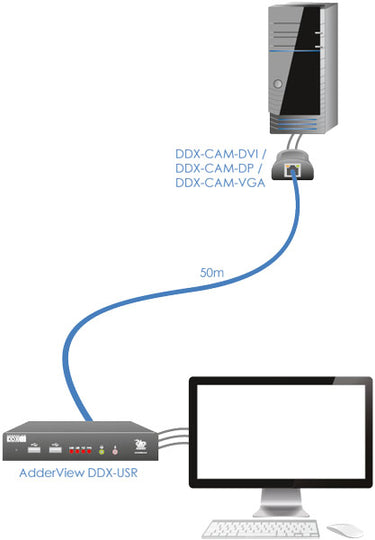

Part of the ADDERView® DDX® range, the DDX USR is the user station for the DDX range, a high performance KVM Matrix that provides powerful functionality inside small, compact form factors. When connected directly to the DDX CAM, it creates a KVM extender. When combined with the DDX10 or DDX30, it forms an integral part of a KVM Matrix.
Note: This product is only compatible with other Adder branded products
Every pixel uncompressed video technology with ultra-low latency
Unlike many other digital KVM solutions, the DDX delivers every pixel of every video frame to ensure perfect digital video all the time. Resolutions up to 1920 x 1200 at 60Hz are supported, including 1080p. Uncompressed video technology ensures ultra-low latency and a perfect “at-the-computer” experience
Start with one, graduate to many
The DDX-CAM and DDX-USR modules provide an easy solution to extending a single computer and its peripherals. However, when you introduce a DDX switch between them, suddenly you have the basis of an expandable switching matrix. Just add further DDX-CAM and DDX-USR modules for each new computer system and user. This superb flexibility safeguards your investment and provides a pain-free progression path. Please see the DDX30 datasheet for further details
USB 2.0
Enables connection of any USB human interface device (HID) from mice and keyboards through to touch screens
Simple CATx cabling
DDX uses widely available CAT6 cable to connect the user console (up to 50m) and computer dongles (up to 10m) to the central switch
Single cable up to 50 meters
Video, USB2.0 HID only and analog audio all pass along a single CAT cable which can be up to 50 meters in length. The achievable distance is dependent on the monitor resolution and the number of connection breaks for patch panels and wall plates
“Zero U” Computer Access Module
The compact DDX-CAM Computer Access Module (CAM) derives all its power from a single USB connection and takes “Zero U” space in your rack. Available in DVI and DisplayPort versions to match your computer
EDID management
The extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer
Plug and Play
The AdderLink DDX-USR extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed
USB audio composite device
CD audio quality (stereo channel 16 bit sampled at 48kHz) is available to transfer audio from transmitter to receiver for line out and headphones with microphone input available
Hardware compatibility
All computers with DVI or DisplayPort video, and USB
Video interface
The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz
USB 2.0
Supports USB2.0 devices (low, full speed) HID devices only
Software compatibility
All known operating systems
Computer connections (TX)
DVI-D or DisplayPort, USB type A
Peripheral connections (RX)
DVI-D or DisplayPort, USB type A x 4, 6p6c options port, 3 x 3.5mm jack sockets for headphone out, microphone in and line out
Physical design
Compact case, robust metal construction. 170mm/6.65” (w), 31mm/1.22” (h), 120mm/4.8” (d), 0.6kg/1.3lbs
Power (RX unit)
Locking 3-pin DC jack, 100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter
Power (TX unit)
USB powered (Max 500mA @ 5V)
Operating temperature
0 to 40ºC / 32 to 104ºF
Approvals
CE, FCC
ADDITIONAL ACCESSORIES
RMK8: 19” rack mount bracket (two units per 1U rack slot)
Important extension distance details
Recommended cables are SFTP:
