  • ADDER View CATx 1016-1x16 CATx switch to 300m
  • ADDER View CATx 1016-1x16 CATx switch to 300m

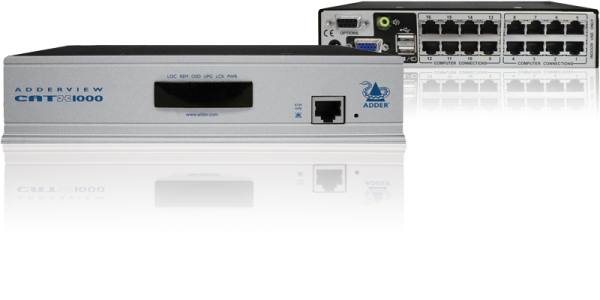

ADDER View CATx 1016-1x16 CATx switch to 300m

SKU#: AVX1016-USA

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: AVX1016-USA

UPC#:
$580.50

SKU#: AVX1016-USA

UPC#:

SKU#: AVX1016-USA

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • ADDER View CATx 1016-1x16 KVM Switch

    ADDERView® CATx 1000 switch is a high density, small form factor KVM product providing local and remote access, granting control of up to 16 multi-platform servers via CATx cabling. A combination of USB console support with a full KVM feature set ensure high-performance switching of USB, video and audio signals ideal for server room and desktop environments. Any type of server can be connected to when combining the ADDERView CATx 1000 with the ADDER Computer Access Modules (CAM). This product is part of the CATx range.

    • Control of up to 16 multi-platform servers: local and remote access via LAN or WAN
    • Secure connectivity: via CATx cabling
    • High performance USB, video and audio
    • Small form factor unit: two units per 1U of rack space
    • Flexible Plug and Play installation: easy set up complemented by multi-platform support and flexible expansion

    Note: This product is only compatible with other Adder branded products

  • Features+
  • ADDER View CATx 1016-1x16 CATx switch. Single user from two points, local or remote to 300 meters.

    USB keyboard and mouse control.
    Any USB style keyboard and mouse (PC, Mac or Sun) can be used to control the ADDER View CATx 1000 switch. Full keyboard re-mapping is supported to ensure seamless cross platform functionality

    Faultless video quality
    The ADDER View CATx series provides exceptionally high video performance to local and remote users alike, supporting up to 1920 x 1200 resolutions with DDC emulation which is further enhanced by DC balancing to ensure full and true color

    True multi-platform support
    The ADDER View CATx 1000 supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation

    Easy cascade
    Expand simply by using just CATx cable to link units. The ADDER View automatically detects cascade connections to support up to 256 computers

    Optional CD quality audio
    ADDER View CATx 1000 switches support CD quality 44.1kHz digital stereo audio when optional audio enabled CAM modules are used

    Options port

    • Integration with RS232 controlled power switches to provide a complete hard reboot function
    • Flash upgrade
    • Sync with other CATx 1000 switches for multi-video applications
    • Upload/download CATx 1000 user and host information
    • Remote control


    Integrated CATx extender
    The ADDER View CATx 1000 can be controlled by a user from up to 300m away over CATx cable using an ADDER Link X200 or X100 receiver and the integrated CATx extender

    Computer Access Modules
    Flash upgradeable CAMs are available for PS/2, USB and Sun keyboard and mouse support with optional audio

    Standard Transmission Distance
    KVM communication from switch to target devices (e.g. Servers) can be up to 33 feet (10m) maximum

    Rack mount / rack drawers
    One or two CATx 1000 switches can be mounted in 1U of rack height giving a maximum of 32 ports per U. The small size also makes the units ideal for mounting behind KVM rack drawers

    User access control
    Up to 16 different user profiles can be created and access rights for each user can be defined

    Embedded KVM option
    CATx 1000 technology is available in for embedding within other equipment such as rack drawers and industrial equipment

  • Specs+
  • Hardware compatibility
    Supports PC, RS/6000, Alpha, SGI, Sun and Apple with USB / PS/2 / Sun style keyboard and mouse and VGA video interfaces

    Software compatibility
    Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.

    Computer connections at switch
    RJ45

    Computer connections at computer
    Video: HDD15, Keyboard/Mouse: choice of USB, PS/2 and Sun MiniDin8
    Audio (optional): 3.5mm stereo jack

    Local KVM console connection
    Video: HDD15, Keyboard/Mouse: USB type A, Audio: 3.5mm stereo jack

    Physical design
    1U high 198mm / 7.92"(w), 44mm / 1.76"(h), 120mm / 4.8"(d), 750g / 1.65 lbs. 1 per 1U or 2 per 1U rack mount kits available

    Power connection
    2.5mm DC jack, power adapter included

    Other connectors
    Remote KVM console: RJ45, Options (flash upgrade, sync with other CATx1000 and RS232 triggered power switches): DB9 female

    Power
    100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

    Operating temperature
    0 - 40 deg C (32 to 104 deg F)

    Approvals
    CE, FCC

    Order codes

    • AVX1008-US: 8 port version
    • AVX1016-US: 16 port version

    Additional accessories

    • RMK4S: Single rack brackets
    • RMK4D: Dual rack brackets
    • CAB-9M/9F-2M Serial option cable
  • Package Contents+
    • ADDER View AVX1016
    • 10W power adapter
