ADDER View 4 PRO DVI 4-port, Dual Link, USB

SKU#: AV4PRO-DVI-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: AV4PRO-DVI-US

UPC#:
$445.50

SKU#: AV4PRO-DVI-US

UPC#:
Video Output:

SKU#: AV4PRO-DVI-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

Part of the ADDERView® PRO range, the AV4PRO DVI is KVMA switch designed to enable four multi-head computers to be controlled from a single KVM console. This four-port switch is available in eight-port (AV8PRO), Multiscreen, VGA or DisplayPort variants.

  • Access multiple applications: allow one display, keyboard and mouse to switch control between up to eight computers
  • Fluid and Reliable USB Switching: Adder’s USB True Emulation ensures fast and reliable switching

Note: This product is only compatible with other Adder branded products

Features+

Dual link DVI-I with extended profile DDC EDID
The ADDER View PRO MultiScreen features full dual link DVI video delivering 4 megapixel resolutions per head at 60Hz. Because the ADDER View features DVI-I, you can also use a choice of digital or analogue sources. The extended DDC EDID profile ensures that the switched graphics card is always optimized to work with your screen. The dual link DVI capabilities enable users to work at very high resolutions including 2K (2048 x 1080) on each head for post production or WQXGA (2560 x 1600) per head for detailed medical imaging.

True Emulation USB 2.0 Technology
The AV4PRO-DVI-MS belongs to the first KVMA range of switches to feature ADDER's advanced True USB Emulation technology. Emulated USB provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. Previous implementations have used generic emulations and consequently have only been able to support the most basic keyboard and mouse features. ADDER's revolutionary True Emulation technology overcomes this frustrating limitation by emulating the true character of the connected devices to all the computers simultaneously. This means that you can now use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. With the AV4PRO-DVI-MS, a whole new group of users can take advantage of the flexibility KVM switches have to offer. Users in Architecture, Graphic Design, Post Production, Animation, Medical Imaging etc. often need to use specialized interface devices such as graphics tablets, 3D explorers, joysticks, and so on. The AV4PRO-DVI-MS makes all this possible.

Independent simultaneous device selection
Flexibility is key to the ADDER View PRO. The switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can of course still switch all connected devices to any one of the connected computers as with any other KVM switch.

Channel selection options

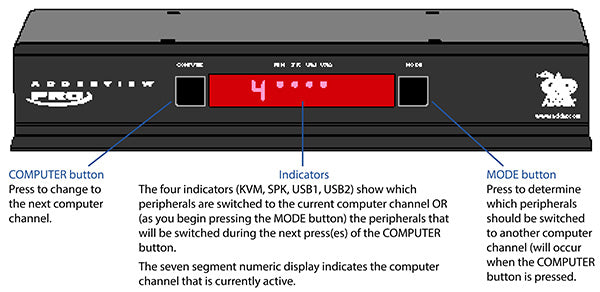

The ADDER View PRO can be switched using selectable keyboard hotkeys, 3 button mice or the front panel controls. Optionally, you can also use the RC4 remote switch to make your selection. These switching options allow you to rapidly reassign connected devices to any of the connected computers.

Broad USB 2.0 Hi Speed device support
A vast range of USB devices can be connected to the ADDER View Pro, from non standard human interface devices to printers and scanners. This gives great flexibility. For example, you could be scanning a set of documents onto one computer whilst working on another and printing from yet another, all at the same time. The USB 2.0 switching action has been carefully engineered to ensure maximum computer reliability when connecting and disconnecting USB devices.

Options port for control, synchronization and upgrade
An 'Options' port enables the AV4PRO-DVI-MS to be remotely switched using simple ASCII codes. When the channel is switched, the same ASCII codes are echoed to the 'Options' port and so, by linking 'Options' ports, two or more units can be switched in synchrony to switch more than 4 video heads. The port enables a 4 button switch unit (RC4) to be used with the ADDER View PRO. The same port can also be used to upgrade the firmware to guarantee that your hardware investment continues to deliver real value well into the future.

Specs+

Hardware compatibility
All computers with USB interfaces

Software compatibility

  • Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.
  • Computer connections at switch: USB2.0 type B, Dual-link DVI-I (up to 4 per connection), 3.5mm stereo jack


Local KVM console connection

  • Video: Dual-link DVI-I (Dual x 2, Triple x 3 or Quad x 4)
  • Resolution: All resolutions up to 5MP per head (e.g. 2560x1920 4.92M3-R).
  • Keyboard/Mouse: 2 x USB type A
  • Switched USB: 2 x USB2.0 type A
  • Switched USB: Supports USB 2.0 devices in low, full and high speed modes.
  • USB True Emulation: Emulates keyboard and mouse on each port. Low speed HID USB 2.0 devices supported
  • Audio: 3.5mm stereo jack
  • Other Connections: Options (flash upgrade, sync with other AV4PRO-DVI-MS and RS232 triggered power switches): Modular 10P10C


Physical design
2.5U high metal case 26cm (w), 15cm (d), 10cm (h)

Power
2.5mm DC jack (power adapter included), 100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

Operating temperature
0 - 40 deg C (32 to 104 deg F)

Approvals
CE, FCC


Additional accessories

  • DVI to VGA adaptor: VSA11
  • Single link DVI-D to DVI-D video cable: VSCD1
  • Combined dual link DVI-D and USB (USB type A to B) cable: VSCD3 (2m length); VSCD4 (5m length)
  • Audio cable 2m (3.5mm stereo jacks): VSC22
  • Flash upgrade adapter plus standard 3m patch lead: VSC40
  • Two 19inch rack mount brackets and four screws: RMK5PROMS
  • RC4 remote control plus standard 3m patch lead: RC4-8P8C

Package Contents+

  • AV4PRO unit and power supply

Reviews+

Part of the ADDERView® PRO range, the AV4PRO DVI is KVMA switch designed to enable four multi-head computers to be controlled from a single KVM console. This four-port switch is available in eight-port (AV8PRO), Multiscreen, VGA or DisplayPort variants.

  • Access multiple applications: allow one display, keyboard and mouse to switch control between up to eight computers
  • Fluid and Reliable USB Switching: Adder’s USB True Emulation ensures fast and reliable switching

Note: This product is only compatible with other Adder branded products

Dual link DVI-I with extended profile DDC EDID
The ADDER View PRO MultiScreen features full dual link DVI video delivering 4 megapixel resolutions per head at 60Hz. Because the ADDER View features DVI-I, you can also use a choice of digital or analogue sources. The extended DDC EDID profile ensures that the switched graphics card is always optimized to work with your screen. The dual link DVI capabilities enable users to work at very high resolutions including 2K (2048 x 1080) on each head for post production or WQXGA (2560 x 1600) per head for detailed medical imaging.

True Emulation USB 2.0 Technology
The AV4PRO-DVI-MS belongs to the first KVMA range of switches to feature ADDER's advanced True USB Emulation technology. Emulated USB provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. Previous implementations have used generic emulations and consequently have only been able to support the most basic keyboard and mouse features. ADDER's revolutionary True Emulation technology overcomes this frustrating limitation by emulating the true character of the connected devices to all the computers simultaneously. This means that you can now use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. With the AV4PRO-DVI-MS, a whole new group of users can take advantage of the flexibility KVM switches have to offer. Users in Architecture, Graphic Design, Post Production, Animation, Medical Imaging etc. often need to use specialized interface devices such as graphics tablets, 3D explorers, joysticks, and so on. The AV4PRO-DVI-MS makes all this possible.

Independent simultaneous device selection
Flexibility is key to the ADDER View PRO. The switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can of course still switch all connected devices to any one of the connected computers as with any other KVM switch.

Channel selection options
The ADDER View PRO can be switched using selectable keyboard hotkeys, 3 button mice or the front panel controls. Optionally, you can also use the RC4 remote switch to make your selection. These switching options allow you to rapidly reassign connected devices to any of the connected computers.

Broad USB 2.0 Hi Speed device support
A vast range of USB devices can be connected to the ADDER View Pro, from non standard human interface devices to printers and scanners. This gives great flexibility. For example, you could be scanning a set of documents onto one computer whilst working on another and printing from yet another, all at the same time. The USB 2.0 switching action has been carefully engineered to ensure maximum computer reliability when connecting and disconnecting USB devices.

Options port for control, synchronization and upgrade
An 'Options' port enables the AV4PRO-DVI-MS to be remotely switched using simple ASCII codes. When the channel is switched, the same ASCII codes are echoed to the 'Options' port and so, by linking 'Options' ports, two or more units can be switched in synchrony to switch more than 4 video heads. The port enables a 4 button switch unit (RC4) to be used with the ADDER View PRO. The same port can also be used to upgrade the firmware to guarantee that your hardware investment continues to deliver real value well into the future.

Hardware compatibility
All computers with USB interfaces

Software compatibility

  • Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.
  • Computer connections at switch: USB2.0 type B, Dual-link DVI-I (up to 4 per connection), 3.5mm stereo jack


Local KVM console connection

  • Video: Dual-link DVI-I (Dual x 2, Triple x 3 or Quad x 4)
  • Resolution: All resolutions up to 5MP per head (e.g. 2560x1920 4.92M3-R).
  • Keyboard/Mouse: 2 x USB type A
  • Switched USB: 2 x USB2.0 type A
  • Switched USB: Supports USB 2.0 devices in low, full and high speed modes.
  • USB True Emulation: Emulates keyboard and mouse on each port. Low speed HID USB 2.0 devices supported
  • Audio: 3.5mm stereo jack
  • Other Connections: Options (flash upgrade, sync with other AV4PRO-DVI-MS and RS232 triggered power switches): Modular 10P10C


Physical design
2.5U high metal case 26cm (w), 15cm (d), 10cm (h)

Power
2.5mm DC jack (power adapter included), 100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

Operating temperature
0 - 40 deg C (32 to 104 deg F)

Approvals
CE, FCC


Additional accessories

  • DVI to VGA adaptor: VSA11
  • Single link DVI-D to DVI-D video cable: VSCD1
  • Combined dual link DVI-D and USB (USB type A to B) cable: VSCD3 (2m length); VSCD4 (5m length)
  • Audio cable 2m (3.5mm stereo jacks): VSC22
  • Flash upgrade adapter plus standard 3m patch lead: VSC40
  • Two 19inch rack mount brackets and four screws: RMK5PROMS
  • RC4 remote control plus standard 3m patch lead: RC4-8P8C
  • AV4PRO unit and power supply
