ADDER Link X-DVIPRO - Dual Head DVI

SKU#: X-DVIPRO-MS2-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: X-DVIPRO-MS2-US

UPC#:
$1,420.25

SKU#: X-DVIPRO-MS2-US

UPC#:

SKU#: X-DVIPRO-MS2-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

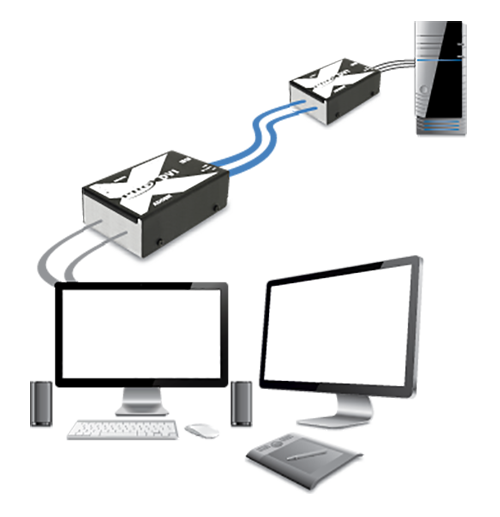

Part of the ADDERLink® X-DVI PRO range, the high-performance X-DVI PRO-MS digital KVM (Keyboard, Video and Mouse) and USB extender enables you to locate your critical computing hardware in a secure and temperature controlled environment. Uncompressed digital video and audio is distributed in real-time and with zero latency to multiple screens, allowing the user to maintain an at-the-PC experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices. It can transmit two Single Link DVI video streams, USB 2.0 and analog audio up to 50m over a twin CATx cables to multiple screens.

  • Delivers uncompressed digital video with audio
  • USB 2.0 Low and Full speed connection: to interface with a range of devices
  • Exact content seen on the local monitor is distributed: up to 50m over a twin CATx cable
  • Energy efficient design: external power supplies are not needed
  • X-DVIPRO-MS: enables dual screens at 1920 x 1200 @ 60Hz maximum resolution

Note: This product is only compatible with other Adder branded products

Features+

Perfect digital video, real time control
The ADDER Link X-DVI PRO MultiScreen extender uses an uncompressed system whereby every pixel of every frame are sent without loss. HDMI video and audio can be extended with the correct adapter cable, although HDCP and CEC are not supported.

50 meters over a single CATx cable
Video, USB 2.0 (Low and Full speed) and audio all pass along a single cable, providing up to 50 meters of extension. The second video head requires a separate CATx cable.

Distance is dependent upon video resolution, the CATx cable type, and the number of connection breaks for patch panels and wall plates. See table on reverse for details.

USB 2.0
Enables connection of any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks, 3D explorers and mass storage devices. Full speed (12Mbps) isochronous devices such as headsets are supported.

Power efficiency
The X-DVI PRO MS extender is designed to be highly power efficient and run with the minimum of input. In fact, the transmitter unit is so energy efficient that it can be powered solely from two host computer USB connections.

EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Plug and Play
The X-DVI PRO MS extenders are delivered in a zero config state so you can plug them in and start working with them straight away. There’s no need for drivers or software to be installed.

Analog audio
Stereo CD quality (stereo channel 16 bit sampled at 44.1kHz) is available to transfer audio from local to remote for line out.

Digital audio
Supports 8 channels of HDMI audio simultaneously with analog audio.

Built to last
Adder Technology have a well-earned reputation for creating products that perform well and stay the course. The X-DVI PRO MS extender units are no exception and feature tough metallic enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performance characteristics.

Specs+

  • Hardware compatibility
    All computers with DVI-D, USB and audio - requirement dependent.

    DVI-D Interface – digital only
    The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz per head.

    USB 2.0 Low and Full speed
    Transparent USB 2.0 (Low and Full speed) that supports HID and mass storage devices to a maximum of 50 meters. You may need to reduce maximum cable length by 5 meters if a USB hub is connected to the receiver unit.

    Audio
  • The system delivers analog stereo audio (Line Out).
  • 8 channels of HDMI audio are supported with sample sizes of 16, 20 or 24 bits at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz (simultaneously with the jack audio).

Software compatibility
All known operating systems.


Computer connections Transmitter (TX)

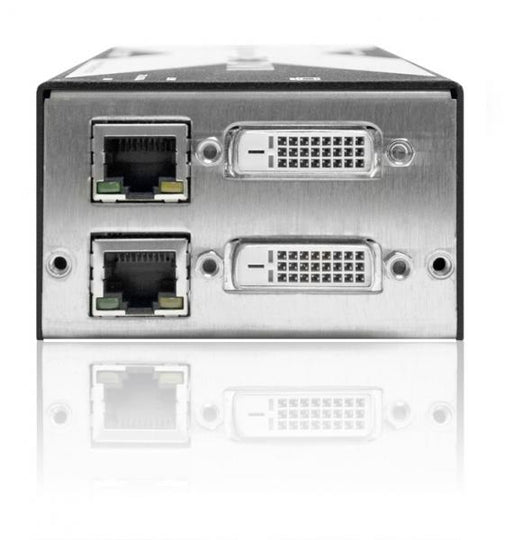

2 x DVI-D, audio 3.5mm in, USB type B.


Computer connections Receiver (RX)

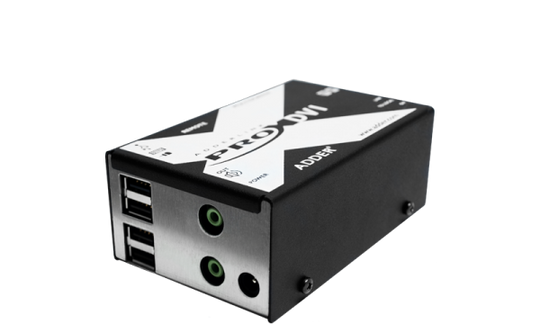

2 x DVI-D, audio 3.5mm out, USB type A x 4.

Physical design
Compact case, robust metal construction 120mm / 4.7’’ (w) x 75mm / 3’’(d) x 48mm / 2’’ (h) 500g / 1.1 lb.

Power

  • Rx: 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.4A, input to power adapter, 5VDC 12.5W output from power adapter.
  • Tx: Powered from two USB connections.
  • Optional 2.5mm DC jack (power adapter not included.


Operating temperature
0 to 40ºC / 32 to 104ºF.

Approvals
CE, FCC

Important extension distance details

  • Recommended cables are CAT7 shielded foiled twisted pairs:
  • Daetwyler 7702 Flexible patch cable
  • Daetwyler 7120 Bulk cable
  • Category 5 (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission
  • regulations and ensure a suitably high level of immunity to electromagnetic disturbances.


ADDITIONAL ACCESSORIES

  • X-RMK-FASCIA-Dual: Rack mount plate with screws included
  • X-RMK-CHASSIS: Rack mount chassis
  • VSCD11: HDMI to DVI cable


Standard Resolution Frequency Cable
Distance

  • TVHD 1920 x 1080 60 Hz CAT7a 60 meters
  • UXGA 1600 x 1200 60 Hz CAT7a 60 meters
  • WUXGA 1920 x 1200 60 Hz CAT7a 60 meters
  • TVHD 1920 x 1080 60 Hz CAT6a 55 meters
  • TVHD 1920 x 1080 60 Hz CAT5e 45 meters
  • SXGA 1280 x 1024 60 Hz CAT7a 70 meters
  • SXGA 1280 x 1080 60 Hz CAT6a 65 meters
  • SXGA 1280 x 1080 60 Hz CAT5e 55 meters

Package Contents+

  • DVIPRO MS2 local and remote modules
  • 2 x 12.5 W power supplies
  • 2 x video cable DVI-D to DVI-D
  • 2 x USB cable 2m (a to B)
  • 2 x 3.5mm stereo audio cable
