ADDER Link INFINITY Dual Transmitter with RealVNC

SKU#: ALIF2112T-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: ALIF2112T-US

UPC#:
$1,662.50

SKU#: ALIF2112T-US

UPC#:

SKU#: ALIF2112T-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

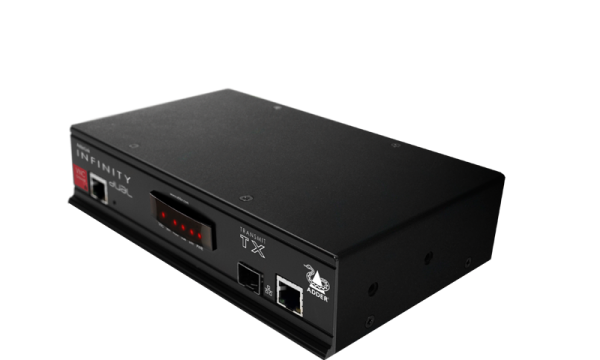

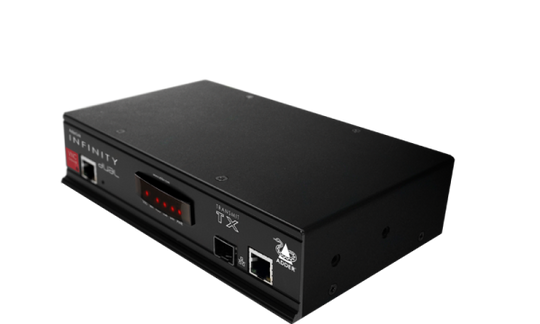

ADDER Link INFINITY Dual Transmitter with RealVNC

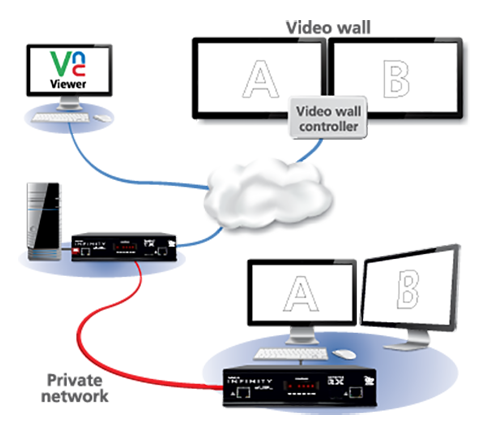

Part of the ADDERLink™ INFINITY range, the ADDERLink INFINITY Dual 2112T is a high performance KVM solution that enables you to isolate your critical computing hardware from users. Configurable as a dual link or dual head, this extender serves pixel perfect video across distances up to 10km with no loss of compression and minimal lag. The ADDERLink INFINITY Dual 2112T is equipped with Real VNC and runs on your standard IP network, enabling up to 16 users to simultaneously, remotely and securely access computers outside of your network. This KVM extender can be kept as a point to point extender or can be integrated into a wider matrix system using the ADDERLink INFINITY Manager (AIM).

  • Integrated remote access: monitor, control and maintain your computers remotely, utilizing VNC technology, provided by one of our technical partners, RealVNC
  • ‘At-the-PC’ experience: dual link or dual head, 24 bits per color at a maximum resolution of 2560x1600 or two at 1920x1200 @ 60Hz with minimal lag
  • Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
  • IP-based: standard IP protocols, ensuring maximum compatibility with your existing IT infrastructure and staff skillset
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix

Note: This product is only compatible with other Adder branded products

Features+

  • View 2560x1600 or two 1920x1200 sessions
  • Real VNC server with RFP 3.3 support
  • Up to 256bit AES and RSA 2048 encryption
  • VM support and RS232 for power control
  • Supports 16 users simultaneously
  • Out of band Bios level access
  • Compatible with ADDER Link Infinity Matrix

Specs+

Hardware compatibility
All computers with DVI-D, USB, Audio, RS232 - requirement dependent

DVI-D - Digital Visual Interface – Digital only
The system supports either two single link DVI resolutions to a maximum of 1920 x 1200@ 60Hz or a single Dual link to a maximum of 2560 x 1600@ 60Hz

USB 2.0 with Class control
Supports USB2.0 devices (Low, full and high speed). The system has a security feature which allows the blocking of non HID devices. Isochronous devices are not supported (i.e. USB audio or video devices)

Digital Stereo Audio
The system delivers analogue stereo audio (Line in, Line Out) digitally across the network.

RS232
RS232 can be passed between the units to a maximum baud rate 115K2. RS232 is reserved for power control for ADDER Link Infinity Dual VNC

Software compatibility
All known operating systems (except Sun BIOS access)

Computer connections Transmitter (Tx)

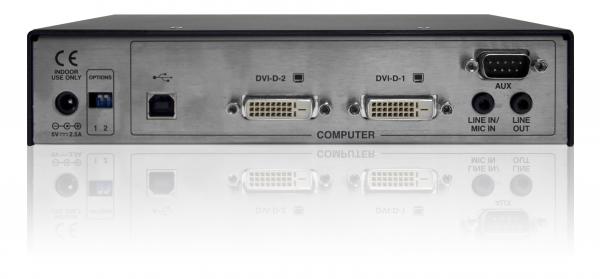

2 x DVI-D x 1, Audio 3.5mm in, Audio 3.5mm out, USB type B, and RS232 9 pin D-Type

System connections:

  • 1 x 8p8c for VNC access
  • 1 x 8p8c and 1 x SFP cage for ADDER Link Infinity Network


Physical design
1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 150mm/6.0” (d), 1.1kg/2.7lbs.

Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter, 5VDC 20.0W output from power adapter

Operating temperature
0 to 40ºC / 32 to 104ºF

Approvals
CE, FCC

Additional Accessories

  • SFP-MM-LC : Multimode fiber optic module with LC connectors for up to 500 Meters
  • SFP-SM-LC : Single mode fiber optic module with LC connectors for up to 10Km
  • SFP-CATx- RJ45: SFP to CATx converter module


Rack mount Options

  • RMK-4S: 1 unit per 1U 19 inch
  • RMK-4D: 2 units per 1U 19 inch
  • RMK-4V: VESA mount, can also be used to secure to walls/surfaces

Package Contents+

  • ALIF2112T unit
  • Power adapter and power cord
  • Single Link DVI-D to DVI-D video cable
  • Combined DVI-D and USB cable (1.8m)
  • 2 x audio cable 2m (3.3mm stereo jacks)
  • Serial null modem cable 2m
