ADDER Link INFINITY ALIF2020 Dual Transmitter/Receiver

SKU#: ALIF2020R-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: ALIF2020R-US

UPC#:
$1,353.75

SKU#: ALIF2020R-US

UPC#:
Option:

SKU#: ALIF2020R-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

Part of the ADDERLink® INFINITY® range, the ADDERLink INFINITY Dual 2020 is a high performance KVM solution that enables you to isolate critical computing hardware in a secure and temperature controlled environment. Configurable as a single link or dual head, this extender provides an ‘at-the-PC’ experience across up to 10km: the digital video you receive is the same as the digital video leaving the remote computer, with no loss of compression and minimal lag. The Dual 2020 comes with a choice of single mode or multimode fiber modules to suit your specific application. This KVM extender can be used as a point to point extender or can be integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

  • ‘At-the-PC’ experience: single link and dual head, 24 bits per color on a maximum resolution of 1920x1200 @ 60Hz with minimal lag
  • Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
  • IP-based: standard IP protocols, ensuring maximum compatibility with your existing IT infrastructure and staff skillset

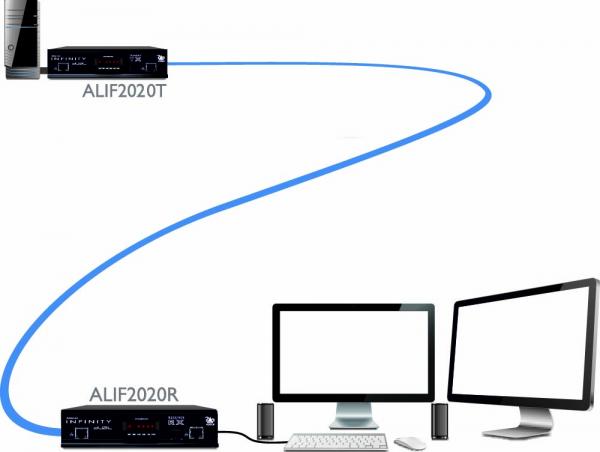

  • Flexible solution: from point-to-point extender to an infinitely extensible matrix
  • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)

Note: This product is only compatible with other Adder branded products

Features+

Perfect digital video, real time control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, ADDER Link Infinity provides pixel perfect and color accurate video with no artifacts. The digital video you receive is the same as the digital video leaving the remote computer.

Single CATx cable or fiber with immunity from interference
Using standard IP technology means you have the choice of a single structured cable (CATx) or fiber connection. The result is that you achieve reliable links without interference. The ADDER Link Infinity dual 2020 also offers the option of up to 10km distances with fiber.

Unlimited extension distances
Extension distance is not limited to a single 100 meter cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.

Support for MacPro (Dithered Video)
Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF2002T has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

USB 2.0 with class control
Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.

EDID management
Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.

Plug and Play
ADDER Link Infinity extender devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

Redundant network operation
The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure.

ADDER Link Infinity Matrix
With the addition of ADDER Link Infinity Management system (A.I.M.) you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network. See the ADDER Link Infinity Matrix data sheet for details.

Specs+

Hardware compatibility
All computers with DVI-D, USB, audio, RS232 - requirement dependent.

DVI-D - Digital Visual Interface (digital only)
The system supports two Single Link DVI-D resolutions to a maximum of 1920 x 1200 @ 60Hz.

USB 2.0 with class control
Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non HID devices. Isochronous devices are not supported (e.g. USB audio or video devices).

Digital stereo audio
The system transfers analog stereo audio (Line In/Line Out) via digital signaling between any transmitter/receiver pair. Additionally, the audio output of any transmitter can be multicast to many receivers.

RS232
RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology and cannot be multicast.

Software compatibility
All known operating systems.

Computer connections transmitter (TX)
2 x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.

Peripheral connections receiver (RX)
2 x DVI-D, audio 3.5mm in, audio 3.5mm out, 4 x USB type A, RS232 9-pin D-type 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.

Physical design
1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 150mm/6.0” (d), 1.1kg/2.7lbs.

Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.

Operating temperature
0 to 40ºC / 32 to 104ºF.

Approvals
CE, FCC.

Package Contents+

  • ALIF2020R unit
  • Power adapter and power cord

Reviews+

Part of the ADDERLink® INFINITY® range, the ADDERLink INFINITY Dual 2020 is a high performance KVM solution that enables you to isolate critical computing hardware in a secure and temperature controlled environment. Configurable as a single link or dual head, this extender provides an ‘at-the-PC’ experience across up to 10km: the digital video you receive is the same as the digital video leaving the remote computer, with no loss of compression and minimal lag. The Dual 2020 comes with a choice of single mode or multimode fiber modules to suit your specific application. This KVM extender can be used as a point to point extender or can be integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

  • ‘At-the-PC’ experience: single link and dual head, 24 bits per color on a maximum resolution of 1920x1200 @ 60Hz with minimal lag
  • Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
  • IP-based: standard IP protocols, ensuring maximum compatibility with your existing IT infrastructure and staff skillset
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix
  • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)

Note: This product is only compatible with other Adder branded products

Perfect digital video, real time control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, ADDER Link Infinity provides pixel perfect and color accurate video with no artifacts. The digital video you receive is the same as the digital video leaving the remote computer.

Single CATx cable or fiber with immunity from interference
Using standard IP technology means you have the choice of a single structured cable (CATx) or fiber connection. The result is that you achieve reliable links without interference. The ADDER Link Infinity dual 2020 also offers the option of up to 10km distances with fiber.

Unlimited extension distances
Extension distance is not limited to a single 100 meter cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.

Support for MacPro (Dithered Video)
Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF2002T has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

USB 2.0 with class control
Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.

EDID management
Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.

Plug and Play
ADDER Link Infinity extender devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

Redundant network operation
The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure.

ADDER Link Infinity Matrix
With the addition of ADDER Link Infinity Management system (A.I.M.) you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network. See the ADDER Link Infinity Matrix data sheet for details.

Hardware compatibility
All computers with DVI-D, USB, audio, RS232 - requirement dependent.

DVI-D - Digital Visual Interface (digital only)
The system supports two Single Link DVI-D resolutions to a maximum of 1920 x 1200 @ 60Hz.

USB 2.0 with class control
Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non HID devices. Isochronous devices are not supported (e.g. USB audio or video devices).

Digital stereo audio
The system transfers analog stereo audio (Line In/Line Out) via digital signaling between any transmitter/receiver pair. Additionally, the audio output of any transmitter can be multicast to many receivers.

RS232
RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology and cannot be multicast.

Software compatibility
All known operating systems.

Computer connections transmitter (TX)
2 x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.

Peripheral connections receiver (RX)
2 x DVI-D, audio 3.5mm in, audio 3.5mm out, 4 x USB type A, RS232 9-pin D-type 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.

Physical design
1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 150mm/6.0” (d), 1.1kg/2.7lbs.

Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.

Operating temperature
0 to 40ºC / 32 to 104ºF.

Approvals
CE, FCC.

  • ALIF2020R unit
  • Power adapter and power cord
