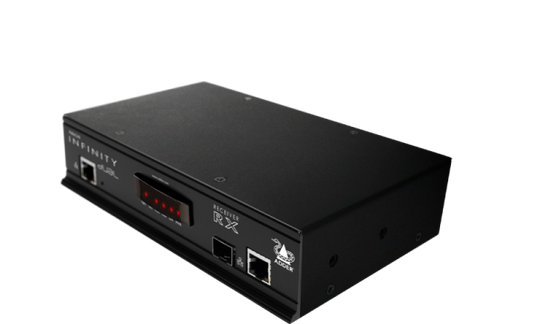

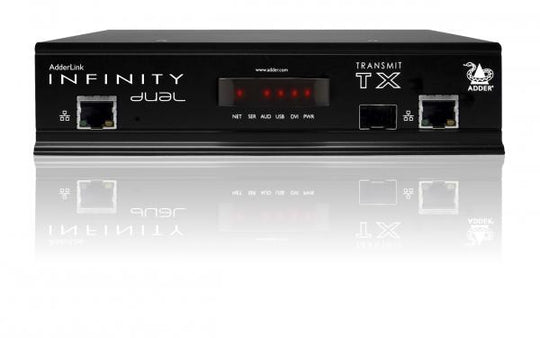

ADDER Link INFINITY ALIF2000 Dual Transmitter/Receiver

SKU#: ALIF2000R-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: ALIF2000R-US

UPC#:
$1,472.50

SKU#: ALIF2000R-US

UPC#:
Option:

SKU#: ALIF2000R-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

Part of the ADDERLink® INFINITY® range, the ADDERLink INFINITY Dual is a high performance KVM solution that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a dual link or dual head, this extender supports either two single link DVI-D resolutions to a maximum of 1920 x 1200 at 60Hz or one dual link to a maximum of 2560x1600 @ 60Hz, across a distance of up to 10km. A choice of single mode or multimode fiber modules (FX) are available to suit your specific application. This extender can be used as a point to point extender or can form the base of a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

  • ‘At-the-PC’ experience: single link or dual link, 24 bits per color on a maximum resolution of 2560 x 1600 at 60Hz with minimal lag
  • Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
  • IP-based: standard IP protocols, ensuring maximum compatibility with your existing IT infrastructure and staff skillset
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix
  • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)

Note: This product is only compatible with other Adder branded products

Features+

Dual link or dual head DVI
The ADDER Link INFINITY dual features full DVI connectivity for either dual link or dual head applications. DVI delivers native digital video signals from your computer to your digital panel (LCD for example) without the need to convert signal types from the digital domain. By delivering native digital video throughout the ADDER Link INFINITY network, you can be assured of accuracy on each and every pixel.

ADDER Link Infinity Dual resolutions:

2x1920x1200, 2x1920x1080, 1x2560x1600, 1x2048x2048

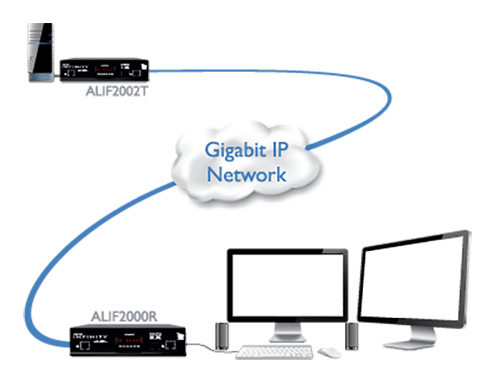

Network Topology - CATx or fiber
You can configure your network topology to best suit your needs. If you simply want to extend one computer Tx to one user Rx, you can do so by connecting both Tx and Rx units via a low cost CATx cable or fiber. Distance is not limited - a single copper network cable will deliver IP traffic up to 100 meters away. If you want to go further, simply add a network switch in to achieve an additional 100 meters. This can be done as many times if you wish. The ADDER Link INFINITY network is assumed to be a private network which you manage. As such, you can control maximum data rates generated by each Tx unit to ensure absolute stability.

Perfect Digital Video
The ADDER Link INFINITY makes use of multiple video encode technologies devised by Adder to deliver the very best picture available. Our encoding systems are spatially lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer.

USB True Emulation
Like the ADDER Link INFINITY, the ADDER Link INFINITY dual enables you to connect any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. Furthermore, most other USB devices can also be attached, such as Mass Storage devices.

USB 2.0
The ADDER Link INFINITY dual uses USB 2.0 connectivity to interface with your keyboard and mouse, and any other peripheral you wish to use. USB is the most broadly used computer peripheral interface standard available.

Digital Stereo Audio
ADDER Link INFINITY dual delivers crystal clear stereo audio digitally across the network. This ensures continuous fidelity and channel separation between the Tx and Rx units, or even in Multicast environments.

A.I.M./API Control
Using A.I.M. gives access to advanced management functions including an EPG style on screen displaying a window which appears in front of the users screen detailing the channels available to them. An administrator can specify different channels and permissions for each user.

RS232 Interface
The ADDER Link INFINITY dual includes a bidirectional RS232 interface which can be used to connect devices such as touch screens, simple printers or to control external equipment, and feedback remote data sources.

Specs+

Hardware compatibility
All computers with DVI (inc. dual head and dual link), USB, Audio, RS232 - requirement dependent

Software compatibility
All known operating systems

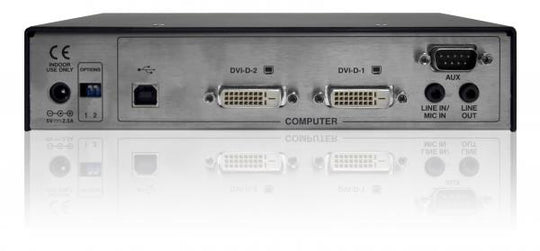

Computer connections Transmitter (Tx)
DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type B, RS232 9 pin D-Type, SFP slot

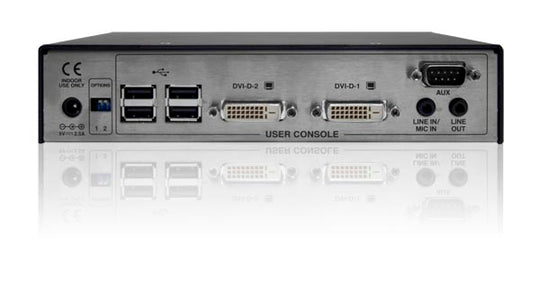

Computer connections Receiver (Rx)
Video: DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type A x 4, RS232 9 pin D-Type, SFP slot

Physical design
1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 150mm/6” (d), 1.1kg/2.7lbs.

Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.4A, input to power adapter, 5VDC 12.5W output from power adapter

Operating temperature
0 to 40 deg C / 32 to 104 deg F

Approvals
CE, FCC

Additional Accessories

  • SFP Fiber module: single mode
  • SFP Fiber module: Multimode
  • Fiber Patch cables: Single mode/Multimode


Rack mount Options

  • RMK-4S: 1 unit per 1U 19 inch
  • RMK-4D: 2 units per 1U 19 inch
  • RMK-4V: VESA mount, can also be used to secure to walls/surfaces

Package Contents+

  • ALIF2000R unit
  • Power adapter and power cord

Reviews+

Part of the ADDERLink® INFINITY® range, the ADDERLink INFINITY Dual is a high performance KVM solution that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a dual link or dual head, this extender supports either two single link DVI-D resolutions to a maximum of 1920 x 1200 at 60Hz or one dual link to a maximum of 2560x1600 @ 60Hz, across a distance of up to 10km. A choice of single mode or multimode fiber modules (FX) are available to suit your specific application. This extender can be used as a point to point extender or can form the base of a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

  • ‘At-the-PC’ experience: single link or dual link, 24 bits per color on a maximum resolution of 2560 x 1600 at 60Hz with minimal lag
  • Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
  • IP-based: standard IP protocols, ensuring maximum compatibility with your existing IT infrastructure and staff skillset
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix
  • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)

Note: This product is only compatible with other Adder branded products

Dual link or dual head DVI
The ADDER Link INFINITY dual features full DVI connectivity for either dual link or dual head applications. DVI delivers native digital video signals from your computer to your digital panel (LCD for example) without the need to convert signal types from the digital domain. By delivering native digital video throughout the ADDER Link INFINITY network, you can be assured of accuracy on each and every pixel.

ADDER Link Infinity Dual resolutions:

2x1920x1200, 2x1920x1080, 1x2560x1600, 1x2048x2048

Network Topology - CATx or fiber
You can configure your network topology to best suit your needs. If you simply want to extend one computer Tx to one user Rx, you can do so by connecting both Tx and Rx units via a low cost CATx cable or fiber. Distance is not limited - a single copper network cable will deliver IP traffic up to 100 meters away. If you want to go further, simply add a network switch in to achieve an additional 100 meters. This can be done as many times if you wish. The ADDER Link INFINITY network is assumed to be a private network which you manage. As such, you can control maximum data rates generated by each Tx unit to ensure absolute stability.

Perfect Digital Video
The ADDER Link INFINITY makes use of multiple video encode technologies devised by Adder to deliver the very best picture available. Our encoding systems are spatially lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer.

USB True Emulation
Like the ADDER Link INFINITY, the ADDER Link INFINITY dual enables you to connect any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. Furthermore, most other USB devices can also be attached, such as Mass Storage devices.

USB 2.0
The ADDER Link INFINITY dual uses USB 2.0 connectivity to interface with your keyboard and mouse, and any other peripheral you wish to use. USB is the most broadly used computer peripheral interface standard available.

Digital Stereo Audio
ADDER Link INFINITY dual delivers crystal clear stereo audio digitally across the network. This ensures continuous fidelity and channel separation between the Tx and Rx units, or even in Multicast environments.

A.I.M./API Control
Using A.I.M. gives access to advanced management functions including an EPG style on screen displaying a window which appears in front of the users screen detailing the channels available to them. An administrator can specify different channels and permissions for each user.

RS232 Interface
The ADDER Link INFINITY dual includes a bidirectional RS232 interface which can be used to connect devices such as touch screens, simple printers or to control external equipment, and feedback remote data sources.

Hardware compatibility
All computers with DVI (inc. dual head and dual link), USB, Audio, RS232 - requirement dependent

Software compatibility
All known operating systems

Computer connections Transmitter (Tx)
DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type B, RS232 9 pin D-Type, SFP slot

Computer connections Receiver (Rx)
Video: DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type A x 4, RS232 9 pin D-Type, SFP slot

Physical design
1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 150mm/6” (d), 1.1kg/2.7lbs.

Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.4A, input to power adapter, 5VDC 12.5W output from power adapter

Operating temperature
0 to 40 deg C / 32 to 104 deg F

Approvals
CE, FCC

Additional Accessories

  • SFP Fiber module: single mode
  • SFP Fiber module: Multimode
  • Fiber Patch cables: Single mode/Multimode


Rack mount Options

  • RMK-4S: 1 unit per 1U 19 inch
  • RMK-4D: 2 units per 1U 19 inch
  • RMK-4V: VESA mount, can also be used to secure to walls/surfaces
  • ALIF2000R unit
  • Power adapter and power cord
