ADDER Link INFINITY ALIF1002R Extender (Transmitter/Receiver)

SKU#: ALIF1002R-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: ALIF1002R-US

UPC#:
$1,258.75

SKU#: ALIF1002R-US

UPC#:
Option:

SKU#: ALIF1002R-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

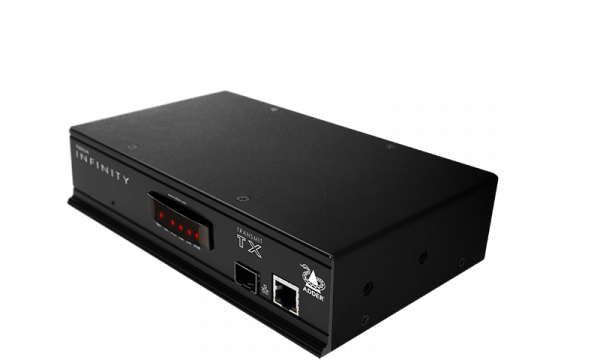

ADDER Link INFINITY ALIF1002R KVM Extender

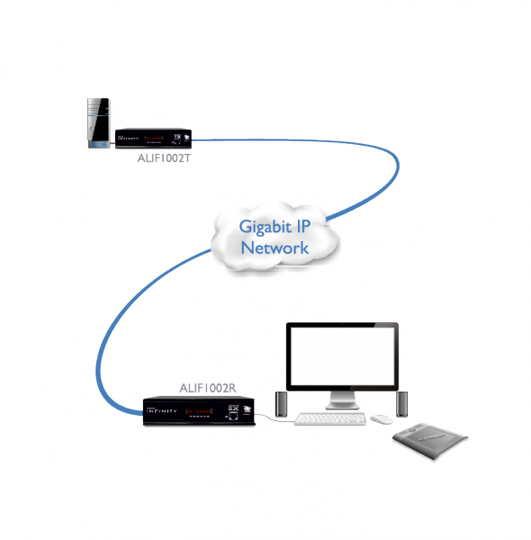

As part of the ADDERLink™ INFINITY range, ADDERLink INFINITY 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 10km. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (AIM).

  • ‘At-the-PC’ experience: single link or single head, 24 bits per color at a maximum resolution of 1920 x 1200 at 60Hz with minimal lag
  • Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
  • IP-based: standard IP protocols, ensuring maximum compatibility with your existing IT infrastructure and staff skillset
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix
  • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)

Note: This product is only compatible with other Adder branded products

Features+

  • Single link, single head digital video and USB2.0 over a single cable
  • Plug and play
  • 100m extension distance on single CATx; unlimited using standard IP network
  • 500m to 10km over fiber
  • Single link or single head configuration
  • 1920 x 1200@60Hz maximum resolution
  • Support for MacPro
  • Redundant network operation

Specs+

Hardware compatibility
All computers with DVI-D, USB, Audio, RS232 - requirement dependent.

DVI-D - Digital Visual Interface (digital only)
The system supports a Single Link DVI-D resolution to a maximum of 1920 x 1200 @ 60Hz.

USB 2.0 with class control
Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non HID devices. Isochronous devices are not supported (e.g. USB audio or video devices).

Digital stereo audio
The system transfers analog stereo audio (Line In/Line Out) via digital signaling between any transmitter/receiver pair. Additionally, the audio output of any transmitter can be multicast to many receivers.

RS232
RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology and cannot be multicast.

Software compatibility
All known operating systems.

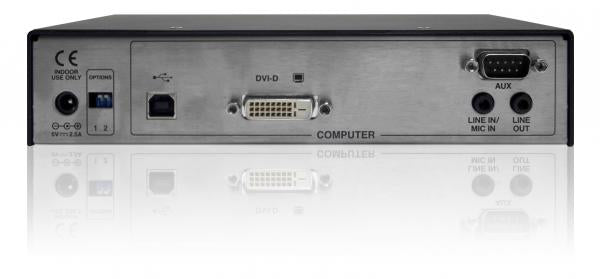

Computer connections transmitter (TX)
1 x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.

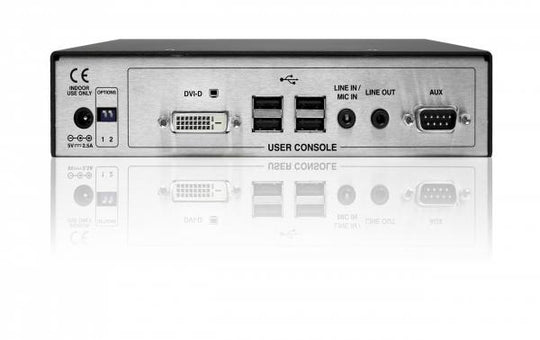

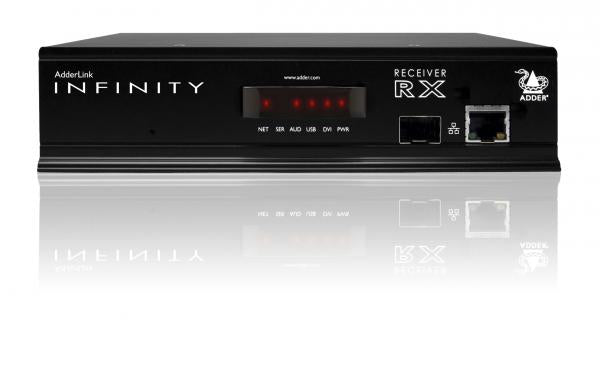

Peripheral connections receiver (RX)
1 x DVI-D, audio 3.5mm in, audio 3.5mm out, 4 x USB type A, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.

Physical design
1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 150mm/6.0” (d), 1.1kg/2.7lbs.

Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.

Operating temperature
0 to 40ºC / 32 to 104ºF.

Approvals
CE, FCC.

Package Contents+

  • ALIF1002R unit
  • Power adapter (20W) and power cord
  • Combined DVI-D and USB cable 1.8m
  • Audio cable 2m (3.5mm stereo jacks)

Reviews+

ADDER Link INFINITY ALIF1002R KVM Extender

As part of the ADDERLink™ INFINITY range, ADDERLink INFINITY 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 10km. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (AIM).

  • ‘At-the-PC’ experience: single link or single head, 24 bits per color at a maximum resolution of 1920 x 1200 at 60Hz with minimal lag
  • Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
  • IP-based: standard IP protocols, ensuring maximum compatibility with your existing IT infrastructure and staff skillset
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix
  • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)

Note: This product is only compatible with other Adder branded products

  • Single link, single head digital video and USB2.0 over a single cable
  • Plug and play
  • 100m extension distance on single CATx; unlimited using standard IP network
  • 500m to 10km over fiber
  • Single link or single head configuration
  • 1920 x 1200@60Hz maximum resolution
  • Support for MacPro
  • Redundant network operation

Hardware compatibility
All computers with DVI-D, USB, Audio, RS232 - requirement dependent.

DVI-D - Digital Visual Interface (digital only)
The system supports a Single Link DVI-D resolution to a maximum of 1920 x 1200 @ 60Hz.

USB 2.0 with class control
Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non HID devices. Isochronous devices are not supported (e.g. USB audio or video devices).

Digital stereo audio
The system transfers analog stereo audio (Line In/Line Out) via digital signaling between any transmitter/receiver pair. Additionally, the audio output of any transmitter can be multicast to many receivers.

RS232
RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology and cannot be multicast.

Software compatibility
All known operating systems.

Computer connections transmitter (TX)
1 x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.

Peripheral connections receiver (RX)
1 x DVI-D, audio 3.5mm in, audio 3.5mm out, 4 x USB type A, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.

Physical design
1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 150mm/6.0” (d), 1.1kg/2.7lbs.

Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.

Operating temperature
0 to 40ºC / 32 to 104ºF.

Approvals
CE, FCC.

  • ALIF1002R unit
  • Power adapter (20W) and power cord
  • Combined DVI-D and USB cable 1.8m
  • Audio cable 2m (3.5mm stereo jacks)
