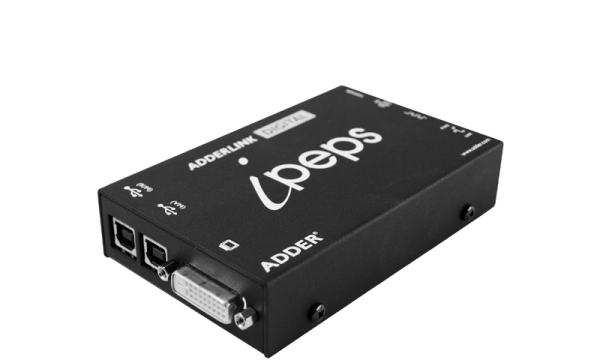

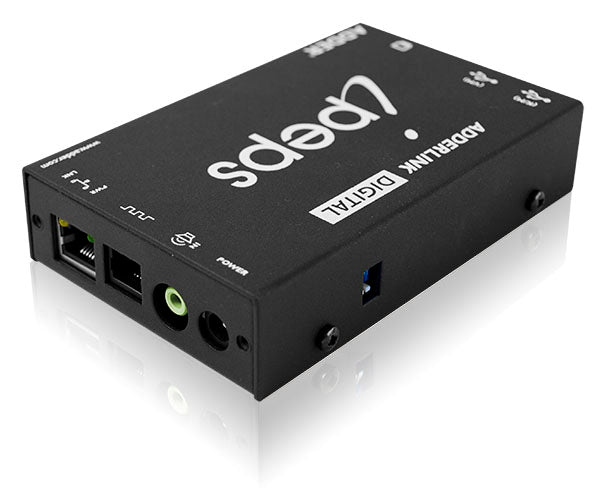

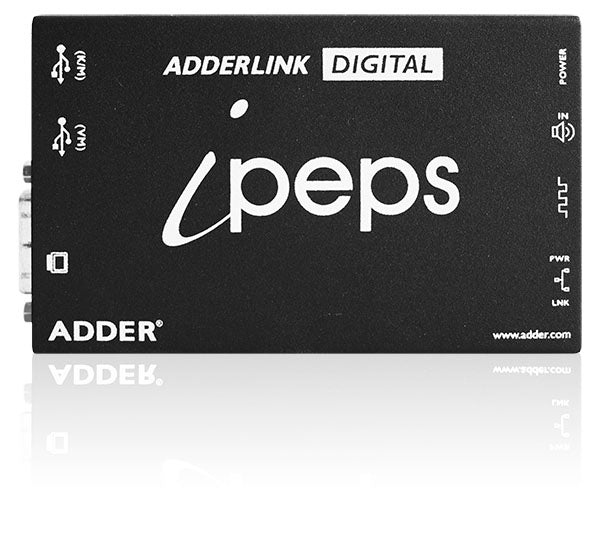

ADDER Link Digital ipeps - KVM-over-IP

SKU#: ALD-IPEPS-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: ALD-IPEPS-US

UPC#:
$715.50

SKU#: ALD-IPEPS-US

UPC#:

SKU#: ALD-IPEPS-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

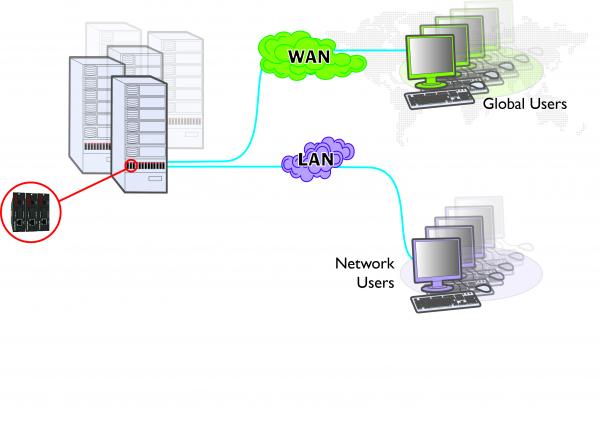

A powerful and flexible Digital KVM over IP product contained within a palm sized unit, the ADDER Link Digital ipeps enables computer access from anywhere in the world, securely and remotely via the Internet or corporate network.

The ADDER Link Digital ipeps uses Real VNC client software that is specifically designed for secure, high performance KVM over IP applications and supports both IPV4 and IPV6 addresses. The ADDER Link Digital ipeps can accept video signals from computers equipped with DVI, DisplayPort DP++ (Dual-Mode) or HDMI along with USB for mouse/keyboard control and for virtual media.

Note: This product is only compatible with other Adder branded products

Features+

Digital Video Inputs
The ADDER Link Digital ipeps will accept any single link DVI input up to 1920x1200 resolution. It can also be attached to computers with DisplayPort DP++ (Dual-Mode) or HDMI with converter cables enabling access to any computer with a digital video interface.

Independent operation
The Digital ipeps gives full control even during boot up, BIOS level or computer crash states, it will even work even if the controlled devices are not operational.

High video performance
The ADDER Link Digital ipeps can be accessed by a standard web browser but for superior graphical performance, a Real VNC viewer should be used. Free of the limitations of HTTPS, Real VNC greatly enhances video performance.

Highly secure plus support for IPV6 addresses
Employing enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) as standard, the ADDER Link Digital ipeps is further enhanced by the use of Real VNC that allows for the creation of ciphered user communications. Supports both IPV4 and IPV6 addresses.

USB and Virtual media support
To transfer files from remote users to controlled computers, the ADDER Link Digital ipeps has been engineered to act as a conduit through which data can be passed. Files can be transferred via IP onto the Digital ipeps and onto the target computer by means of a USB virtual media port.

Power control through RS232 serial interface
The ADDER Link Digital ipeps has an RS232 port to allow communication to devices like power switches, allowing remote rebooting of the target computer.

Choice of power source
The ADDER Link Digital ipeps can either be powered from two USB cables or independently from an external 5V power source.

User management
The ADDER Link Digital ipeps can create up to 16 user profiles with defined access rights. The unit can be accessed by up to 4 users at any one time.

Remote gateway to ADDER Link Infinity
The ADDER Link Digital ipeps can be used as a remote gateway into the ADDER Link Infinity system by connecting it into an ADDER Link Infinity receiver unit. This will allow users to access any computer on the ADDER Link Infinity network with their normal username and passwords from any location including mobile devices.

Specs+

Video resolutions

  • Supports standard PC or Mac video modes up to resolutions of 1920x1200 with scalable viewer.

O/S compatibility

  • All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare, etc.

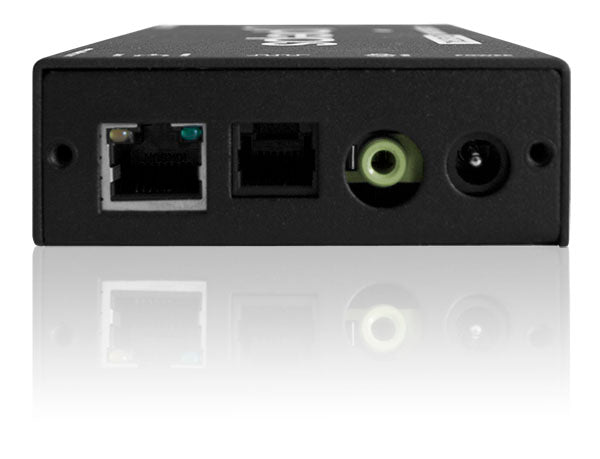

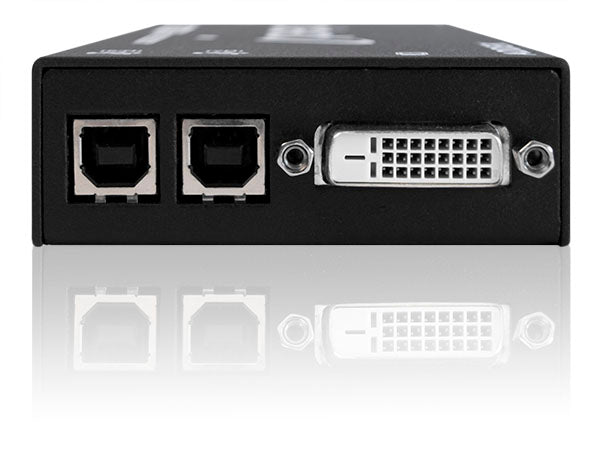

Physical Connections

  • Video: DVI Single link USB 2.0 Type B connectors
  • Ethernet: RJ45 10/100 auto sensing
  • RS232: 6p6c connector

Physical design

  • Compact case, robust metal construction.
  • 120mm/4.72” (w), 27mm/1.06” (h), 75mm/2.95” (d), 0.34kg/0.76lbs.

Power supply

  • Interface powered via two USB cables
  • Externally powered from 100-240VAC, 47/63Hz- 5v - 2.5amp

Operating temperature

  • 0 - 40 deg C / 32 - 104 deg F

Approvals

  • CE, FCC

Additional accessories

  • VSC22: 1 x 3m 3.5mm jack audio cable
  • VSC24: 2 x 2m USB A to B cable
  • VSC45: 1 x 6P6C Plug to 9W Male D type 0.5m Serial cable
  • VSCD1: 1 x 2m Single link DV1 cable
  • PSU-IEC-5VDC-2.5A: 1 x 100/240V 50/60Hz input - 5V 12.5W O/P PSU
  • X-RMK-Fascia: Fascia plate for mounting in X-series rack

Package Contents+

  • iPeps Digital module
  • rack chassis faceplate X-RMK-FASCIA
  • video cable 2m DVI/D to DVI/D
  • 3.5mm jack stereo cable
  • 2 x USB cable 2m (type A to B)
  • power control cable

Reviews+

A powerful and flexible Digital KVM over IP product contained within a palm sized unit, the ADDER Link Digital ipeps enables computer access from anywhere in the world, securely and remotely via the Internet or corporate network.

The ADDER Link Digital ipeps uses Real VNC client software that is specifically designed for secure, high performance KVM over IP applications and supports both IPV4 and IPV6 addresses. The ADDER Link Digital ipeps can accept video signals from computers equipped with DVI, DisplayPort DP++ (Dual-Mode) or HDMI along with USB for mouse/keyboard control and for virtual media.

Note: This product is only compatible with other Adder branded products

Digital Video Inputs
The ADDER Link Digital ipeps will accept any single link DVI input up to 1920x1200 resolution. It can also be attached to computers with DisplayPort DP++ (Dual-Mode) or HDMI with converter cables enabling access to any computer with a digital video interface.

Independent operation
The Digital ipeps gives full control even during boot up, BIOS level or computer crash states, it will even work even if the controlled devices are not operational.

High video performance
The ADDER Link Digital ipeps can be accessed by a standard web browser but for superior graphical performance, a Real VNC viewer should be used. Free of the limitations of HTTPS, Real VNC greatly enhances video performance.

Highly secure plus support for IPV6 addresses
Employing enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) as standard, the ADDER Link Digital ipeps is further enhanced by the use of Real VNC that allows for the creation of ciphered user communications. Supports both IPV4 and IPV6 addresses.

USB and Virtual media support
To transfer files from remote users to controlled computers, the ADDER Link Digital ipeps has been engineered to act as a conduit through which data can be passed. Files can be transferred via IP onto the Digital ipeps and onto the target computer by means of a USB virtual media port.

Power control through RS232 serial interface
The ADDER Link Digital ipeps has an RS232 port to allow communication to devices like power switches, allowing remote rebooting of the target computer.

Choice of power source
The ADDER Link Digital ipeps can either be powered from two USB cables or independently from an external 5V power source.

User management
The ADDER Link Digital ipeps can create up to 16 user profiles with defined access rights. The unit can be accessed by up to 4 users at any one time.

Remote gateway to ADDER Link Infinity
The ADDER Link Digital ipeps can be used as a remote gateway into the ADDER Link Infinity system by connecting it into an ADDER Link Infinity receiver unit. This will allow users to access any computer on the ADDER Link Infinity network with their normal username and passwords from any location including mobile devices.

Video resolutions

  • Supports standard PC or Mac video modes up to resolutions of 1920x1200 with scalable viewer.

O/S compatibility

  • All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare, etc.

Physical Connections

  • Video: DVI Single link USB 2.0 Type B connectors
  • Ethernet: RJ45 10/100 auto sensing
  • RS232: 6p6c connector

Physical design

  • Compact case, robust metal construction.
  • 120mm/4.72” (w), 27mm/1.06” (h), 75mm/2.95” (d), 0.34kg/0.76lbs.

Power supply

  • Interface powered via two USB cables
  • Externally powered from 100-240VAC, 47/63Hz- 5v - 2.5amp

Operating temperature

  • 0 - 40 deg C / 32 - 104 deg F

Approvals

  • CE, FCC

Additional accessories

  • VSC22: 1 x 3m 3.5mm jack audio cable
  • VSC24: 2 x 2m USB A to B cable
  • VSC45: 1 x 6P6C Plug to 9W Male D type 0.5m Serial cable
  • VSCD1: 1 x 2m Single link DV1 cable
  • PSU-IEC-5VDC-2.5A: 1 x 100/240V 50/60Hz input - 5V 12.5W O/P PSU
  • X-RMK-Fascia: Fascia plate for mounting in X-series rack
  • iPeps Digital module
  • rack chassis faceplate X-RMK-FASCIA
  • video cable 2m DVI/D to DVI/D
  • 3.5mm jack stereo cable
  • 2 x USB cable 2m (type A to B)
  • power control cable
