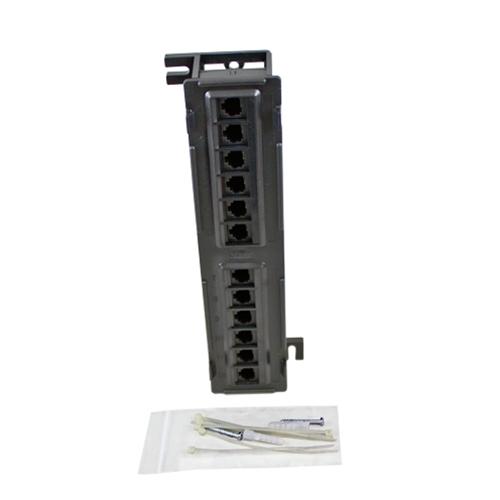

12 Port Cat5E Mini Patch Panel - 110 Type

SKU#: C5EMINIPP-12-BLK

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

15-year-warranty15

15 Year Warranty

SKU#: C5EMINIPP-12-BLK

UPC#:
$22.03

SKU#: C5EMINIPP-12-BLK

UPC#:

SKU#: C5EMINIPP-12-BLK

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

15-year-warranty15

15 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

Description+

Tiny But Powerful

Our Cat5E Patch Panel is designed to provide amazing performance and cable management. Each Cat5E Patch Panel comes with 110-type termination while meeting and exceeding EIA/TIA TSB-40 Cat5E connecting hardware specifications.

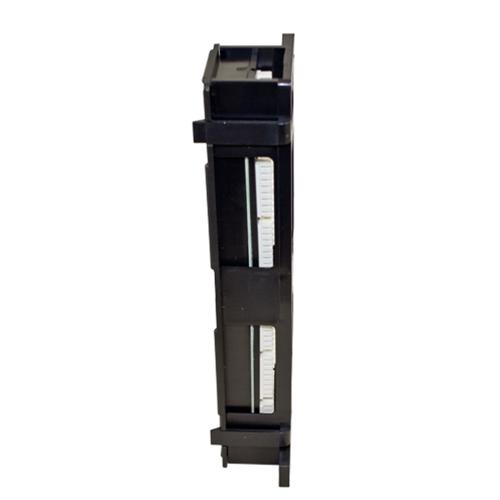

This is one of our mini patch panels. Compared to the regular patch panel, this patch bay weighs in at under a pound. It comes with its own mounting bracket, allowing you to easily get this IT patch panel up, out of the way, and ready to go.

Simple to Use

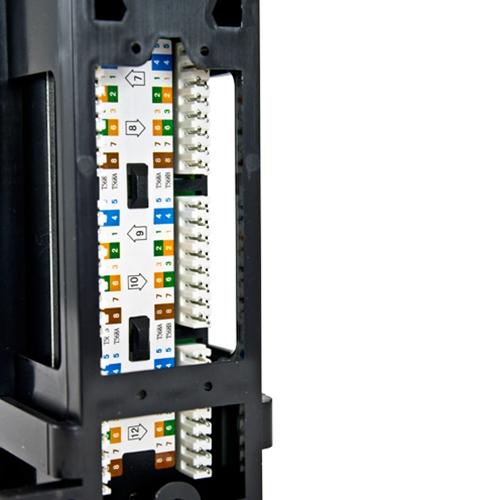

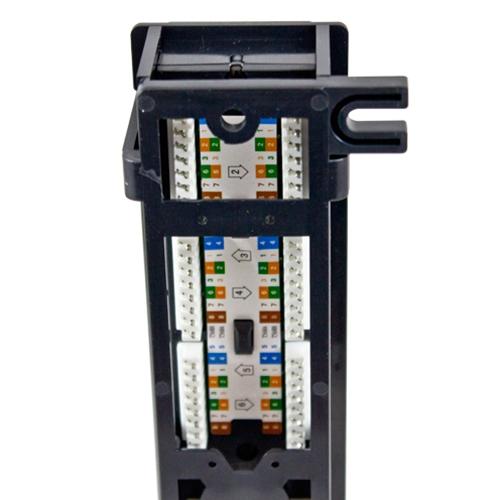

Besides the 110 termination that this network patch panel offers, there are 12 individual Cat5E ports on the front side. Once you get your cables terminated on the one side, you just plug and go on the other. This is a very quick and easy solution for being able to swap out devices at any time. Plus, with numbered ports, you can easily keep track of what is plugged in where for better organization.

These IT patch panels are able to handle wire diameters of 22AWG to 26AWG, so you should be able to easily find wires to fit.

Compacted Perfection

Each patch bay is a high-density panel design. The actual physical dimensions of this product are 10 inches by 2.25 inches by 1.75 inches, giving you plenty of space to work with after you get it set up.

These network panels meet TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specifications, so they are up to the latest standards. UL certified, they have been also tested to the highest standard for safety.



Features+

  • Space-saving High Density Design
  • Light Weight - Under 1 Pound
  • 110 Type Terminations
  • Meets or Exceeds EIA/TIA TSB-40 Specifications
  • Accommodates 22-26AWG Wire
  • 15 Year Warrantyy

Specs+

  • Mounting Bracket Included
  • Meets TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specification
  • Ultra space saving, high-density panel design
  • Wire Diameter Supported: 22AWG To 26AWG
  • Insulation Diameter Range: 0.70 to 1.40mm
  • Jack Contacts: Phosphor bronze, 50-micron gold plated
  • IDC Contacts: Phosphor bronze, 50-micron gold plate over nickel plating
  • Flammability: UL 94 VO
  • Dimensions: 10" (H) x 2 1/4" (W) x 1 3/4" (D)
  • Operating Temperature: -40 to +70 degrees Celsius
  • Black electrostatic powder-coated steel
  • UL Certification
  • TIA/EIA-T568-A & B Wiring configuration
  • SPEC SHEET

Package Contents+

  • (1) Cat5E Mini Patch Panel
  • (1) Mounting Bracket

Return Policy

We want you to love your purchase! If you are not 100% satisfied with your 12 port Cat5E mini patch panel, contact us within 60 days of purchase for details on our money back guarantee.

Reviews+

Tiny But Powerful

Our Cat5E Patch Panel is designed to provide amazing performance and cable management. Each Cat5E Patch Panel comes with 110-type termination while meeting and exceeding EIA/TIA TSB-40 Cat5E connecting hardware specifications.

This is one of our mini patch panels. Compared to the regular patch panel, this patch bay weighs in at under a pound. It comes with its own mounting bracket, allowing you to easily get this IT patch panel up, out of the way, and ready to go.

Simple to Use

Besides the 110 termination that this network patch panel offers, there are 12 individual Cat5E ports on the front side. Once you get your cables terminated on the one side, you just plug and go on the other. This is a very quick and easy solution for being able to swap out devices at any time. Plus, with numbered ports, you can easily keep track of what is plugged in where for better organization.

These IT patch panels are able to handle wire diameters of 22AWG to 26AWG, so you should be able to easily find wires to fit.

Compacted Perfection

Each patch bay is a high-density panel design. The actual physical dimensions of this product are 10 inches by 2.25 inches by 1.75 inches, giving you plenty of space to work with after you get it set up.

These network panels meet TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specifications, so they are up to the latest standards. UL certified, they have been also tested to the highest standard for safety.



  • Space-saving High Density Design
  • Light Weight - Under 1 Pound
  • 110 Type Terminations
  • Meets or Exceeds EIA/TIA TSB-40 Specifications
  • Accommodates 22-26AWG Wire
  • 15 Year Warrantyy
  • Mounting Bracket Included
  • Meets TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specification
  • Ultra space saving, high-density panel design
  • Wire Diameter Supported: 22AWG To 26AWG
  • Insulation Diameter Range: 0.70 to 1.40mm
  • Jack Contacts: Phosphor bronze, 50-micron gold plated
  • IDC Contacts: Phosphor bronze, 50-micron gold plate over nickel plating
  • Flammability: UL 94 VO
  • Dimensions: 10" (H) x 2 1/4" (W) x 1 3/4" (D)
  • Operating Temperature: -40 to +70 degrees Celsius
  • Black electrostatic powder-coated steel
  • UL Certification
  • TIA/EIA-T568-A & B Wiring configuration
  • SPEC SHEET
  • (1) Cat5E Mini Patch Panel
  • (1) Mounting Bracket

Return Policy

We want you to love your purchase! If you are not 100% satisfied with your 12 port Cat5E mini patch panel, contact us within 60 days of purchase for details on our money back guarantee.

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
J
J.
High quality patch panel

We professionally install structured cabling, and this model has been easy and reliable. Highly recommended. This is a business where speed is of the essence, and not having to re-punch or re-fit is a necessity.

J
J.
Great Patch Panel for Home Network!

I bought this patch panel for some lines I put in my house and it was easy to wire and punch down. The diagram on the back was helpful and the supplied paper easy to mount to wall and I only installed four lines so if I need more I’ll have plenty of ports available. You do need a punch tool if you’ve never done this type of thing. This panel works good if your just hooking up a switch on a wall or in a network box.

J
J.
Good design, made well.

Installing in an area where I do not have much room - really happy for the thin profile. Easy to clamp and disconnect if needed to add wires in the future. Solid piece here and comparable to other shops that sell this for $30 and up.

S
S.Q.
12 port patch panel

I bought this patch panel because I had more than 8 ports to wire, this patch panel has 12 ports. I was happy that it fits within my in wall patch panel. I am also happy with the quality. It's sturdy and well made.
